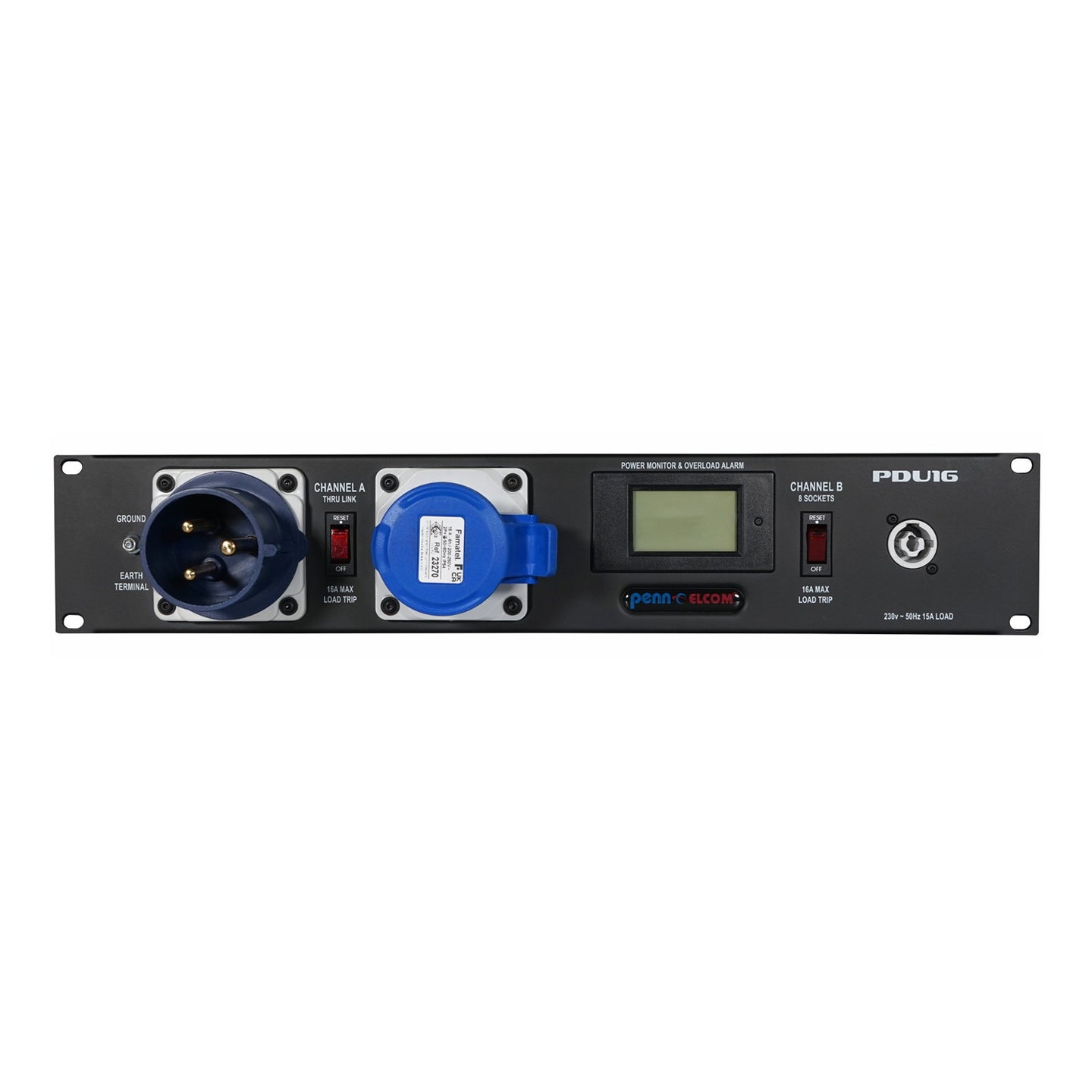

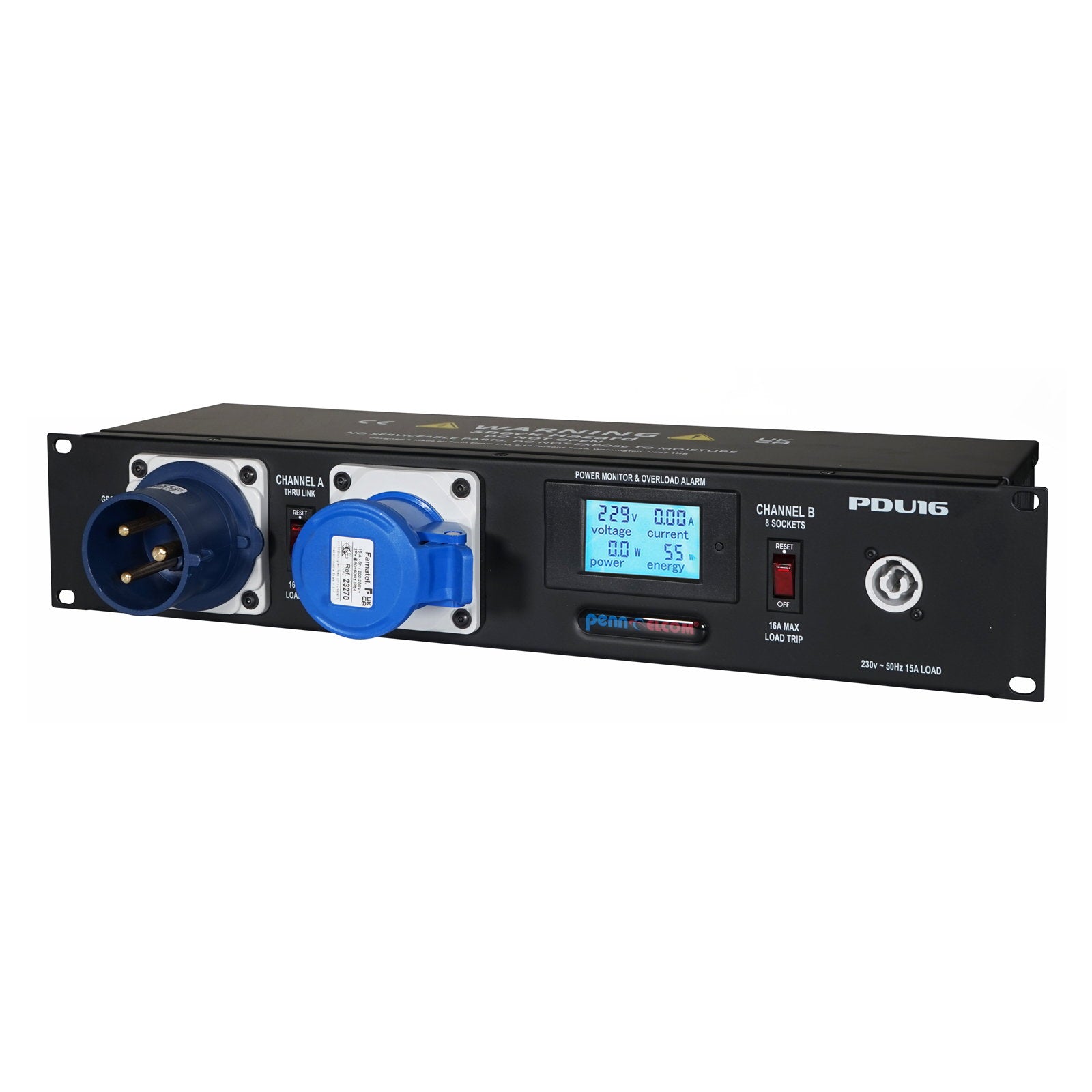

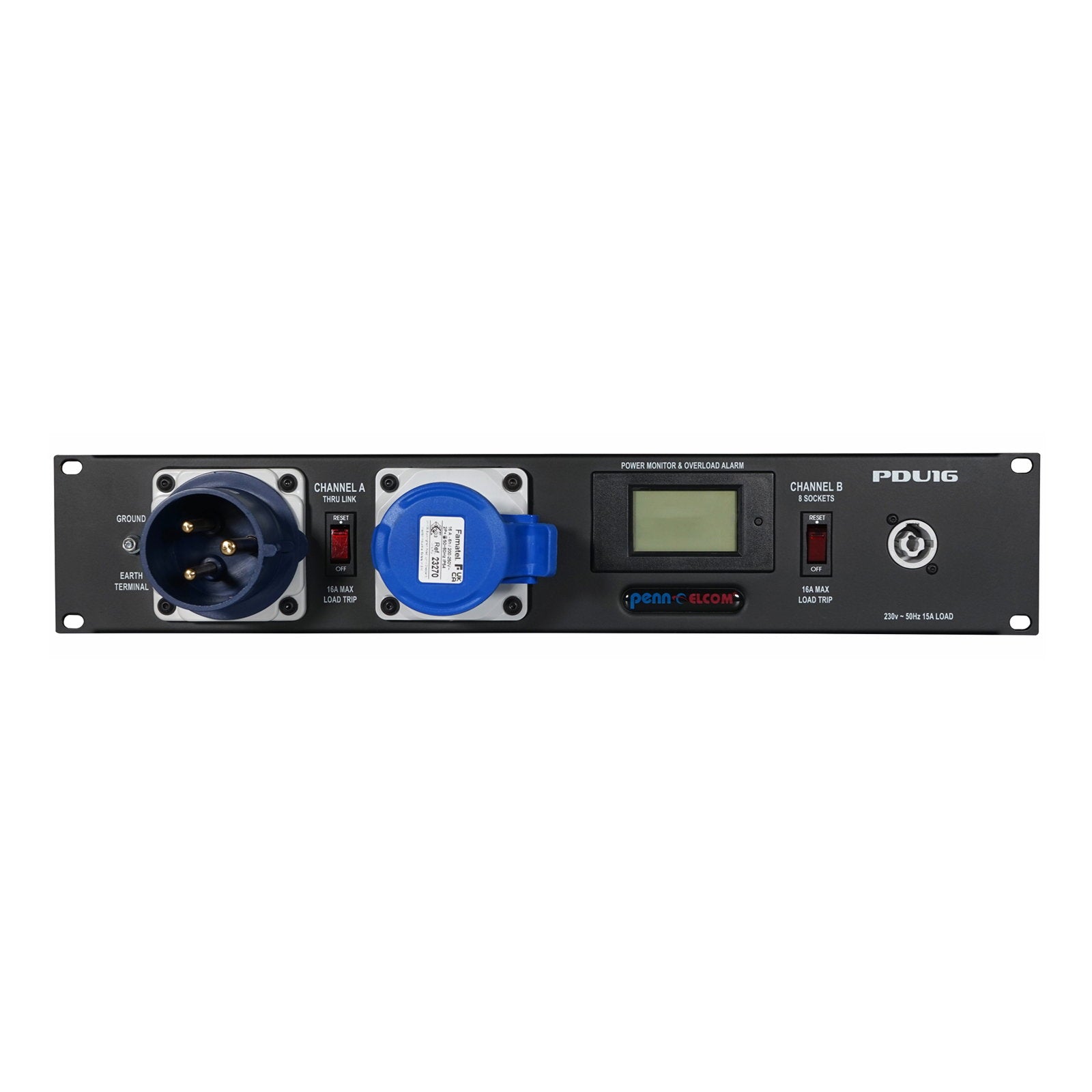

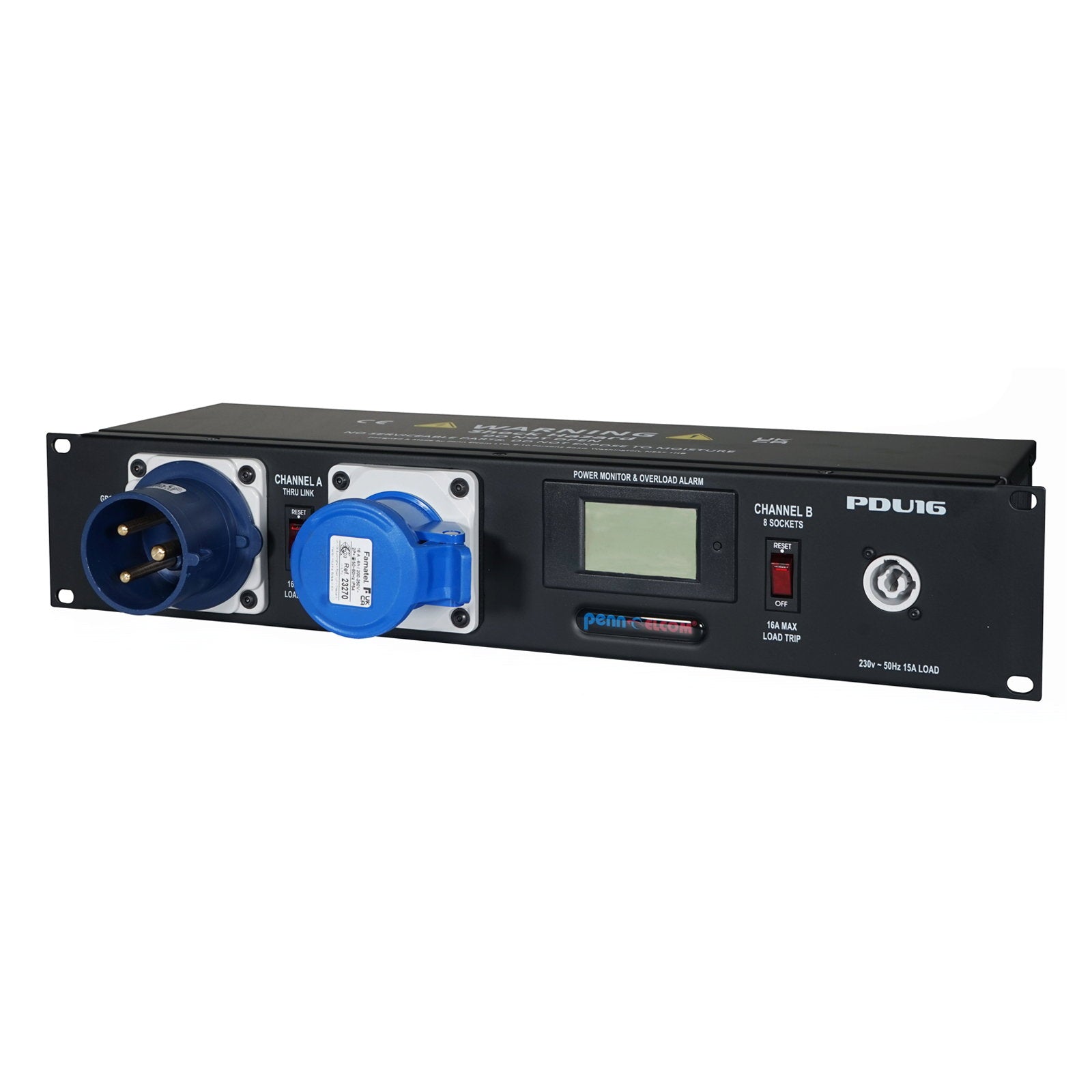

2U 32A AC rack mount PDU With 8 x Neutrik powerCON sockets overload protection and power monitoring. 2U high horizontal mounting unit designed to provide versatile hook-up for the distribution of AC power within multimedia theatre and touring rack applications.
Main input - C-FORM 240V 32A IP44 panel mount appliance inletCircuit A: - Protection: Illuminated 16A circuit breaker for overload protection

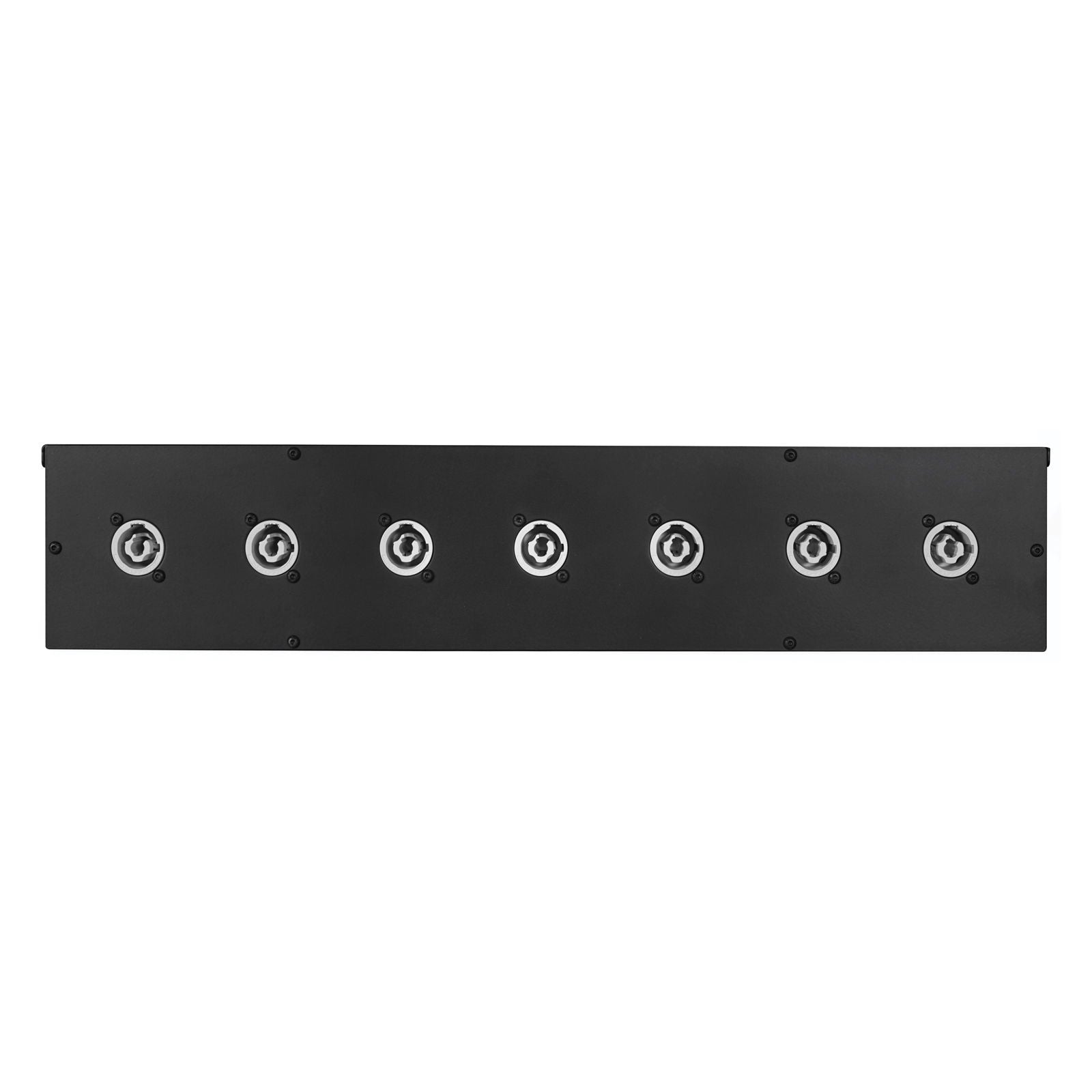

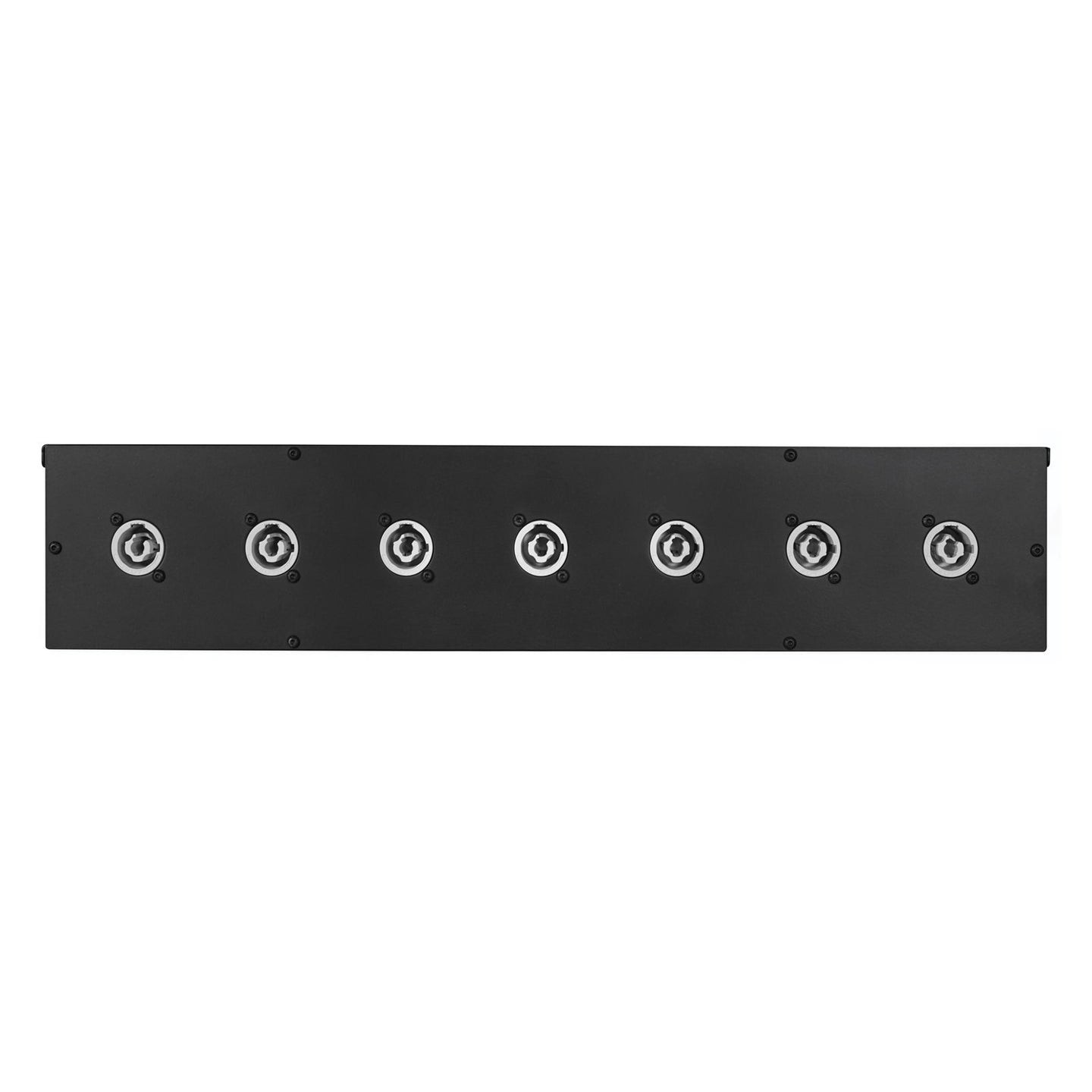

- Output - C-FORM 240V 16A IP44 panel mount appliance outletCircuit B: - Output - 8 x Neutrik powerCON sockets with a maximum combined load of 16A- Protection - Illuminated circuit breaker 16A overload protection
LCD monitor: LCD power monitor giving voltage current power energy levels and overload alarm Earth link - M4 screw terminal for rack grounding
Compliance: All components used in this conform to current RoHS CE and UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-23 EMS:EN61000-4-23456811; Light industry level criteria A) Nominal voltage: 110V~240V Usable voltages: 110V~240V Frequency: 50/60Hz Max. output current: 16A Dimensions (H x W x D): 88 x 430 x 140mm (Overall width including rack ears 483mm) Weight: 2.5kg
Main input - C-FORM 240V 32A IP44 panel mount appliance inlet
- Output - C-FORM 240V 16A IP44 panel mount appliance outlet
Compliance: All components used in this conform to current RoHS CE and UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-23 EMS:EN61000-4-23456811; Light industry level criteria A) Nominal voltage: 110V~240V Usable voltages: 110V~240V Frequency: 50/60Hz Max. output current: 16A Dimensions (H x W x D): 88 x 430 x 140mm (Overall width including rack ears 483mm) Weight: 2.5kg
Penn Elcom 2U 32A Rackmount Power Distribution Unit (PDU16-32PC)
Brand: Penn Elcom
SKU: PENN147
Regular price
£379.99
Need help with choosing the right product?
Click here to reach out to one of our experts.
2U 32A AC rack mount PDU With 8 x Neutrik powerCON sockets overload protection and power monitoring. 2U high horizontal mounting unit designed to provide versatile hook-up for the distribution of AC power within multimedia theatre and touring rack applications.
Main input - C-FORM 240V 32A IP44 panel mount appliance inletCircuit A: - Protection: Illuminated 16A circuit breaker for overload protection
- Output - C-FORM 240V 16A IP44 panel mount appliance outletCircuit B: - Output - 8 x Neutrik powerCON sockets with a maximum combined load of 16A- Protection - Illuminated circuit breaker 16A overload protection
LCD monitor: LCD power monitor giving voltage current power energy levels and overload alarm Earth link - M4 screw terminal for rack grounding
Compliance: All components used in this conform to current RoHS CE and UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-23 EMS:EN61000-4-23456811; Light industry level criteria A) Nominal voltage: 110V~240V Usable voltages: 110V~240V Frequency: 50/60Hz Max. output current: 16A Dimensions (H x W x D): 88 x 430 x 140mm (Overall width including rack ears 483mm) Weight: 2.5kg
Main input - C-FORM 240V 32A IP44 panel mount appliance inlet
- Output - C-FORM 240V 16A IP44 panel mount appliance outlet
Compliance: All components used in this conform to current RoHS CE and UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-23 EMS:EN61000-4-23456811; Light industry level criteria A) Nominal voltage: 110V~240V Usable voltages: 110V~240V Frequency: 50/60Hz Max. output current: 16A Dimensions (H x W x D): 88 x 430 x 140mm (Overall width including rack ears 483mm) Weight: 2.5kg
