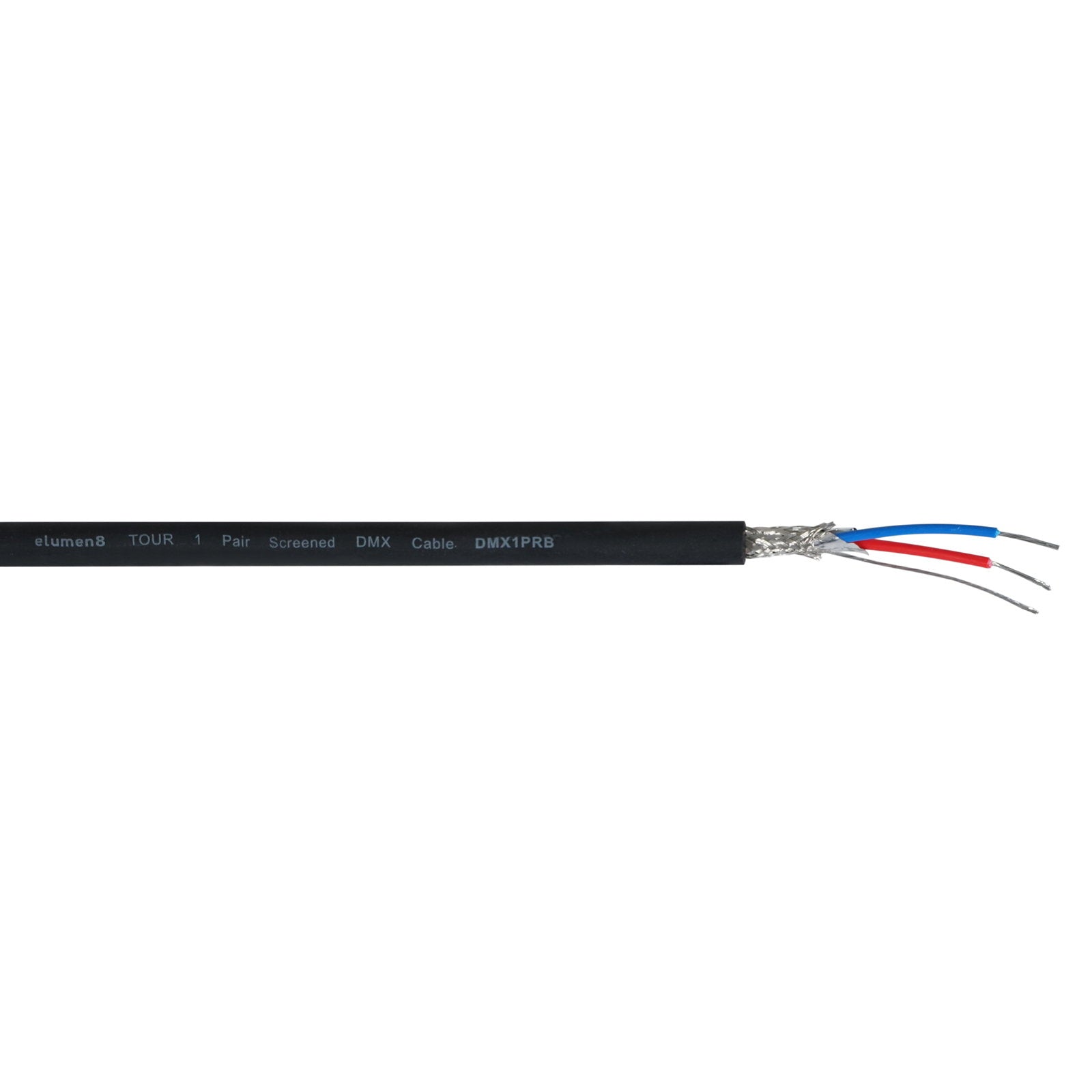

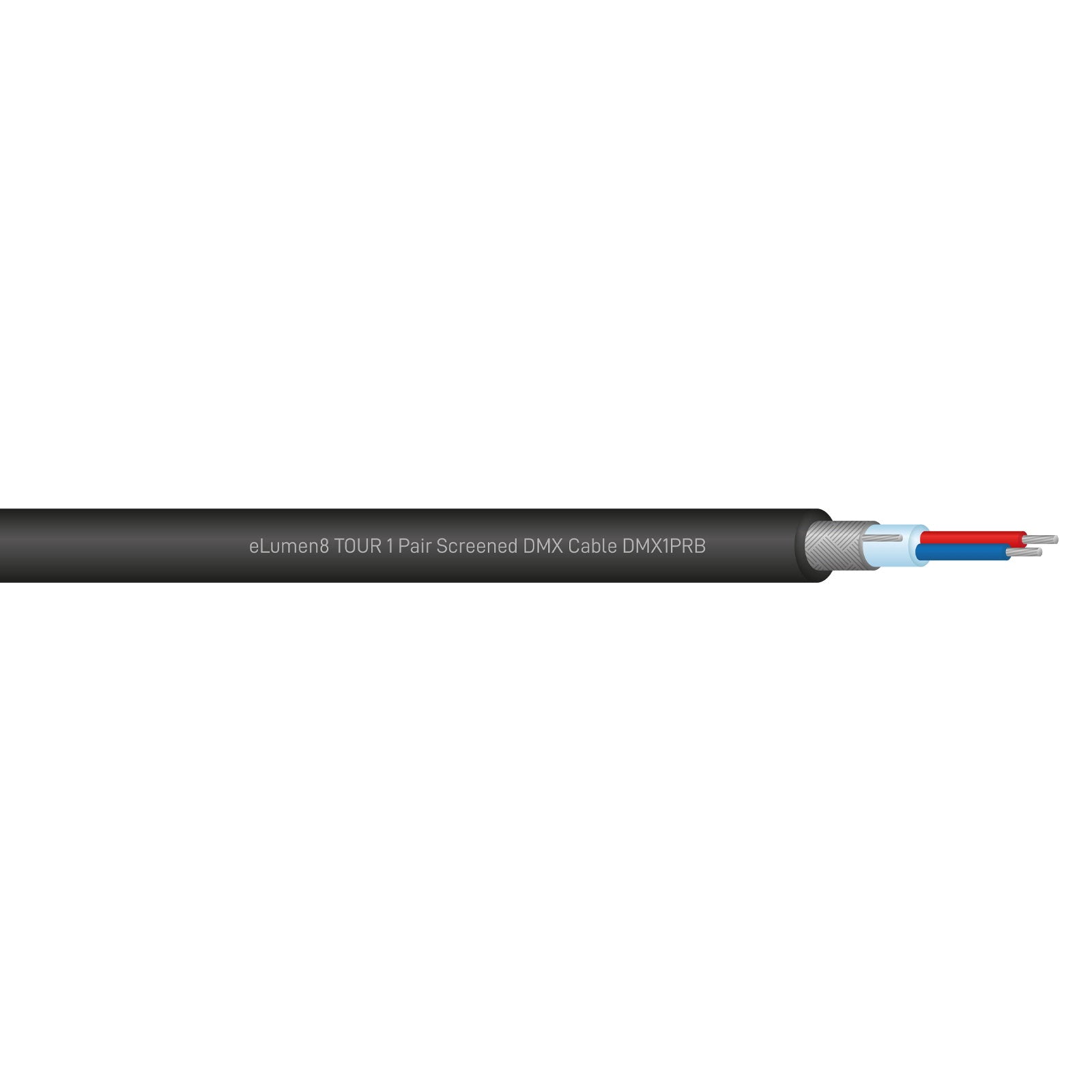

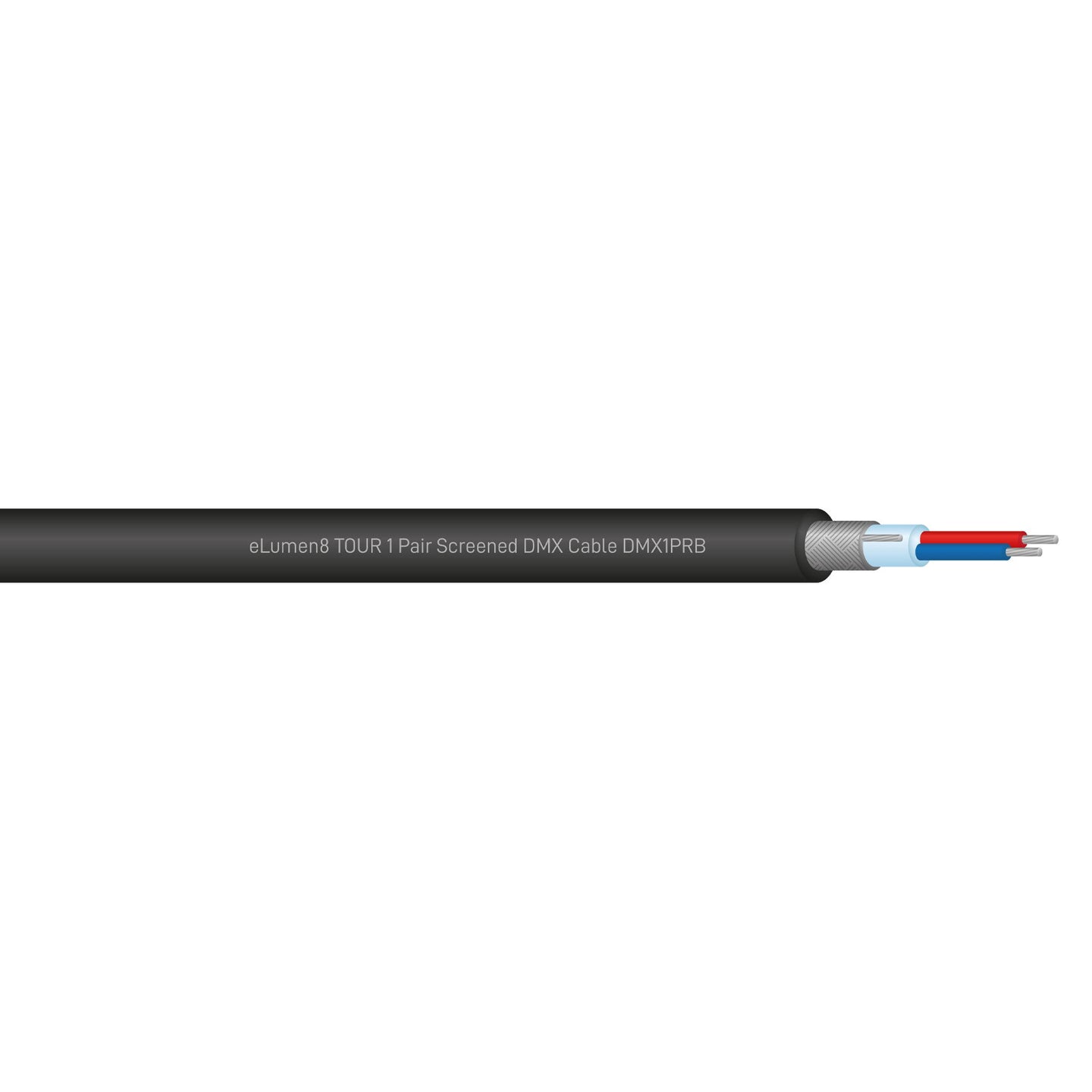

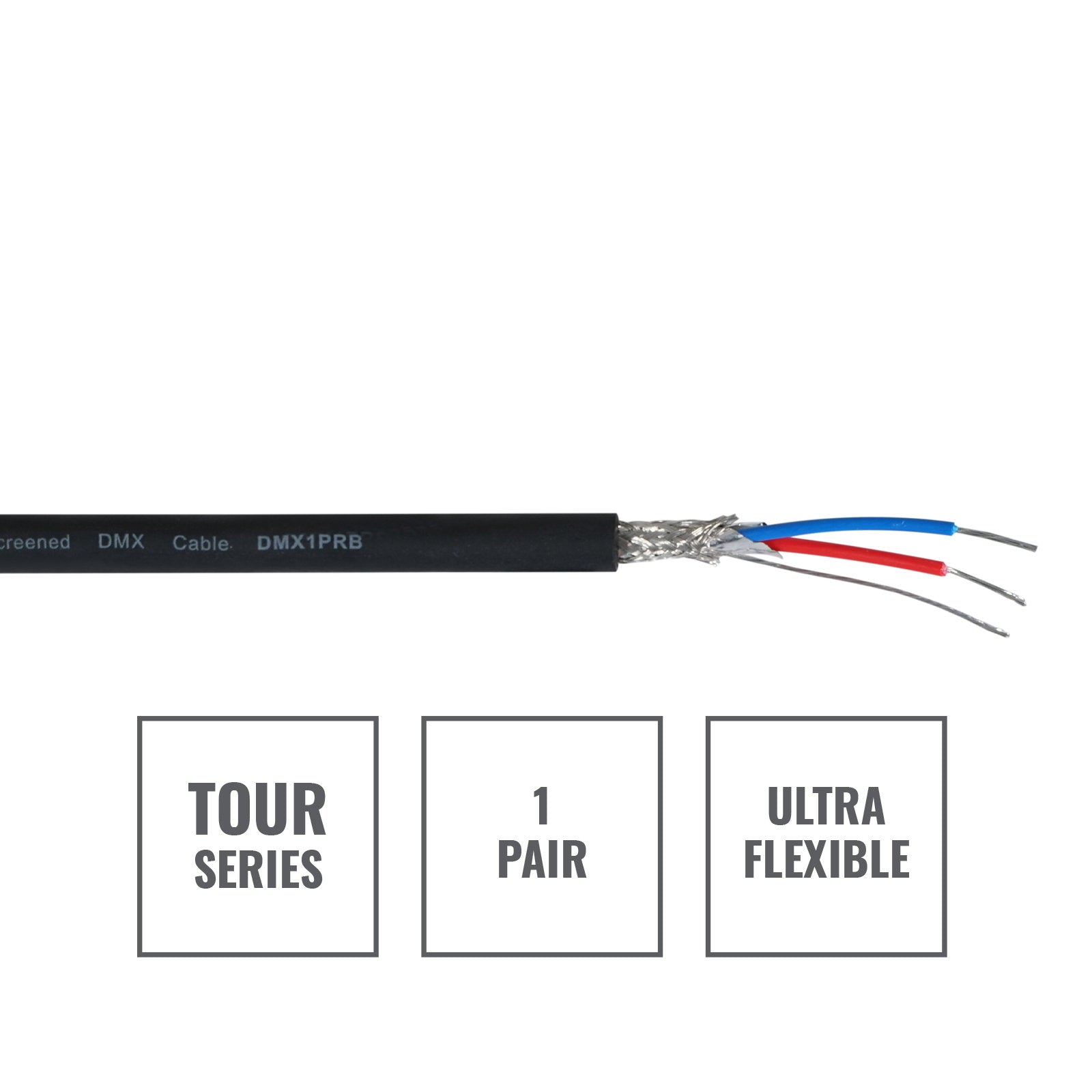

Touring quality 1 pair screened DMX cable suitable for heavy duty stage lighting control applications. The cable is constructed from a pair of tinned oxygen-free copper cores protected by both aluminium polyester foil and a tinned oxygen-free copper woven braid complete with drain wire. The cable is finished with a low memory super flexible outer PVC jacket for the ultimate flexibility.
110Ω impedance Tinned copper cores 1 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen Colour coding: Red/Blue Super flexible PVC outer jacket Supplied on 500m reels
Conductors: 2 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 6mm Operating temperature range: -15 to +60O°C
110Ω impedance Tinned copper cores 1 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen Colour coding: Red/Blue Super flexible PVC outer jacket Supplied on 500m reels
Conductors: 2 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 6mm Operating temperature range: -15 to +60O°C
Elumen8 TOUR Screened 1 Pair DMX Cable DMX1PRB 500m Drum Black
Brand: Elumen8
SKU: CABL603B
Regular price
£517.99
Need help with choosing the right product?
Click here to reach out to one of our experts.
Touring quality 1 pair screened DMX cable suitable for heavy duty stage lighting control applications. The cable is constructed from a pair of tinned oxygen-free copper cores protected by both aluminium polyester foil and a tinned oxygen-free copper woven braid complete with drain wire. The cable is finished with a low memory super flexible outer PVC jacket for the ultimate flexibility.
110Ω impedance Tinned copper cores 1 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen Colour coding: Red/Blue Super flexible PVC outer jacket Supplied on 500m reels
Conductors: 2 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 6mm Operating temperature range: -15 to +60O°C
110Ω impedance Tinned copper cores 1 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen Colour coding: Red/Blue Super flexible PVC outer jacket Supplied on 500m reels
Conductors: 2 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 6mm Operating temperature range: -15 to +60O°C
