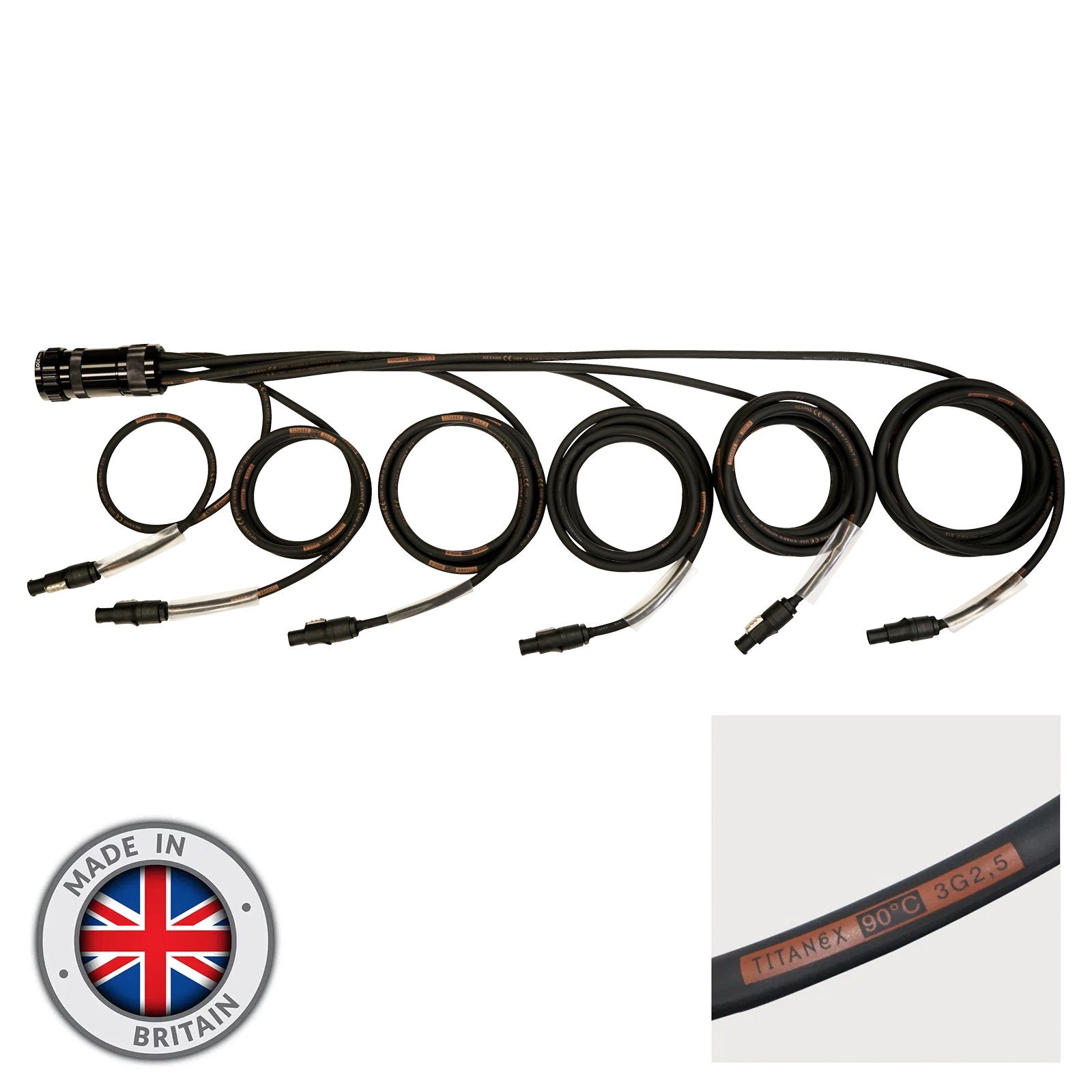

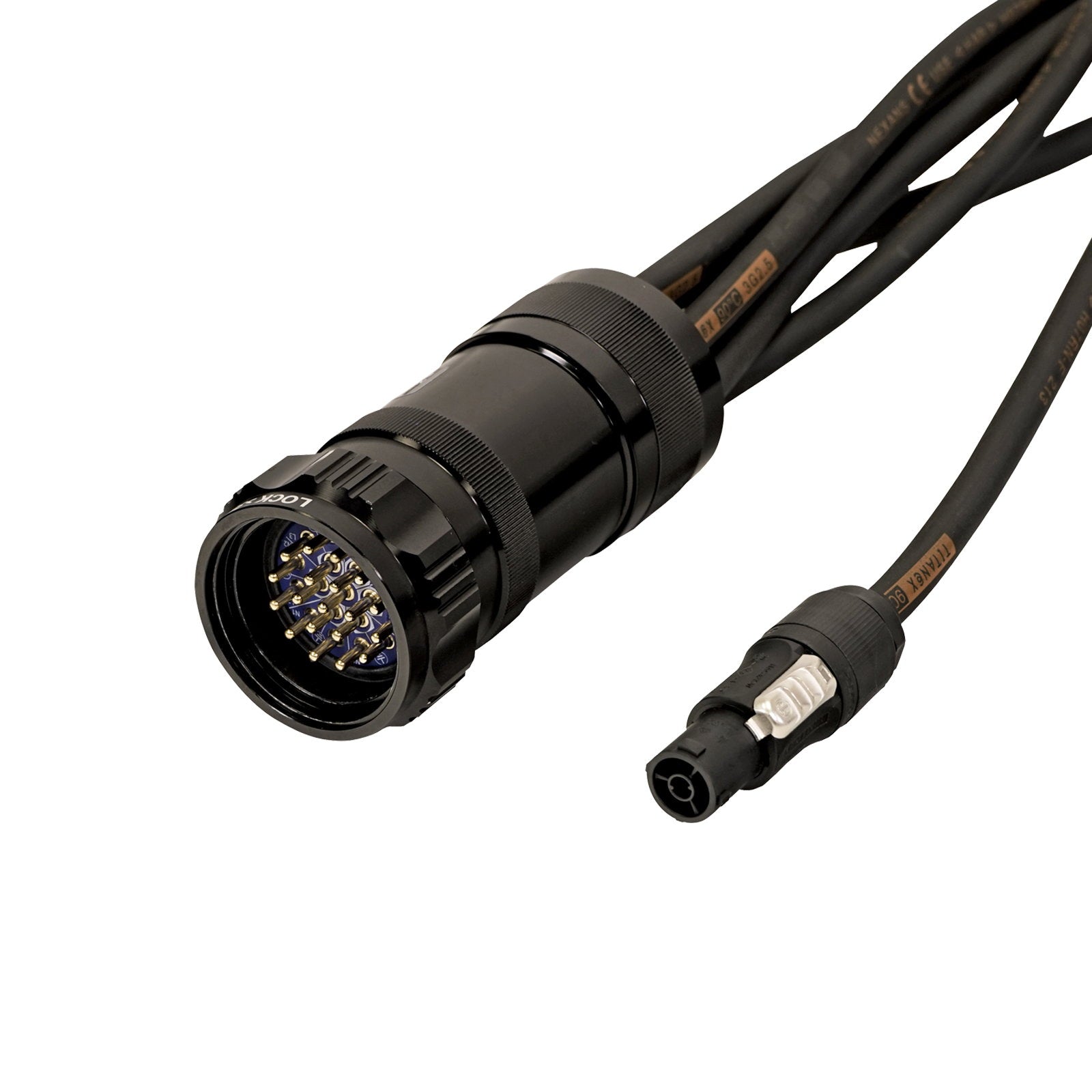

High quality rental-ready Socapex fan out cable made in Britain from Titanex H07RN-Fcable and Elumen8 Showsafe 19-Pin UL certified Socapex connectors. The cables are finished with a short length of clear heatshrink ready for identification or asset label and each tail is numbered to aid circuit identification with each tail staggered by 1m starting at 1m thru to 6m in length.
Made in Britain Titanex H07RN-F 2.5mm 3 Core rubber cable Elumen8 Showsafe 19-Pin connectors complete with 6-way cable gland 6 x Neutrik NAC3FX-W-TOP powerCON TRUE1 connectors Clear heatshrink suitable for identification or asset label Oil resistant and flame retardant according to IEC/EN 60332-1-2 standard Chemical resistant cross-linked elastomer insulation Bare copper conductors Operating temperature range: -25 to 55°C Maximum conductor temperature in service: 90°C Amphenol Socapex SL419 compatible IP67* ingress protection when mated (*Socapex end) FMLB (first make last break) earth contacts Multi-point gold plated contacts Staggered tails lengths at 1m intervals (1m thru 6m)
Made in Britain Titanex H07RN-F 2.5mm 3 Core rubber cable Elumen8 Showsafe 19-Pin connectors complete with 6-way cable gland 6 x Neutrik NAC3FX-W-TOP powerCON TRUE1 connectors Clear heatshrink suitable for identification or asset label Oil resistant and flame retardant according to IEC/EN 60332-1-2 standard Chemical resistant cross-linked elastomer insulation Bare copper conductors Operating temperature range: -25 to 55°C Maximum conductor temperature in service: 90°C Amphenol Socapex SL419 compatible IP67* ingress protection when mated (*Socapex end) FMLB (first make last break) earth contacts Multi-point gold plated contacts Staggered tails lengths at 1m intervals (1m thru 6m)
Elumen8 Socapex 19-Pin Male - powerCON TrRUE1 2.5mm Staggered Fan-Out Cable
Brand: Elumen8
SKU: CABL472AB
Regular price
£217.99
Pickup available at Venutec
Usually ready in 24 hours
Elumen8 Socapex 19-Pin Male - powerCON TrRUE1 2.5mm Staggered Fan-Out Cable
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
High quality rental-ready Socapex fan out cable made in Britain from Titanex H07RN-Fcable and Elumen8 Showsafe 19-Pin UL certified Socapex connectors. The cables are finished with a short length of clear heatshrink ready for identification or asset label and each tail is numbered to aid circuit identification with each tail staggered by 1m starting at 1m thru to 6m in length.
Made in Britain Titanex H07RN-F 2.5mm 3 Core rubber cable Elumen8 Showsafe 19-Pin connectors complete with 6-way cable gland 6 x Neutrik NAC3FX-W-TOP powerCON TRUE1 connectors Clear heatshrink suitable for identification or asset label Oil resistant and flame retardant according to IEC/EN 60332-1-2 standard Chemical resistant cross-linked elastomer insulation Bare copper conductors Operating temperature range: -25 to 55°C Maximum conductor temperature in service: 90°C Amphenol Socapex SL419 compatible IP67* ingress protection when mated (*Socapex end) FMLB (first make last break) earth contacts Multi-point gold plated contacts Staggered tails lengths at 1m intervals (1m thru 6m)
Made in Britain Titanex H07RN-F 2.5mm 3 Core rubber cable Elumen8 Showsafe 19-Pin connectors complete with 6-way cable gland 6 x Neutrik NAC3FX-W-TOP powerCON TRUE1 connectors Clear heatshrink suitable for identification or asset label Oil resistant and flame retardant according to IEC/EN 60332-1-2 standard Chemical resistant cross-linked elastomer insulation Bare copper conductors Operating temperature range: -25 to 55°C Maximum conductor temperature in service: 90°C Amphenol Socapex SL419 compatible IP67* ingress protection when mated (*Socapex end) FMLB (first make last break) earth contacts Multi-point gold plated contacts Staggered tails lengths at 1m intervals (1m thru 6m)
