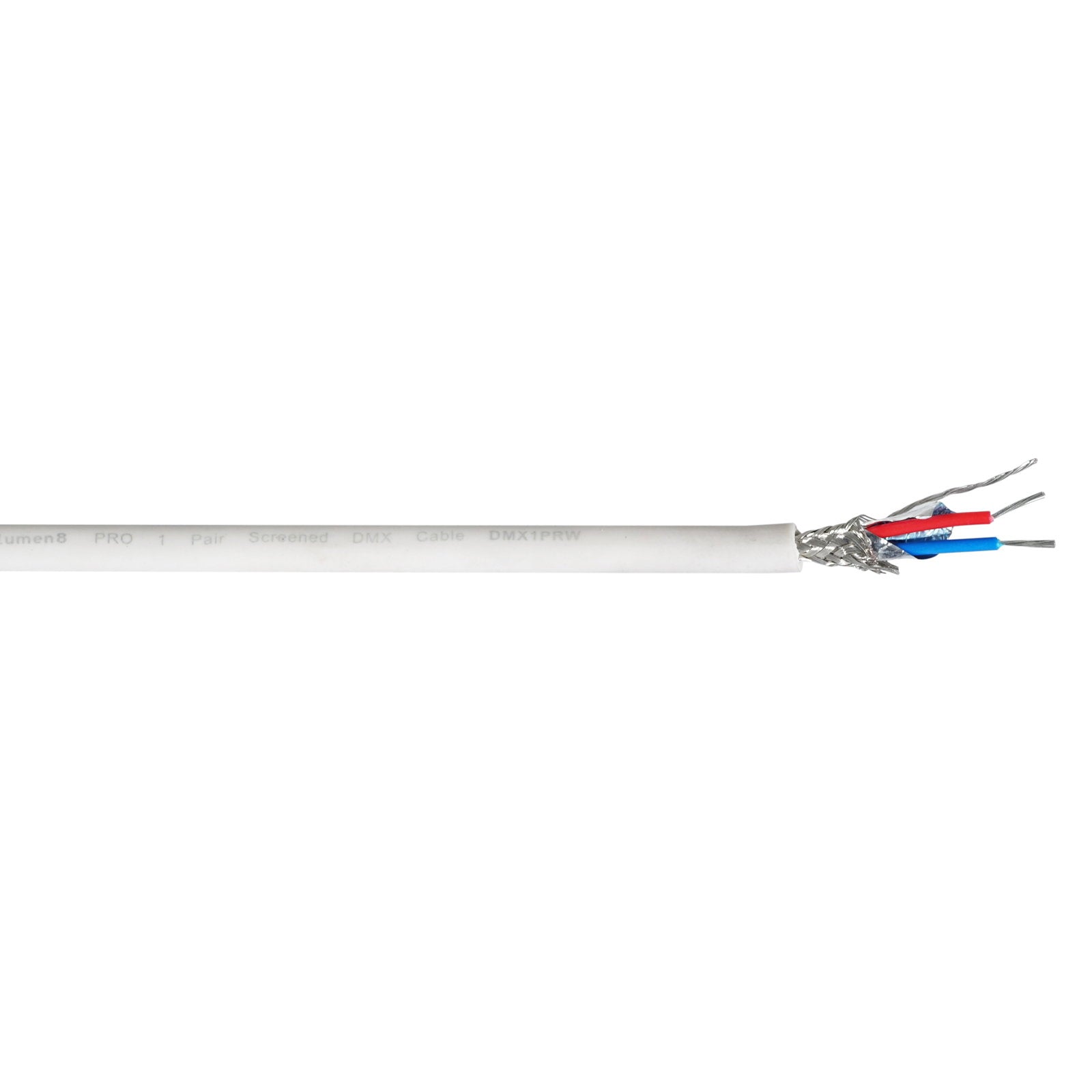

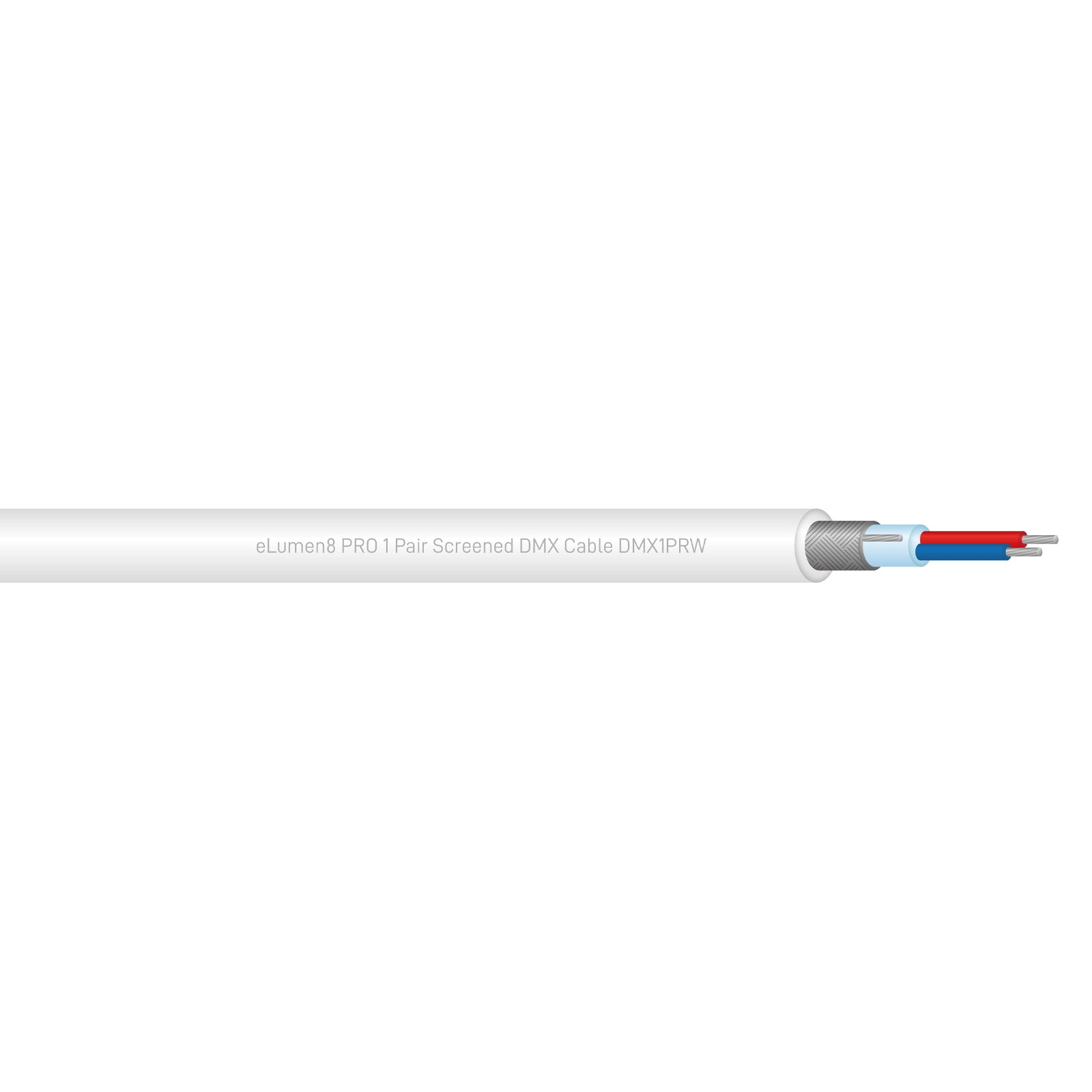

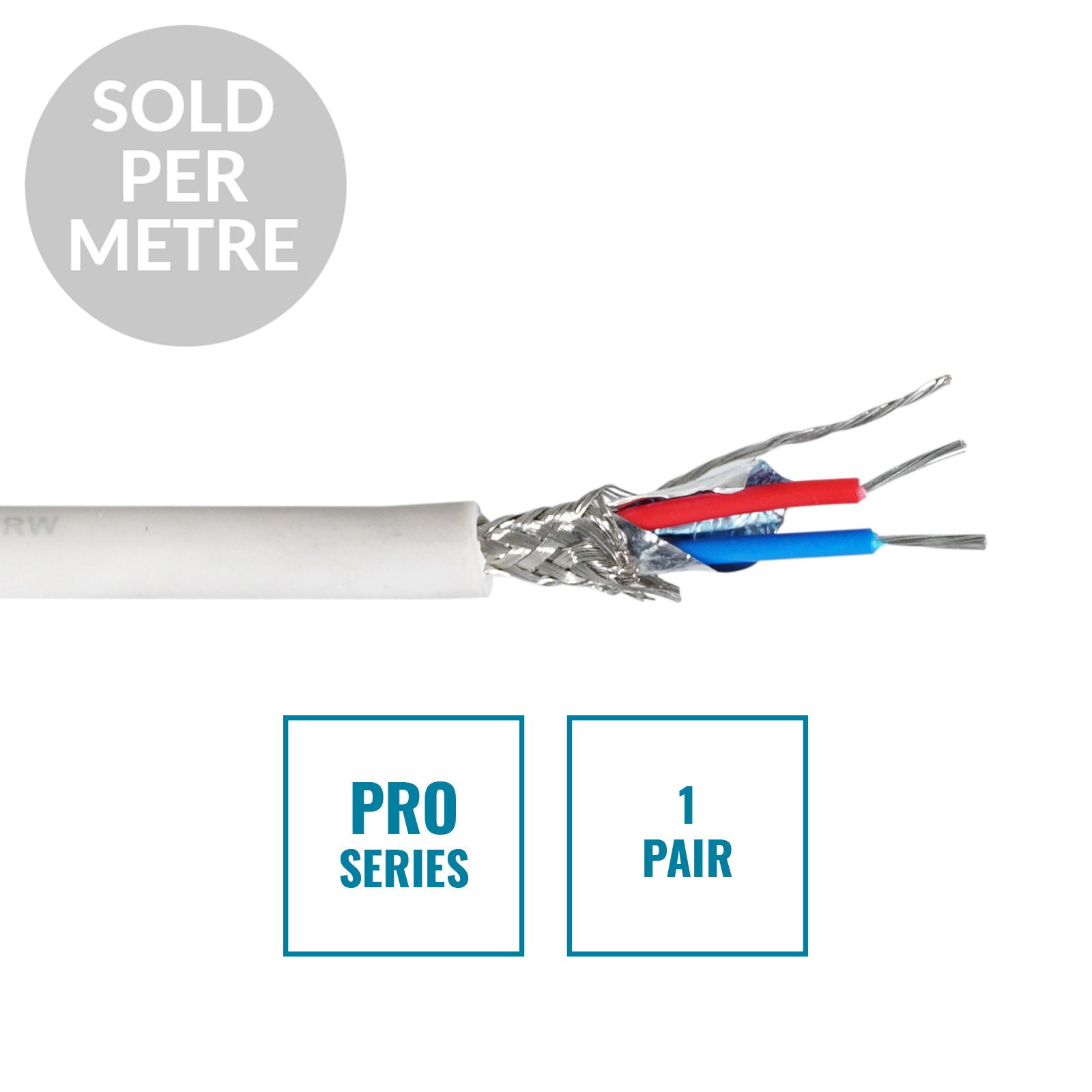

Professional quality 1 pair screened DMX cable suitable for general stage lighting control applications. The cable is constructed from a pair of tinned oxygen-free copper cores protected by both aluminium polyester foil and a tinned oxygen-free copper woven braid complete with drain wire. The cable is finished with a flexible outer PVC jacket.
Sold per metre (Please specify your requirements in the notes section when ordering eg 20m in 1m cuts 50m in 10m cuts etc) 110Ω impedance Tinned copper cores 1 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen Colour coding: Red/Blue PVC outer jacket
Conductors: 2 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 6mm Operating temperature range: 0 to +60°C
Sold per metre (Please specify your requirements in the notes section when ordering eg 20m in 1m cuts 50m in 10m cuts etc) 110Ω impedance Tinned copper cores 1 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen Colour coding: Red/Blue PVC outer jacket
Conductors: 2 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 6mm Operating temperature range: 0 to +60°C
Elumen8 PRO Screened 1 Pair DMX Cable DMX1PRW Cut Length White
Brand: Elumen8
SKU: CABL601PM
Regular price
£1.99
Need help with choosing the right product?
Click here to reach out to one of our experts.
Professional quality 1 pair screened DMX cable suitable for general stage lighting control applications. The cable is constructed from a pair of tinned oxygen-free copper cores protected by both aluminium polyester foil and a tinned oxygen-free copper woven braid complete with drain wire. The cable is finished with a flexible outer PVC jacket.
Sold per metre (Please specify your requirements in the notes section when ordering eg 20m in 1m cuts 50m in 10m cuts etc) 110Ω impedance Tinned copper cores 1 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen Colour coding: Red/Blue PVC outer jacket
Conductors: 2 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 6mm Operating temperature range: 0 to +60°C
Sold per metre (Please specify your requirements in the notes section when ordering eg 20m in 1m cuts 50m in 10m cuts etc) 110Ω impedance Tinned copper cores 1 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen Colour coding: Red/Blue PVC outer jacket
Conductors: 2 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 6mm Operating temperature range: 0 to +60°C
