Ordinary duty flexible cords are used where the risk of mechanical damage and mechanical stresses is normal i.e. when cables are subject to low mechanical stresses in the areas of application and the risk of mechanical damage is low as is the case to be expected in the normal use of small to medium size equipment in domestic and commercial as well as in light industrial premises.
Annealed flexible copper conductor PVC insulated PVC sheathed 300/500V rated Manufactured to BS EN 50525-2-11:2011 Clause 4.2 Table B.2.
Nominal stranding of conductor: 30 x 0.25mm Nominal radial thickness of insulation: 0.7mm Nominal radial thickness of sheath: 1mm Minimum overall diameter: 8.4mm Maximum overall diameter: 10.5mm Weight per km: 150kg
Annealed flexible copper conductor PVC insulated PVC sheathed 300/500V rated Manufactured to BS EN 50525-2-11:2011 Clause 4.2 Table B.2.
Nominal stranding of conductor: 30 x 0.25mm Nominal radial thickness of insulation: 0.7mm Nominal radial thickness of sheath: 1mm Minimum overall diameter: 8.4mm Maximum overall diameter: 10.5mm Weight per km: 150kg

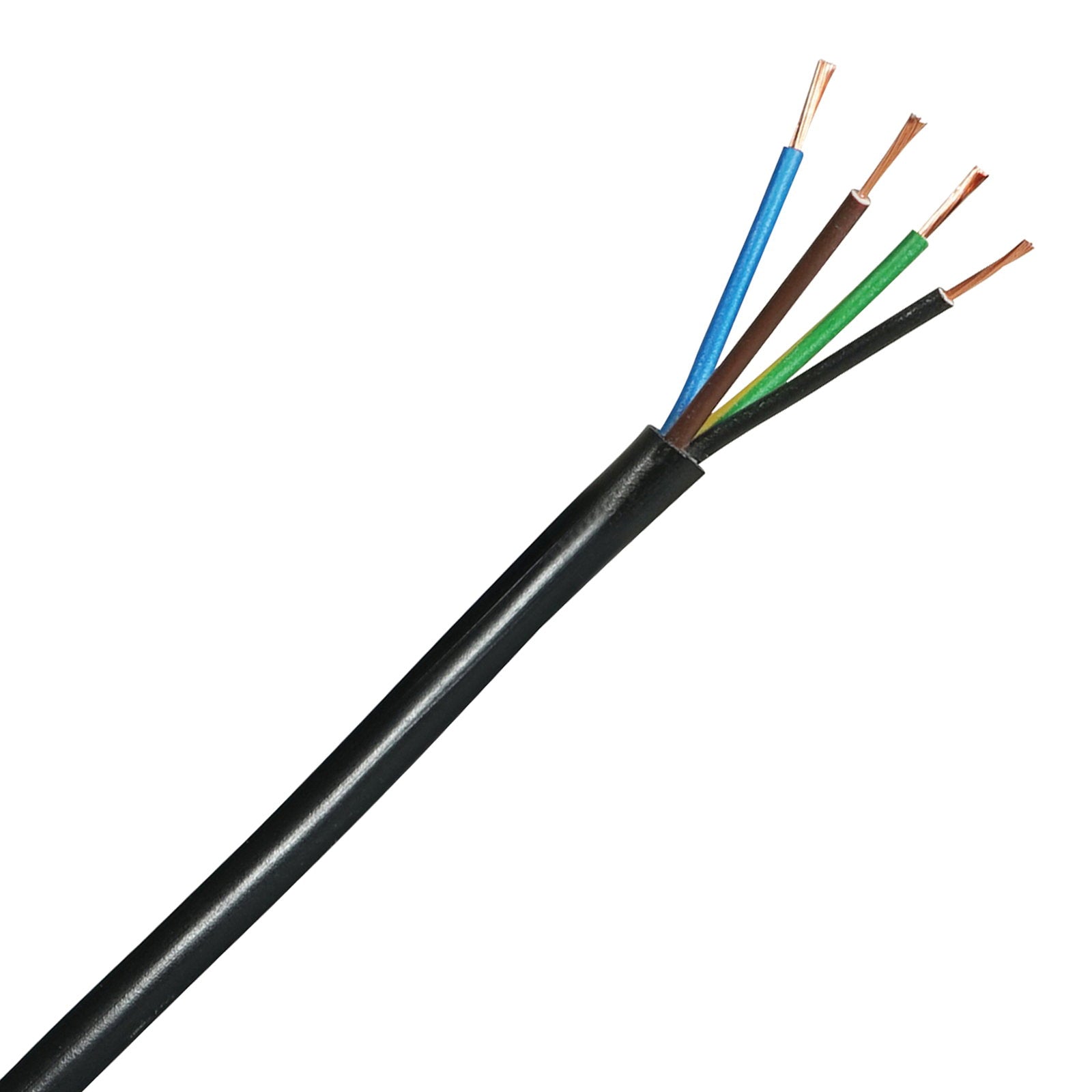

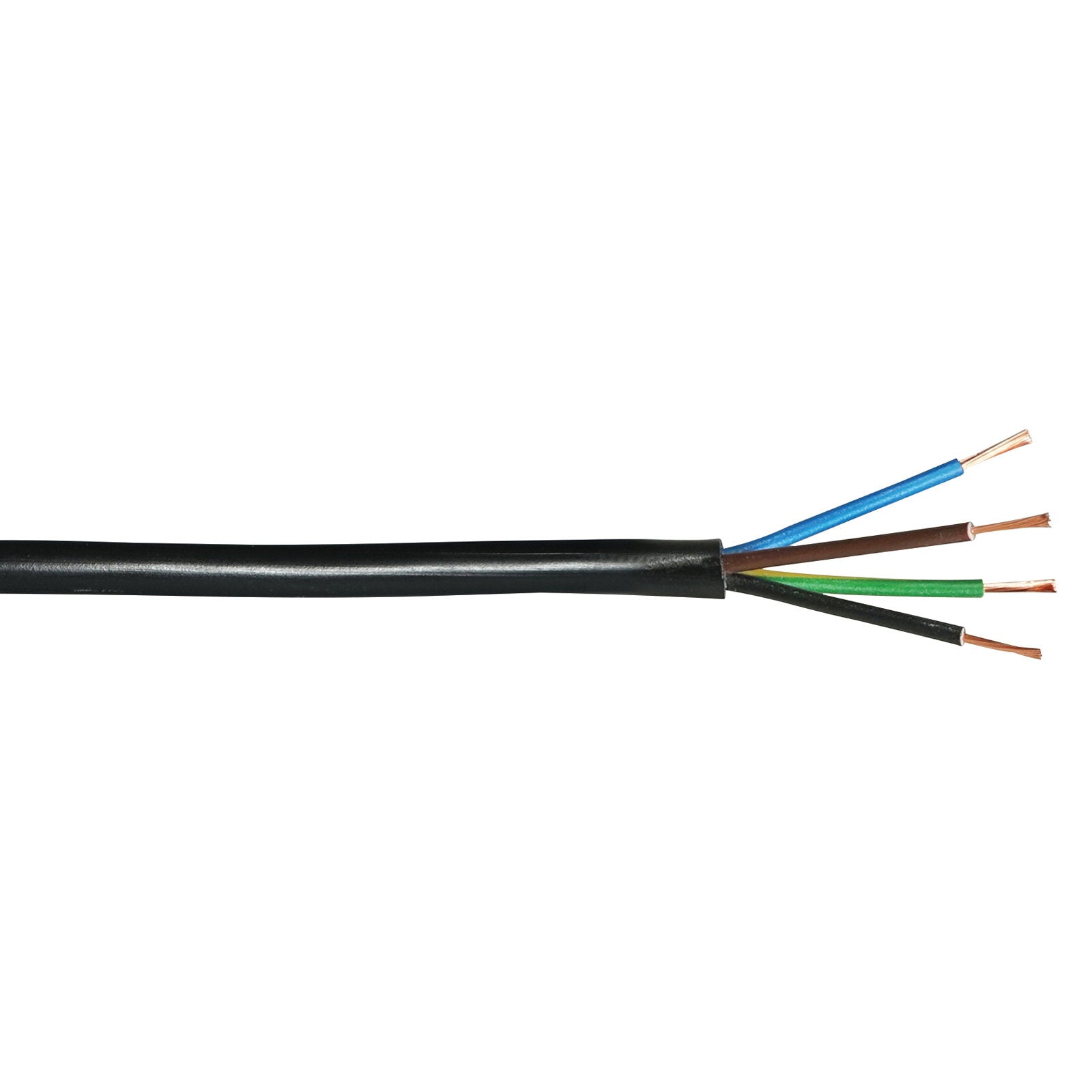

Elumen8 H05VV-F 3184Y 0.75mm 4 Core Cable 100m
Brand: Elumen8
SKU: CABL594
Regular price
£102.99
Pickup available at Venutec
Usually ready in 24 hours
Elumen8 H05VV-F 3184Y 0.75mm 4 Core Cable 100m
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
Ordinary duty flexible cords are used where the risk of mechanical damage and mechanical stresses is normal i.e. when cables are subject to low mechanical stresses in the areas of application and the risk of mechanical damage is low as is the case to be expected in the normal use of small to medium size equipment in domestic and commercial as well as in light industrial premises.
Annealed flexible copper conductor PVC insulated PVC sheathed 300/500V rated Manufactured to BS EN 50525-2-11:2011 Clause 4.2 Table B.2.
Nominal stranding of conductor: 30 x 0.25mm Nominal radial thickness of insulation: 0.7mm Nominal radial thickness of sheath: 1mm Minimum overall diameter: 8.4mm Maximum overall diameter: 10.5mm Weight per km: 150kg
Annealed flexible copper conductor PVC insulated PVC sheathed 300/500V rated Manufactured to BS EN 50525-2-11:2011 Clause 4.2 Table B.2.
Nominal stranding of conductor: 30 x 0.25mm Nominal radial thickness of insulation: 0.7mm Nominal radial thickness of sheath: 1mm Minimum overall diameter: 8.4mm Maximum overall diameter: 10.5mm Weight per km: 150kg
