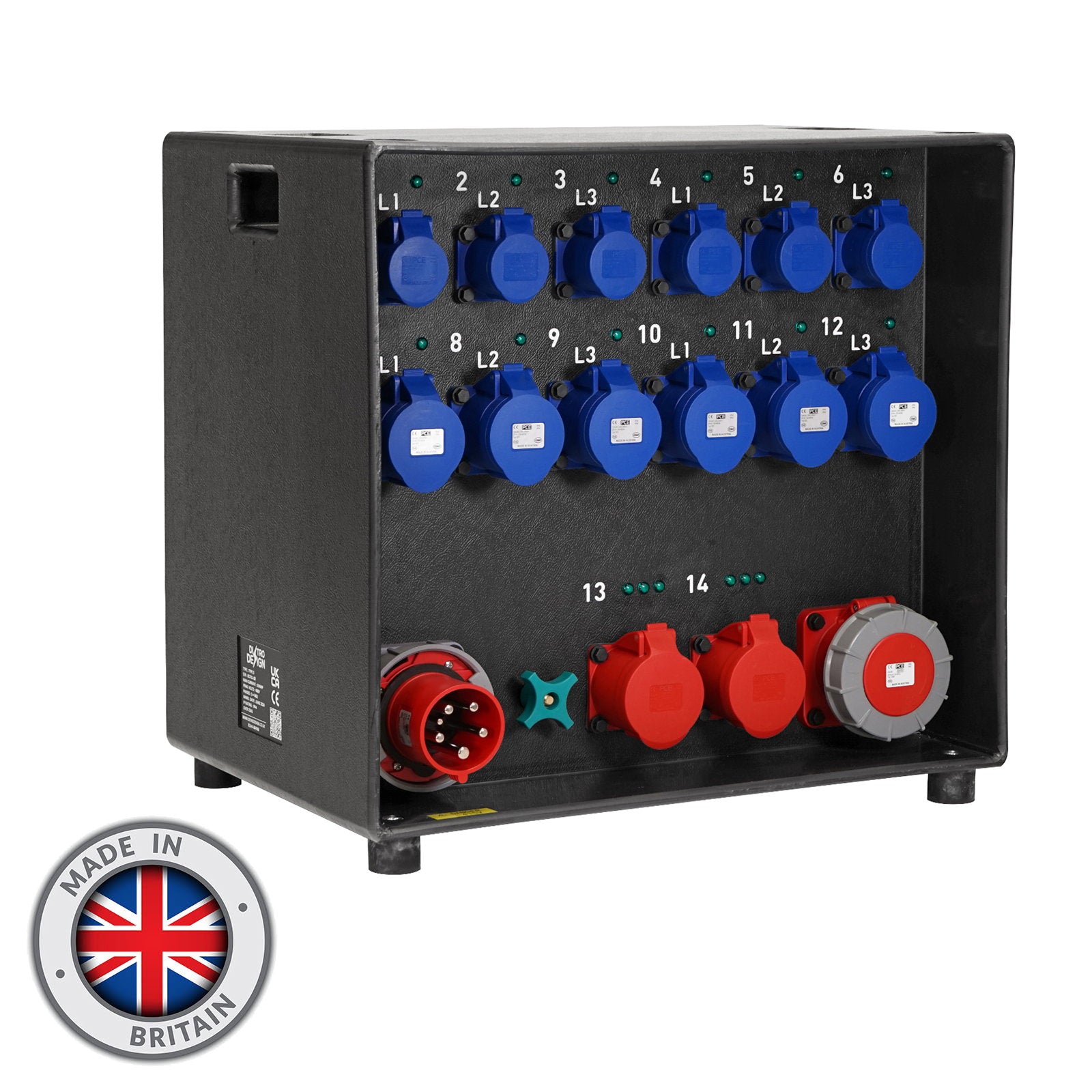

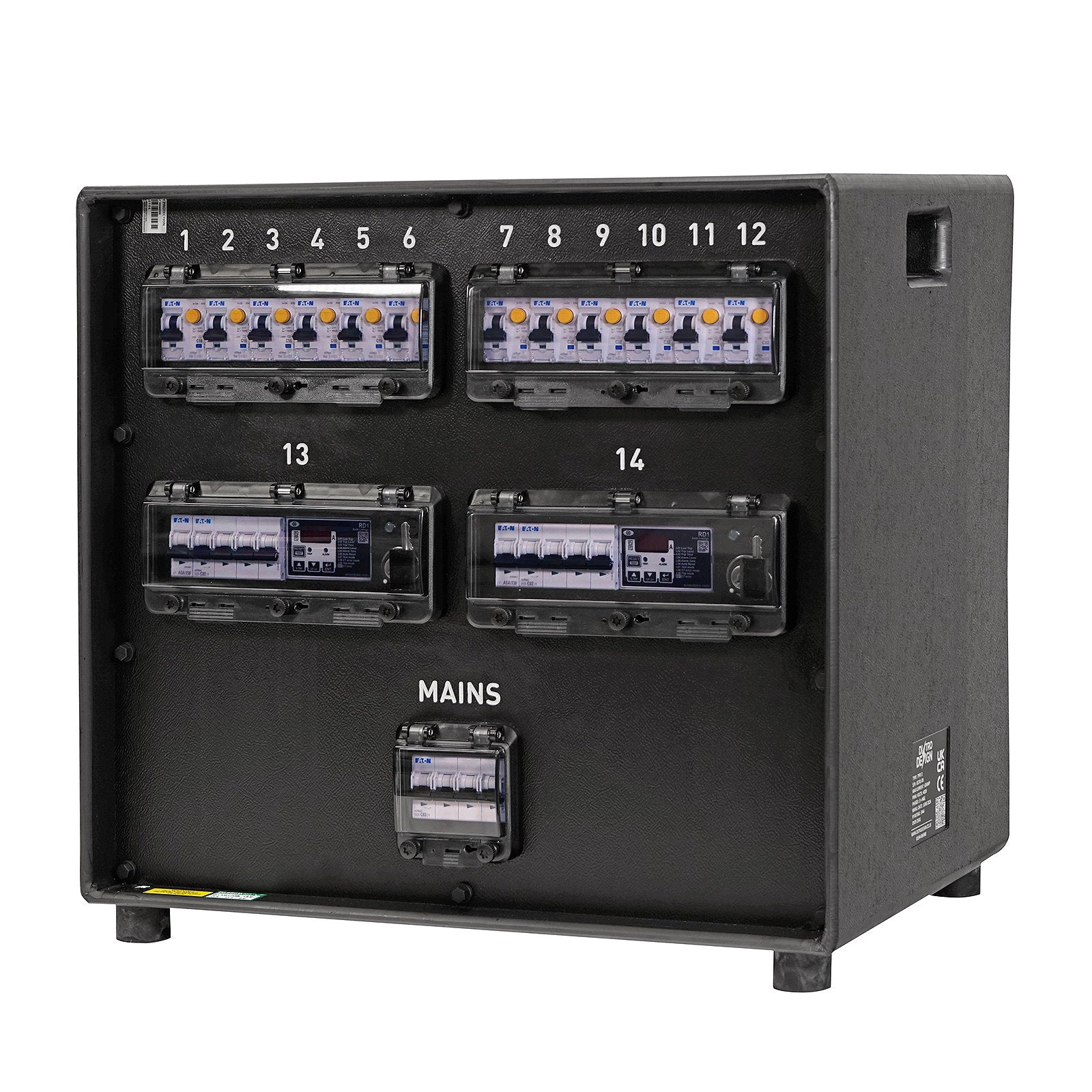

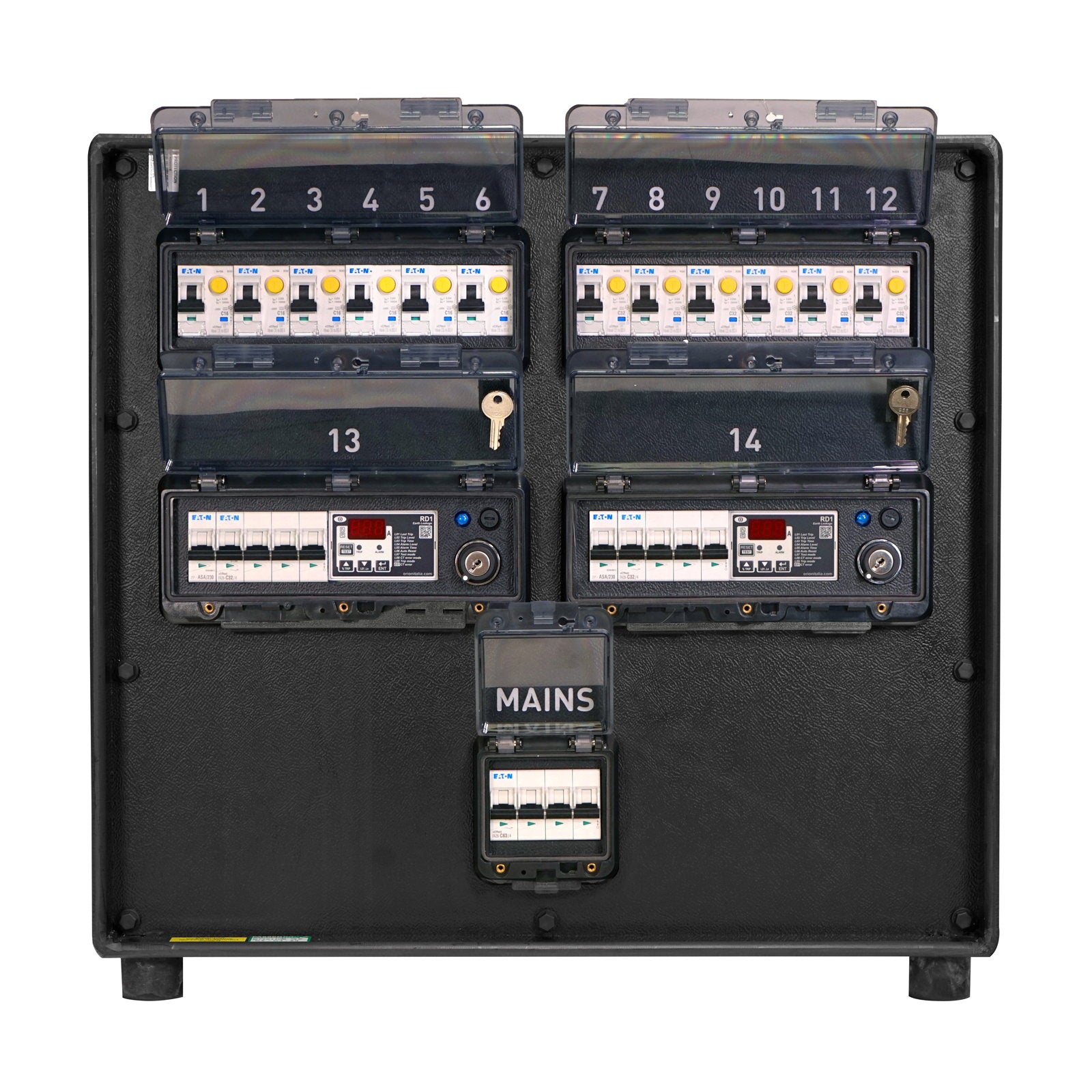

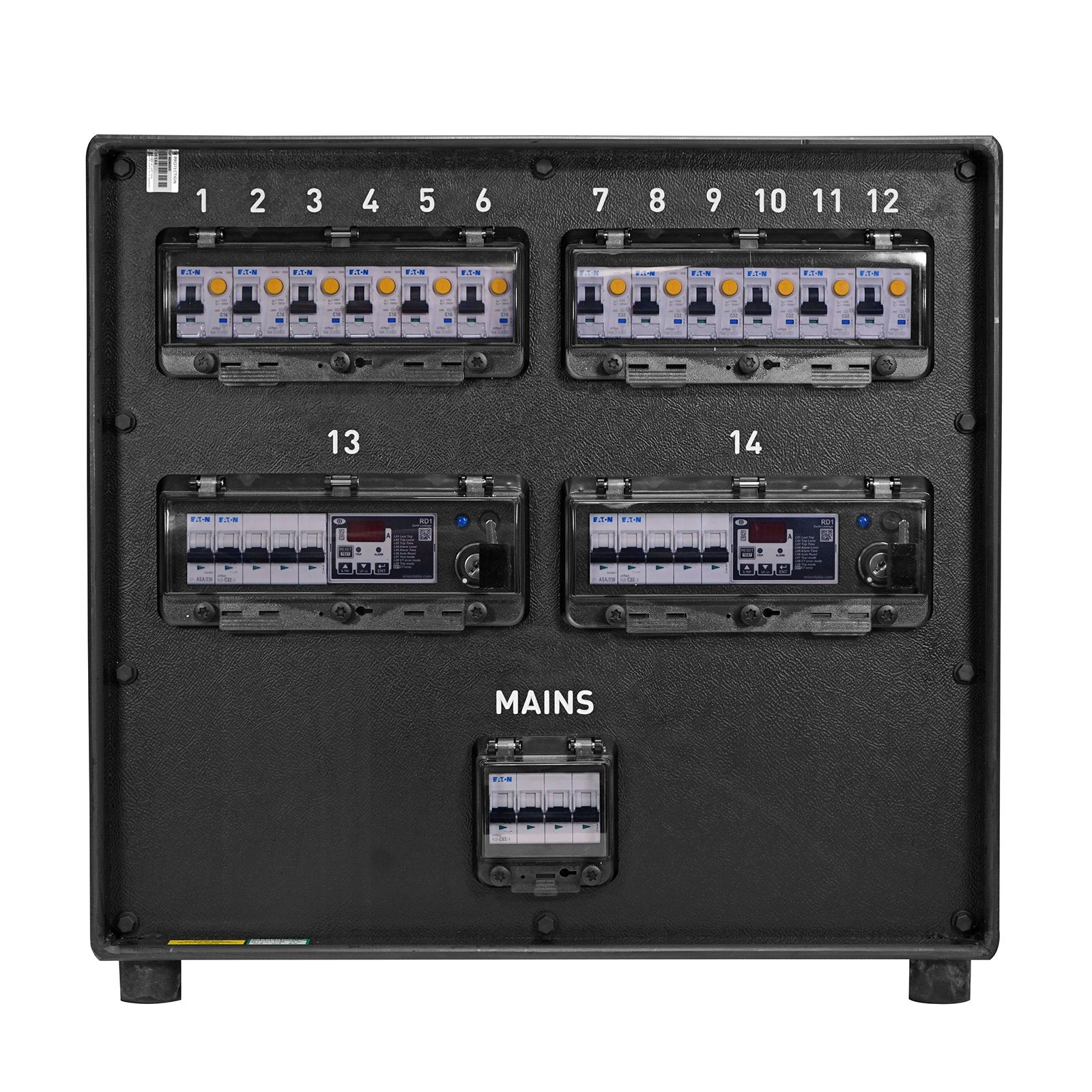

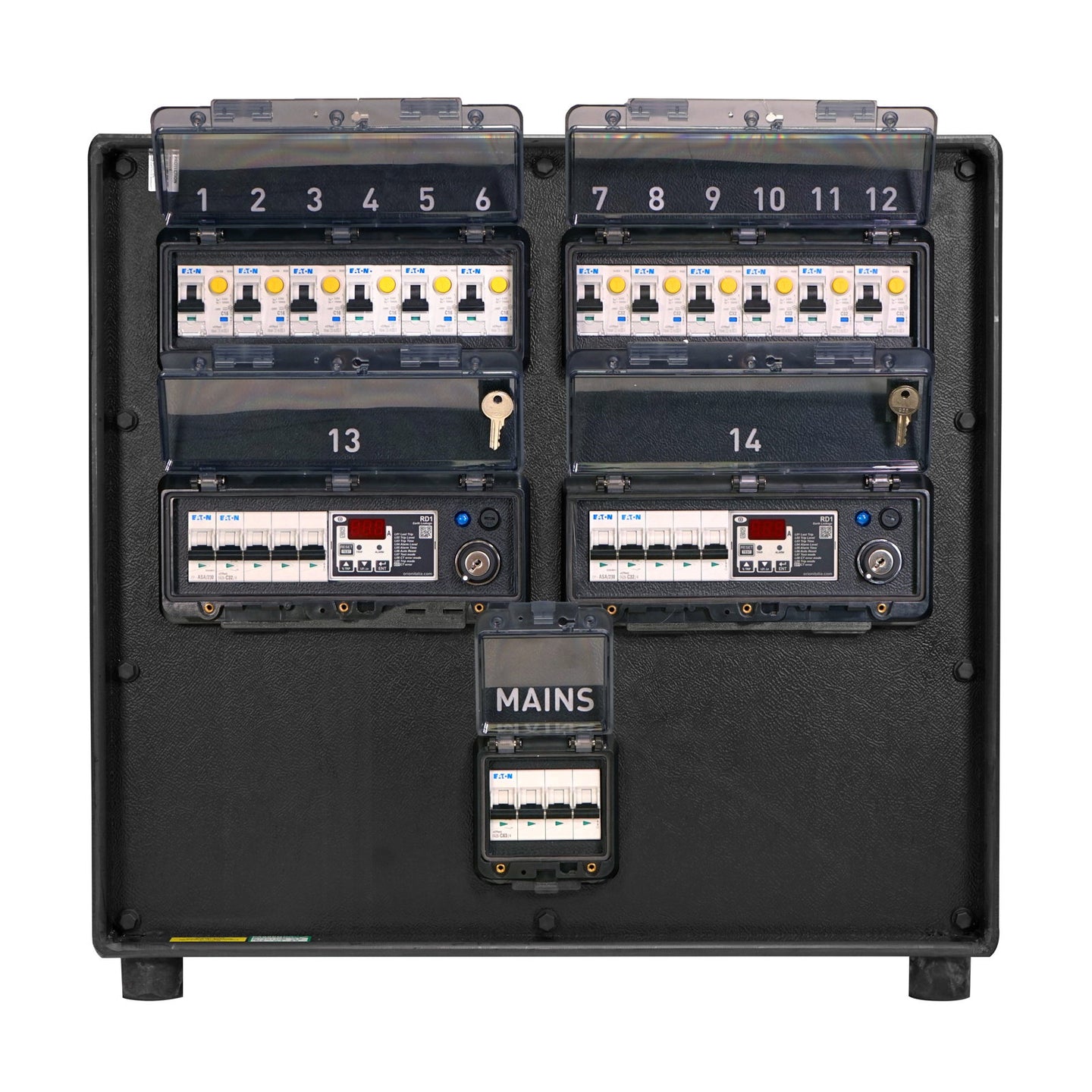

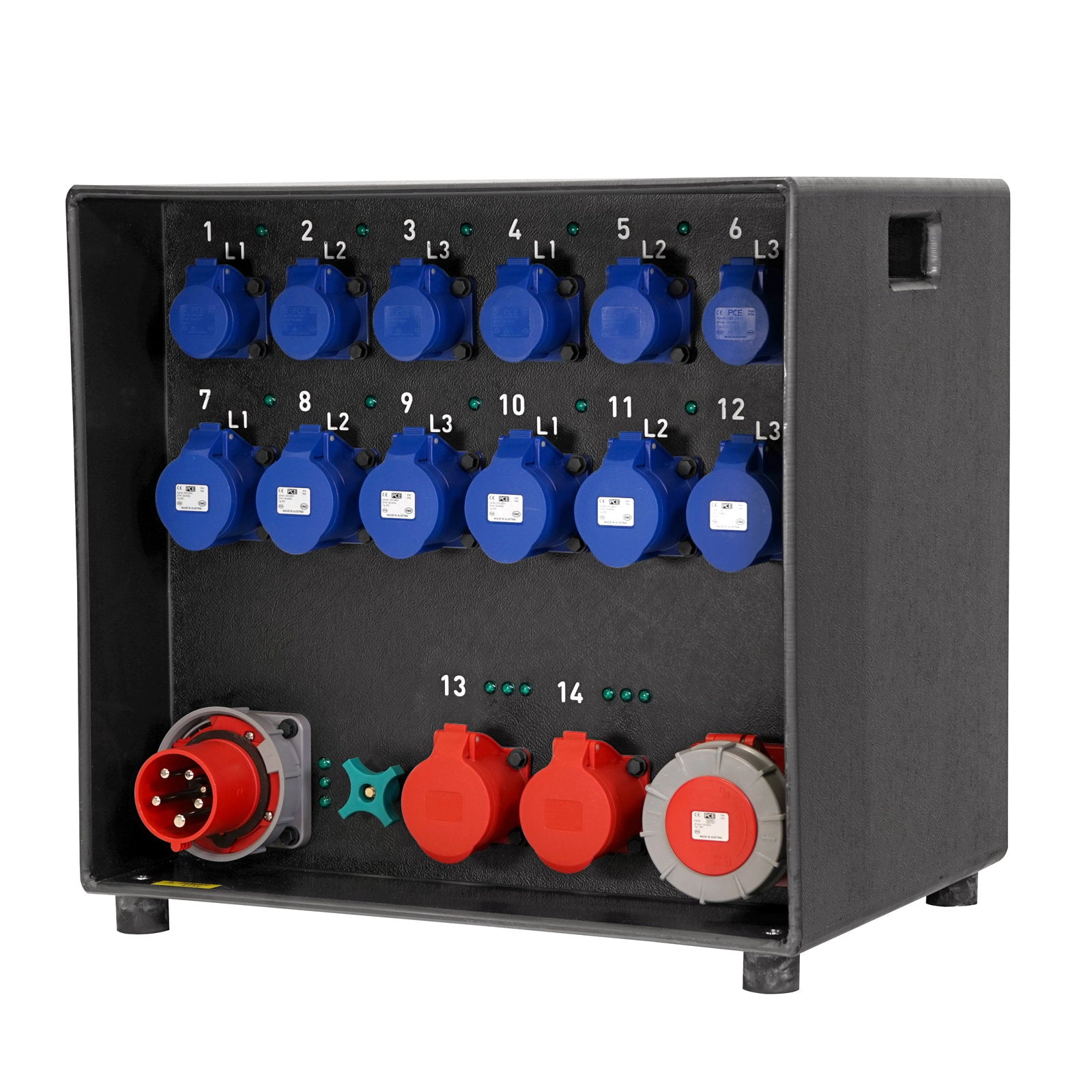

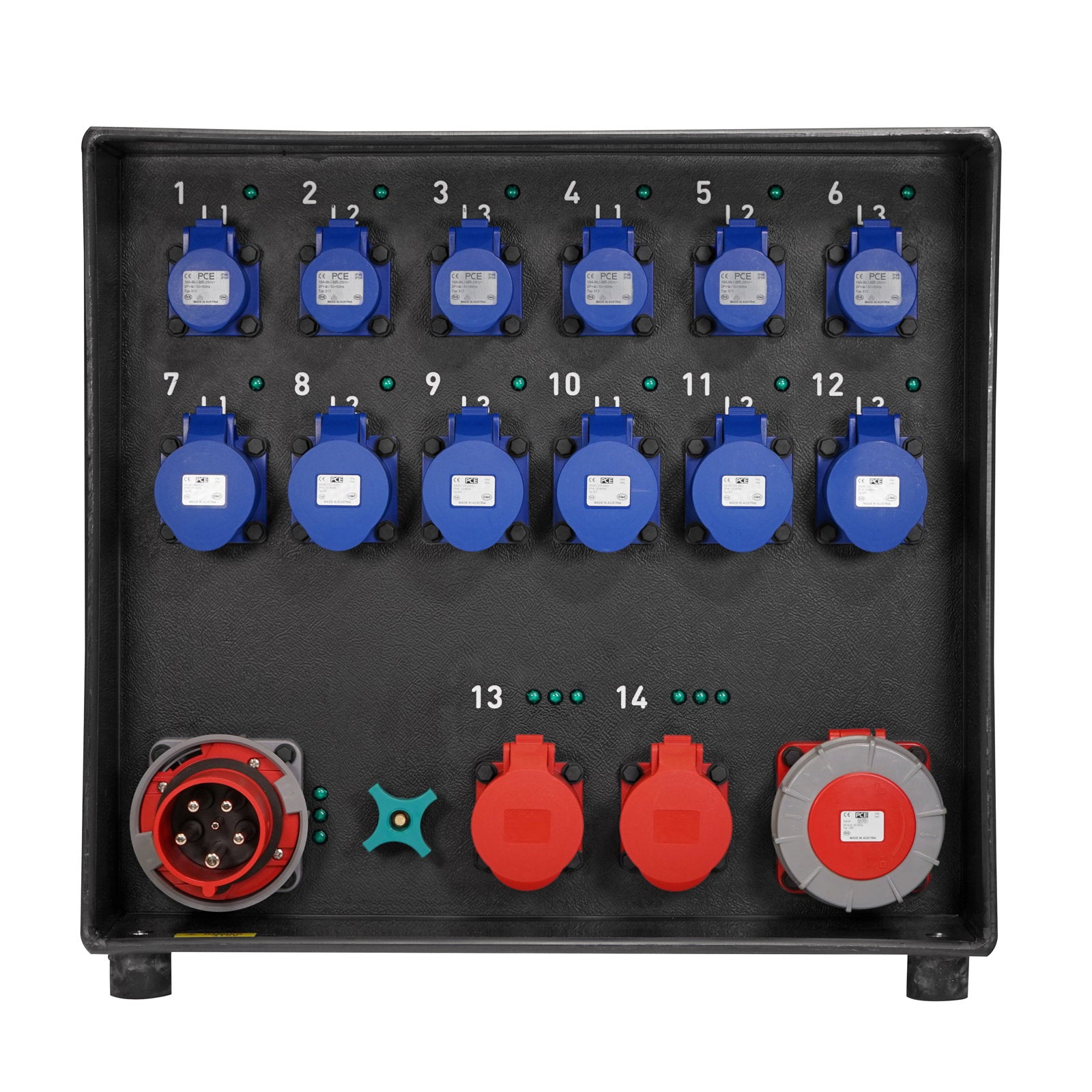

Manufactured within a rugged HDPE chassis this 63A distribution unit is designed for use on large events and concerts.

Made in Britain 63A three phase input with link output Earth stud Input: 63A 3PH with neon indicators protected by an overall 63A 4-Pole MCB Outputs:63A 3PH powerlock unprotected link out 2 x 32A 3PH panel sockets with neon indicators protected by:2 x 32A 4-Pole MCB Digital variable switchable RCD 6 x 32A 1PH panel sockets with neon indicators protected by:6 x 32A 2-Pole 30mA RCBO 6 x 16A 1PH panel sockets with neon indicators protected by:6 x 16A 2-Pole 30mA RCBO

Dimensions (H x W x D): 543 x 572 x 418mm Weight: 28.7kg

Elumen8 Distribution Unit 63A 3PH Type 3

Brand: Elumen8

SKU: CONN1503

  • Pro Tested
  • Guaranteed
  • Trusted
Regular price £3,320.99
Only 1 left in stock

Pickup available at Venutec

Usually ready in 24 hours

Elumen8 Distribution Unit 63A 3PH Type 3 - Alternate View 5
Elumen8 Distribution Unit 63A 3PH Type 3 - Alternate View 5 Elumen8 Distribution Unit 63A 3PH Type 3 - Alternate View 5

Elumen8 Distribution Unit 63A 3PH Type 3

  • Venutec

    Pickup available

    Usually ready in 24 hours

    3 Waterside Court
    Bone Lane
    Newbury RG14 5SH
    United Kingdom

    447404920360

Need help with choosing the right product?

Click here to reach out to one of our experts.
Manufactured within a rugged HDPE chassis this 63A distribution unit is designed for use on large events and concerts.

Made in Britain 63A three phase input with link output Earth stud Input: 63A 3PH with neon indicators protected by an overall 63A 4-Pole MCB Outputs:63A 3PH powerlock unprotected link out 2 x 32A 3PH panel sockets with neon indicators protected by:2 x 32A 4-Pole MCB Digital variable switchable RCD 6 x 32A 1PH panel sockets with neon indicators protected by:6 x 32A 2-Pole 30mA RCBO 6 x 16A 1PH panel sockets with neon indicators protected by:6 x 16A 2-Pole 30mA RCBO

Dimensions (H x W x D): 543 x 572 x 418mm Weight: 28.7kg
