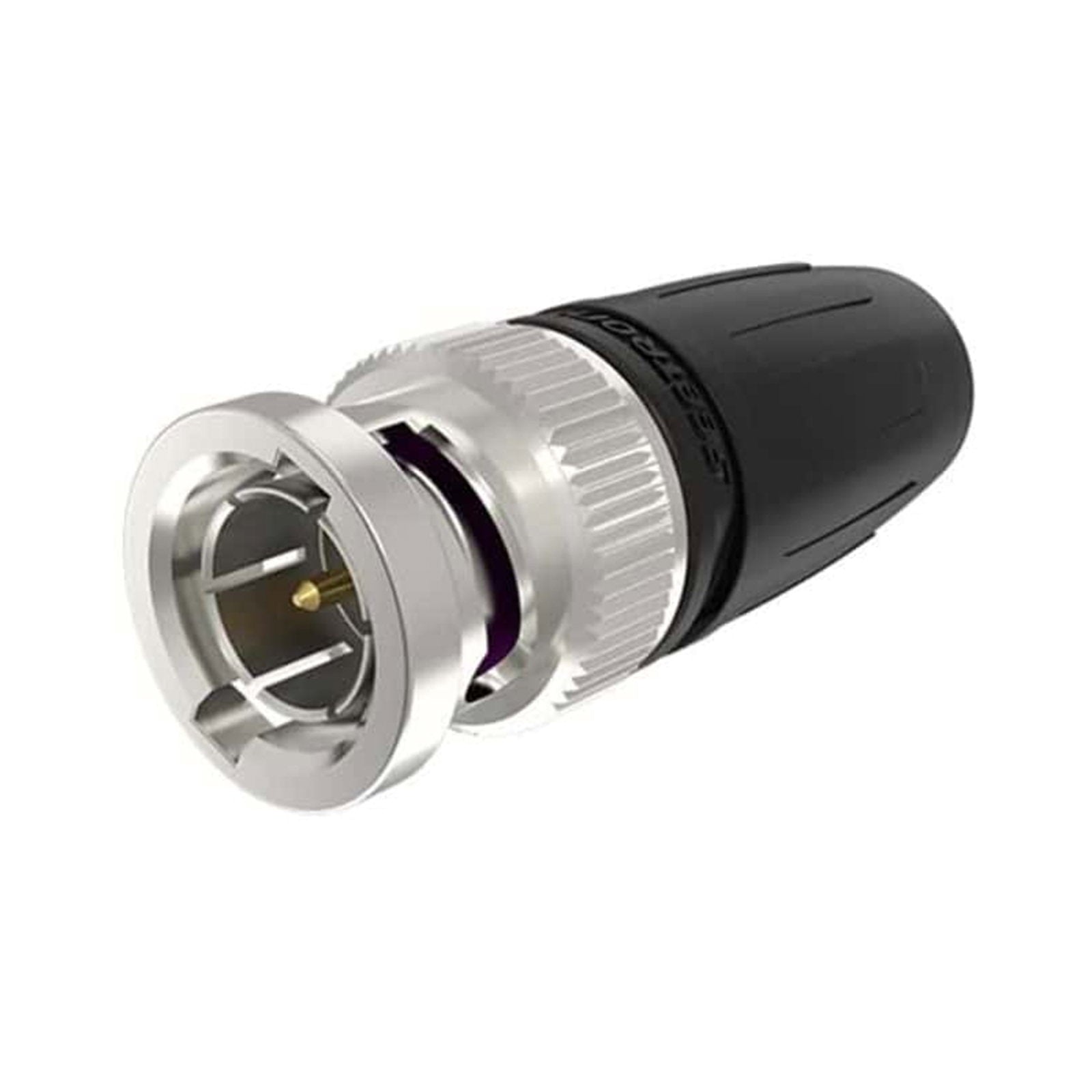

The Seetronic SEBNCM‑75PJ9 is a high-performance 75 Ω BNC male connector tailored for UHD video signal transmission. Engineered with a reduced-diameter centre pin and precise insulation structure to ensure minimal return loss this bayonet-locking plug delivers reliable 4K/8K signal performance. Its robust nickel-plated copper body gold-plated contacts and PTFE dielectric make it ideal for professional broadcast AV and installation environments.

• True 75 Ω impedance with low return loss for 4K/8K UHD transmission
• Gold-plated centre pin ensures stable and consistent signal flow
• Bayonet-locking mechanism provides quick and secure mating
• Reduced-diameter contact design maintains impedance through transitions
• Crimp-style connector with robust strain relief boot
• Compatible with industry-standard UHD coax cables
• Designed for broadcast live AV and field applications

• Connector Type: BNC male 75 Ω UHD
• Contact Resistance: ≤ 3 mΩ (inner) ≤ 2 mΩ (outer)
• Rated Voltage: < 50 V
• Insulation Resistance: > 5 GΩ
• Dielectric Strength: 1.5 kV DC
• Cable OD: ≤ 6.3 mm
• Crimp Sizes: 6.47 mm hex (shield) 1.07 mm (pin)
• Insertion Force: ≤ 25 N
• Service Life: > 1000 mating cycles
• Housing: Nickel-plated copper alloy
• Contacts: Gold-plated copper alloy
• Dielectric: PTFE
• Temperature Range: –30 °C to +80 °C
