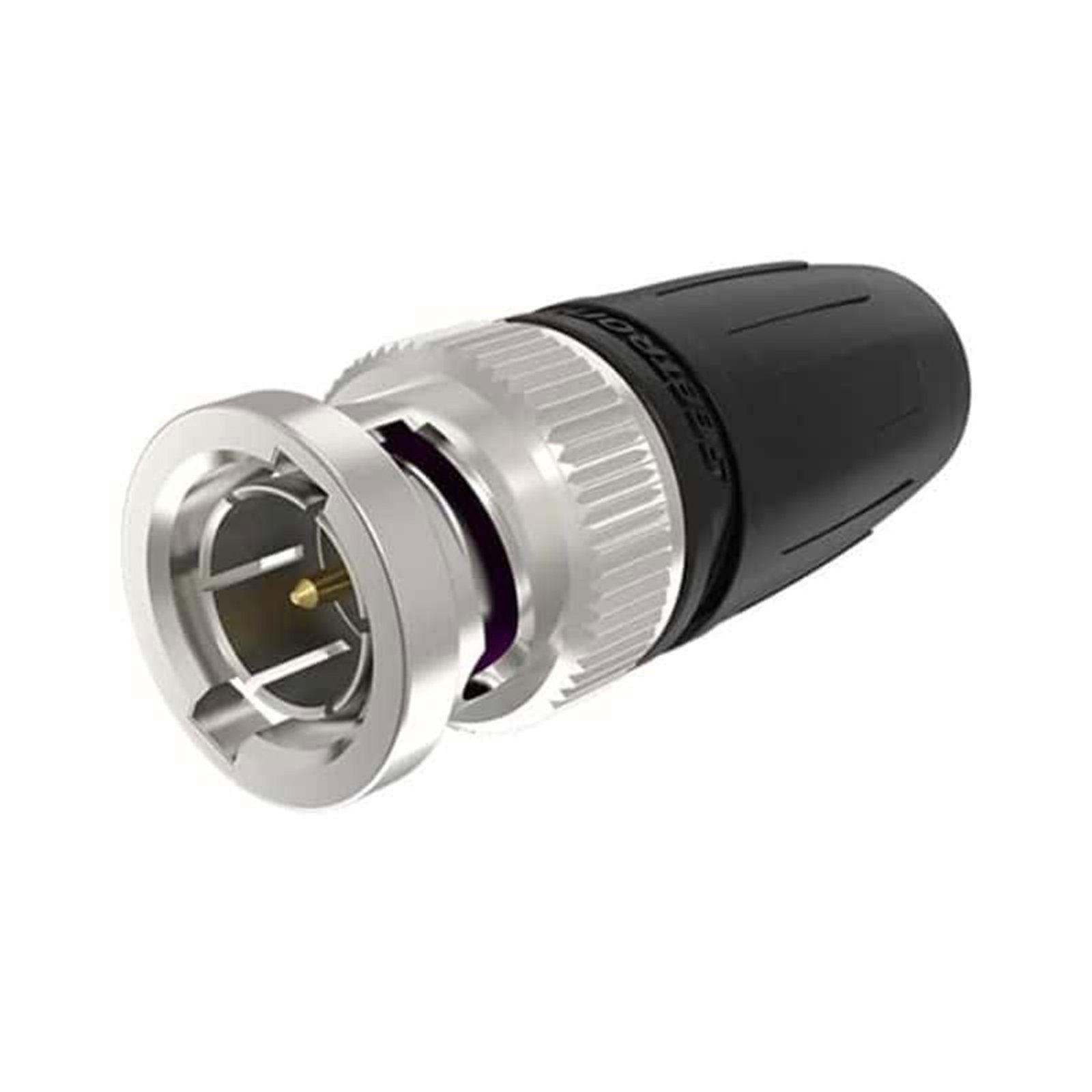

The Seetronic SEBNCM‑75GF7 is a professional-grade 75 Ω BNC male cable connector designed for ultra-high-definition (UHD) video transmission. With a gold-plated pin reduced-diameter contact for low return loss and a rugged nickel-plated body this connector ensures consistent signal integrity in demanding environments. The included rubber boot enhances strain relief and grip making it ideal for broadcast AV and field applications.

• True 75 Ω impedance with low return loss—ideal for UHD video transmission
• Bayonet locking system for fast and secure connection
• Gold-plated centre pin for stable signal performance
• Reduced-diameter pin design to maintain impedance through transitions
• Durable 2-piece design with nickel-plated copper housing
• 5.0mm hex crimp for shield 1.07mm crimp for pin
• Supports cable OD up to 4.7mm with strain relief boot
• Rated for >1000 mating cycles

• Connector Type: BNC male 75 Ω UHD
• Contact Resistance: ≤3 mΩ (inner) ≤2 mΩ (outer)
• Dielectric Strength: 1.5 kV DC
• Insulation Resistance: >5 GΩ
• Rated Voltage: <50 V
• Cable OD: ≤4.7 mm
• Crimp Sizes: 5.0 mm hex (shield) 1.07 mm (pin)
• Housing: Nickel-plated copper alloy
• Contacts: Gold-plated copper alloy
• Dielectric: PTFE
• Locking Mechanism: Bayonet
• Service Life: >1000 mating cycles
• Operating Temp: –30 °C to +80 °C
