The Seetronic SBB75DFGX is a grounded 75 Ω BNC panel socket engineered for UHD video signal transmission. With true impedance design low return loss gold-plated contacts and D-size flush-mount housing it delivers professional-grade performance in SDI composite and RGB applications. Compatible with standard BNC connectors.
- Low return loss at high frequencies ideal for UHD video signal transmission
- True 75 Ω characteristic impedance meets UHD standards
- Durable zinc alloy D-size chassis with chrome plating for flush-mount protection
- Gold-plated copper alloy contacts ensure signal integrity
- Fully compatible with standard BNC plugs and cabling
- Grounded version for applications requiring shielded signal paths (non-grounded model: SBB75DFGX‑B)
- Connection Type: BNC Socket (Female)
- Impedance: 75 Ω
- Contact Resistance: ≤ 3 mΩ (inner) ≤ 2 mΩ (outer)
- Dielectric Strength: 1.5 kV DC
- Insulation Resistance: > 5 GΩ
- Rated Voltage: < 50 V
- Supported Signals: UHD SDI AES/EBU Composite YUV RGB RGBH RGBHV
- Insertion/Withdrawal Force: ≤ 25 N
- Service Life: > 1000 mating cycles
- Chassis: D-size zinc alloy with chrome plating
- Contact Material: Copper alloy with gold plating
- Operating Temperature: –30 °C to +85 °C
- Standards: IEC 61076-2-103 IEC 68-2-20 (solderability)

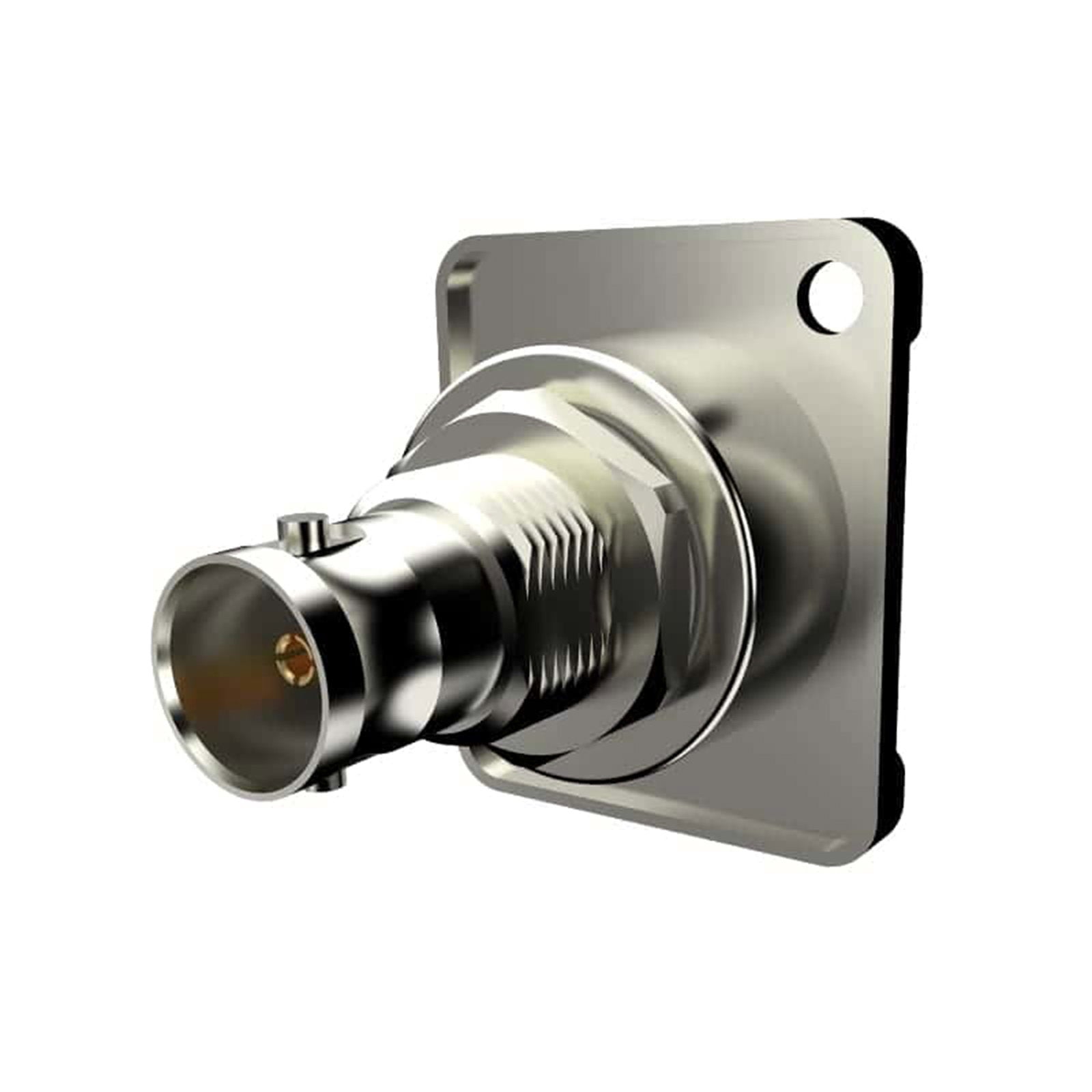

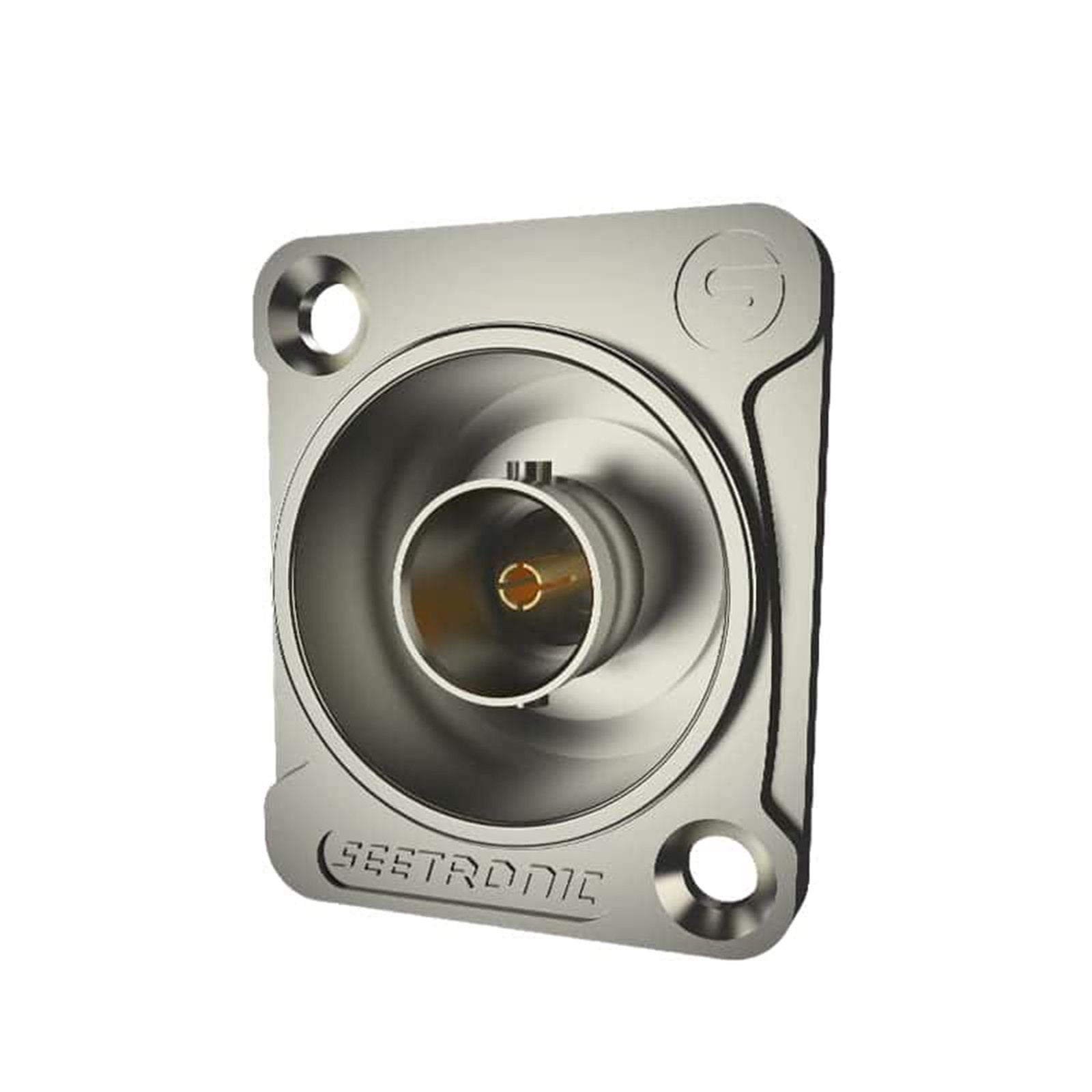

Seetronic BNC Female Chassis Connector SBB75DFGX
Brand: Seetronic
SKU: CONN1453
Regular price
£6.99
Pickup available at Venutec
Usually ready in 24 hours
Seetronic BNC Female Chassis Connector SBB75DFGX
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Seetronic SBB75DFGX is a grounded 75 Ω BNC panel socket engineered for UHD video signal transmission. With true impedance design low return loss gold-plated contacts and D-size flush-mount housing it delivers professional-grade performance in SDI composite and RGB applications. Compatible with standard BNC connectors.
- Low return loss at high frequencies ideal for UHD video signal transmission
- True 75 Ω characteristic impedance meets UHD standards
- Durable zinc alloy D-size chassis with chrome plating for flush-mount protection
- Gold-plated copper alloy contacts ensure signal integrity
- Fully compatible with standard BNC plugs and cabling
- Grounded version for applications requiring shielded signal paths (non-grounded model: SBB75DFGX‑B)
- Connection Type: BNC Socket (Female)
- Impedance: 75 Ω
- Contact Resistance: ≤ 3 mΩ (inner) ≤ 2 mΩ (outer)
- Dielectric Strength: 1.5 kV DC
- Insulation Resistance: > 5 GΩ
- Rated Voltage: < 50 V
- Supported Signals: UHD SDI AES/EBU Composite YUV RGB RGBH RGBHV
- Insertion/Withdrawal Force: ≤ 25 N
- Service Life: > 1000 mating cycles
- Chassis: D-size zinc alloy with chrome plating
- Contact Material: Copper alloy with gold plating
- Operating Temperature: –30 °C to +85 °C
- Standards: IEC 61076-2-103 IEC 68-2-20 (solderability)
