The Seetronic SBB75DFGX‑B is a robust panel-mount BNC socket designed for UHD video signal transmission. Featuring a true 75 Ω impedance design gold-plated contacts low return loss performance and a D-size black zinc-alloy body this connector offers professional-grade reliability for 4K/8K video SDI AES/EBU YUV RGB and composite signal environments.
- True 75 Ω impedance with reduced return loss ideal for UHD/SDI video signals
- Compact D-size flush-mount panel housing for robust integration
- Non-grounded version (alternative grounded model: SBB75DFGX)
- Nickel-plated zinc alloy body with black finish for a clean install
- Gold-plated copper alloy contacts for stable signal integrity
- Supports UHD SDI AES/EBU Composite YUV RGB RGBH RGBHV
- Rated for >1000 mating cycles with ≤25N insertion/withdrawal
- Operating temperature range of –30 °C to +85 °C
- Connector Type: BNC female chassis mount
- Impedance: 75 Ω (true UHD design)
- Contact Resistance: ≤3 mΩ (inner) ≤2 mΩ (outer)
- Dielectric Strength: 1.5 kV DC
- Insulation Resistance: >5 GΩ
- Rated Voltage: <50 V
- Body: D-size panel mount black-plated zinc alloy
- Contacts: Gold-plated copper alloy
- Mechanical: ≤25 N insertion/withdrawal >1000 cycles
- Operating Temperature: –30 °C to +85 °C

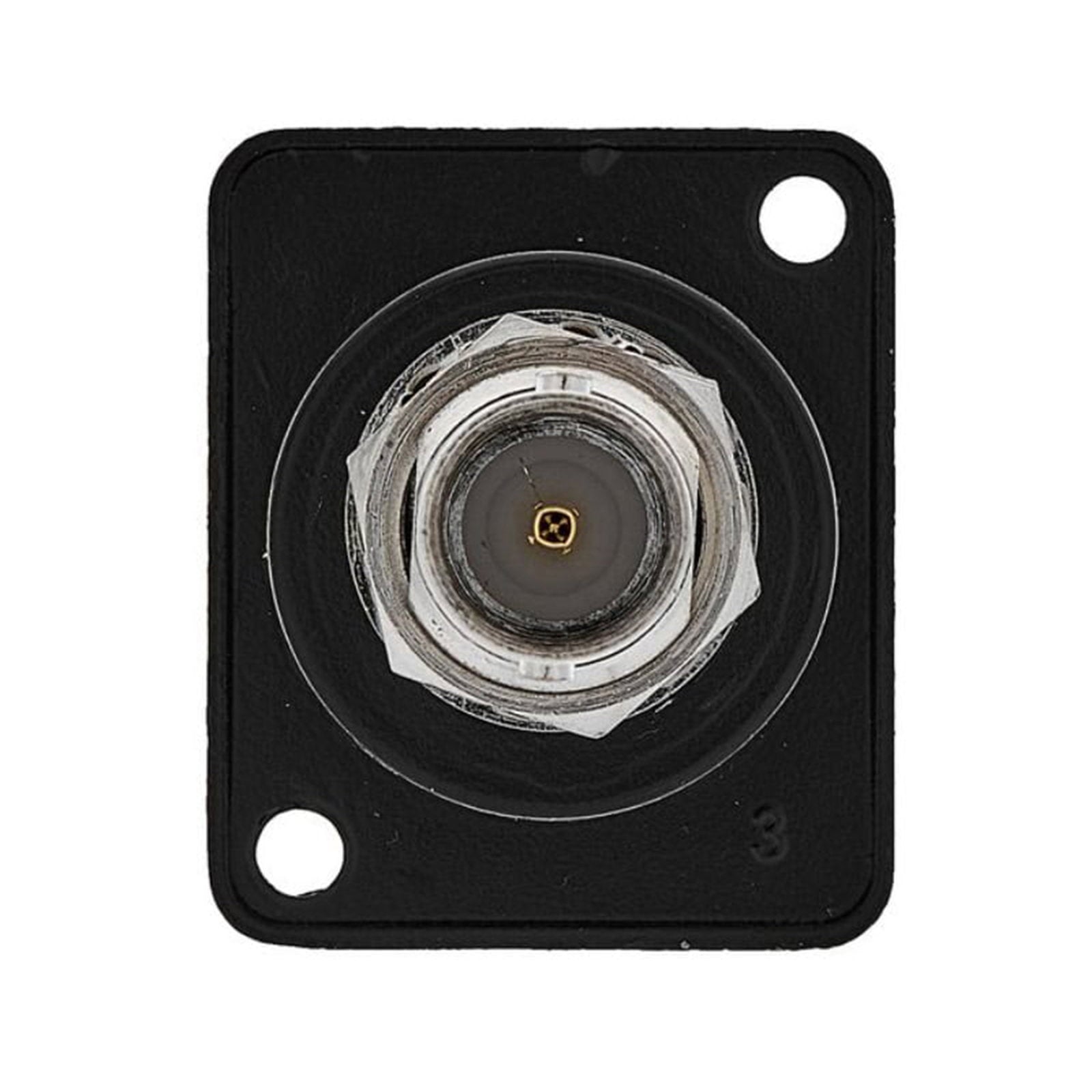

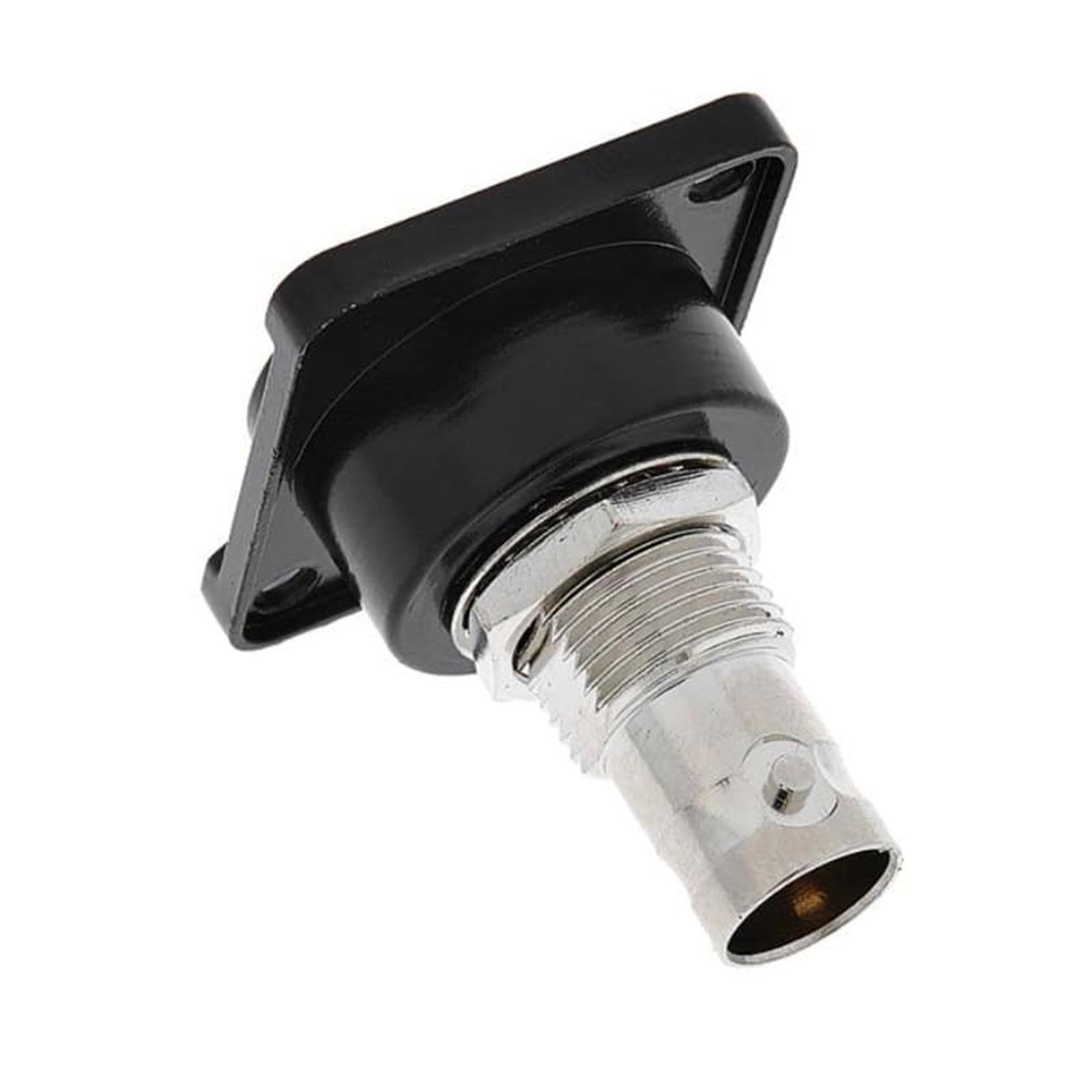

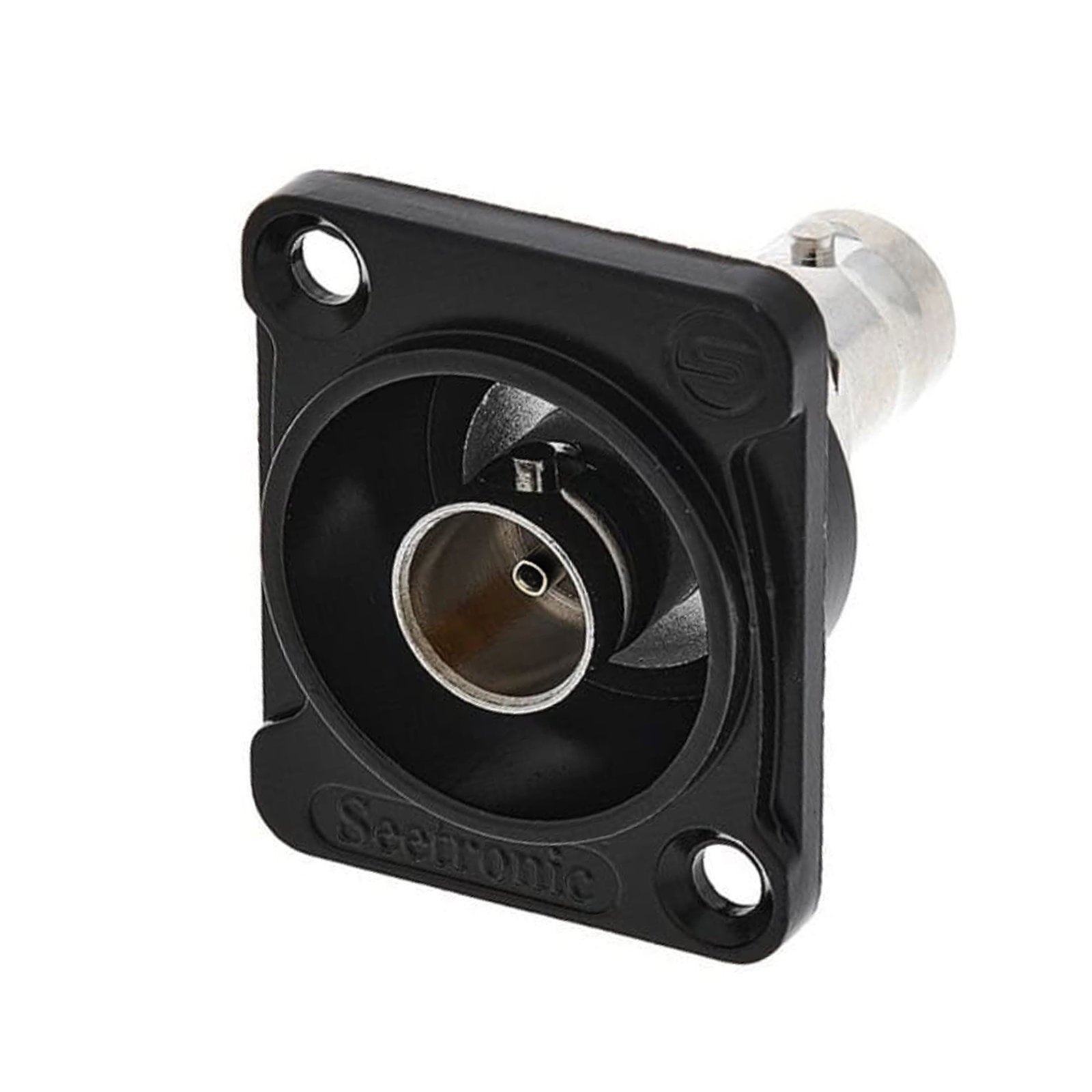

Seetronic BNC Female Chassis Connector Black SBB75DFGX-B
Brand: Seetronic
SKU: CONN1454
Regular price
£7.99
Pickup available at Venutec
Usually ready in 24 hours
Seetronic BNC Female Chassis Connector Black SBB75DFGX-B
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Seetronic SBB75DFGX‑B is a robust panel-mount BNC socket designed for UHD video signal transmission. Featuring a true 75 Ω impedance design gold-plated contacts low return loss performance and a D-size black zinc-alloy body this connector offers professional-grade reliability for 4K/8K video SDI AES/EBU YUV RGB and composite signal environments.
- True 75 Ω impedance with reduced return loss ideal for UHD/SDI video signals
- Compact D-size flush-mount panel housing for robust integration
- Non-grounded version (alternative grounded model: SBB75DFGX)
- Nickel-plated zinc alloy body with black finish for a clean install
- Gold-plated copper alloy contacts for stable signal integrity
- Supports UHD SDI AES/EBU Composite YUV RGB RGBH RGBHV
- Rated for >1000 mating cycles with ≤25N insertion/withdrawal
- Operating temperature range of –30 °C to +85 °C
- Connector Type: BNC female chassis mount
- Impedance: 75 Ω (true UHD design)
- Contact Resistance: ≤3 mΩ (inner) ≤2 mΩ (outer)
- Dielectric Strength: 1.5 kV DC
- Insulation Resistance: >5 GΩ
- Rated Voltage: <50 V
- Body: D-size panel mount black-plated zinc alloy
- Contacts: Gold-plated copper alloy
- Mechanical: ≤25 N insertion/withdrawal >1000 cycles
- Operating Temperature: –30 °C to +85 °C
