Isolated BNC chassis connector feedthrough in nickel D-shape housing Neutrik's BNC chassis connectors offer a true 75Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).
Gold plated cage type centre contact True 75Ω design meets the stringent HD requirements Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential) Standard D sized 24mm panel cutout
Impedance: 75Ω Dielectric Strength: 1.5kVdc Signal types: HD SDI Video AES/EBU Composite YUV RGB RGBH RGBHV
Gold plated cage type centre contact True 75Ω design meets the stringent HD requirements Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential) Standard D sized 24mm panel cutout
Impedance: 75Ω Dielectric Strength: 1.5kVdc Signal types: HD SDI Video AES/EBU Composite YUV RGB RGBH RGBHV

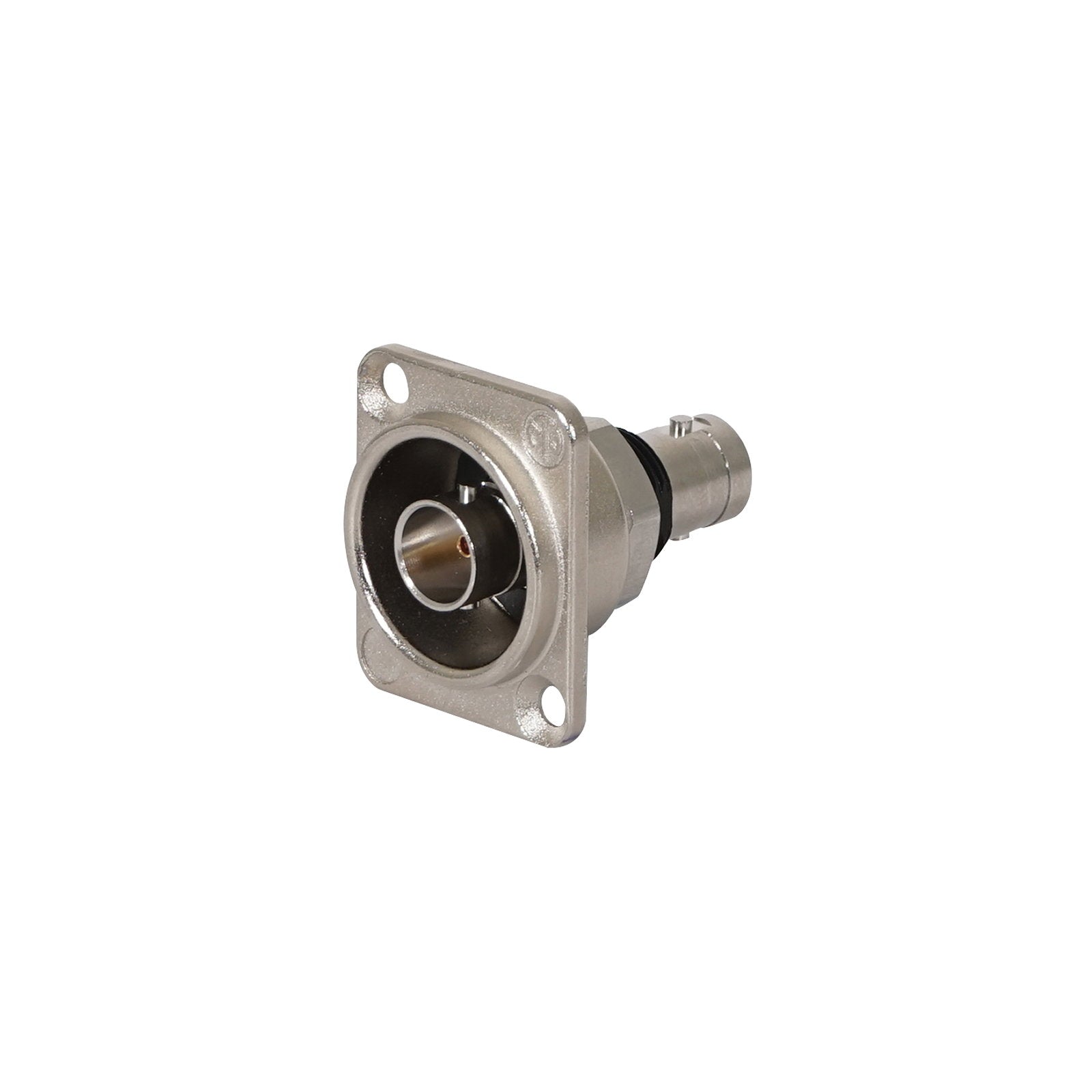

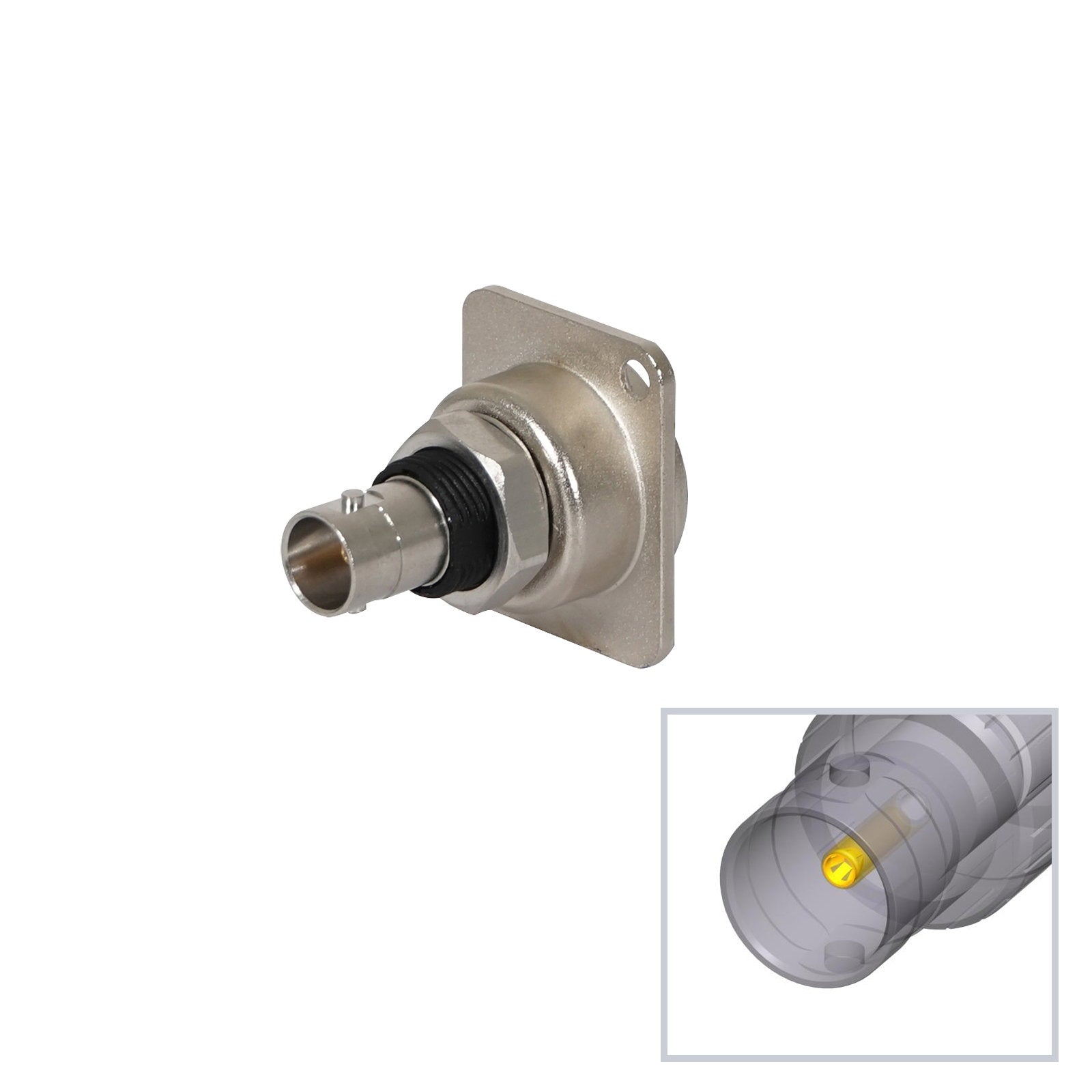

Neutrik Isolated BNC Panel Connector (NBB75DFI)
Brand: Neutrik
SKU: CONN261
Regular price
£10.99
Pickup available at Venutec
Usually ready in 24 hours
Neutrik Isolated BNC Panel Connector (NBB75DFI)
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
Isolated BNC chassis connector feedthrough in nickel D-shape housing Neutrik's BNC chassis connectors offer a true 75Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).
Gold plated cage type centre contact True 75Ω design meets the stringent HD requirements Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential) Standard D sized 24mm panel cutout
Impedance: 75Ω Dielectric Strength: 1.5kVdc Signal types: HD SDI Video AES/EBU Composite YUV RGB RGBH RGBHV
Gold plated cage type centre contact True 75Ω design meets the stringent HD requirements Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential) Standard D sized 24mm panel cutout
Impedance: 75Ω Dielectric Strength: 1.5kVdc Signal types: HD SDI Video AES/EBU Composite YUV RGB RGBH RGBHV
