Encore DBX is a versatile and powerful effect fixture designed for creating striking visuals at any event. Featuring a 5-color LED dual-lens blinder/strobe and vibrant RGB background LEDs it delivers dynamic lighting effects and intense audience interaction. Powered by two 150W RGBAW LEDs and backed by a high-output RGB reflector the Encore DBX offers a total lumen output of 11400+ producing rich colours and sharp contrast.
With features like individually controllable cells built-in programs and variable white colour temperature (2700K–6500K) the Encore DBX provides exceptional creative flexibility. It includes selectable dimming modes electronic strobe and refresh rates (900Hz–25K) for smooth flicker-free operation. The fixture is built to last with a rugged IP65-rated housing making it suitable for both indoor and outdoor use. Control options include DMX512 Aria X2 Wireless Management and Bluetooth offering seamless integration into any lighting setup. The Encore DBX is the perfect solution for immersive lighting effects on stage productions theatres and corporate events.
SPECIFICATIONS
Source:
2x 150W RGBAW LEDs RGB Background LEDs 50000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions Power/Voltage Usage Patterns (On-Off Cycling) Control and Dimming.
Features:
2 Cell Five Colour (RGBAW) LED Blinder Background RGB LEDs Individually Controllable Cells Built-In Cell Programs Built-In Background LED Programs Tungsten Control Mode Variable White Colour Temperature Control (2700K ~ 6500K) User Selectable LED Refresh Rates (900Hz ~ 25K) 6 User Selectable Dim Modes 4 User Selectable Dim Curves Electronic Strobe (1 ~ 20Hz) Electronic Dimming Aria X2 Wireless Management SystemPhotometrics:
Total Lumen Output: 11465 CRI: 89Optical:
Beam Angle: ? Field Angle: ?Effects:
Variable Strobe Rate: 1- 20Hz Variable 16-bit Dimming Modes and Curves RGB Background Reflector EffectColour:
RGBAW Colour Array RGB Background Variable CCT 2700K - 6500K Five Preset CCTsPhysical:
IP65 Housing OLED Digital display Adjustable Mounting Yoke with Omega Receivers Second Set of Omega Receivers on RearControl:
DMX512 Aria X2 Wireless Management / DMX System Bluetooth RDM (Remote Device Management) (17) DMX Channel Modes (5CH / 8CH / 10CH / 11CH / 12CHA / 12CHB / 16CH / 18CH / 19CH / 21CH / 22CH / 25CH / 26CH / 29CH / 31CH / 35CH / 41CH modes) On-board Manual Control Mode Primary / Secondary ModeConnections:

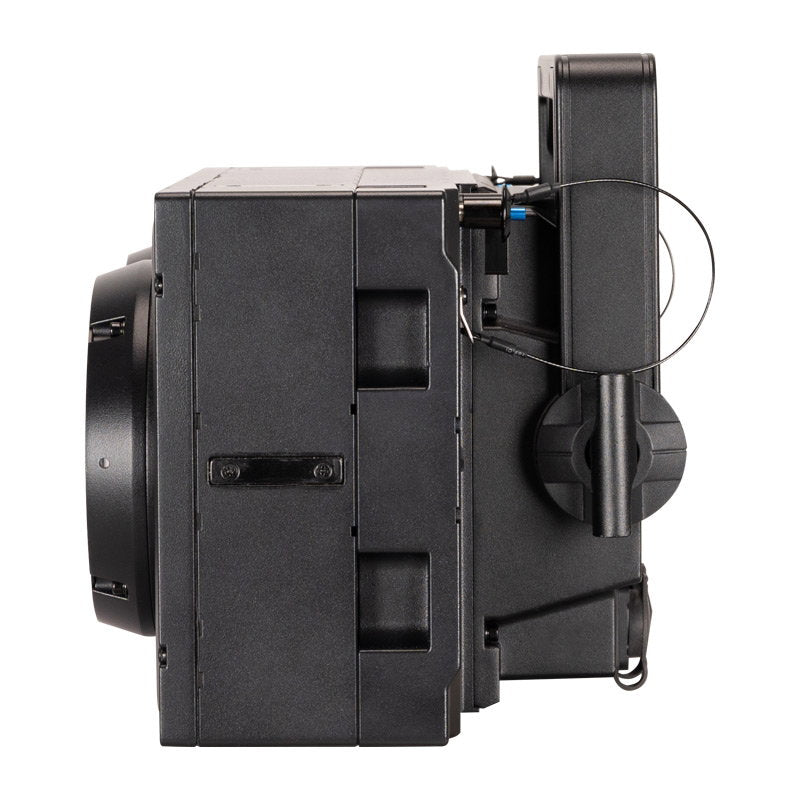

5-pin XLR IP65 DMX In/Out Sockets (Must be used with STRxxx 5pin DMX cables to create IP65 seal) IP65 Locking Power SocketsDimensions & Weight:
Length: 420mm Width: 261mm height: 231.3mm Weight: 11.85 kgPower:
AC100-240V/50Hz-60Hz Input 347W Power Consumption Link 2 pieces @120VAC or 6 pieces @ 230VACThermal:
Ambient Operational Temperature: -20°C to 45°C Storage Temperature: -30°C to 45°CCertifications & IP Rating:
IP65Included Accessories:
(1) Outdoor Locking Power Cable (1) Safety Cable
Optional Accessories:
• Omega Bracket 180mm (9900003791)
• Omega Bracket 180mm (9900003791)
Specifications and documentation subject to change without notice.
Manufacturer Part Number: 1236200098
ADJ Encore DBX
Brand: ADJ
SKU: ADJ1236200098
Regular price
£1,029.99
Pickup available at Venutec
Usually ready in 24 hours
ADJ Encore DBX
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
Encore DBX is a versatile and powerful effect fixture designed for creating striking visuals at any event. Featuring a 5-color LED dual-lens blinder/strobe and vibrant RGB background LEDs it delivers dynamic lighting effects and intense audience interaction. Powered by two 150W RGBAW LEDs and backed by a high-output RGB reflector the Encore DBX offers a total lumen output of 11400+ producing rich colours and sharp contrast.
With features like individually controllable cells built-in programs and variable white colour temperature (2700K–6500K) the Encore DBX provides exceptional creative flexibility. It includes selectable dimming modes electronic strobe and refresh rates (900Hz–25K) for smooth flicker-free operation. The fixture is built to last with a rugged IP65-rated housing making it suitable for both indoor and outdoor use. Control options include DMX512 Aria X2 Wireless Management and Bluetooth offering seamless integration into any lighting setup. The Encore DBX is the perfect solution for immersive lighting effects on stage productions theatres and corporate events.
SPECIFICATIONS
Source:
2x 150W RGBAW LEDs RGB Background LEDs 50000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions Power/Voltage Usage Patterns (On-Off Cycling) Control and Dimming.
Features:
2 Cell Five Colour (RGBAW) LED Blinder Background RGB LEDs Individually Controllable Cells Built-In Cell Programs Built-In Background LED Programs Tungsten Control Mode Variable White Colour Temperature Control (2700K ~ 6500K) User Selectable LED Refresh Rates (900Hz ~ 25K) 6 User Selectable Dim Modes 4 User Selectable Dim Curves Electronic Strobe (1 ~ 20Hz) Electronic Dimming Aria X2 Wireless Management SystemPhotometrics:
Total Lumen Output: 11465 CRI: 89Optical:
Beam Angle: ? Field Angle: ?Effects:
Variable Strobe Rate: 1- 20Hz Variable 16-bit Dimming Modes and Curves RGB Background Reflector EffectColour:
RGBAW Colour Array RGB Background Variable CCT 2700K - 6500K Five Preset CCTsPhysical:
IP65 Housing OLED Digital display Adjustable Mounting Yoke with Omega Receivers Second Set of Omega Receivers on RearControl:
DMX512 Aria X2 Wireless Management / DMX System Bluetooth RDM (Remote Device Management) (17) DMX Channel Modes (5CH / 8CH / 10CH / 11CH / 12CHA / 12CHB / 16CH / 18CH / 19CH / 21CH / 22CH / 25CH / 26CH / 29CH / 31CH / 35CH / 41CH modes) On-board Manual Control Mode Primary / Secondary ModeConnections:
5-pin XLR IP65 DMX In/Out Sockets (Must be used with STRxxx 5pin DMX cables to create IP65 seal) IP65 Locking Power SocketsDimensions & Weight:
Length: 420mm Width: 261mm height: 231.3mm Weight: 11.85 kgPower:
AC100-240V/50Hz-60Hz Input 347W Power Consumption Link 2 pieces @120VAC or 6 pieces @ 230VACThermal:
Ambient Operational Temperature: -20°C to 45°C Storage Temperature: -30°C to 45°CCertifications & IP Rating:
IP65Included Accessories:
(1) Outdoor Locking Power Cable (1) Safety Cable
Optional Accessories:
• Omega Bracket 180mm (9900003791)
• Omega Bracket 180mm (9900003791)
Specifications and documentation subject to change without notice.
Manufacturer Part Number: 1236200098
