This 48V system allows for greater cable lengths between TPix MKII controllers and TPix MKII strips. A host of built in macros can be triggered from the menu system or via DMX for simple operation or for full pixel control the Art-Net or Kling-Net protools may be used. The on-board network switch allows for the Art-Net or Kling-Net to be fully daisy chained for fast connection.

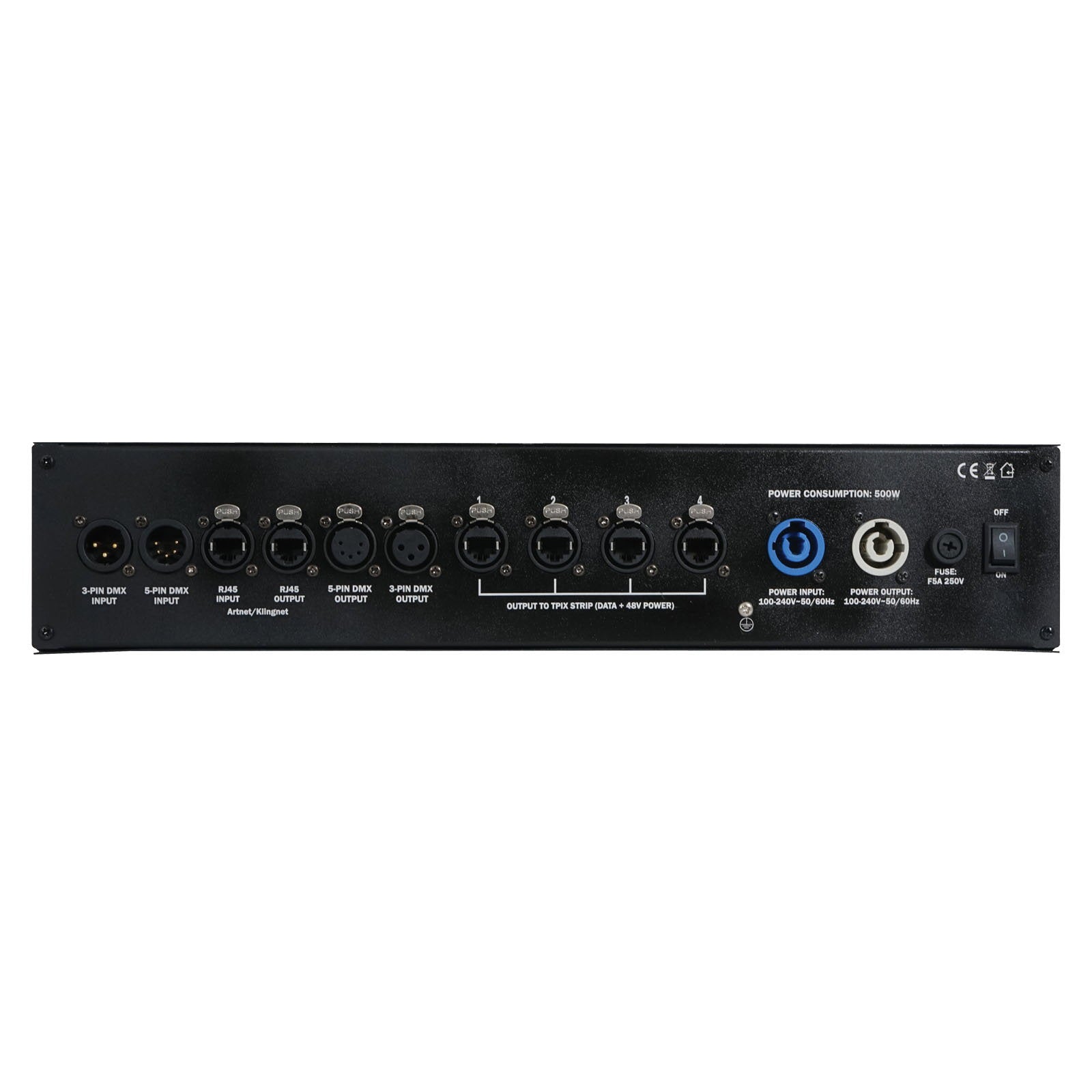

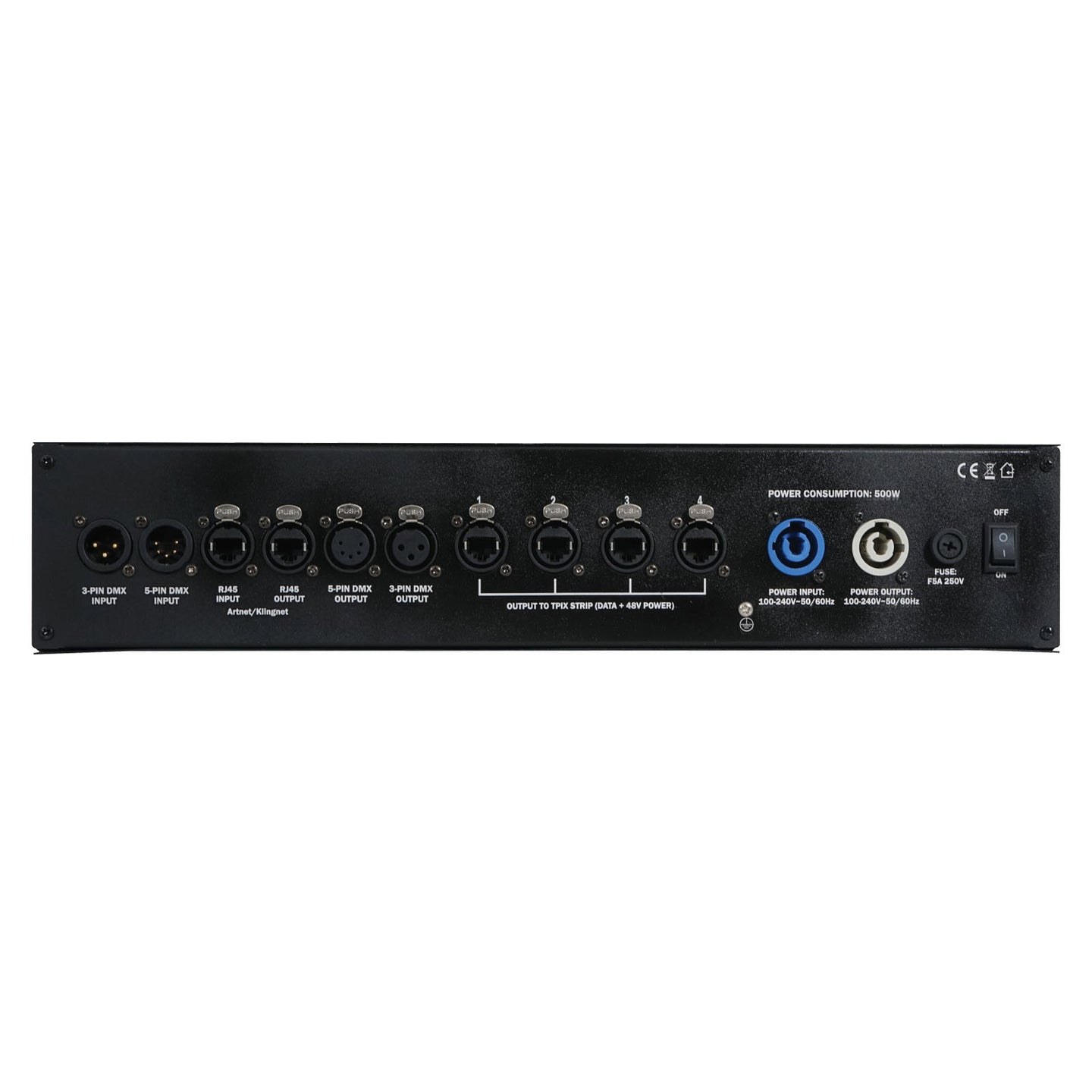

DMX channels: 10/55 or 480 selectable Art-Net channels: 1920 (based on 16 strips of 120 channels each) 4 push button menu with LCD display 5-Pin XLR input/output 3-Pin XLR input/output etherCON input/output (Art-Net/Kling-Net) Four RJ45 sockets for outputs to TPix Strip
Power consumption: 500W Power supply: 100~240V 50/60Hz Fuse: F5A 250V Dimensions (H x W x D): 88 x 483 x 290mm Weight: 3.9kg
DMX channels: 10/55 or 480 selectable Art-Net channels: 1920 (based on 16 strips of 120 channels each) 4 push button menu with LCD display 5-Pin XLR input/output 3-Pin XLR input/output etherCON input/output (Art-Net/Kling-Net) Four RJ45 sockets for outputs to TPix Strip
Power consumption: 500W Power supply: 100~240V 50/60Hz Fuse: F5A 250V Dimensions (H x W x D): 88 x 483 x 290mm Weight: 3.9kg

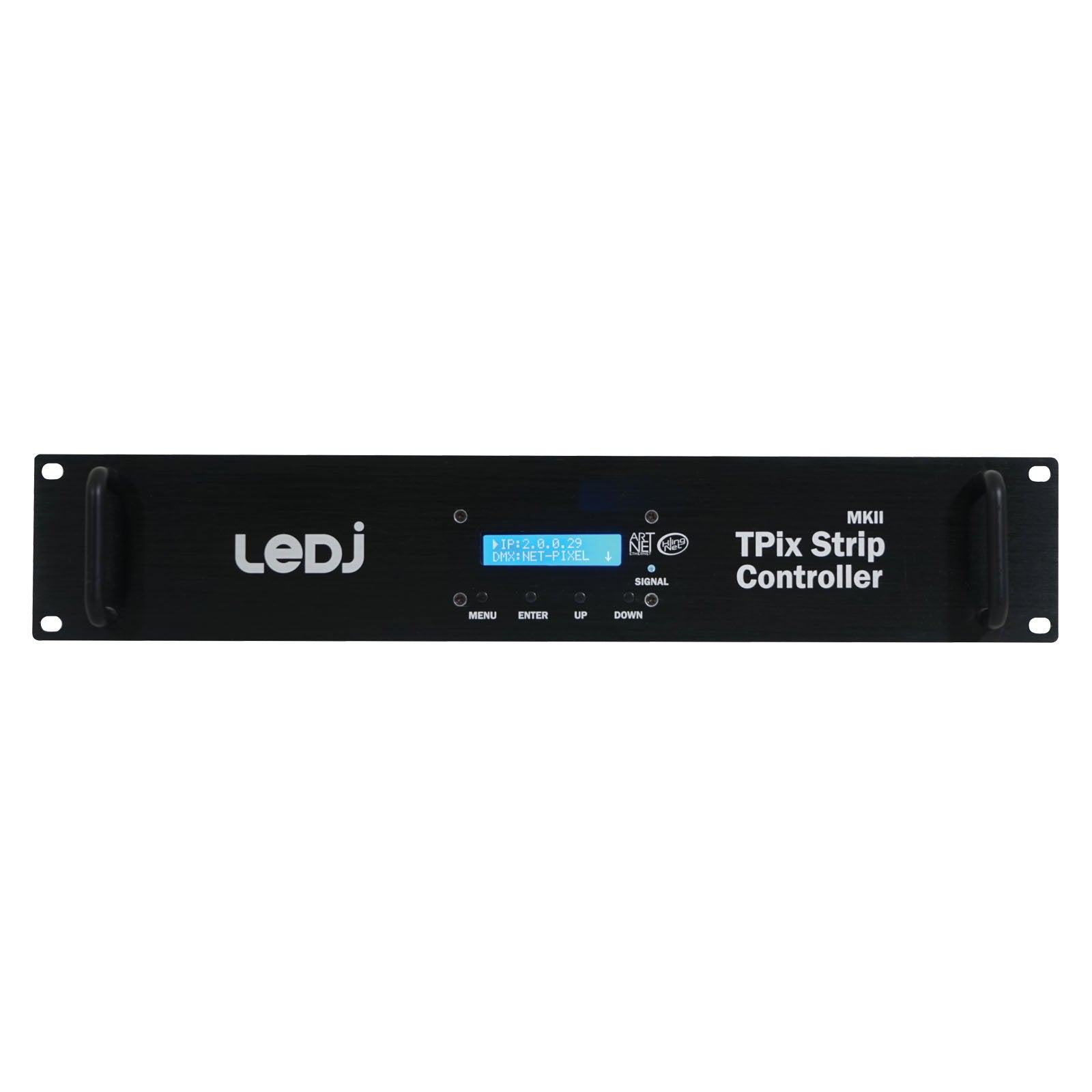

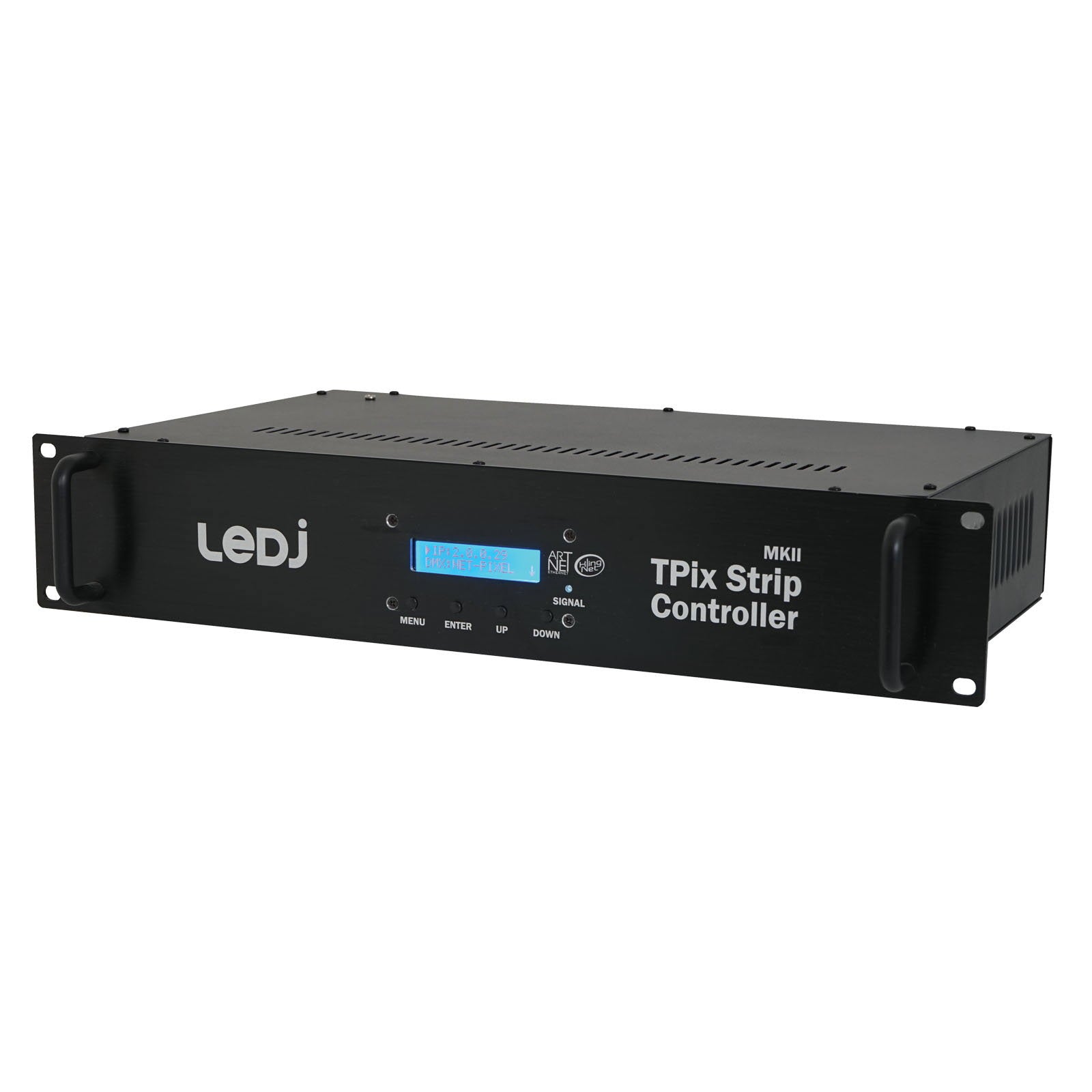

LEDJ TPix Strip 40/80 Controller MKII
Brand: LEDJ
SKU: LEDJ487
Regular price
£389.99
Pickup available at Venutec
Usually ready in 24 hours
LEDJ TPix Strip 40/80 Controller MKII
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
This 48V system allows for greater cable lengths between TPix MKII controllers and TPix MKII strips. A host of built in macros can be triggered from the menu system or via DMX for simple operation or for full pixel control the Art-Net or Kling-Net protools may be used. The on-board network switch allows for the Art-Net or Kling-Net to be fully daisy chained for fast connection.
DMX channels: 10/55 or 480 selectable Art-Net channels: 1920 (based on 16 strips of 120 channels each) 4 push button menu with LCD display 5-Pin XLR input/output 3-Pin XLR input/output etherCON input/output (Art-Net/Kling-Net) Four RJ45 sockets for outputs to TPix Strip
Power consumption: 500W Power supply: 100~240V 50/60Hz Fuse: F5A 250V Dimensions (H x W x D): 88 x 483 x 290mm Weight: 3.9kg
DMX channels: 10/55 or 480 selectable Art-Net channels: 1920 (based on 16 strips of 120 channels each) 4 push button menu with LCD display 5-Pin XLR input/output 3-Pin XLR input/output etherCON input/output (Art-Net/Kling-Net) Four RJ45 sockets for outputs to TPix Strip
Power consumption: 500W Power supply: 100~240V 50/60Hz Fuse: F5A 250V Dimensions (H x W x D): 88 x 483 x 290mm Weight: 3.9kg
