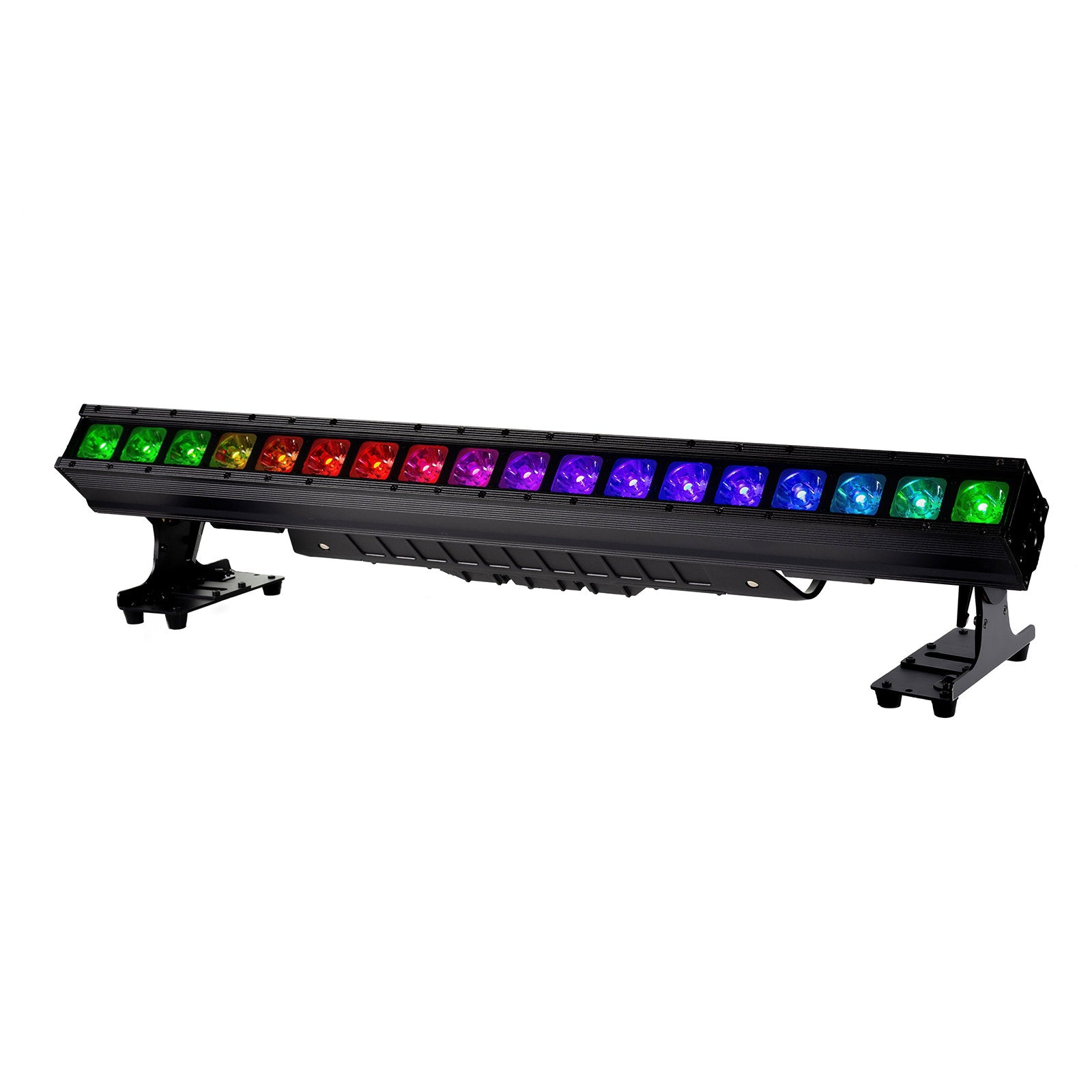

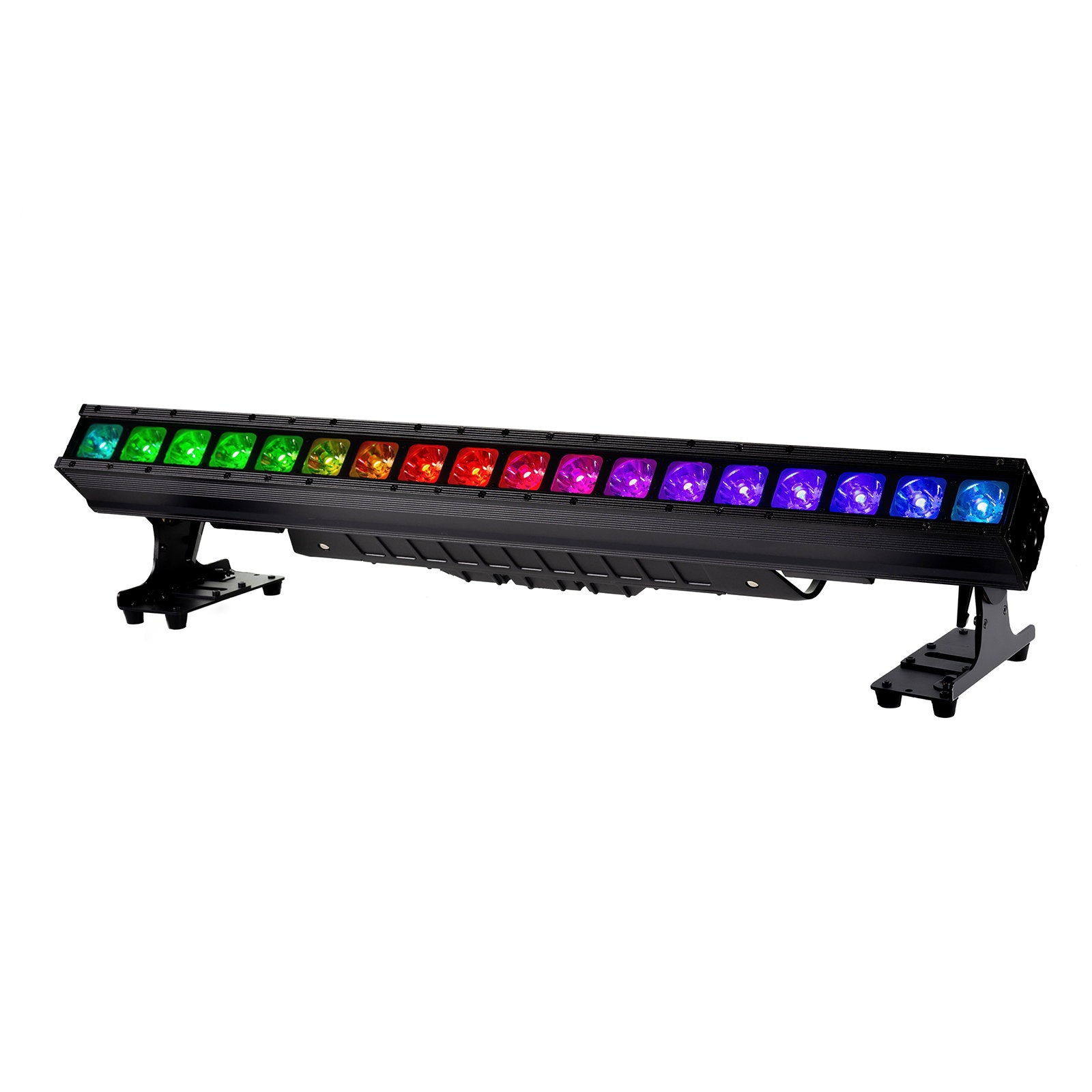

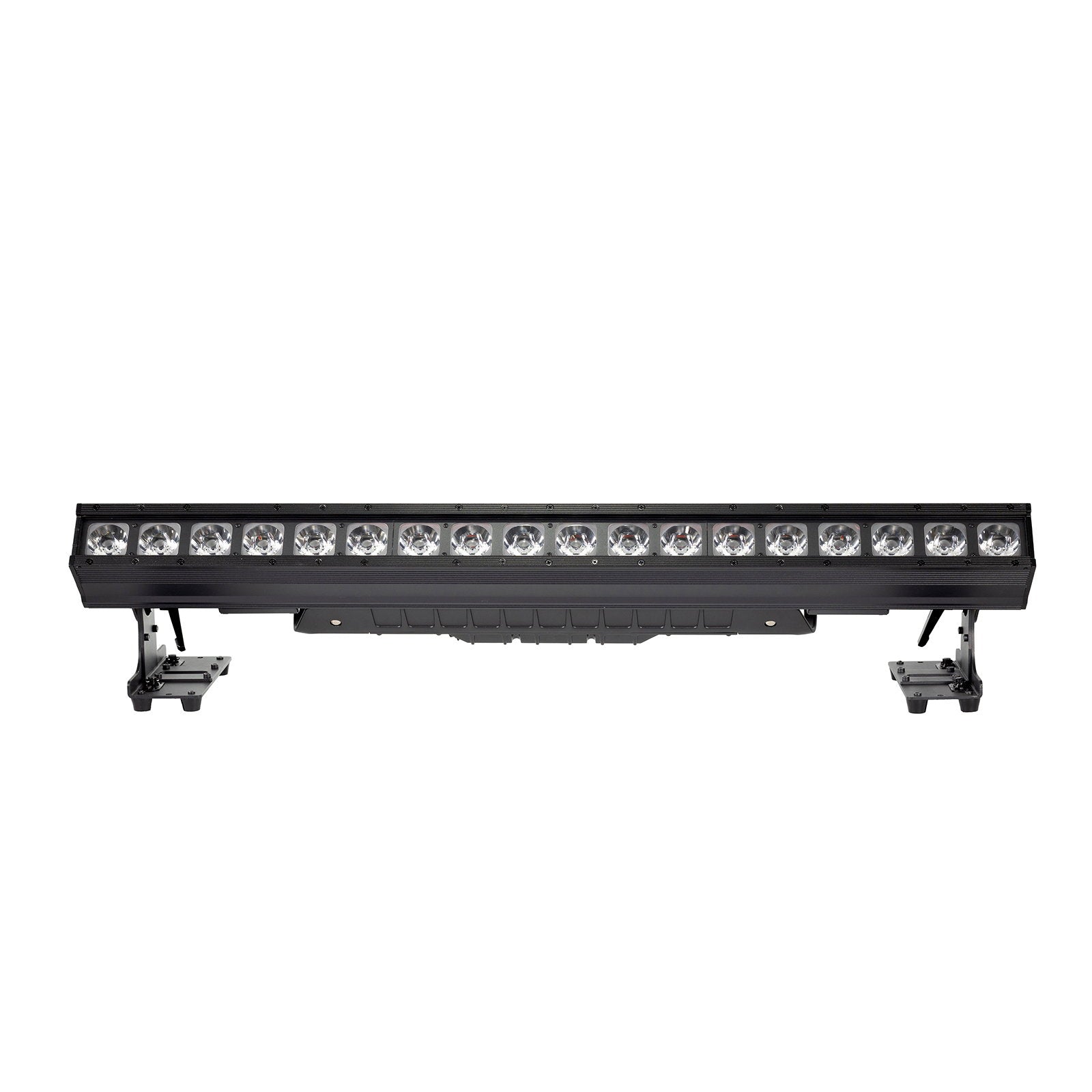

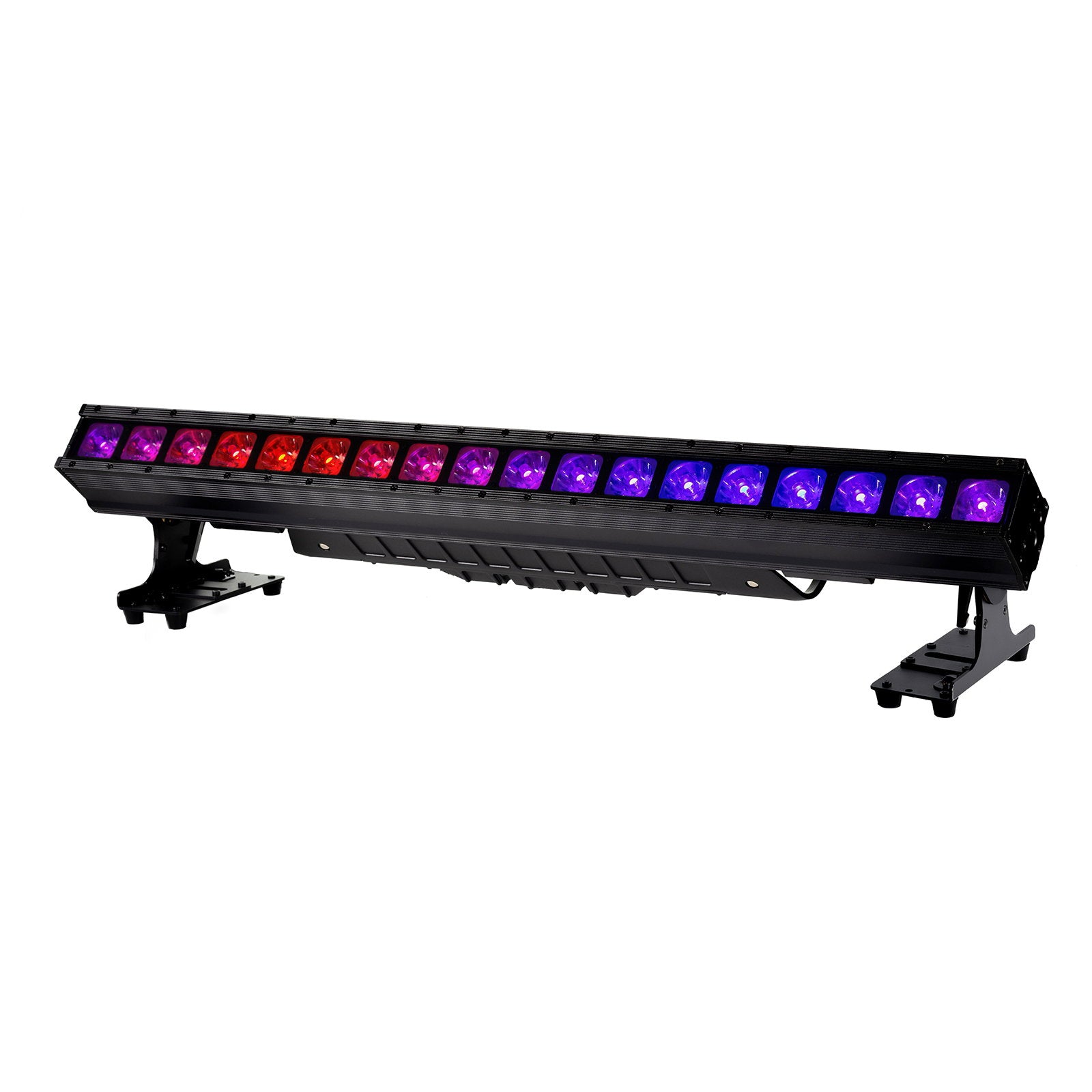

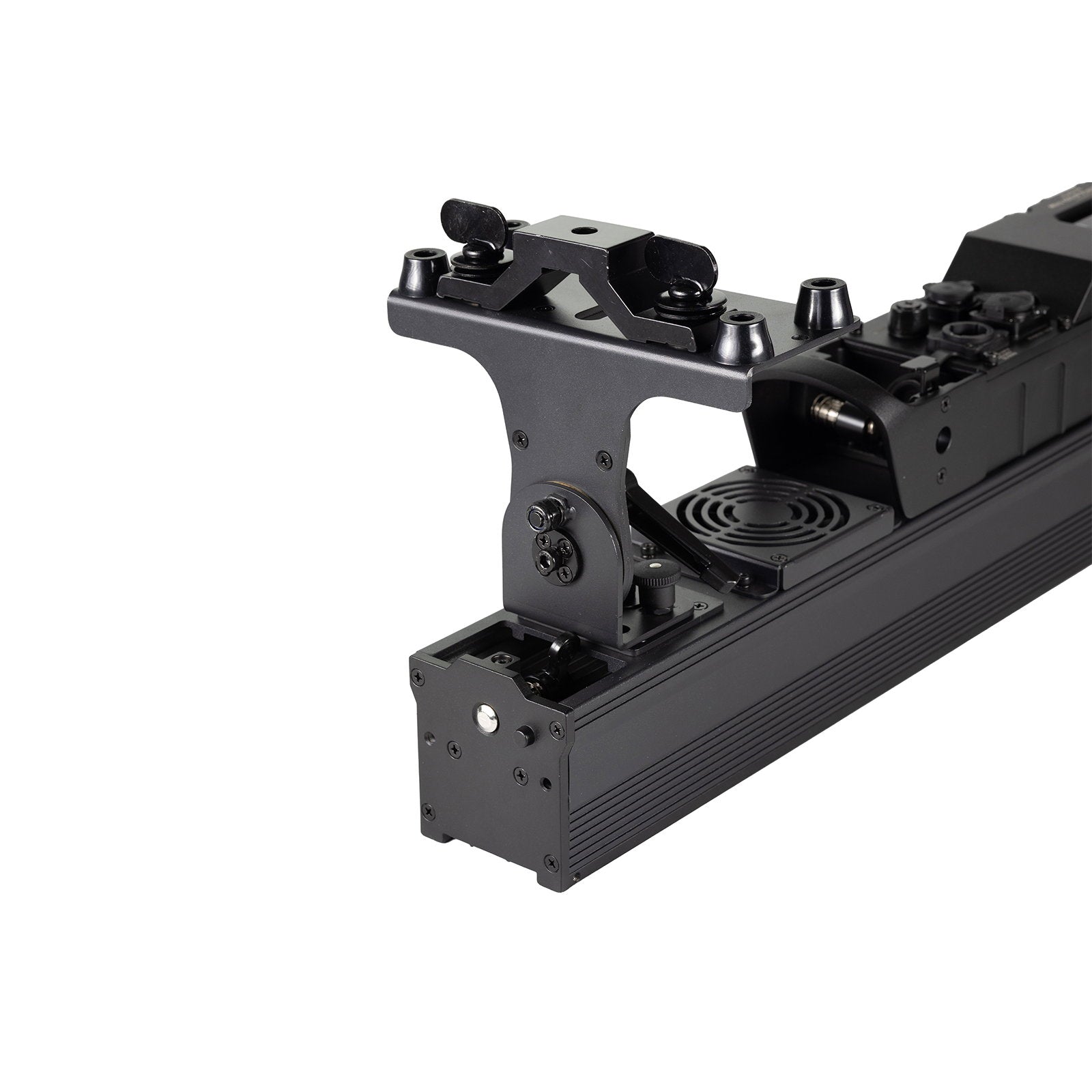

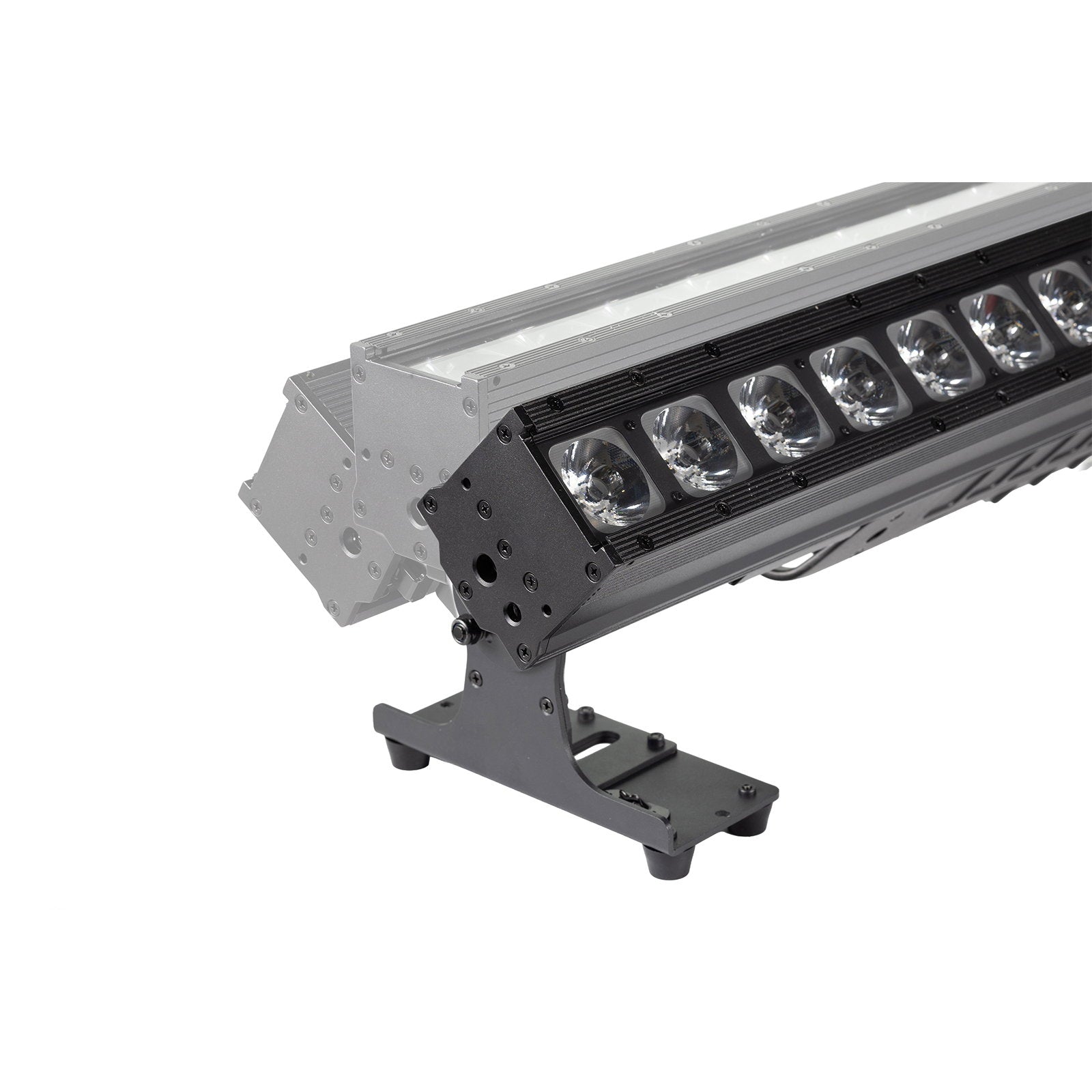

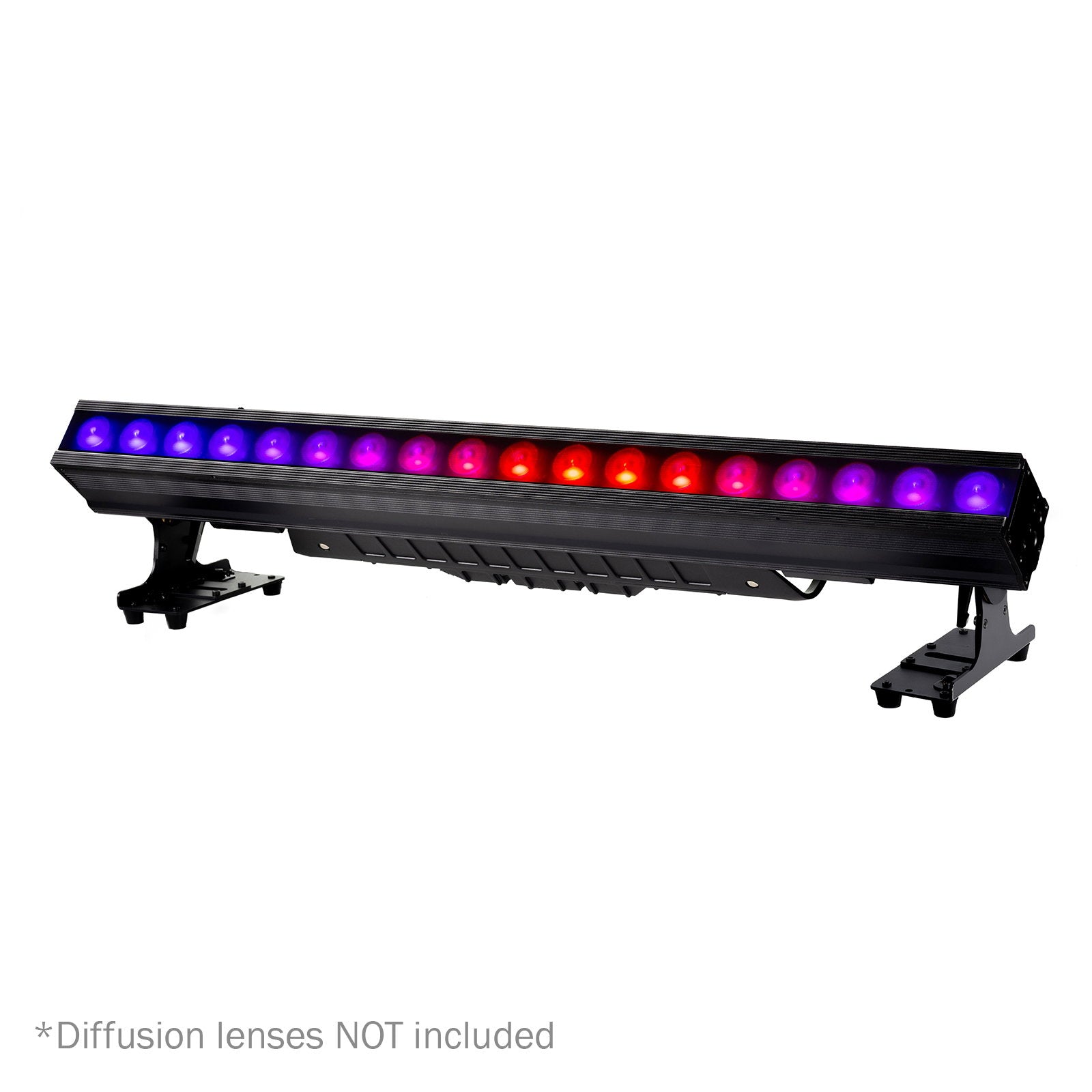

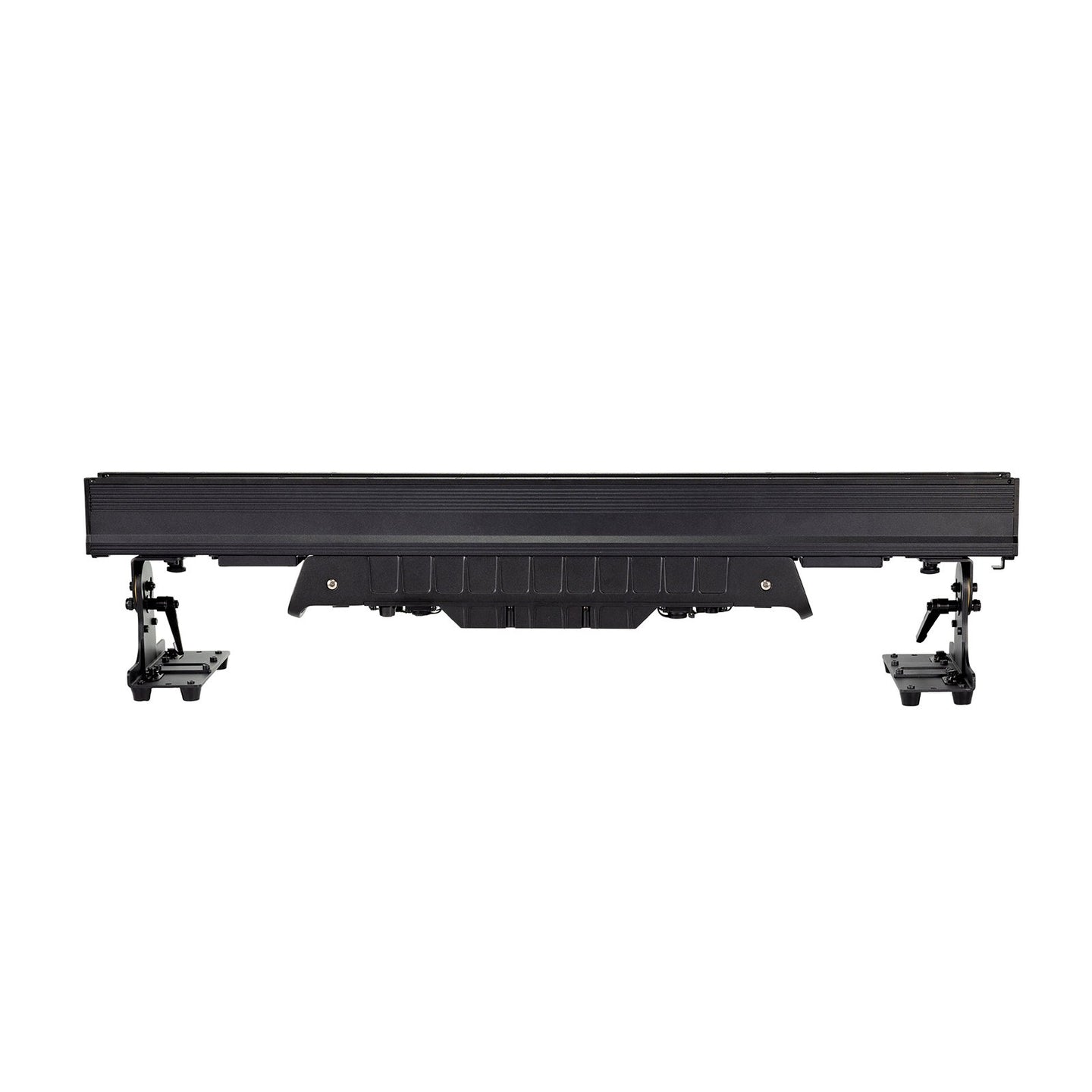

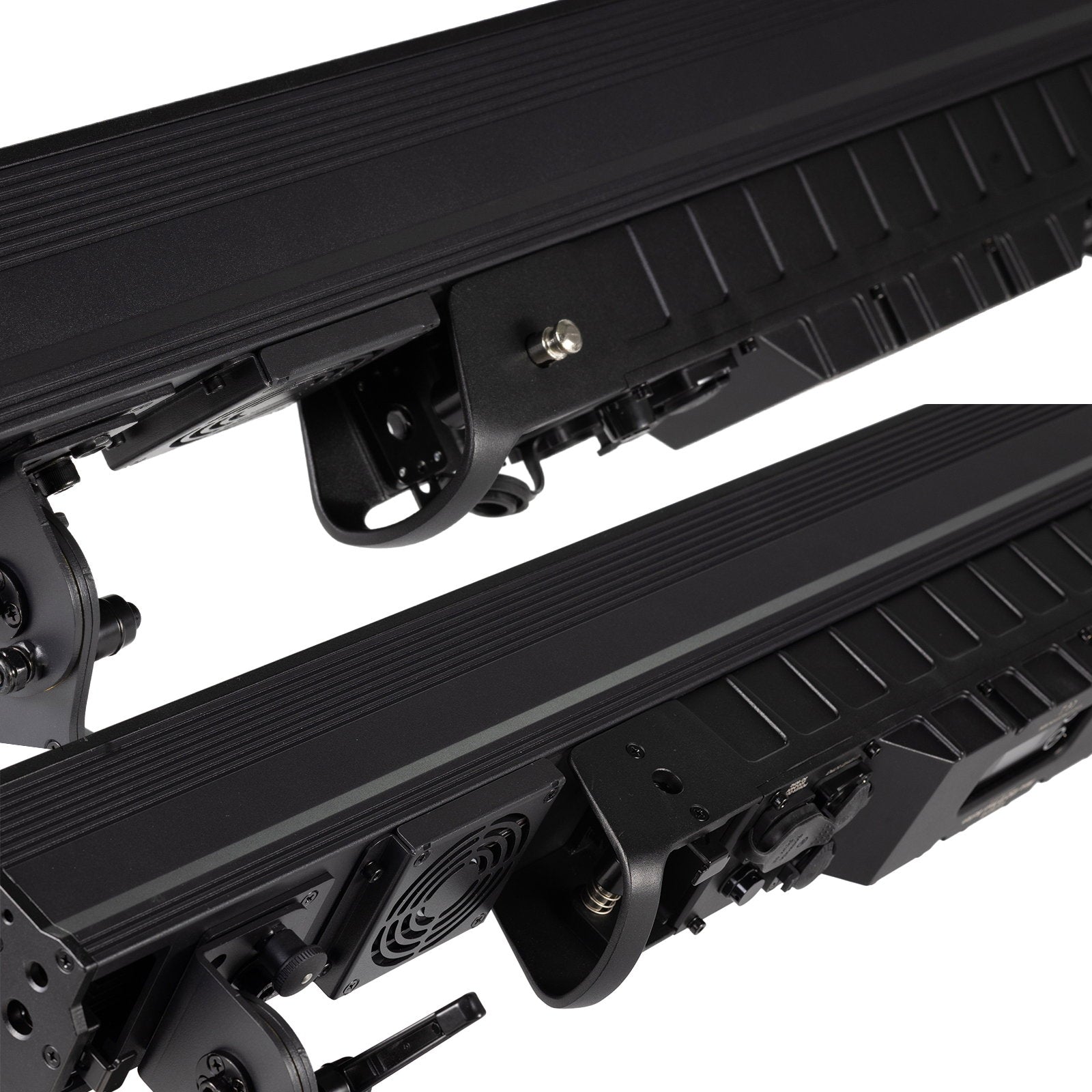

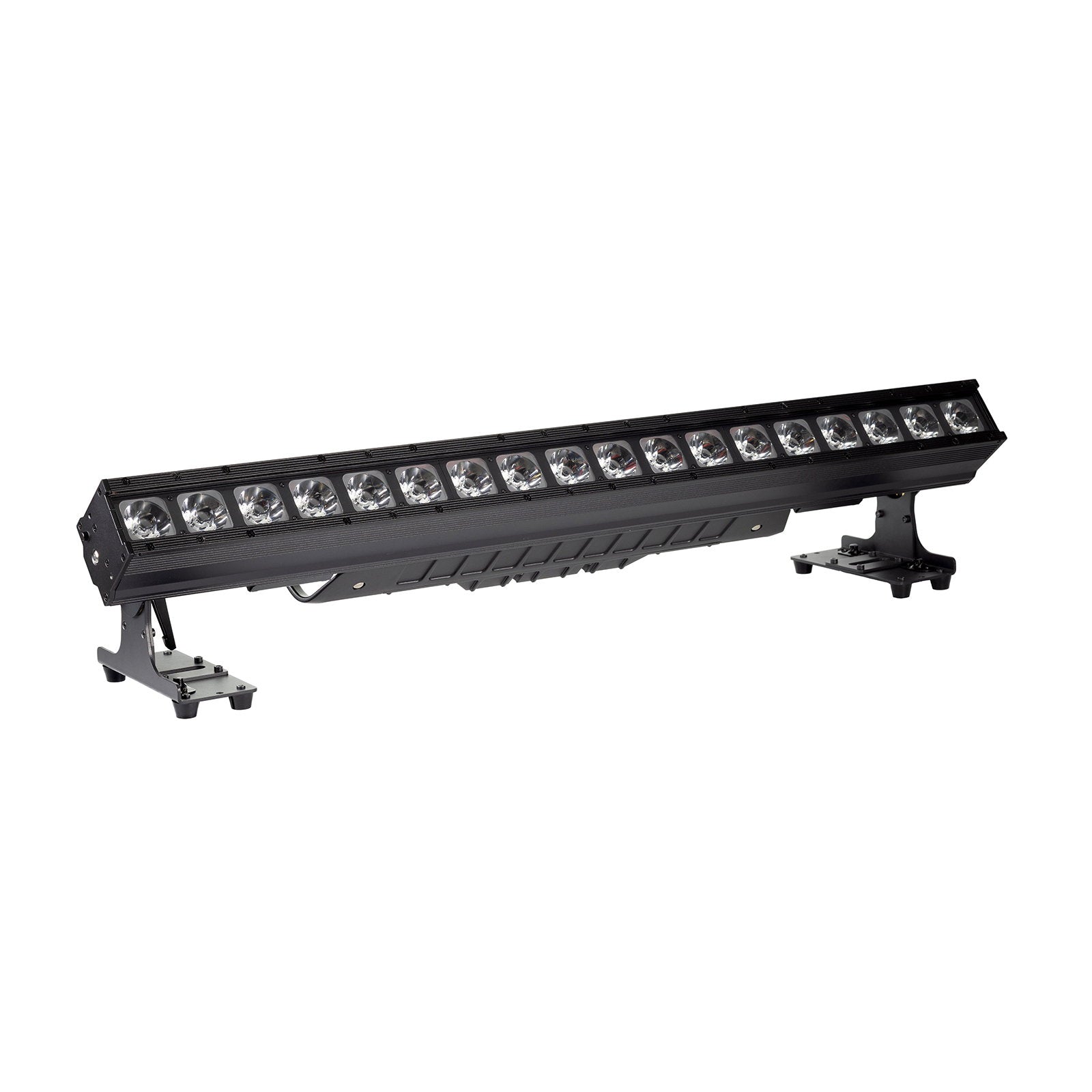

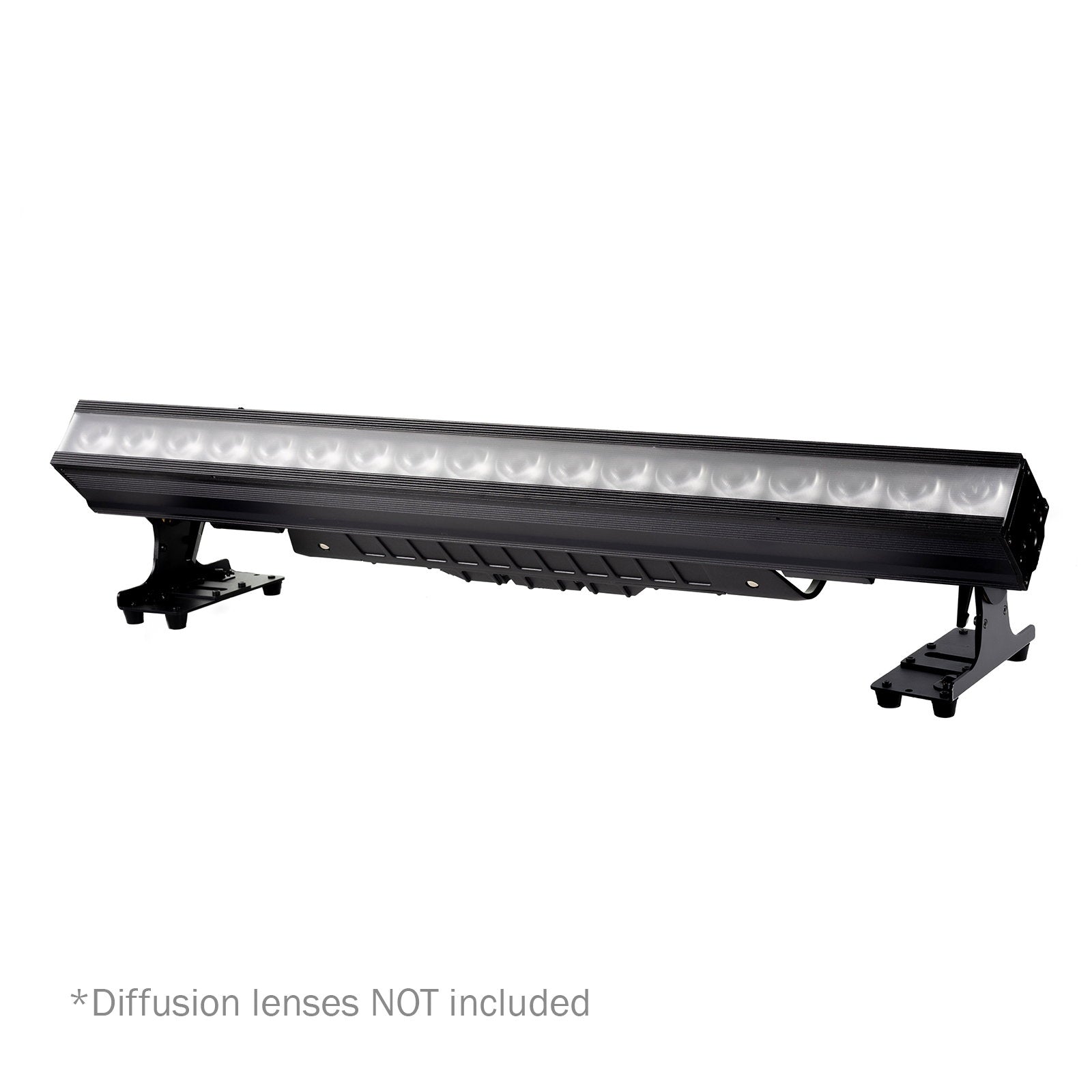

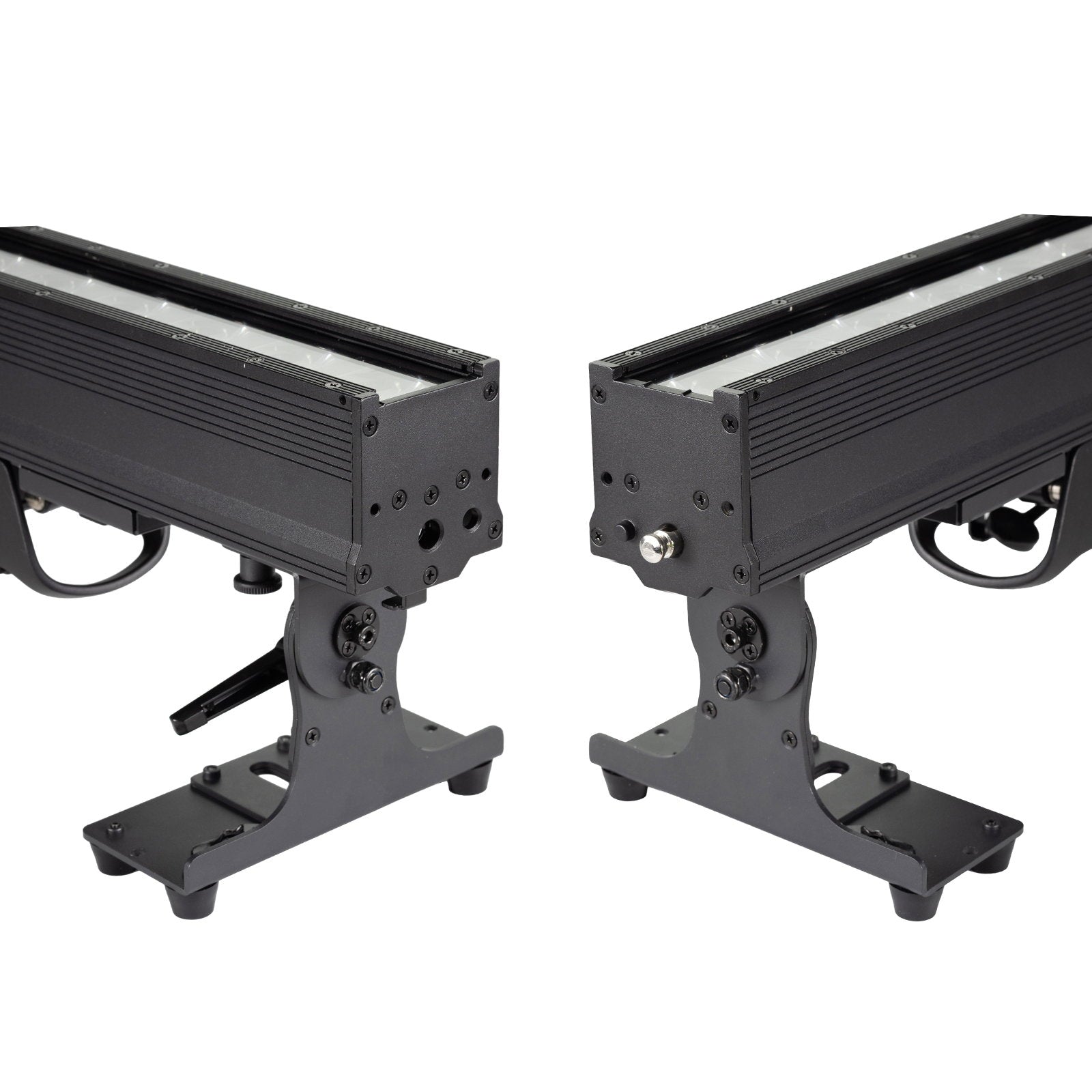

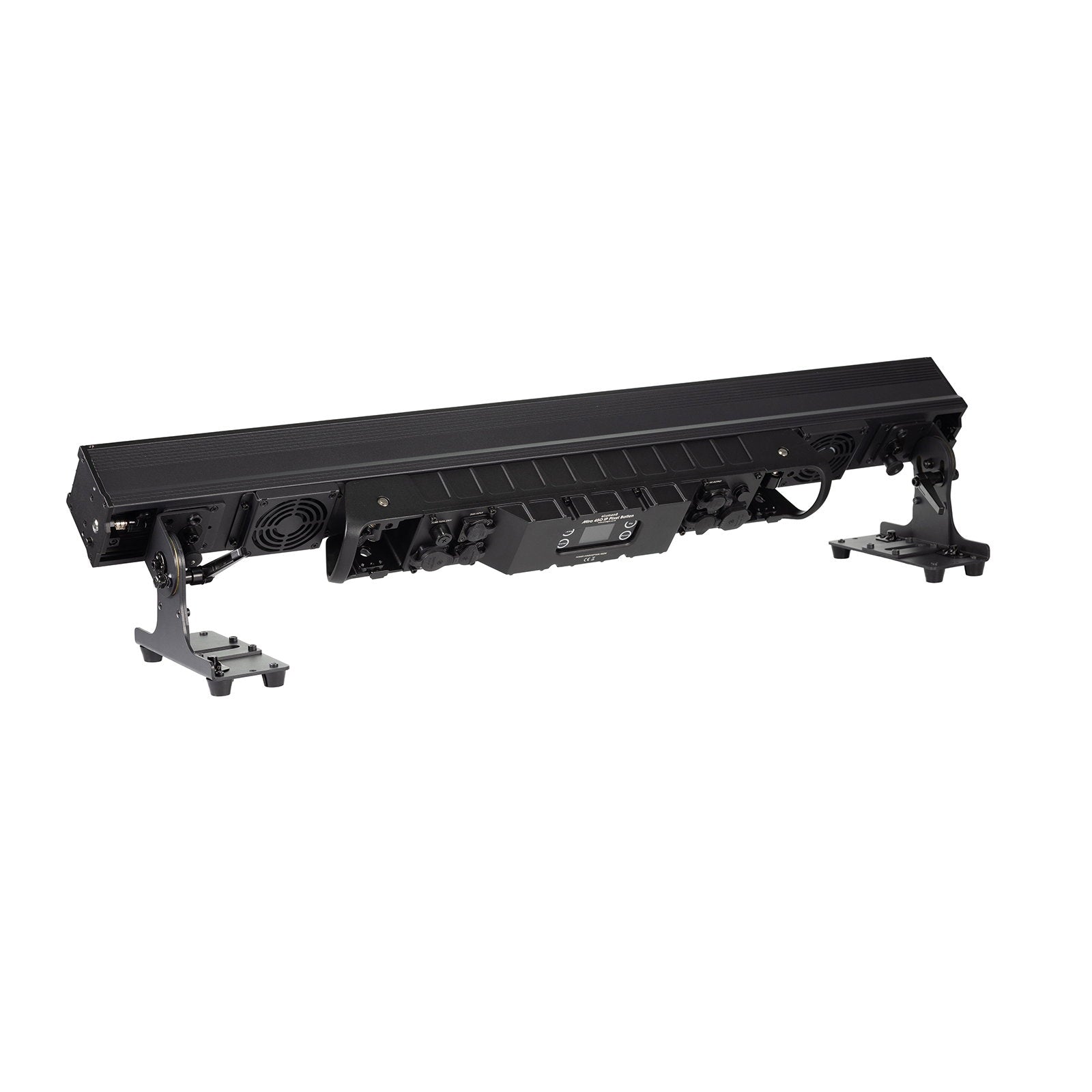

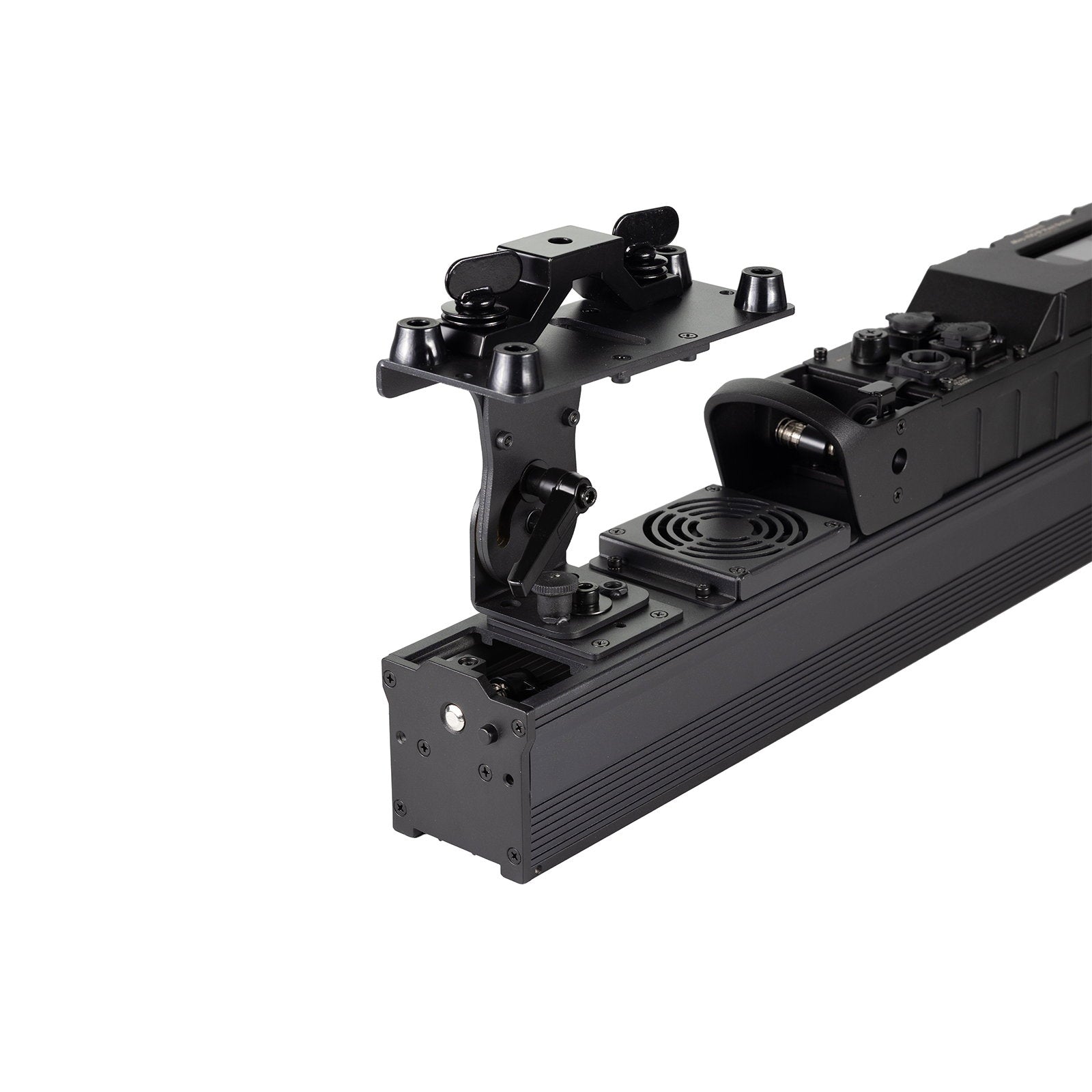

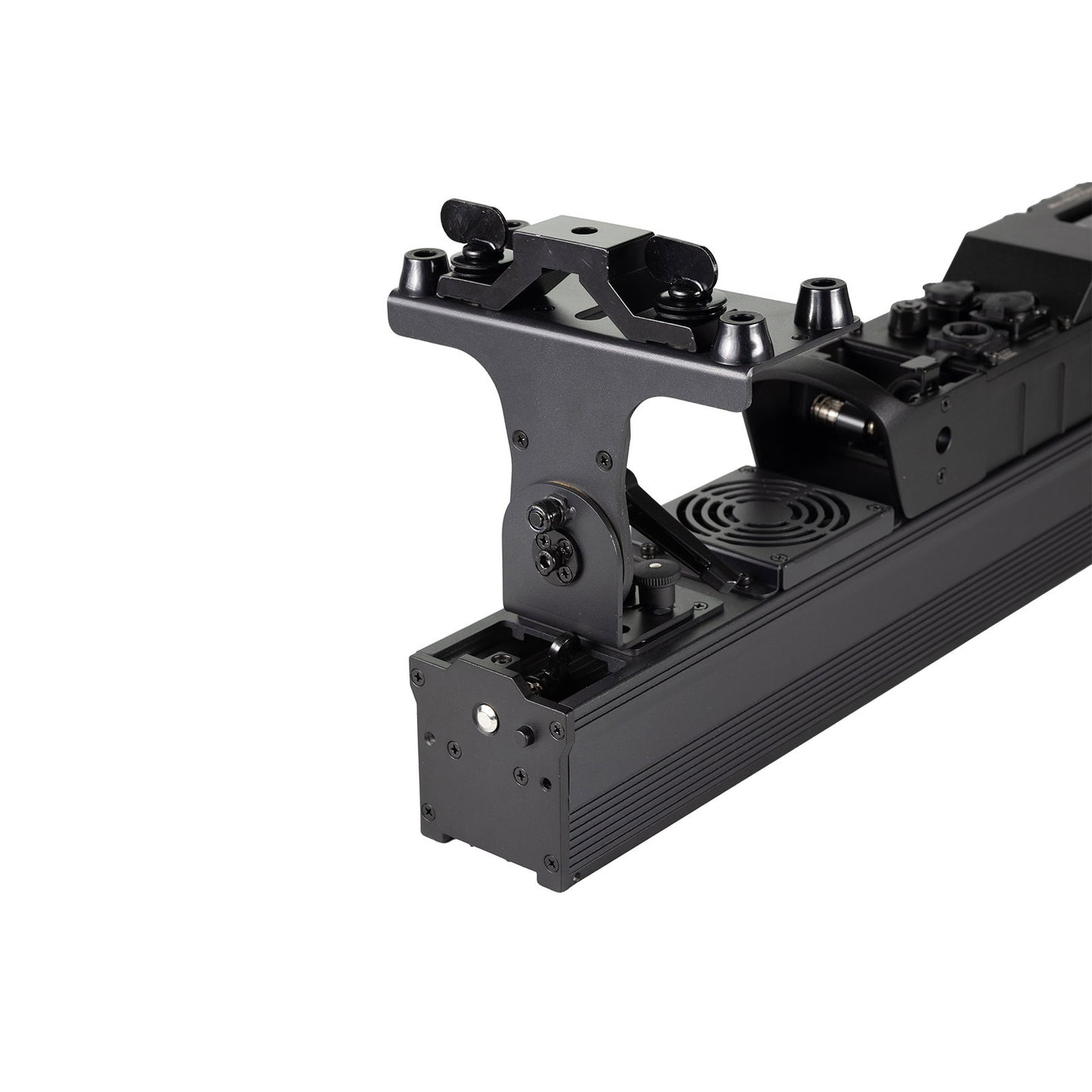

The Elumen8 Mira 450 IP Pixel Batten is a high-output IP65-rated fixture designed for the most demanding of environments. Housing 18 x 25W RGBL quad-colour LEDs it delivers an intense 6° beam with optional 20° 45° and 60° lenses available for broader wash coverage. The batten supports full pixel mapping and is controllable via DMX Art-Net or sACN with selectable refresh rates up to 24kHz for flicker-free performance on camera. Built for touring and fixed installs alike the Mira 450 features fully rotatable 4-position mounting brackets for floor-standing or truss rigging and includes quick-release omega clamps for fast setup. Units can be seamlessly joined side-by-side or stacked vertically using the built-in tool-free link system allowing for uninterrupted linear or grid-style arrays. With convection cooling and rugged IP-rated connectors the Mira 450 is the ideal choice for outdoor shows stage productions and architectural lighting.

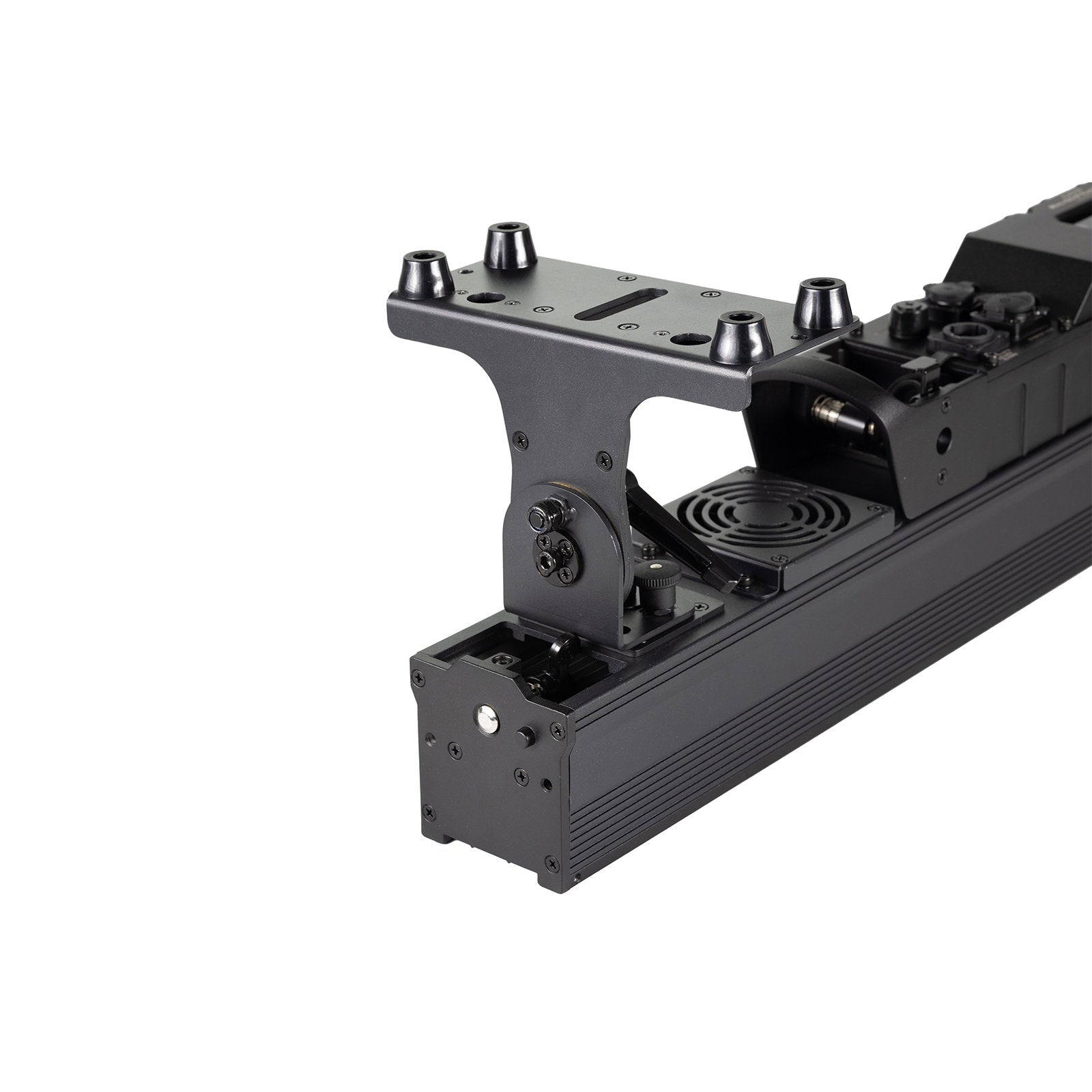

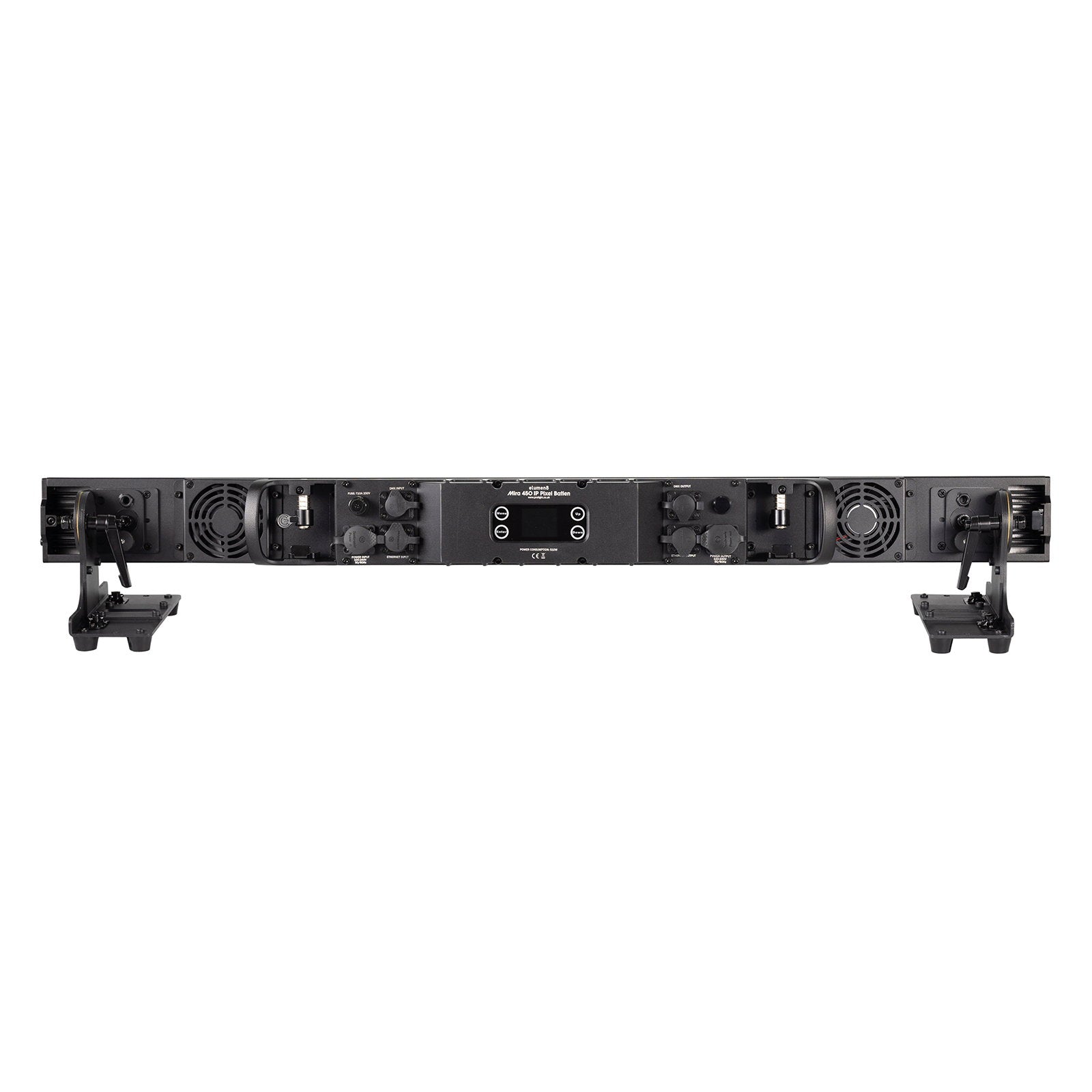

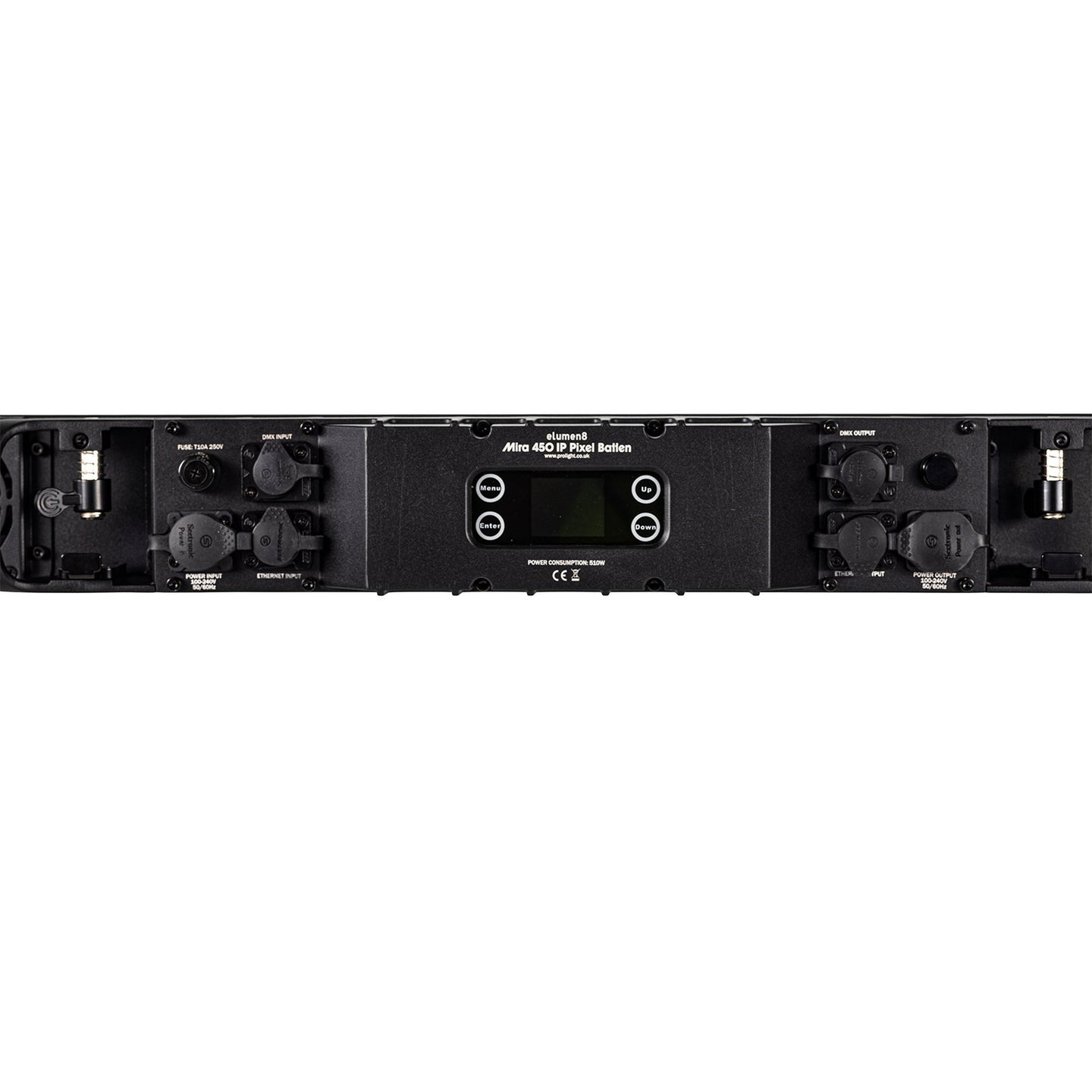

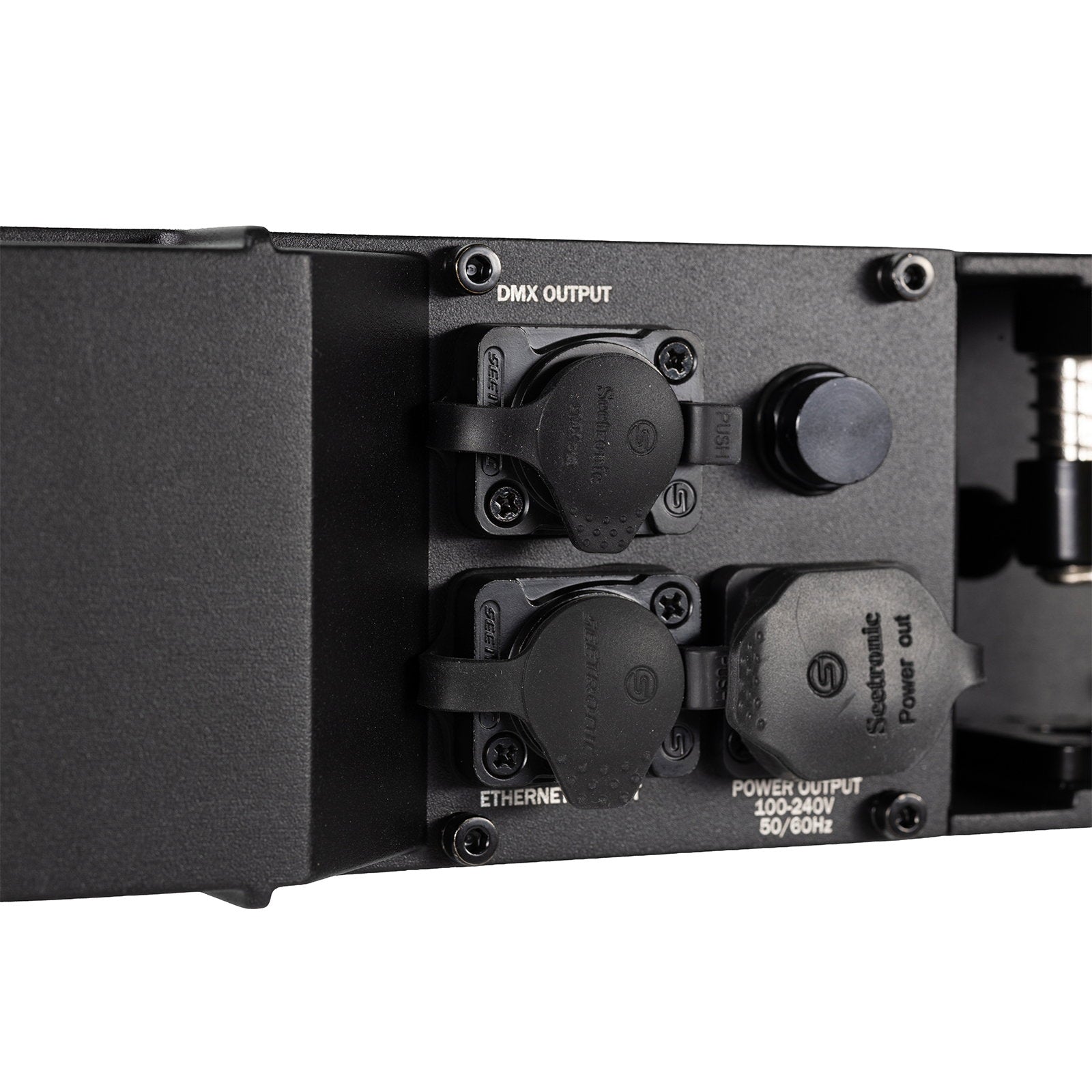

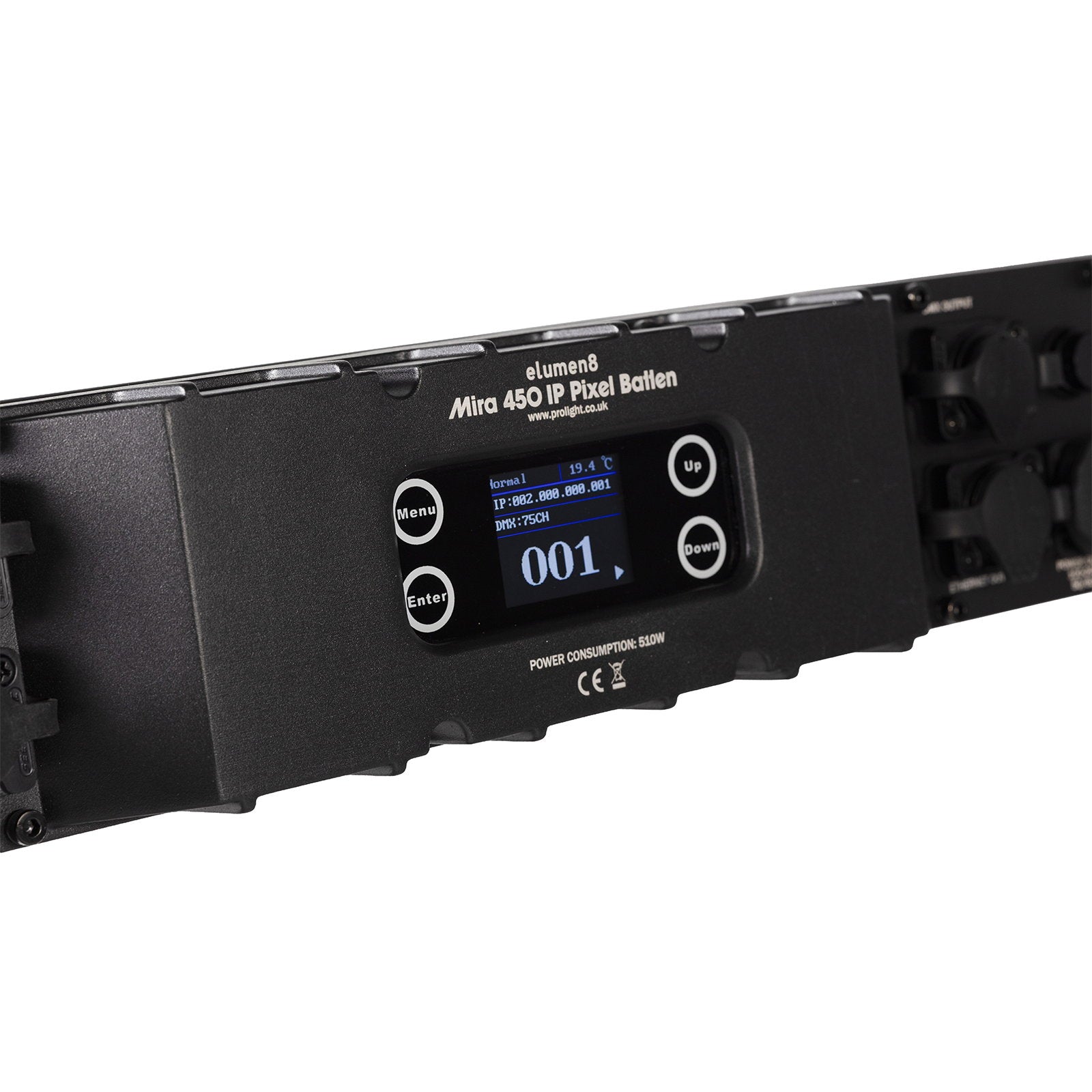

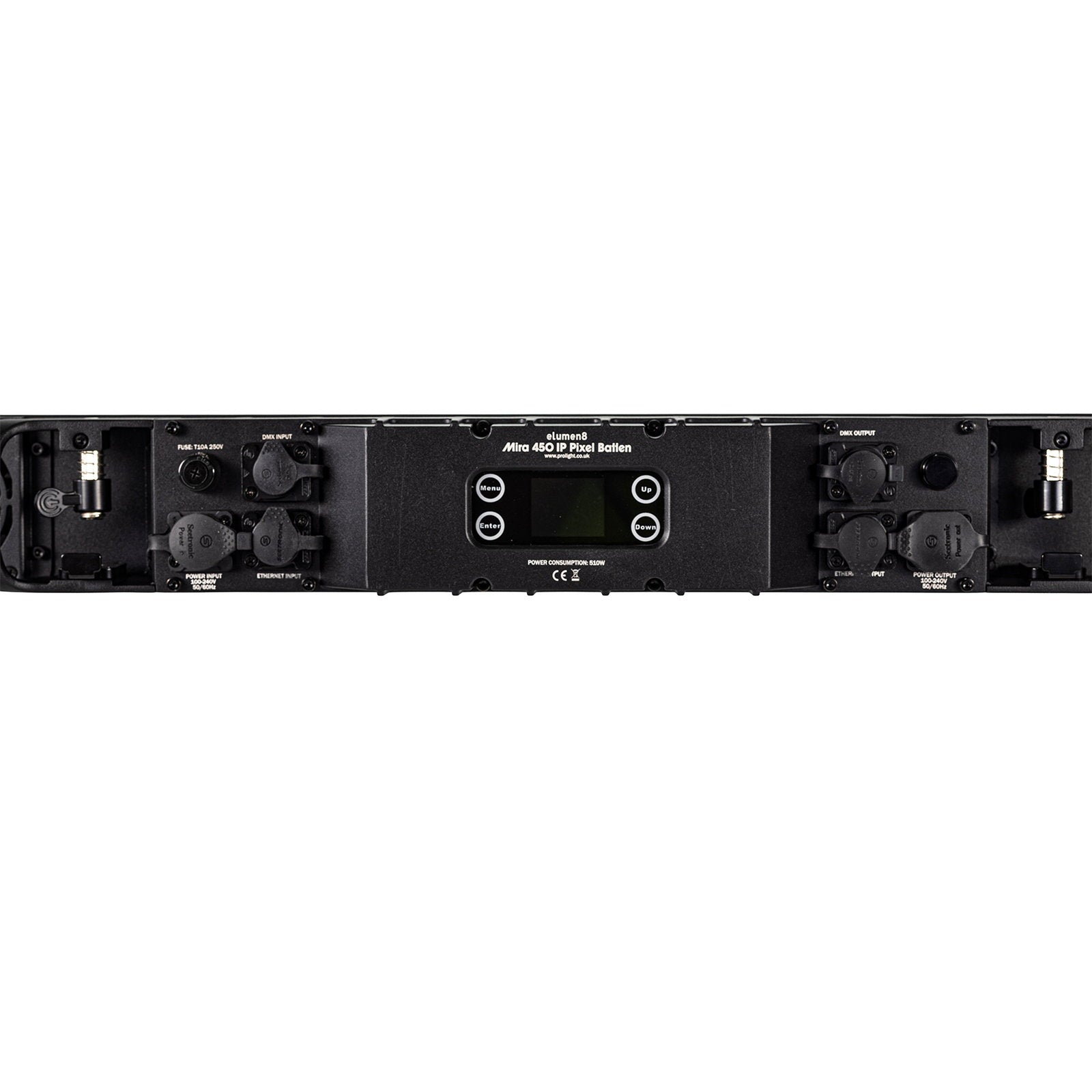

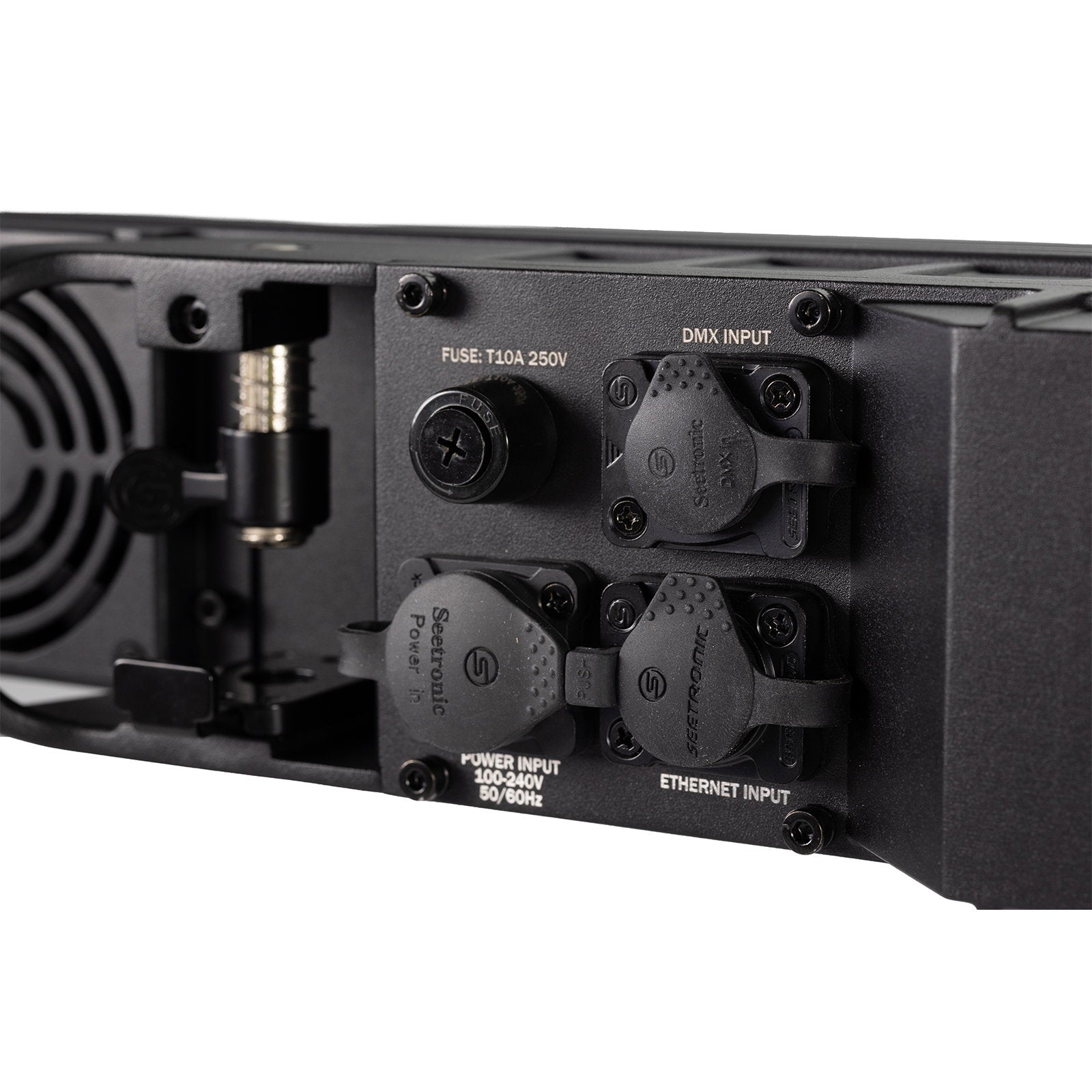

2 year warranty 18 x 25W RGBL quad-colour LEDs Native 6° beam angle Optional 20° 45° and 60° diffusion lenses available Selectable refresh rates: 800Hz 1.2kHz 2kHz 4kHz 6kHz 8kHz 16kHz 24kHz Full pixel mapping capabilities Control: DMX Art-Net and sACN DMX channels: 4/7/9/20/75/79 selectable Integral Art-Net to DMX for downstream fixture control Static colour colour temperature and manual modes Built-in colour macros and programs Colour temperature presets 0 - 100% dimming 4 dimming curves: Linear Square Law Inverse Square Law S-Curve Variable strobe RDM (Remote Device Management) 4 button menu with LCD display Adjustable 4-position brackets rotatable at 90° intervals Quick release omega clamps included for fast rigging Tool-free seamless joining side-by-side or vertically stacked PowerTwist TR1 input/output IP-rated 5-Pin XLR input/output 3 selectable fan modes (auto silent and full)

Power consumption: 510W Power supply: 100~240V 50/60Hz Fuse: T10A 250V IP rating: IP65 Dimensions: 230 x 970 x 94mm Weight: 11kg
