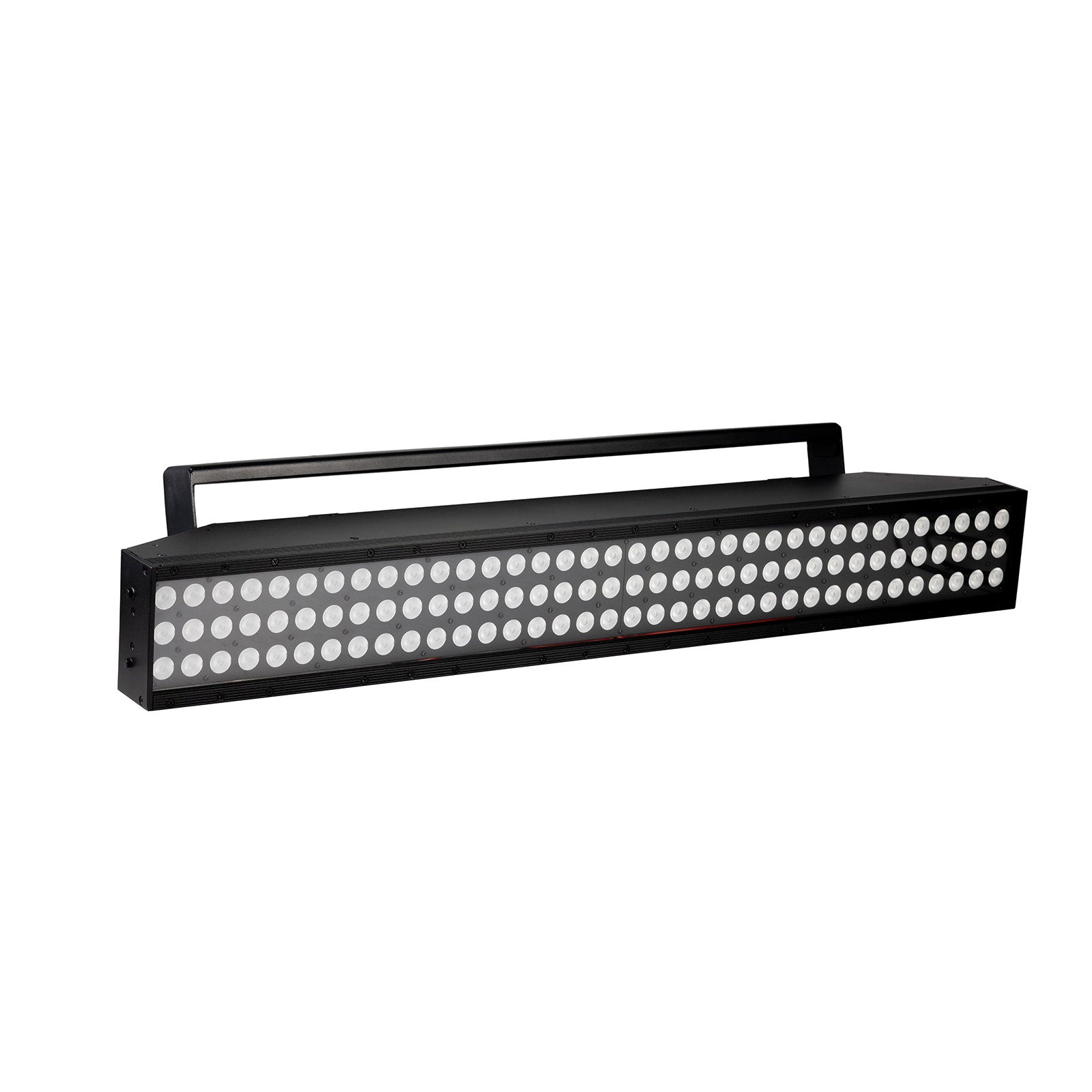

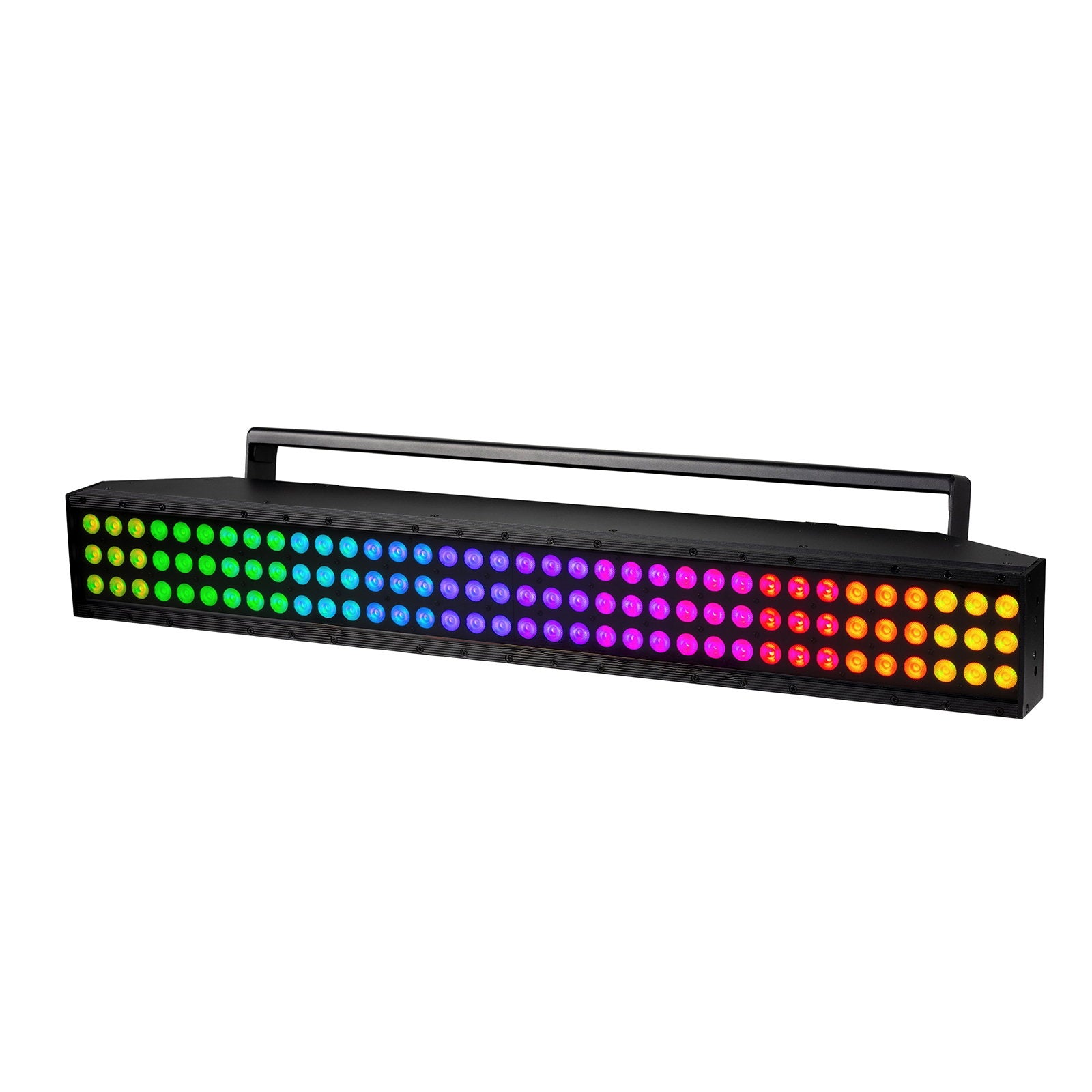

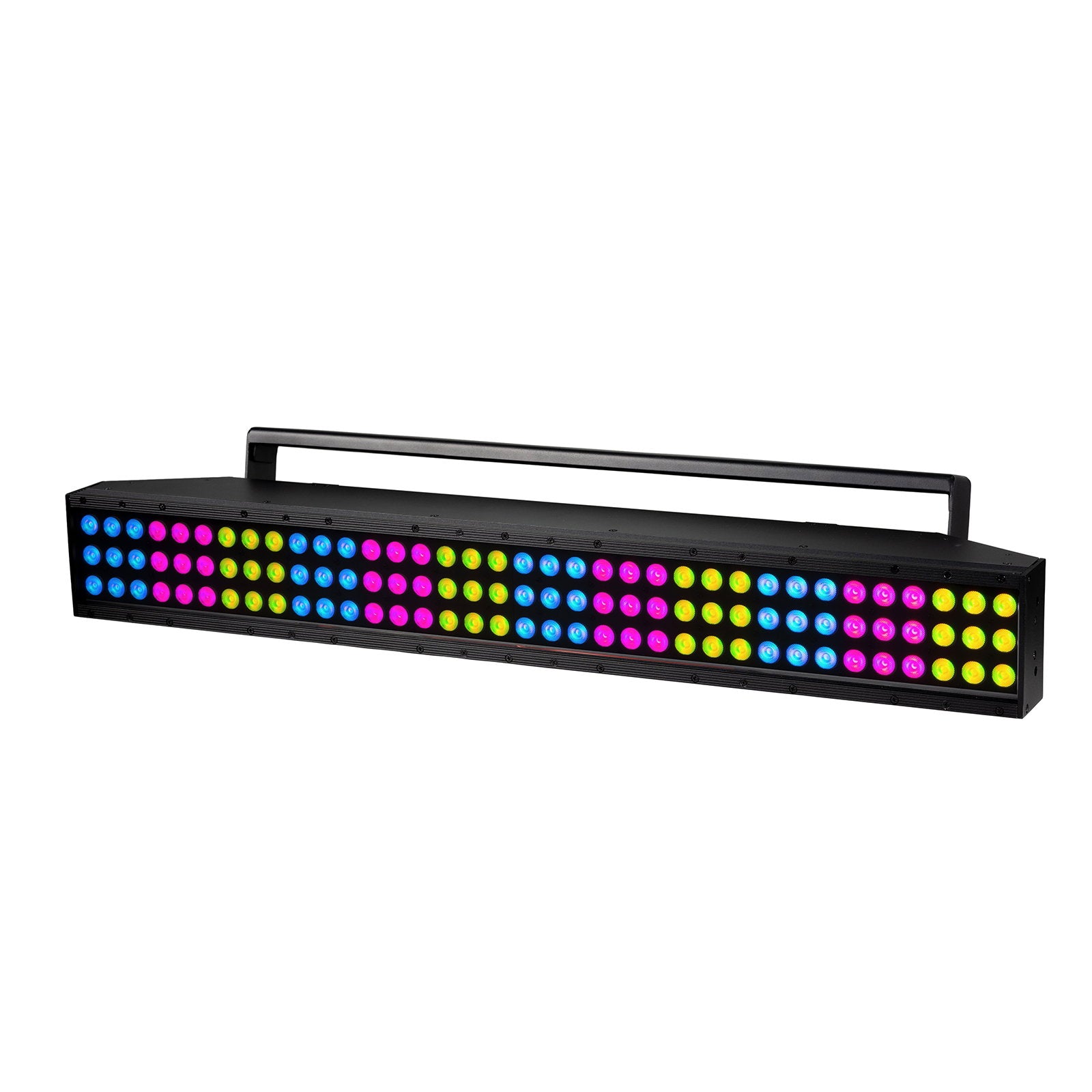

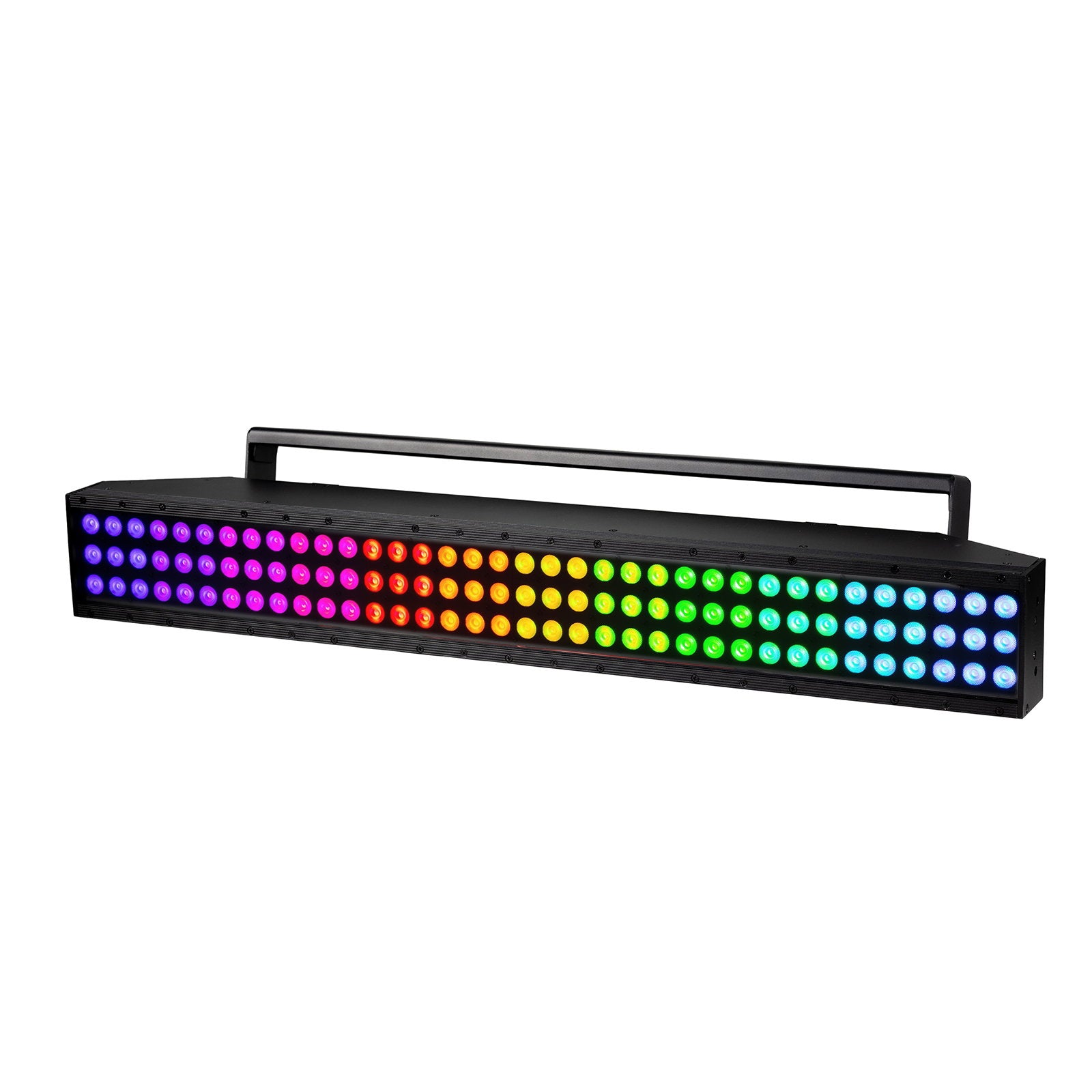

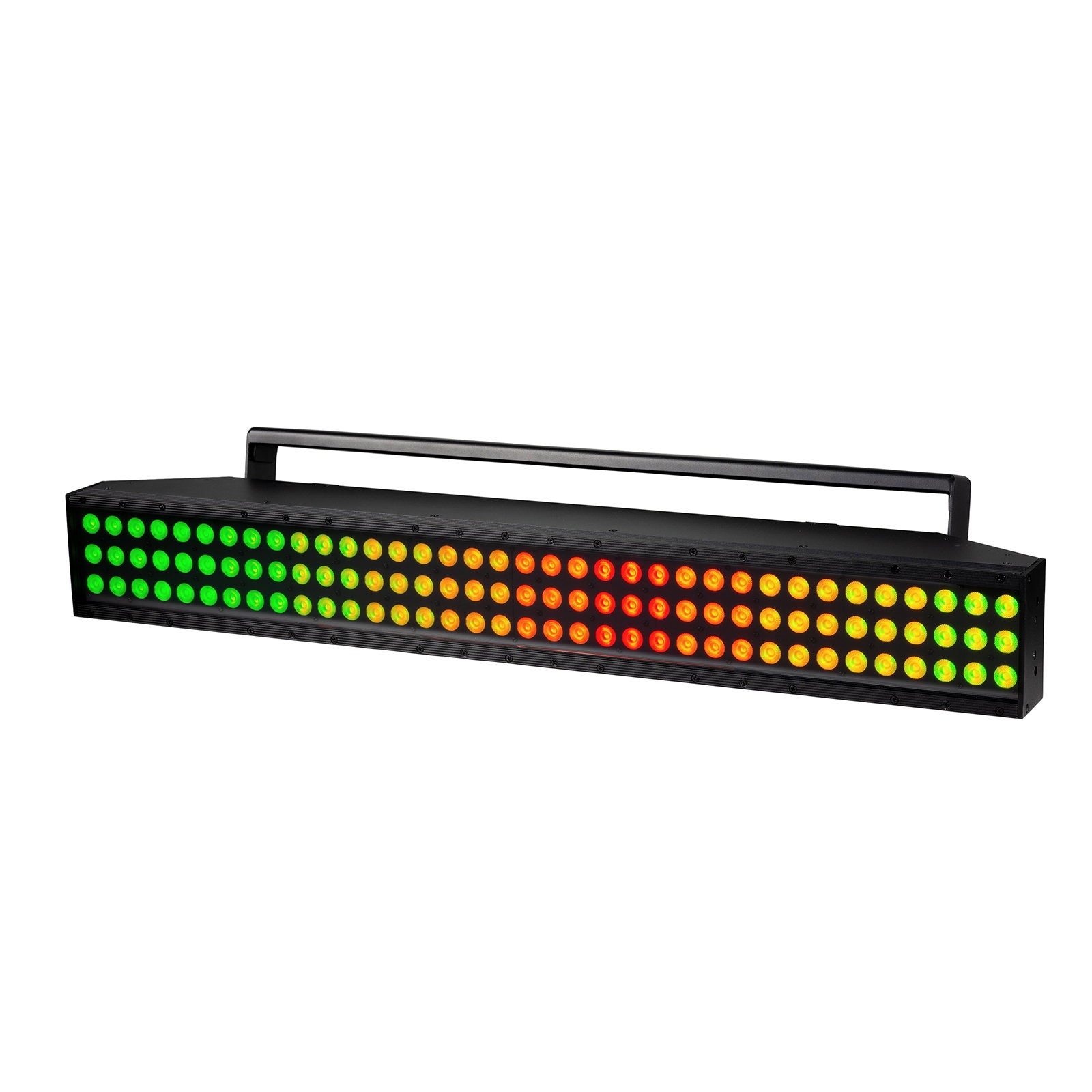

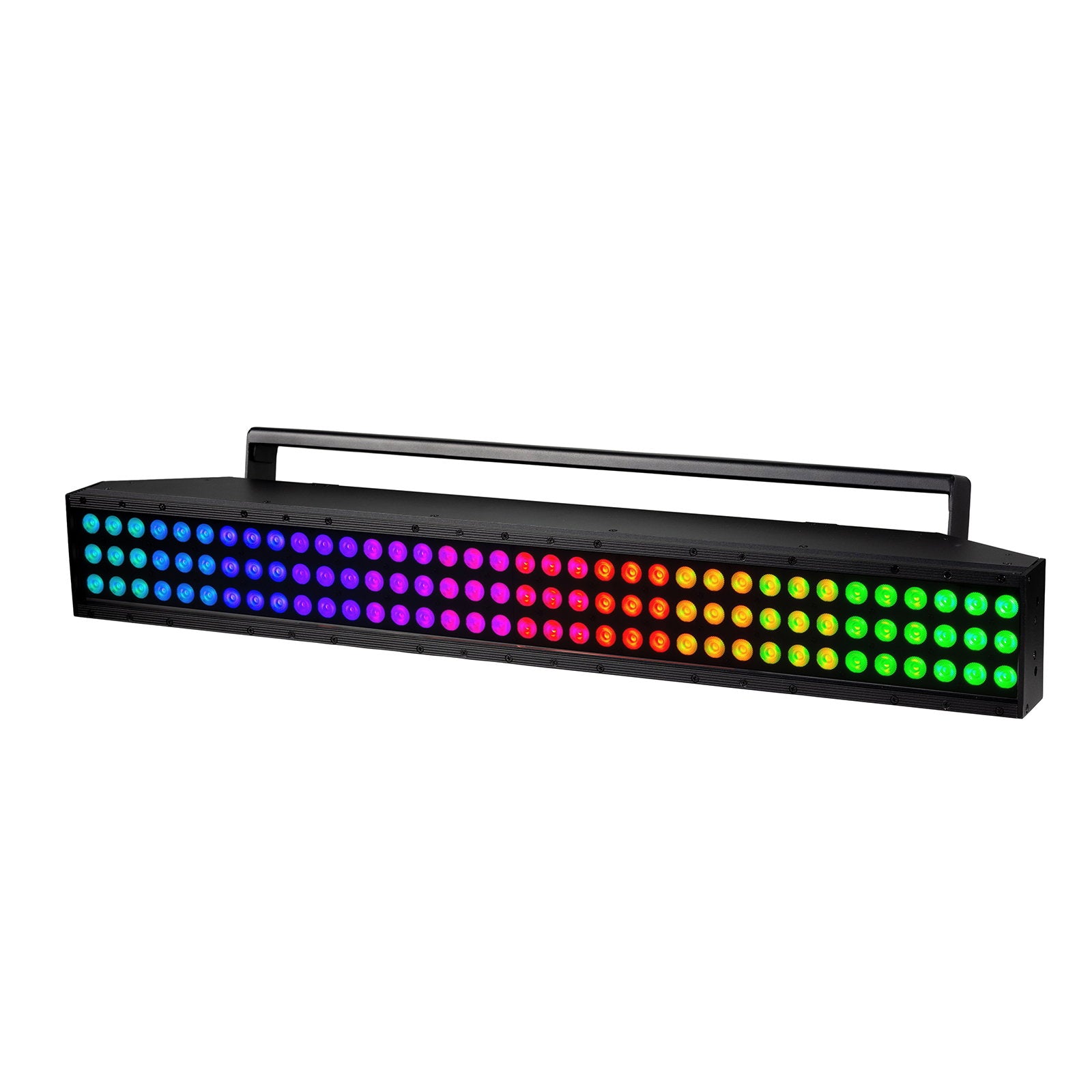

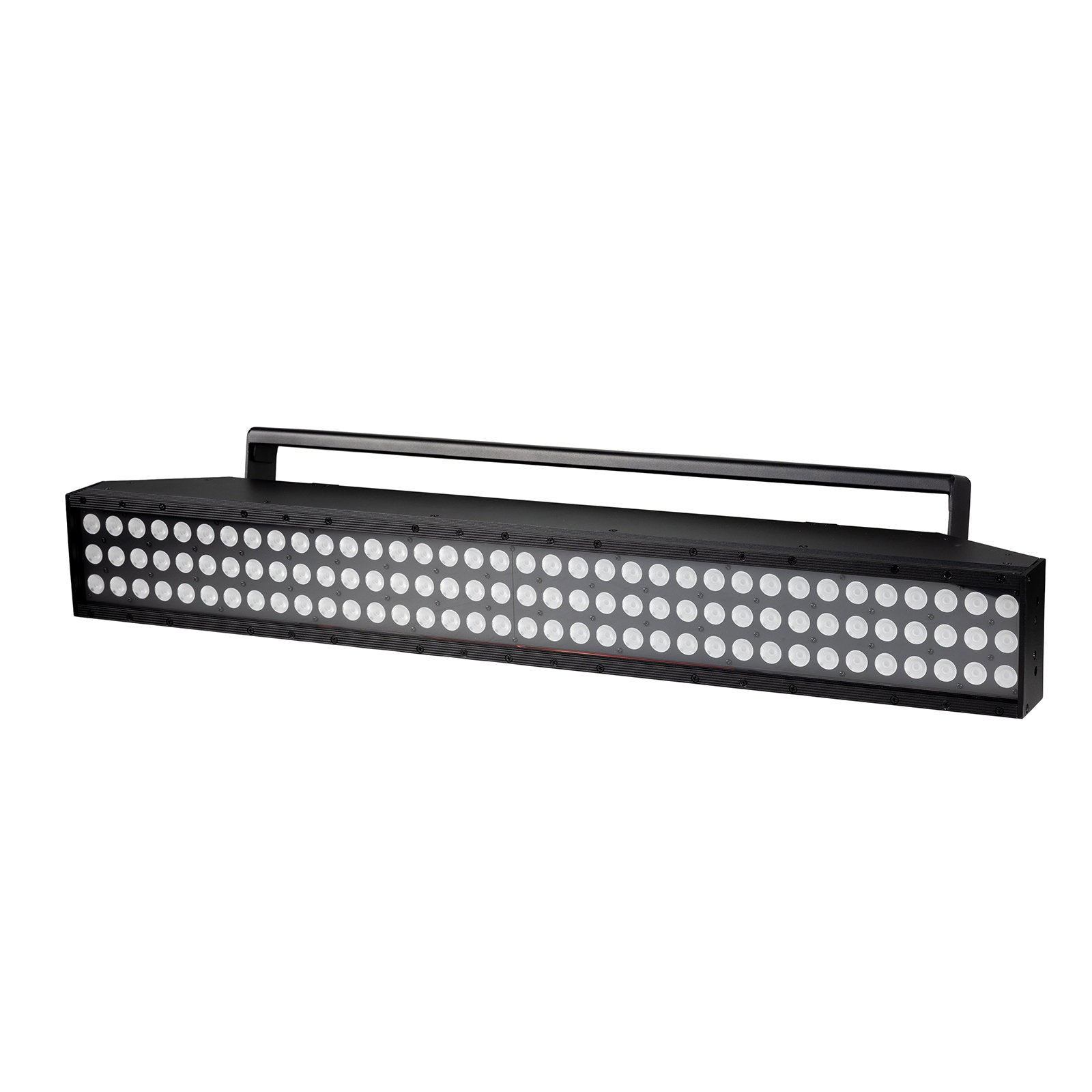

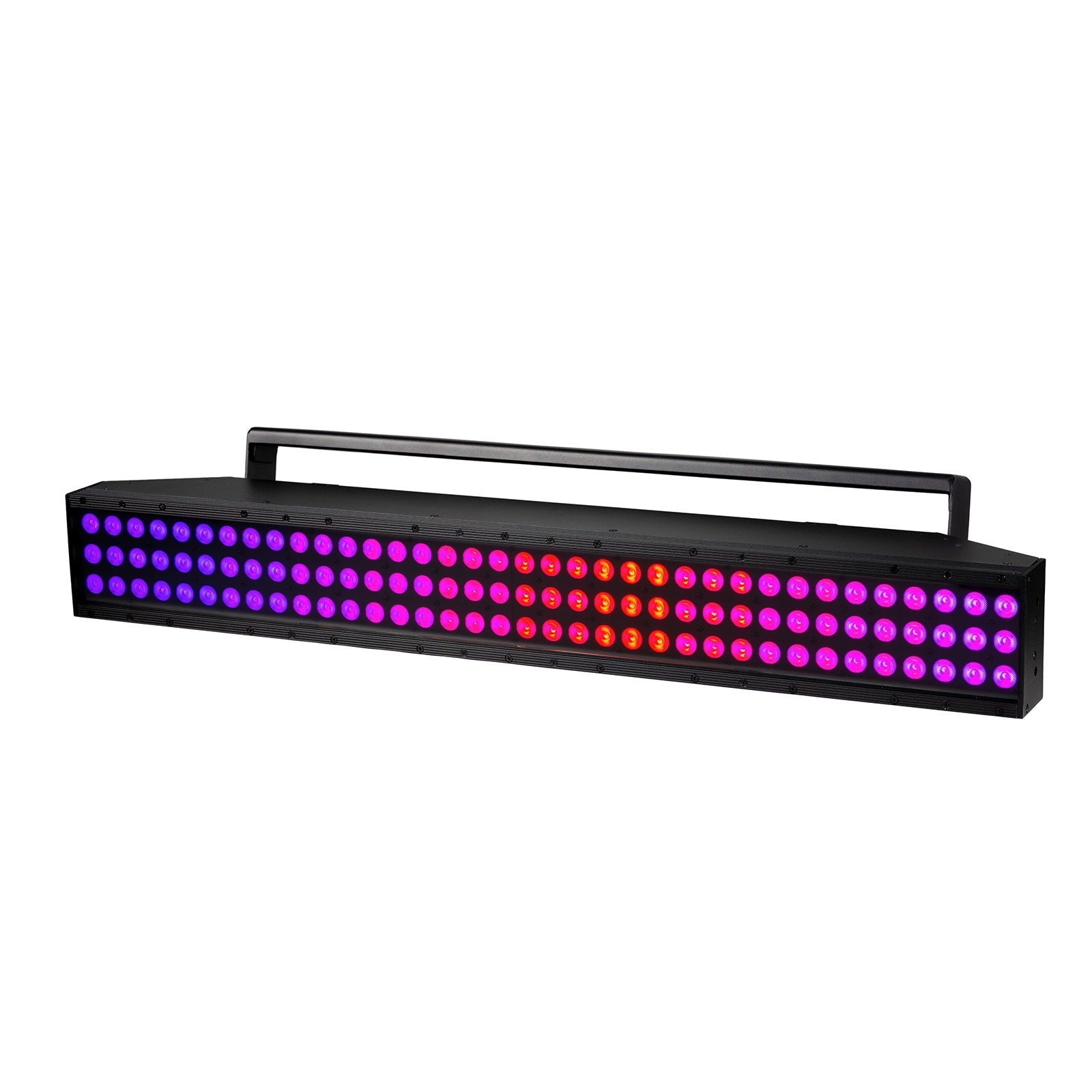

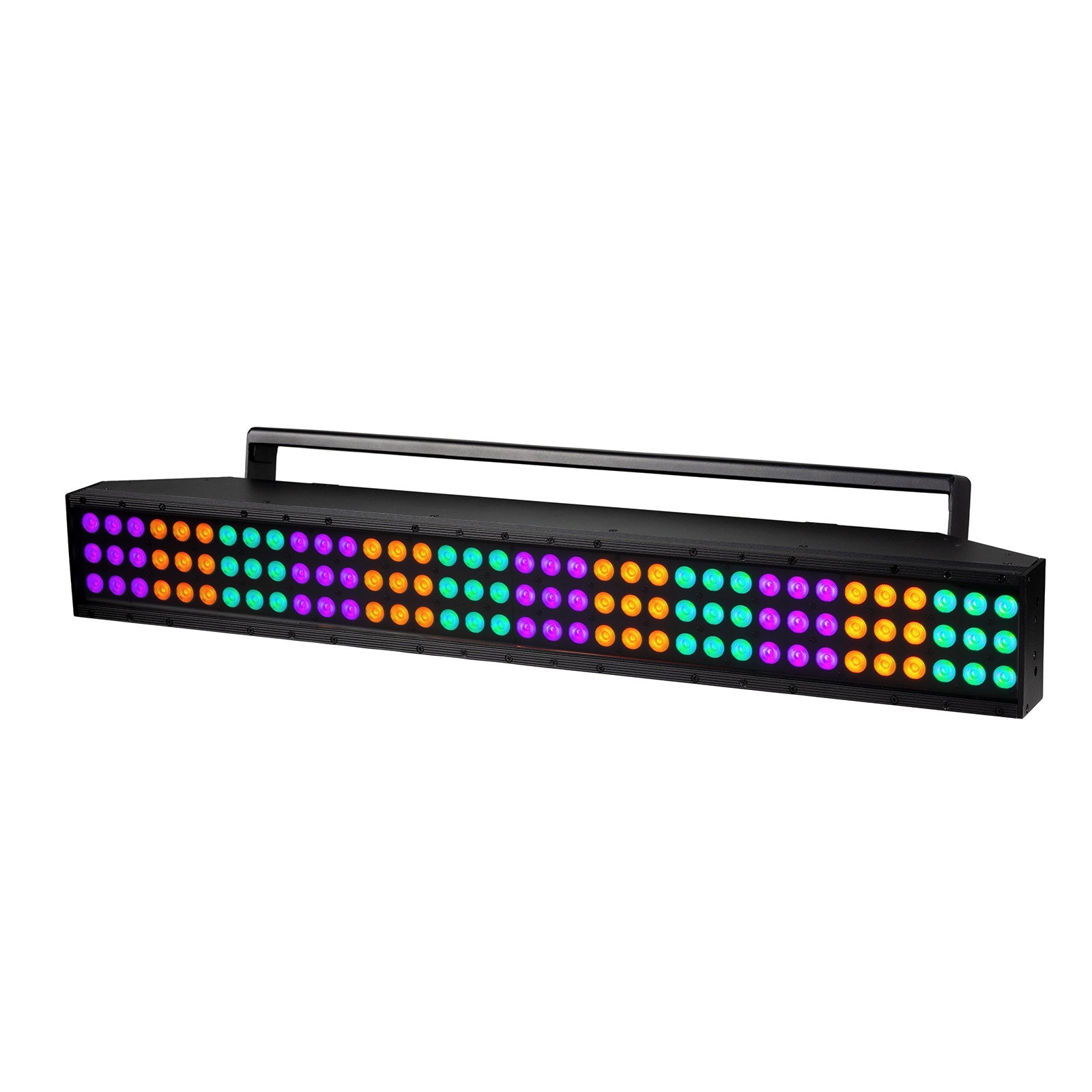

The Elumen8 Mira 1080 IP Batten is a powerful IP65-rated pixel batten fixture engineered for large-scale outdoor and indoor lighting applications. Featuring 108 x 10W RGBW quad-colour LEDs and a wide 36° beam angle it produces bold even washes with 12-zone pixel mapping control. This high-output unit supports DMX Art-Net and sACN protocols with selectable refresh rates up to 24kHz for flicker-free camera work. The Mira 1080 includes an integral Art-Net to DMX bridge for downstream control a heavy-duty adjustable rigging bracket and quick-release omega clamps. Units can be seamlessly aligned side-by-side to create uninterrupted lighting bars making it the ideal fixture for stages arenas and architectural applications.

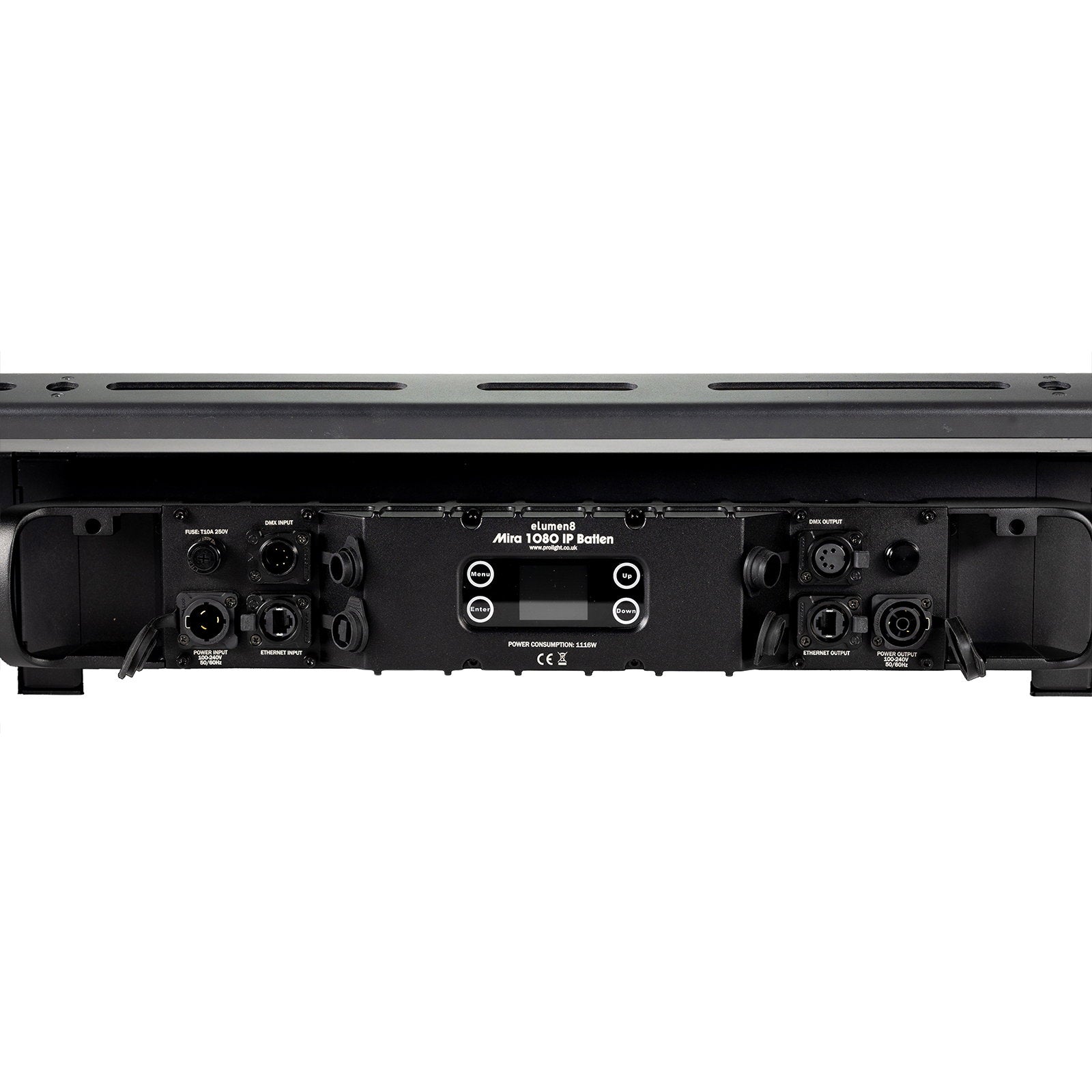

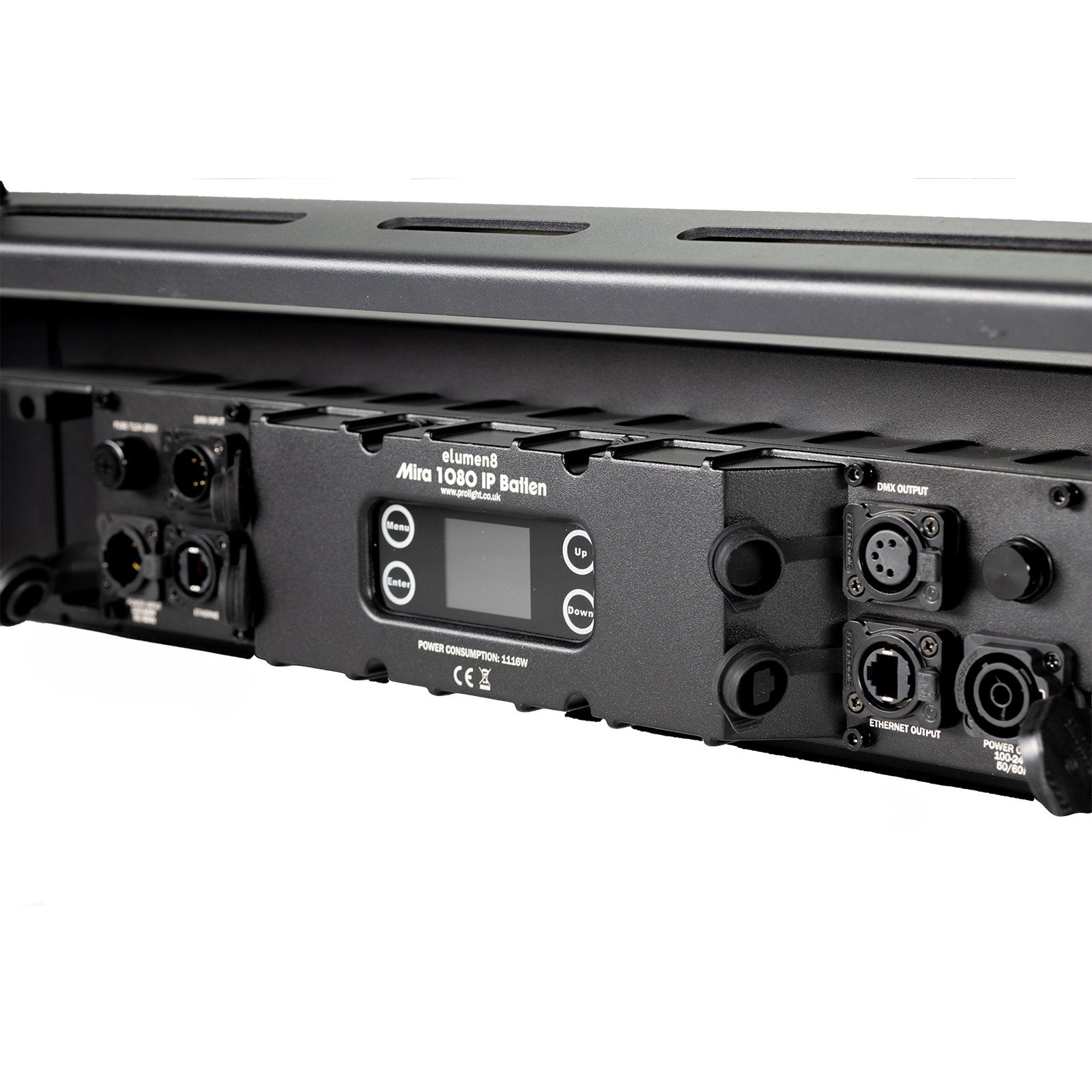

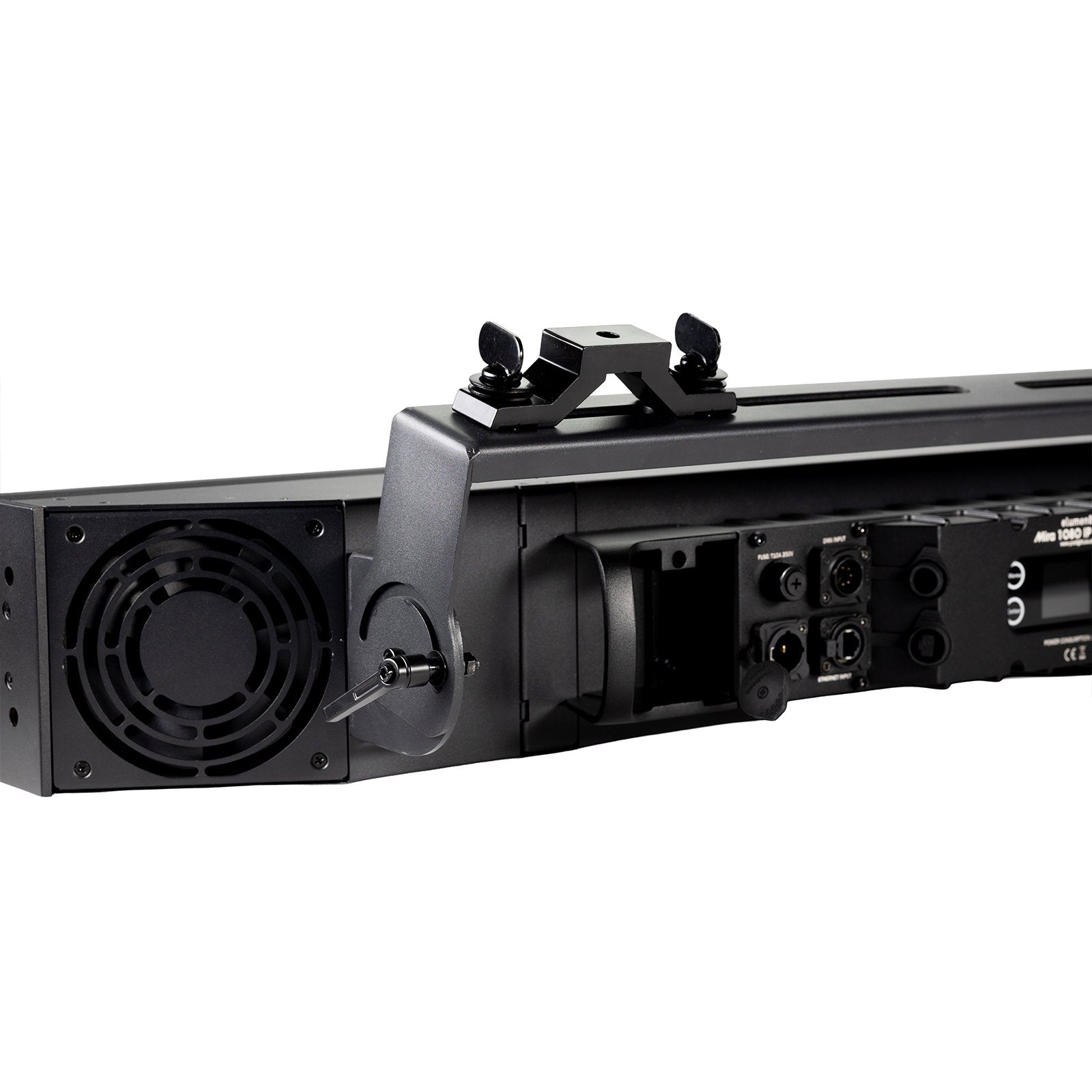

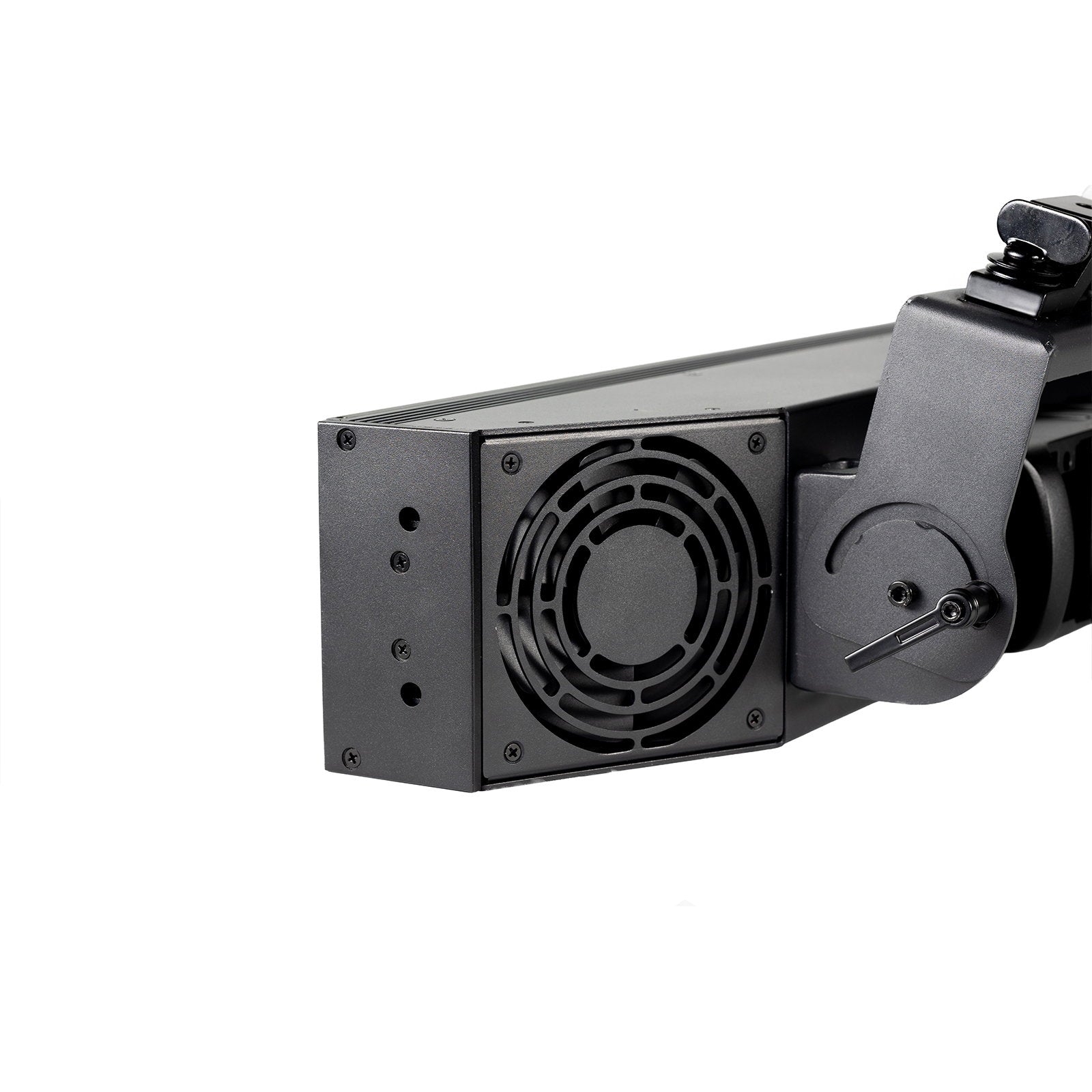

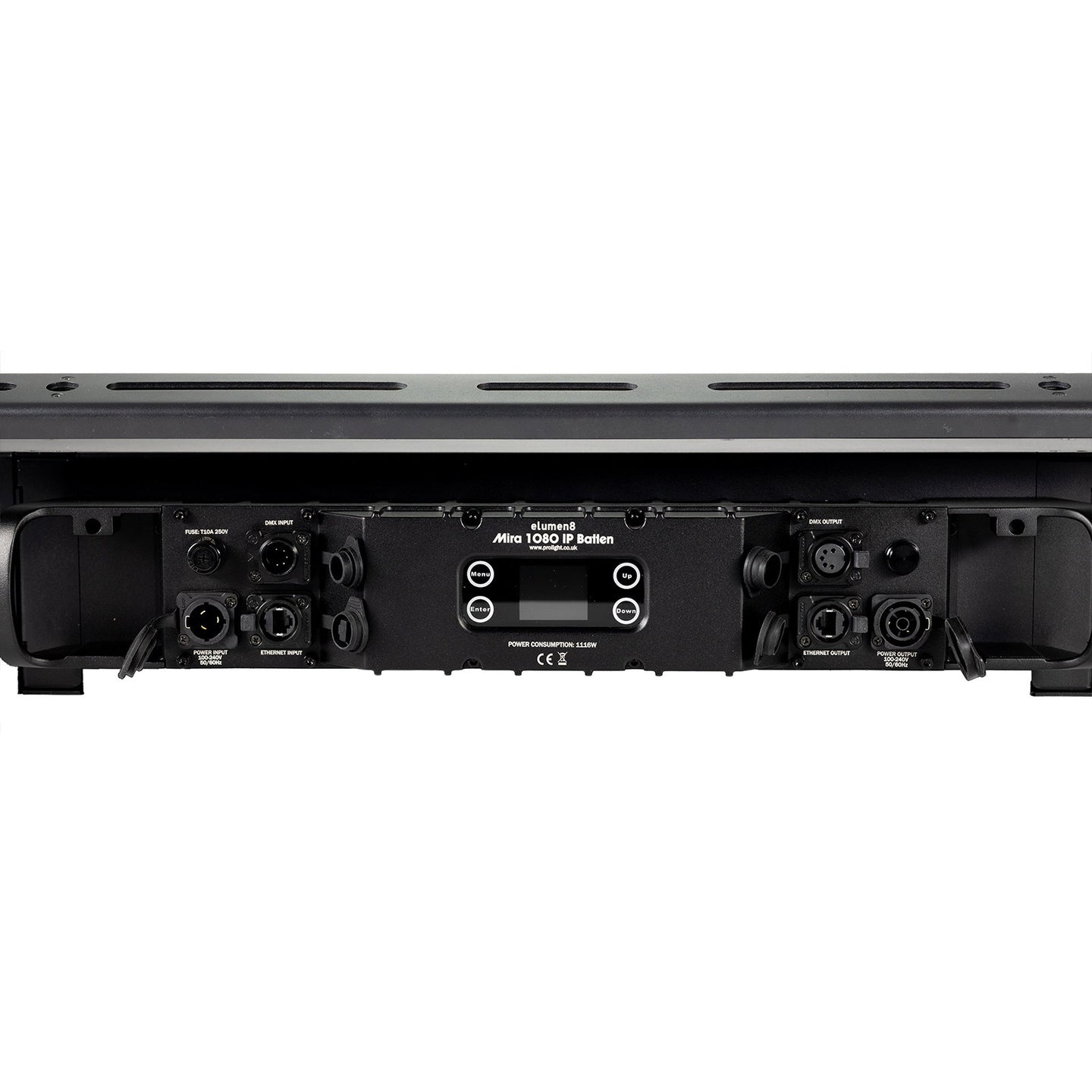

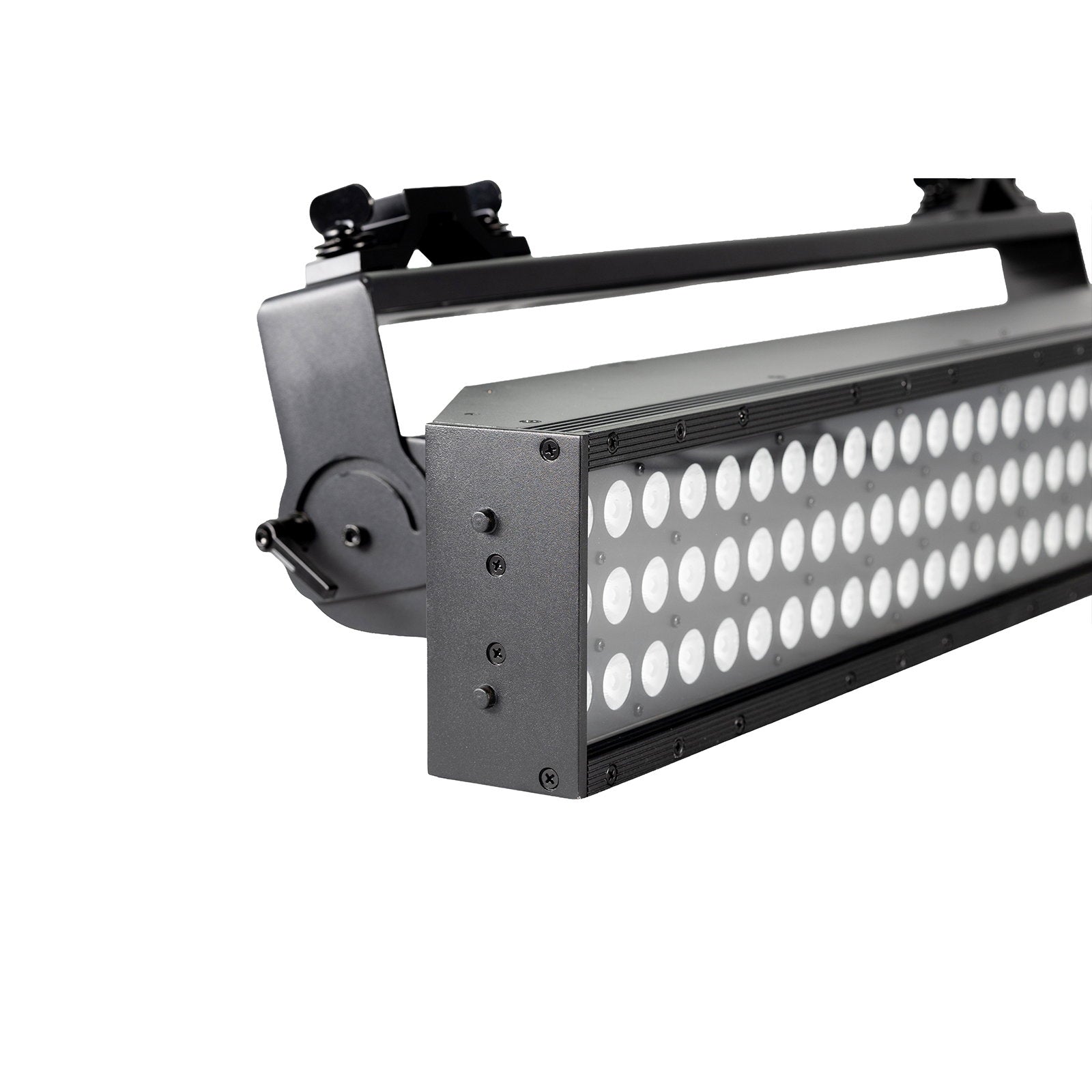

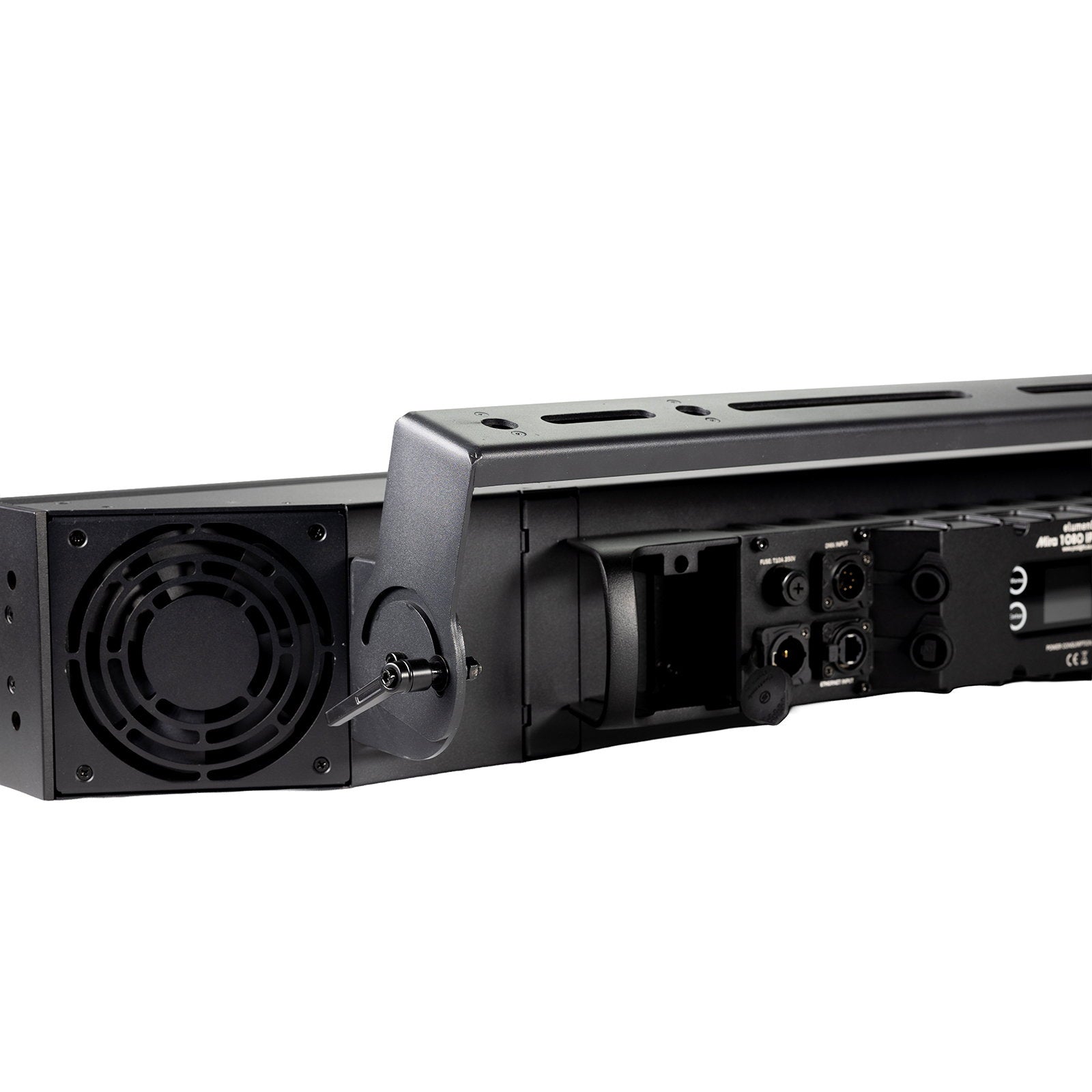

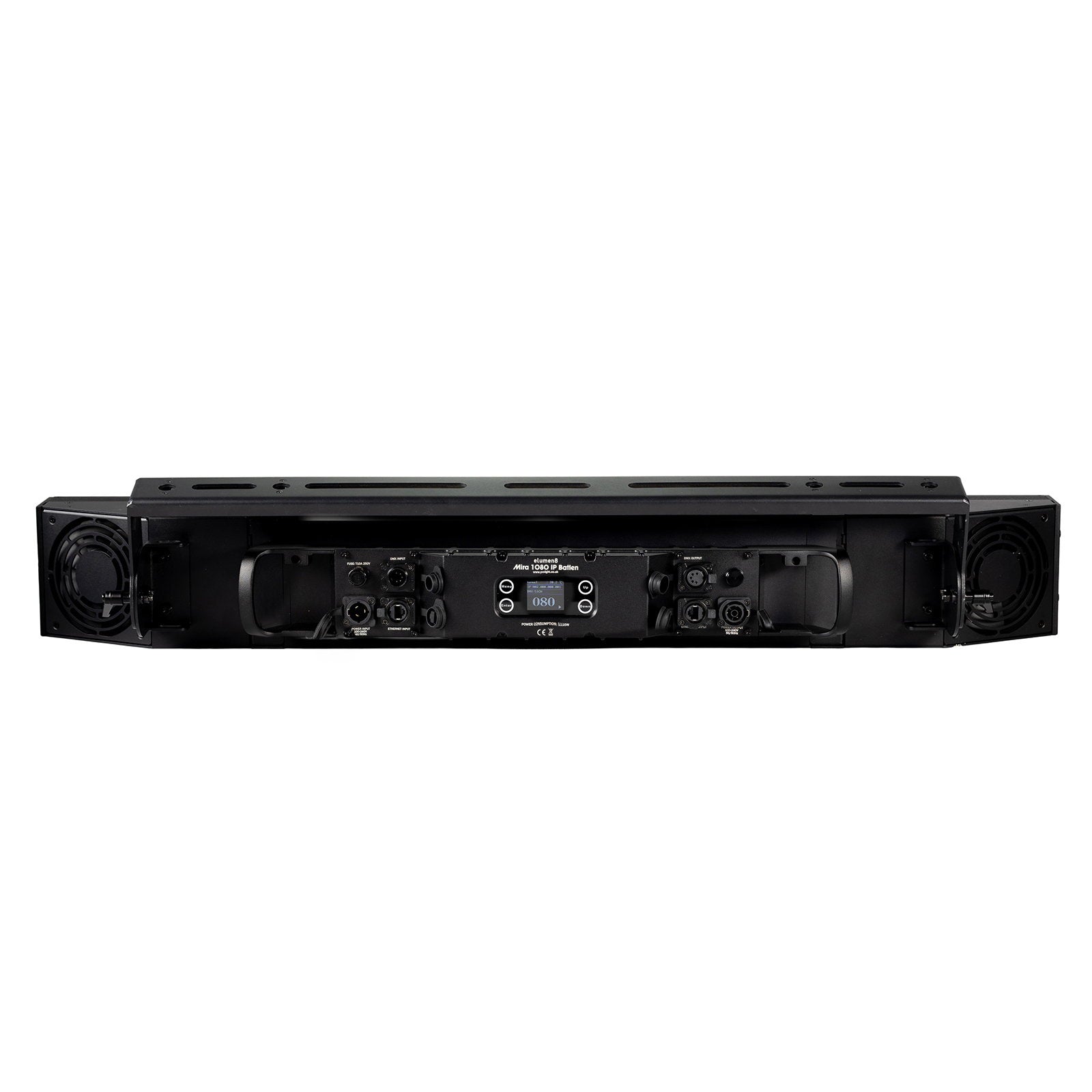

2 year warranty 108 x 10W quad-colour LEDs (RGBW) Beam angle: 36° 29559 Lux @ 2m (full on) Refresh rate: 800Hz 1.2kHz 2kHz 4kHz 6kHz 8kHz 16kHz or 24kHz selectable 12-zone pixel mapping Control protocols: DMX Art-Net and sACN DMX channels: 4/7/9/20/51 or 55 selectable Integral Art-Net to DMX for control of DMX fixtures downstream on the same universe Static colour colour temperature and manual modes Built-in colour macros and programs Colour temperature presets 0–100% dimming 4 dimming curves: Linear square law inverse square law and S-curve Variable strobe RDM (Remote Device Management) 4 button menu with LCD display Heavy duty bracket allows for multiple rigging applications Quick release omega clamps included Multiple units can be aligned side-by-side PowerTwist TR1 input/output IP rated 5-pin XLR input/output 3 selectable fan modes (auto silent and full)

Power consumption: 1116W Power supply: 100~240V 50/60Hz Fuse: T10A 250V IP rating: IP65 Dimensions: 290 x 1005 x 130mm Weight: 19kg
