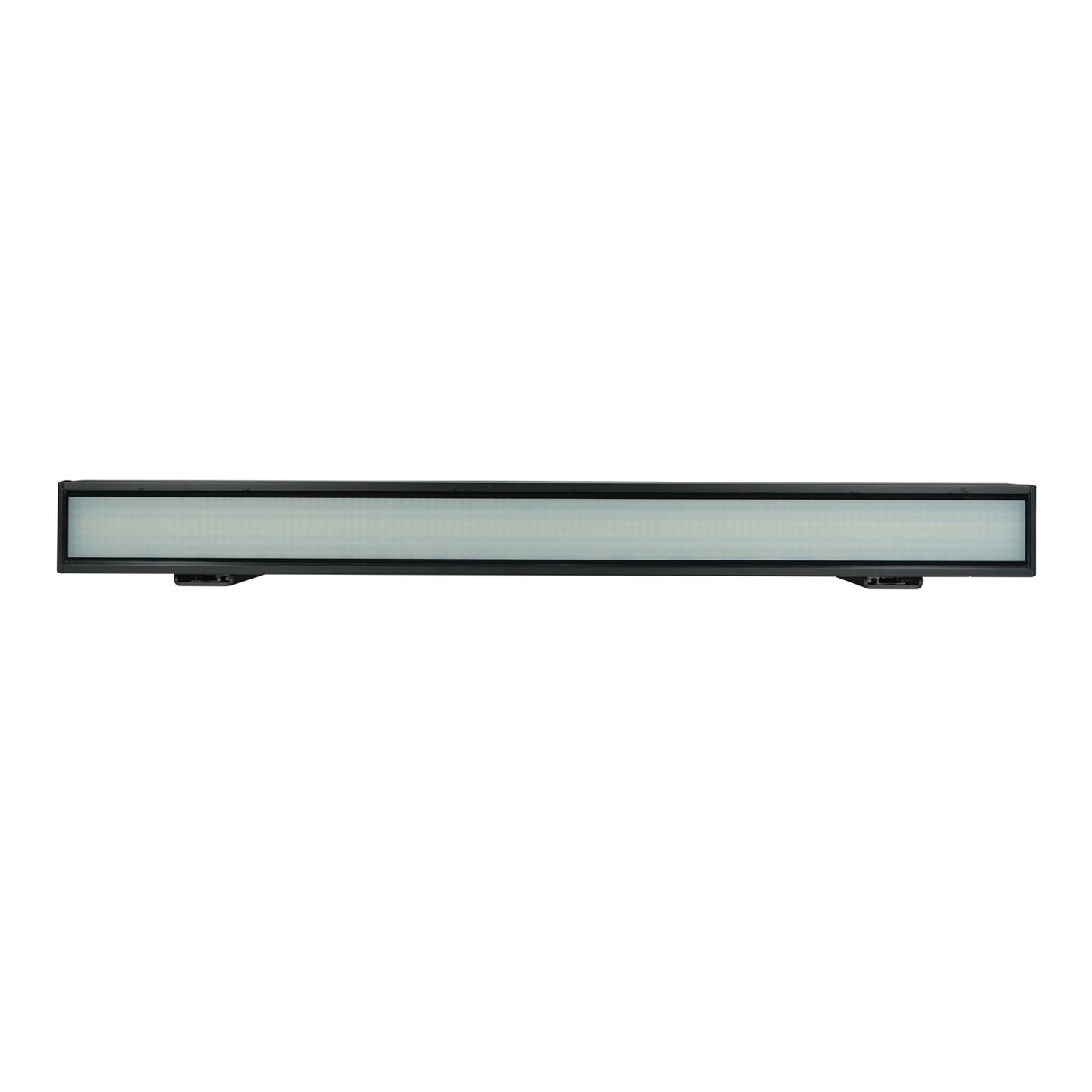

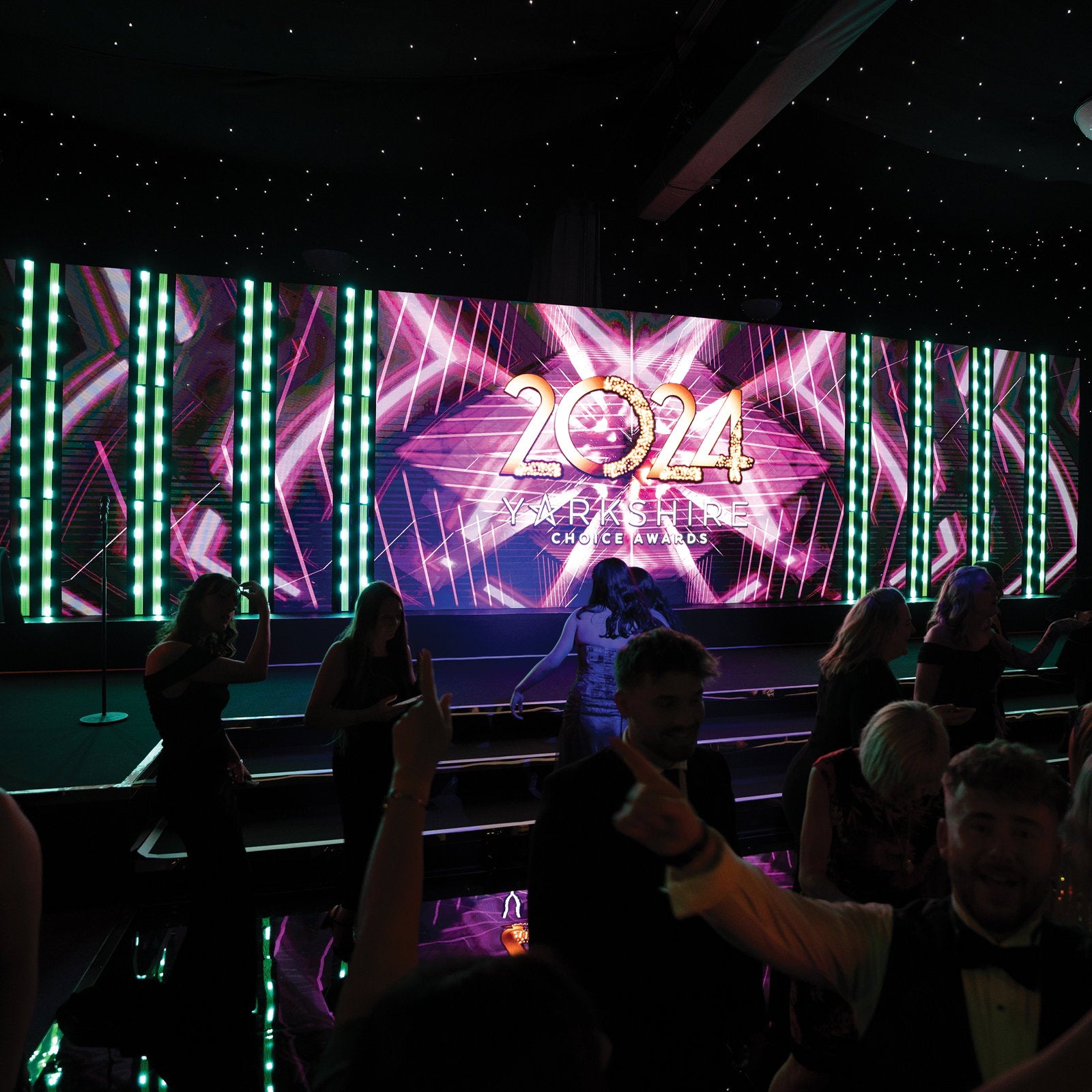

Generating intense white strobe and multicoloured pixel zone effects the Meteor 784 IP Batten features a central strip of 112 x 3W cool white SMD LEDs surrounded on both sides by a total of 672 x 1.5W RGB colour mixing SMD LEDs. All the LEDs are divided into independently controllable zones (16 white and 32 colour). With a wide beam angle the batten is ideally suited to concerts festival stages and installations. A clever twist to this fixture is the ability to switch the front glass to a frosted output. Intelligent glass technology developed on this fixture allows the user to simply switch a DMX channel and alternate between clear and frost effects eliminating the need for additional frost filters. A quick-positioning twist-lock mechanism on two sides ensures the fixtures always line up when used in multiples and the IP65 rated housing weighs in at only 5.9kg.

2 year warranty 672 x 1.5W SMD LEDs (RGB) plus 112 x 3W SMD LEDs (CW) RGB beam angle: 101° (field angle: 149°) CW beam angle: 108° (field angle: 152°) Pixel zone mapping: 32 x RGB LED zones and 16 x CW LED zones can be controlled individually Intelligent glass technology allows the user to simply alternate between clear and frost effects eliminating the need for additional frost filters Control protocols: DMX Art-net and sACN DMX channels: 7/15/17/21/33/39/65/68/70/112/117 or 121 selectable 0 - 100% dimming 4 dimming curves: Linear square law inverse square law and S-curve Variable strobe Supplied with installation brackets Multiple units can be seamlessly jointed tool-free 4 button menu with OLED display Bracket allows for multiple rigging or floor standing applications Quick release omega clamps included powerCON TRUE1 input/output IP rated 5-Pin XLR input/output Fan cooled

Power consumption: 420W Power supply: 100~240V 50/60Hz IP rating: IP65 Dimensions (H x W x D): 170 x 1000 x 140mm Weight: 5.9kg
