ADJ Pixie Curve 60 - Back Panel and Connections

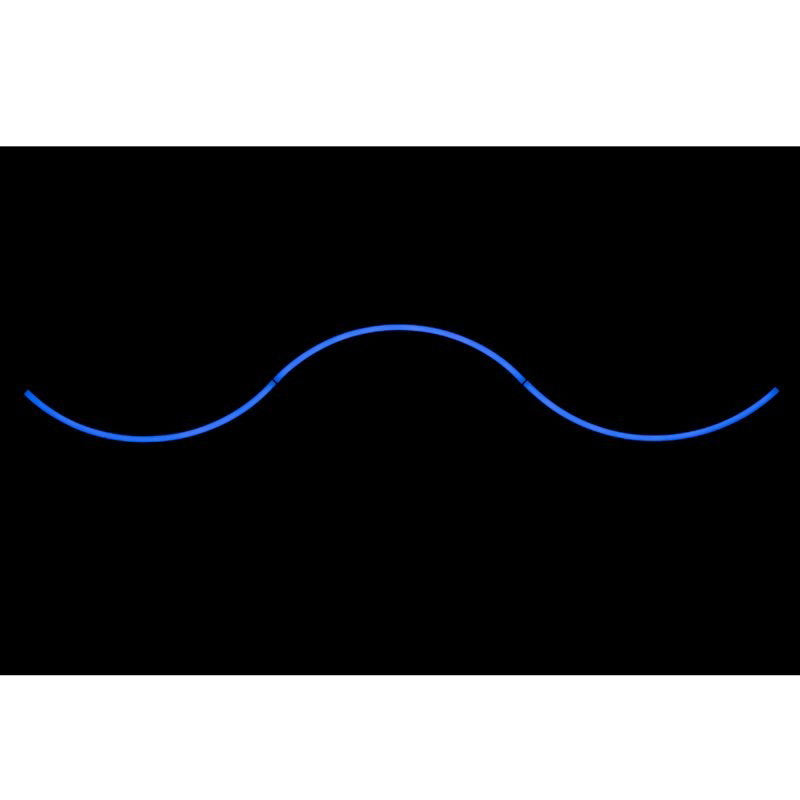

The new Pixie Curve 60 helps you expand your creative ideas and makes it possible to make curved Pixie Strip installations.

1-meter indoor curved LED strip with 60 RGB SMD LEDs with a pixel pitch of 16.5mm (centre-to-centre).

SPECIFICATIONS:

SOURCE:

SMD RGB 3-in-1 APA-102C LEDs Colour Resolution: 8 bits per colour (24 bit per pixel) Viewing Angle: 120 x 120 degrees Pixels Per Fixture: 60 pixels Pixel Pitch (pixel centre-to-centre) 16.5mm PWM (Pulse Width Modulation): 44000Hz 50000 Hours Life

CONNECTORS:

4-pin Power/Data Input & Output

DIMENSIONS / WEIGHT:

Length: 924mm Width: 32mm Height: 79mm Weight: 1.2kg

POWER:

DC24V Max Power Consumption: 12W

THERMAL:

Ambient Operational Temperature: -20°C to 45°C Storage Temperature: -30°C to 45°C

CERTIFICATES & IP RATING:

CE cETLus (Pending) FCC IP65-Rated

INCLUDED ACCESSORIES:

Round clear cover (x1) 0.6m 4-pin power/data cable (x1)

Preliminary Data Only - Specifications subject to change

Manufacturer Part Number: 1226200075

ADJ Pixie Curve 60

Brand: ADJ

SKU: ADJ1226200075
