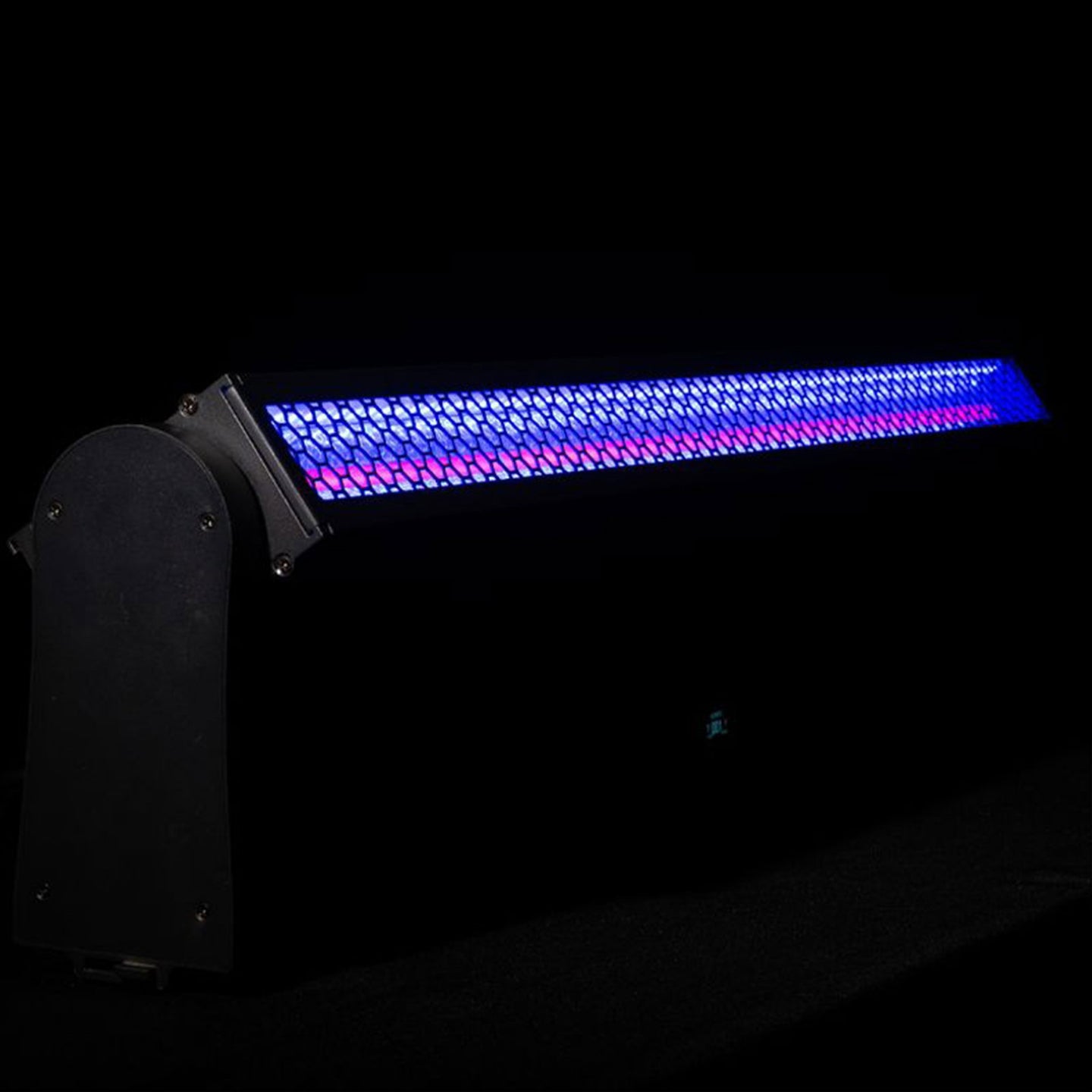

The ADJ Jolt MFX 360 is a boundary-pushing hybrid lighting fixture that fuses two of ADJ’s most iconic effects into one powerful fully integrated design. Engineered for maximum visual versatility it features a dual-sided configuration that seamlessly merges the atmospheric warmth of the Vintage Bar with the explosive energy of the Jolt Bar unlocking an entirely new dimension of creative possibilities for lighting designers rental houses and integrators.

On one side the Vintage Bar scenic effect delivers a nostalgic glow with a central strip of four 100-watt amber COB LEDs that emulate classic filament-style blinders surrounded by a textured reflector illuminated by 140 x 0.8-watt RGBL SMD LEDs for vibrant background ambience. Flip to the opposite side and the Jolt Bar effect takes over with a central strip of 448 x 1-watt cool white strobe LEDs surrounded by 448 x 0.5-watt RGB colour mixing LEDs that provide bold high-impact washes. The combination of these two contrasting looks allows designers to shift instantly from warm retro mood lighting to punchy modern strobe-driven energy.

Thanks to fast motorized tilt and 360° continuous rotation the Jolt MFX 360 can transform any stage or venue with fluid high-speed transitions and immersive hybrid effects that move well beyond the capabilities of traditional static fixtures. Creative control is further expanded with an extensive library of built-in macro programs zone-based pixel mapping and flexible dimming profiles. A lens slot on the Jolt Bar side enables use of optional frost filters to diffuse the output for a more homogenized look.

Designed for both touring and fixed installations the Jolt MFX 360 features integrated Aria X2 wireless management system and NFC configuration ensuring fast setup and robust control across DMX (with RDM) Art-Net and sACN. Rugged construction a useful tilt lock and magnetic end caps for easy alignment of fixtures placed end-to-end round out a fixture built for professional demands.

From generating warm scenic effects to unleashing full-throttle strobe sweeps the Jolt MFX 360 stands as a singular tool capable of delivering multiple signature looks from one compact unit – making it a transformative addition to any lighting rig.

2 year warranty

Vintage Effect Side

Primary: 4 x 100W COB Amber LEDs (1800K) Backlight: 140 x 0.8W RGBL SMD LEDs Beam Angle: 120° Field Angle: 140° Lux: 473 CRI: 60 Individually controllable primary LEDs 20-zone pixel mapping for backlight LEDs

Jolt Effect Side

448 x 1W Cool White SMD LEDs (6500K) 448 x 0.5W RGB SMD LEDs Beam Angle: 60° Field Angle: 80° Lux: 585 CRI: 73 16-zone pixel mapping for cool white LEDs 32-zone pixel mapping for RGB LEDs Lens slot on Jolt Bar side for optional frost lensRefresh rate: 14 selectable presets between 900Hz–25kHz 128 Built-in RGB (Jolt Bar) and RGBL (Vintage) Background LED Macros 6 Built-in RGBL LED Program Macros with Speed and Fade Control (Vintage Side) 6 Built-in RGB LED Program Macros with Speed and Fade Control (Jolt Bar Side) 6 Built-in Cool White LED Program Macros with Speed and Fade Control (Jolt Bar Side) Control protocols: DMX RDM ArtNet sACN Aria X2 and NFC Primary / Secondary Functionality DMX channels: 16/31/36/42/79/96/99/105/203/220/223 and 229 selectable Aria X2 Wireless Management System NFC System Tilt transit lock Tilt auto correction 16-Bit Tilt positioning Tilt: 360° continuous movement in both directions 0–100% dimming 6 dimming modes: Standard stage TV architectural theatre and stage 2 Variable strobe Quick release omega clamps included Alignment feature for precise end-to-end unit setup OLED display with 4 touch buttons IP65 Power Locking In/Thru Seetronic 5-pin XLR Locking DMX In/Thru Seetronic RJ45 Locking In/Thru Fan cooled

Power consumption: 780W Power supply: 100–240V 50/60Hz Dimensions (H×W×D): 280 × 1078.2 × 129.2mm Weight: 18.3kg
