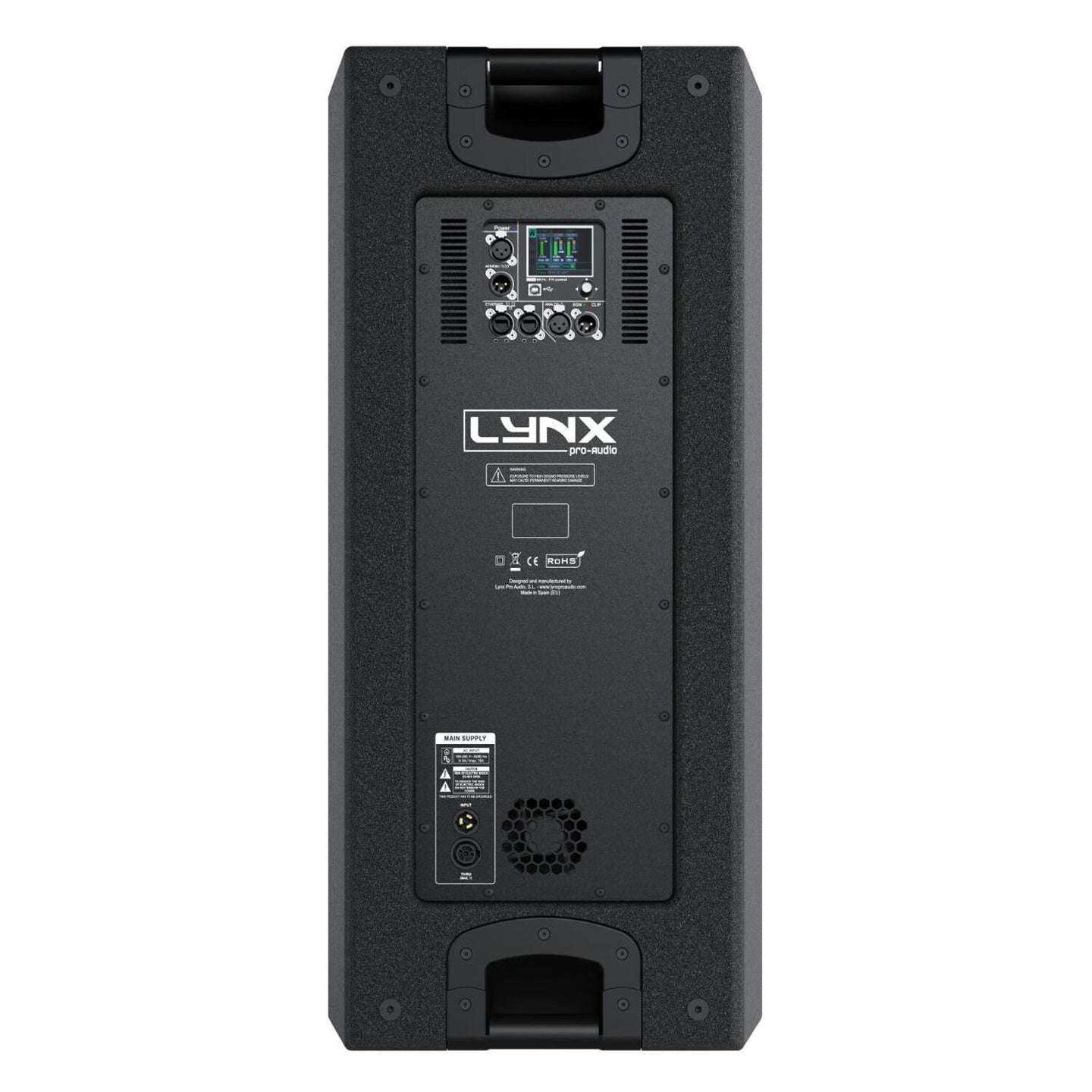

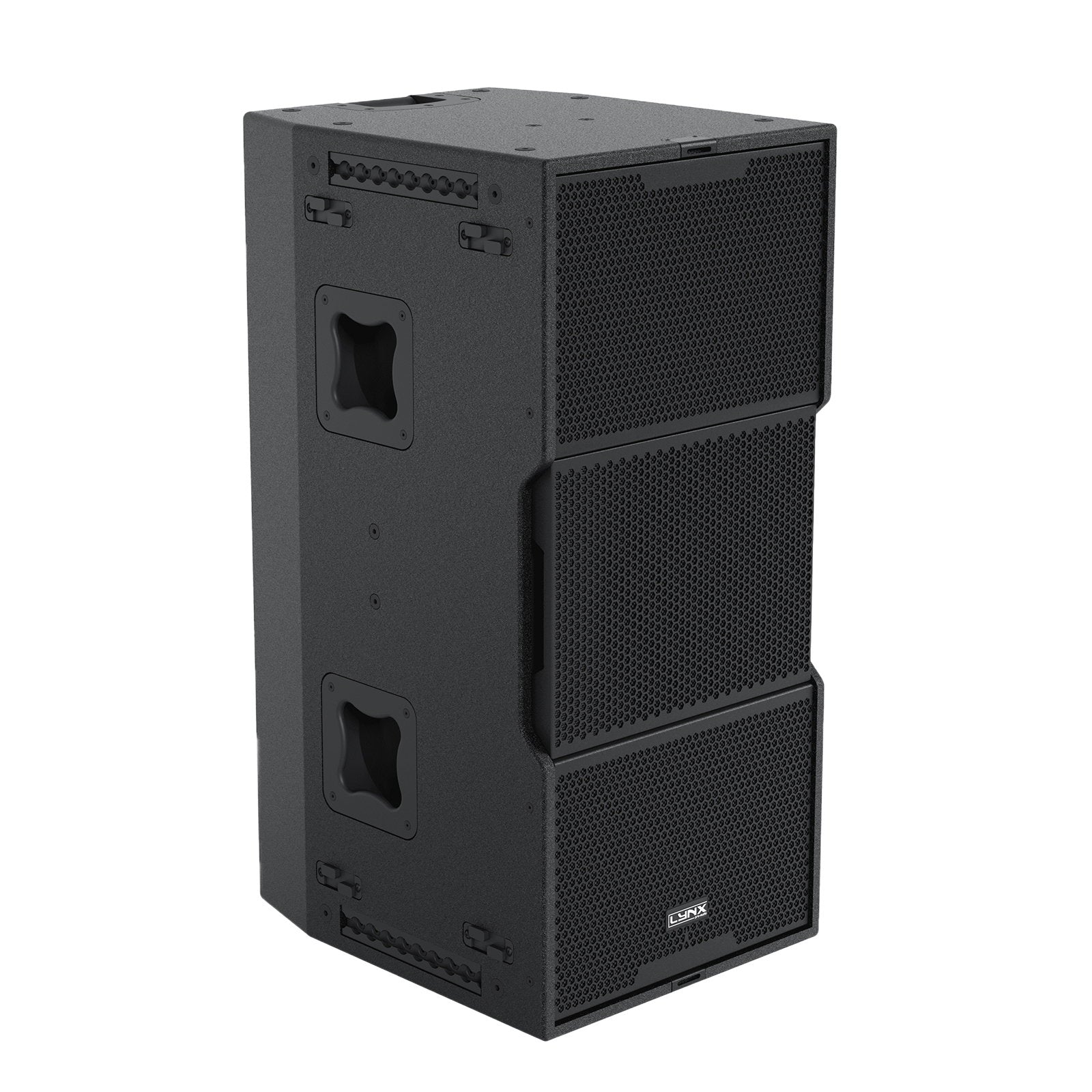

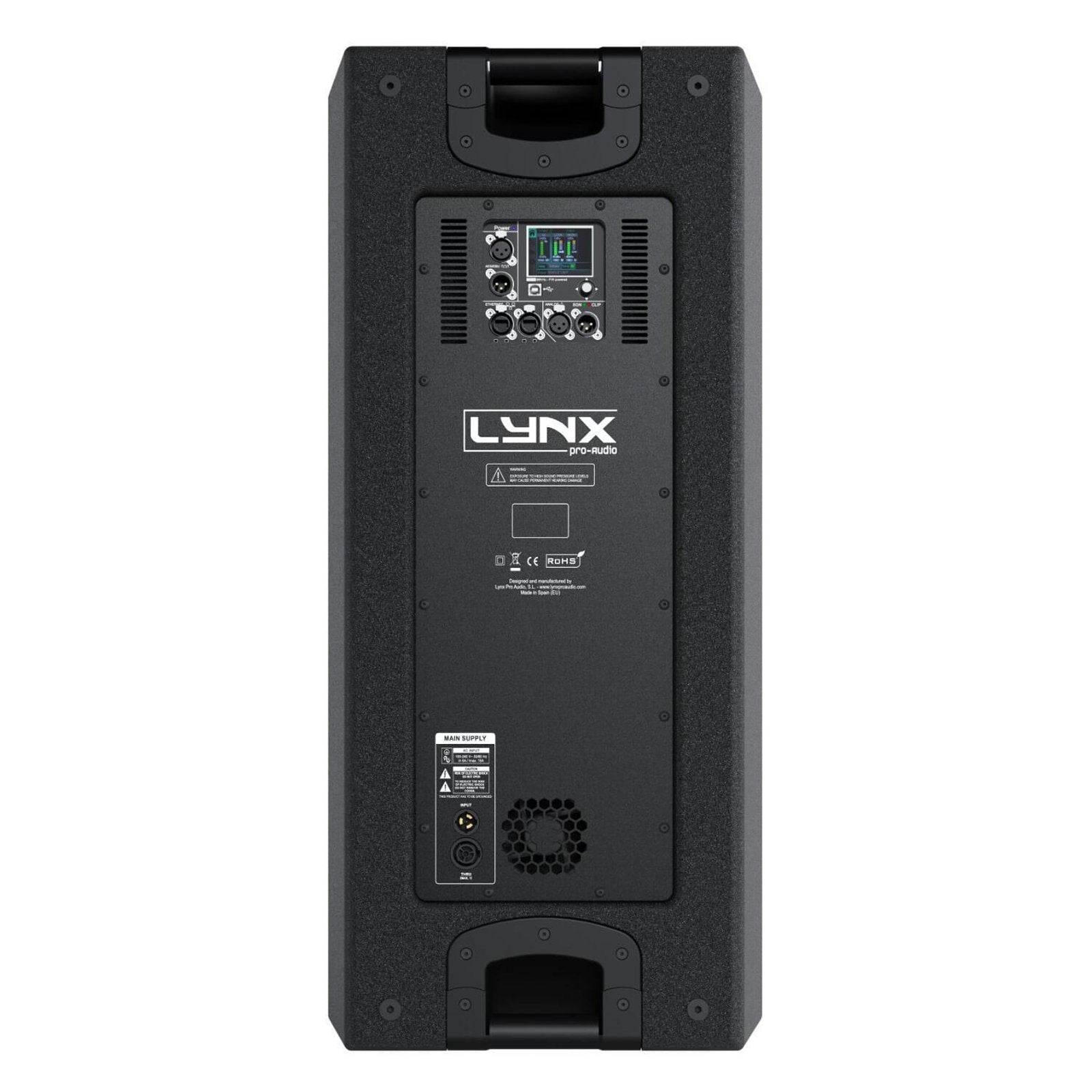

The Lynx Pro Audio CPS-214 is a high-output 3-way coaxial point source loudspeaker featuring dual 14″ neodymium LF drivers and a coaxial MF/HF compression driver. Delivering up to 6000W of Class D amplification with integrated 64-bit/96kHz FIR DSP and a rotatable 60° x 40° horn it ensures outstanding clarity and power for large-scale sound reinforcement. Ideal for touring fixed installations stadiums and demanding live environments.

• 3-way coaxial point source design with dual 14″ neodymium LF drivers
• 2″ exit dual-diaphragm coaxial compression driver (MF 3.5″ VC HF 1.5″ VC)
• Rotatable 60° x 40° horn for horizontal or vertical orientation
• 6000W total Class D amplification (3000W LF 3000W MF/HF)
• Integrated 64-bit/96kHz FIR DSP with linear-phase filters
• 2.8″ IPS display with joystick for control and configuration
• Supports Ethernet control and Rainbow 3D prediction software
• Compact symmetrical design for versatile deployment
• Polyurea-coated birch plywood enclosure with internal bracing
• Designed for large venues arenas and fixed installations

• LF Drivers: 2 x 14″ neodymium 4″ dual-layer voice coils (2000W AES each)
• MF Driver: 3.5″ voice coil diaphragm
• HF Driver: 1.5″ voice coil diaphragm
• Frequency Response: 55Hz – 22kHz (–6dB)
• Maximum SPL (Peak): LF up to 143dB MF/HF up to 142.6dB
• Dispersion: 60° horizontal x 40° vertical (rotatable horn)
• Amplifier: Class D 6000W total (2 x 3000W channels)
• DSP: 64-bit/96kHz FIR with EQ delay presets and filtering
• Control: Ethernet USB joystick + IPS screen interface
• Construction: 15mm birch plywood with polyurea coating
• Connectors: XLR analog optional AES/EBU dual Ethernet USB powerCON TRUE1 TOP
• Dimensions: 900 x 420 x 515mm
• Weight: 49kg
