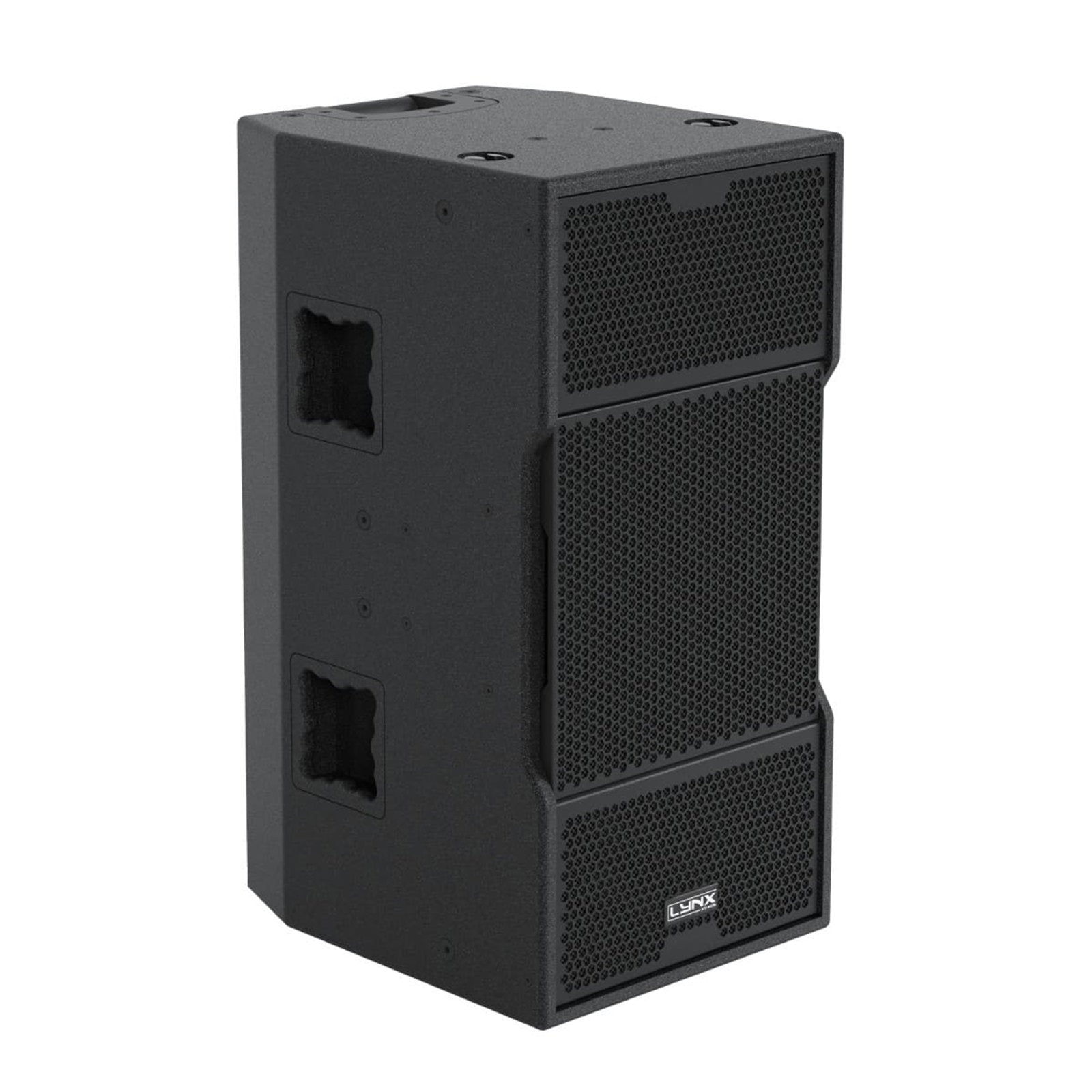

The CPS-210/96 from Lynx Pro Audio is a compact high-performance 3-way coaxial point source loudspeaker featuring dual 10″ neodymium drivers and a coaxial MF/HF compression driver. With a rotatable 90° x 60° horn integrated 3000W Class D amplification and 64-bit/96kHz FIR DSP it delivers precise phase-coherent coverage for touring theatres houses of worship and high-quality installations.

• 3-way tri-amplified coaxial point source design
• 2 x 10″ neodymium LF drivers with 3″ dual-layer voice coils
• 1.4″ exit dual-diaphragm coaxial compression driver
• Rotatable 90° x 60° horn
• 3000W Class D amplifier with PFC (LF: 1500W MF: 750W HF: 750W)
• Integrated 64-bit/96kHz FIR DSP with linear-phase filters

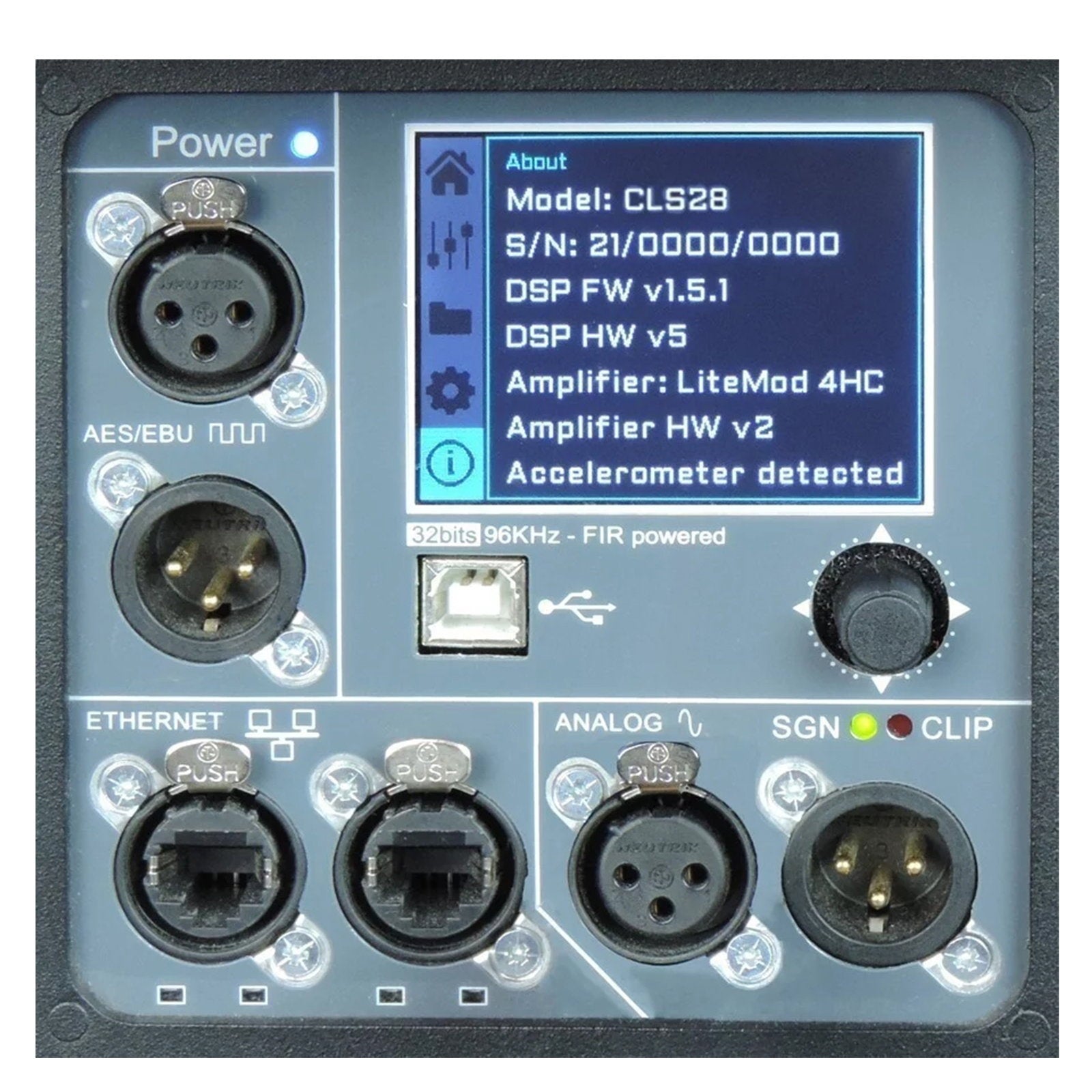

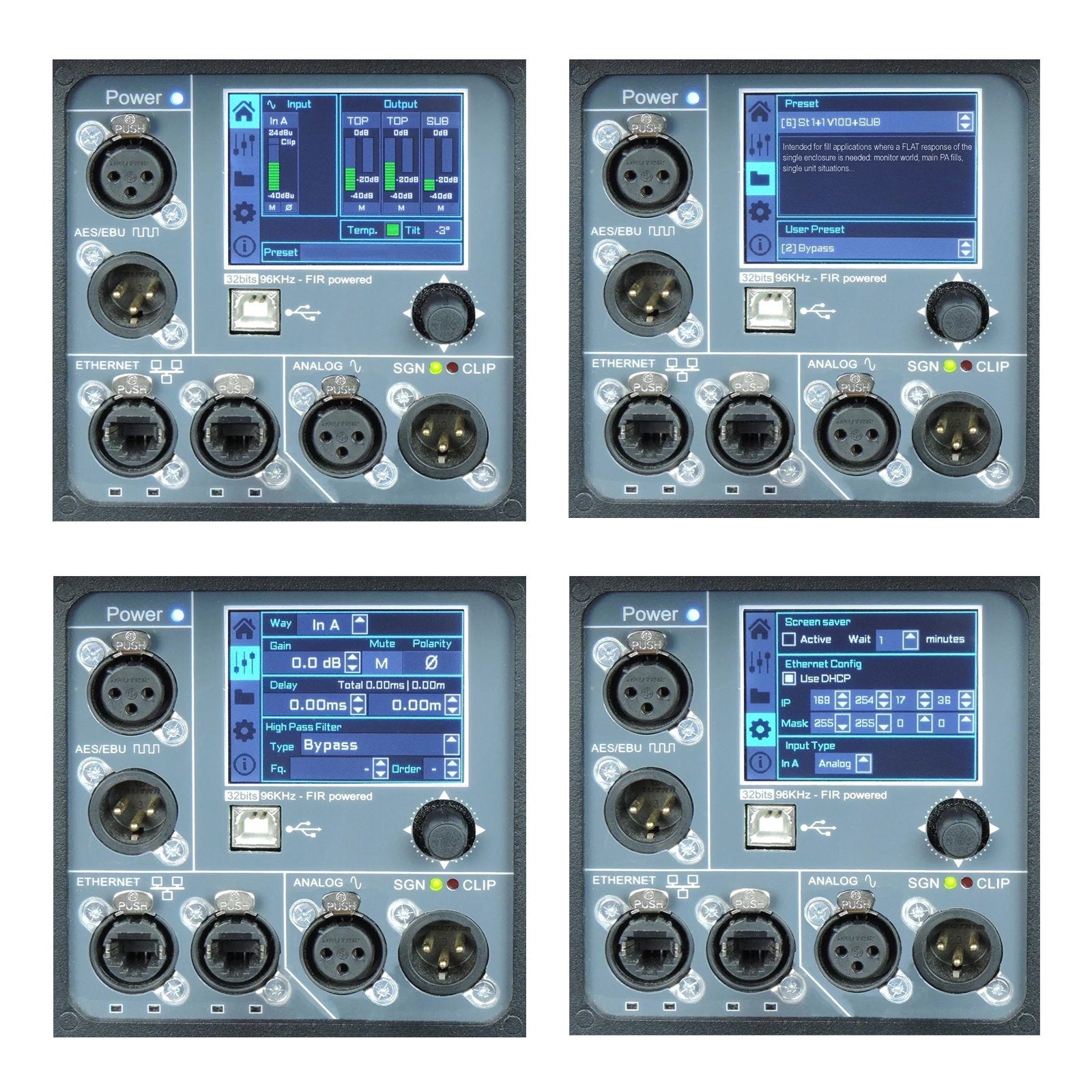

• 2.8″ IPS display with joystick for control and configuration

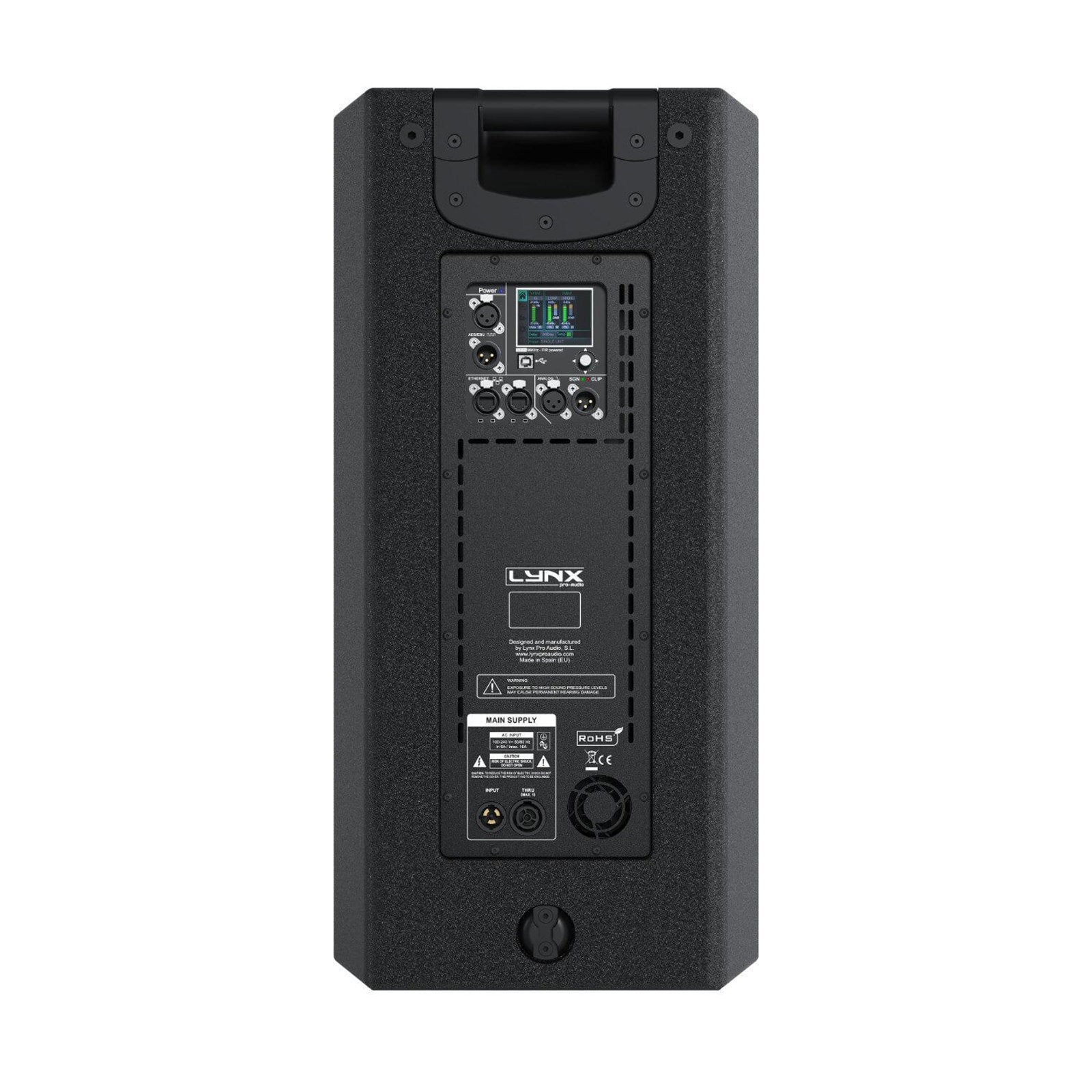

• Ethernet USB and XLR inputs for flexible connectivity
• Compact symmetrical cabinet with rugged polyurea finish
• Ideal for clubs theatres worship venues and touring use

• LF Drivers: 2 x 10″ neodymium 3″ dual-layer voice coils
• MF Driver: 3″ voice coil diaphragm
• HF Driver: 2″ voice coil diaphragm
• Frequency Response: 63Hz – 20kHz (-6dB)
• Maximum SPL (Peak): LF up to 136.5dB MF/HF up to 137dB
• Dispersion: 90° horizontal x 60° vertical (rotatable horn)
• Amplifier Power: 3000W Class D (LF: 1500W MF: 750W HF: 750W)
• DSP: 64-bit/96kHz FIR processing with EQ delay crossover
• Control: 2.8″ IPS screen with joystick Ethernet USB
• Inputs: XLR analog AES/EBU digital (optional)
• Enclosure: 15mm birch plywood with polyurea coating
• Power Supply: 100–240V AC with PFC
• Connectors: Neutrik powerCON TRUE1 TOP
• Dimensions: 710 x 350 x 428mm
• Weight: 35kg
