The Allen & Heath AHM-16 is a compact 1U 16x16 digital matrix processor featuring a 96kHz FPGA core 8x8 local analog I/O and an I/O port supporting up to 128x128 audio networking. Designed for sound management and installation it offers advanced features like automatic mic mixing ambient noise compensation and speaker processing making it ideal for corporate hospitality education and house of worship environments.
16x16 processing matrix with 96kHz FPGA core 8x8 local analog I/O via Euroblock connectors I/O port supporting up to 128x128 audio networking Front panel screen with 4 programmable SoftKeys Automatic mic mixer and ambient noise compensation Priority ducking and 8-band PEQ on all inputs and zones Speaker processing with crossover delay limiter and EQ Compatible with IP1 IP6 and IP8 remote controllers Integration with third-party control systems via GPIO and TCP/IP Custom Control app and editor for tailored user interfaces
Mic/Line Inputs: 8 x 3-pin Euroblock (balanced +48V phantom power) Line Outputs: 8 x 3-pin Euroblock (balanced relay protected) Input Sensitivity: -60 to +15dBu Analog Gain: +5 to +60dB in 1dB steps Maximum Input Level: +30dBu (PAD in) Output Impedance: <75Ω Maximum Output Level: +21dBu Dynamic Range: 108dB Frequency Response: 20Hz - 20kHz (+0/-0.5dB) THD+N: 0.005% @ +16dBu output 1kHz +5dB gain Sampling Rate: 96kHz ±20 PPM Power Supply: 100-240V AC 50-60Hz 65W max Dimensions (H x W x D): 44mm x 482.6mm x 270mm Weight: 3.8kg (8.38 lbs)
16x16 processing matrix with 96kHz FPGA core 8x8 local analog I/O via Euroblock connectors I/O port supporting up to 128x128 audio networking Front panel screen with 4 programmable SoftKeys Automatic mic mixer and ambient noise compensation Priority ducking and 8-band PEQ on all inputs and zones Speaker processing with crossover delay limiter and EQ Compatible with IP1 IP6 and IP8 remote controllers Integration with third-party control systems via GPIO and TCP/IP Custom Control app and editor for tailored user interfaces
Mic/Line Inputs: 8 x 3-pin Euroblock (balanced +48V phantom power) Line Outputs: 8 x 3-pin Euroblock (balanced relay protected) Input Sensitivity: -60 to +15dBu Analog Gain: +5 to +60dB in 1dB steps Maximum Input Level: +30dBu (PAD in) Output Impedance: <75Ω Maximum Output Level: +21dBu Dynamic Range: 108dB Frequency Response: 20Hz - 20kHz (+0/-0.5dB) THD+N: 0.005% @ +16dBu output 1kHz +5dB gain Sampling Rate: 96kHz ±20 PPM Power Supply: 100-240V AC 50-60Hz 65W max Dimensions (H x W x D): 44mm x 482.6mm x 270mm Weight: 3.8kg (8.38 lbs)

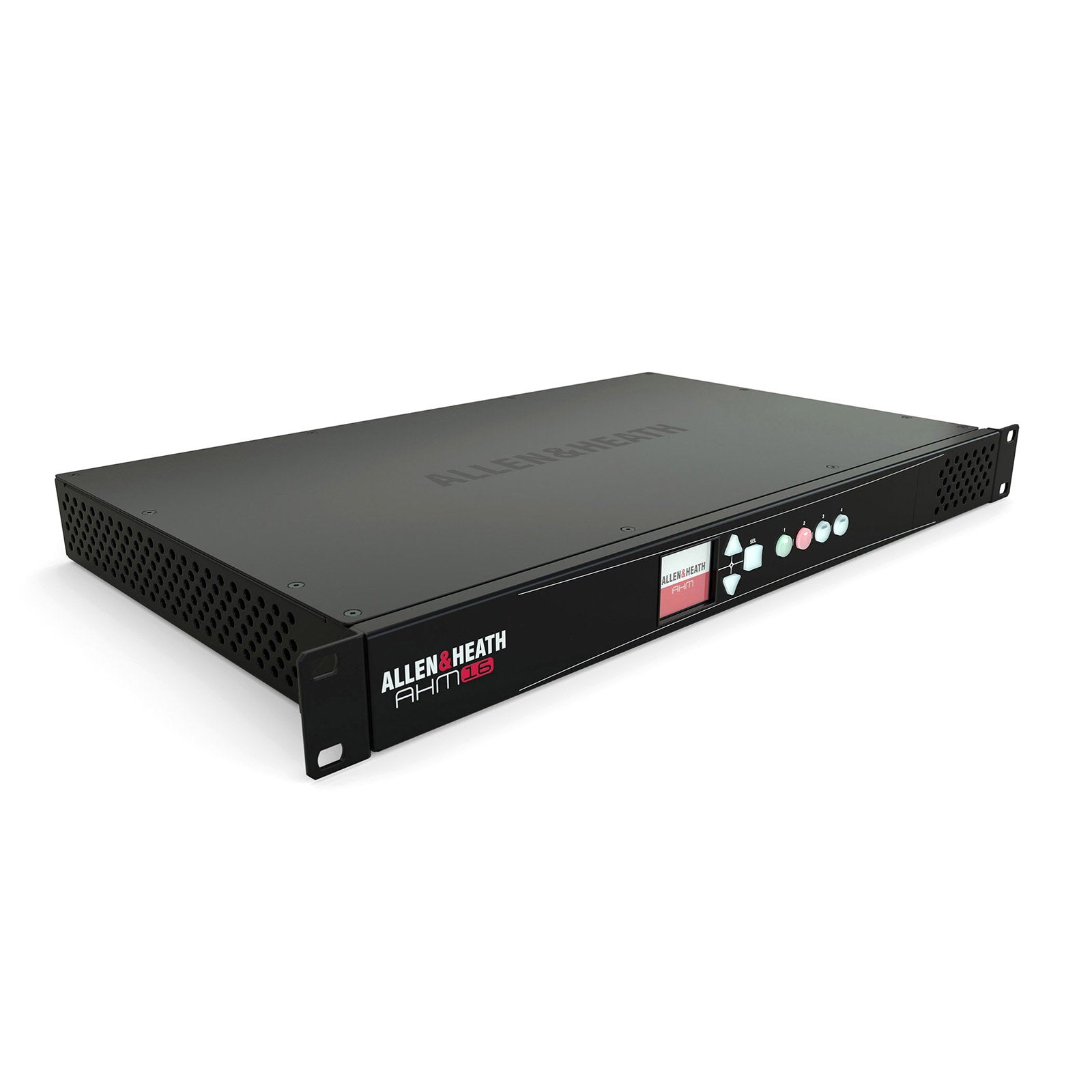

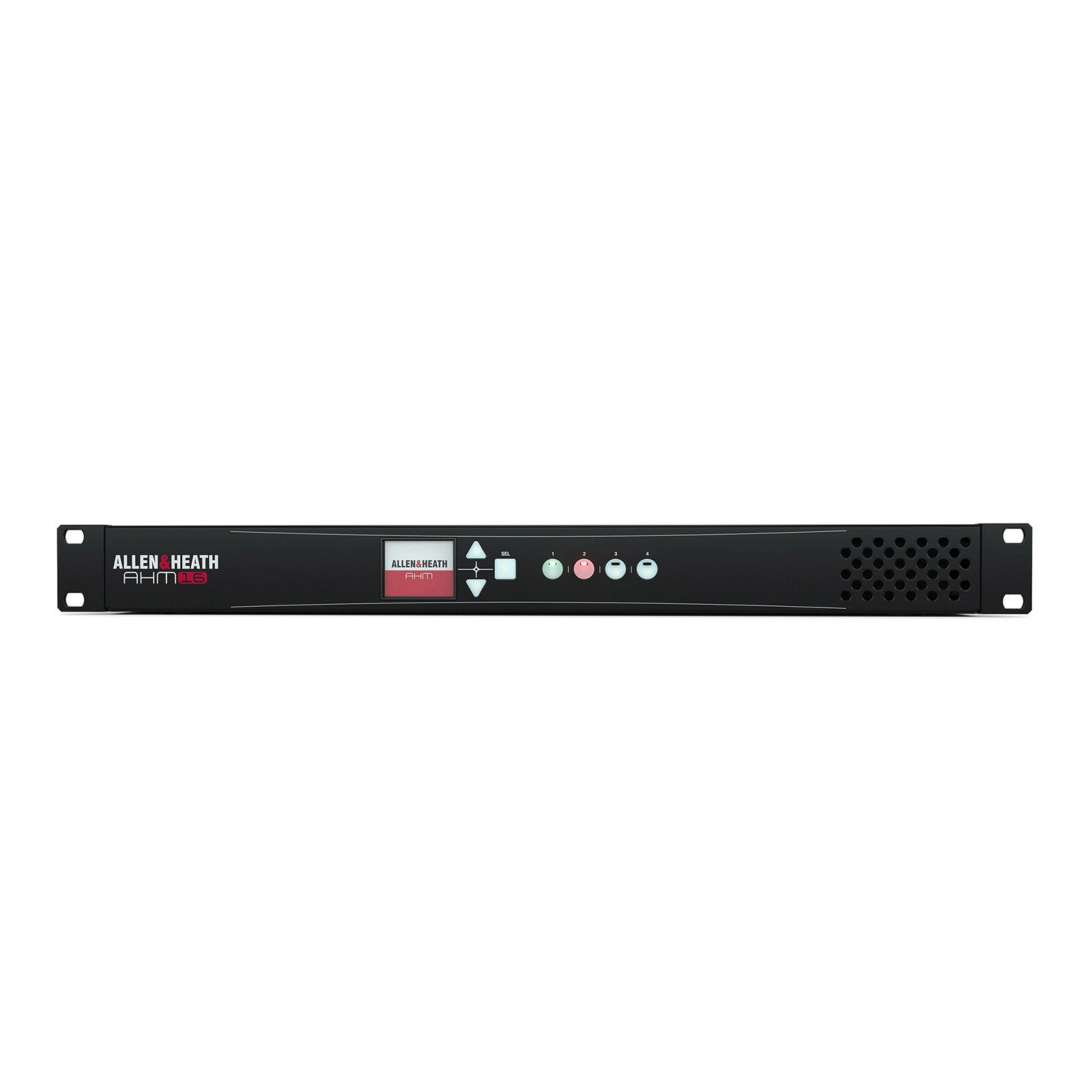

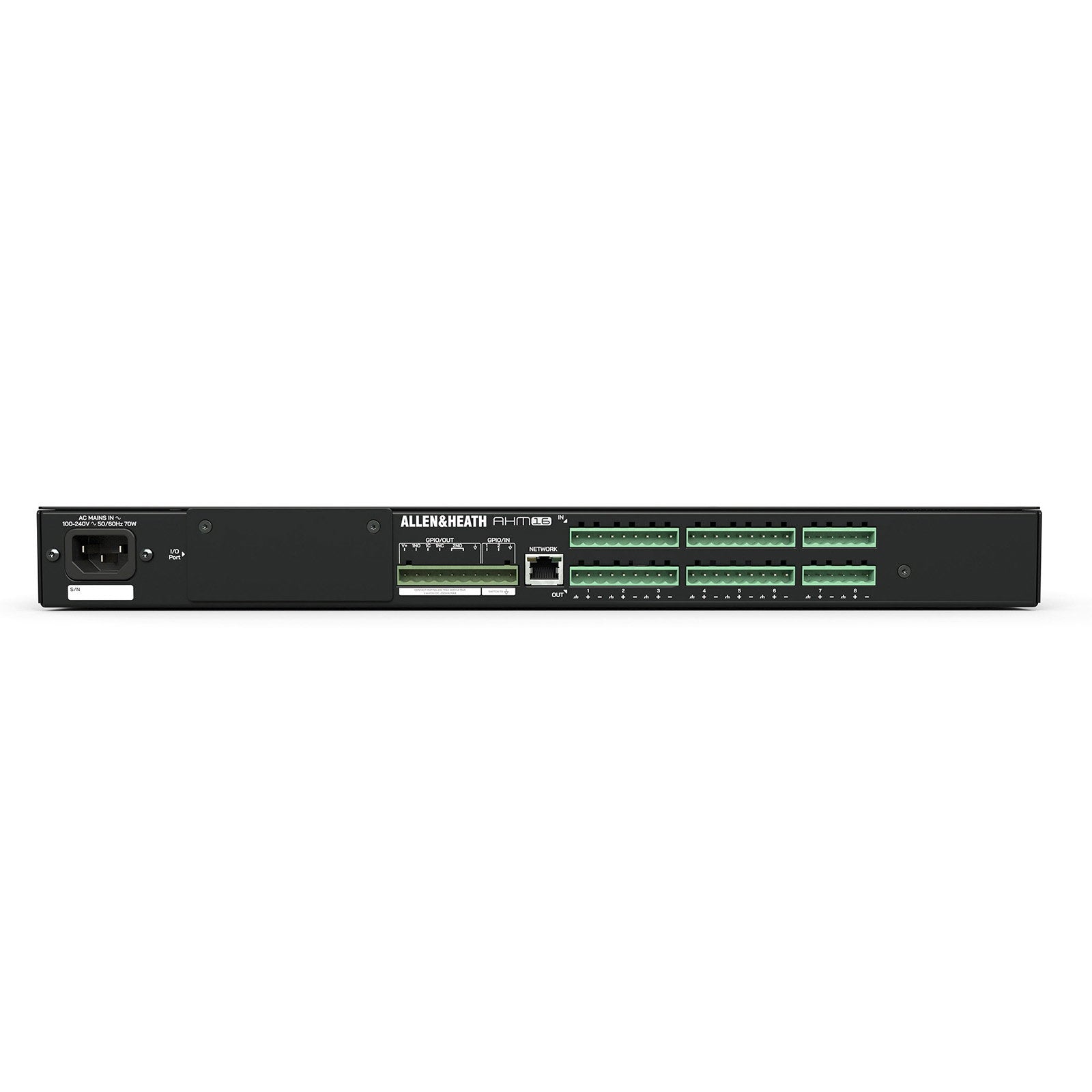

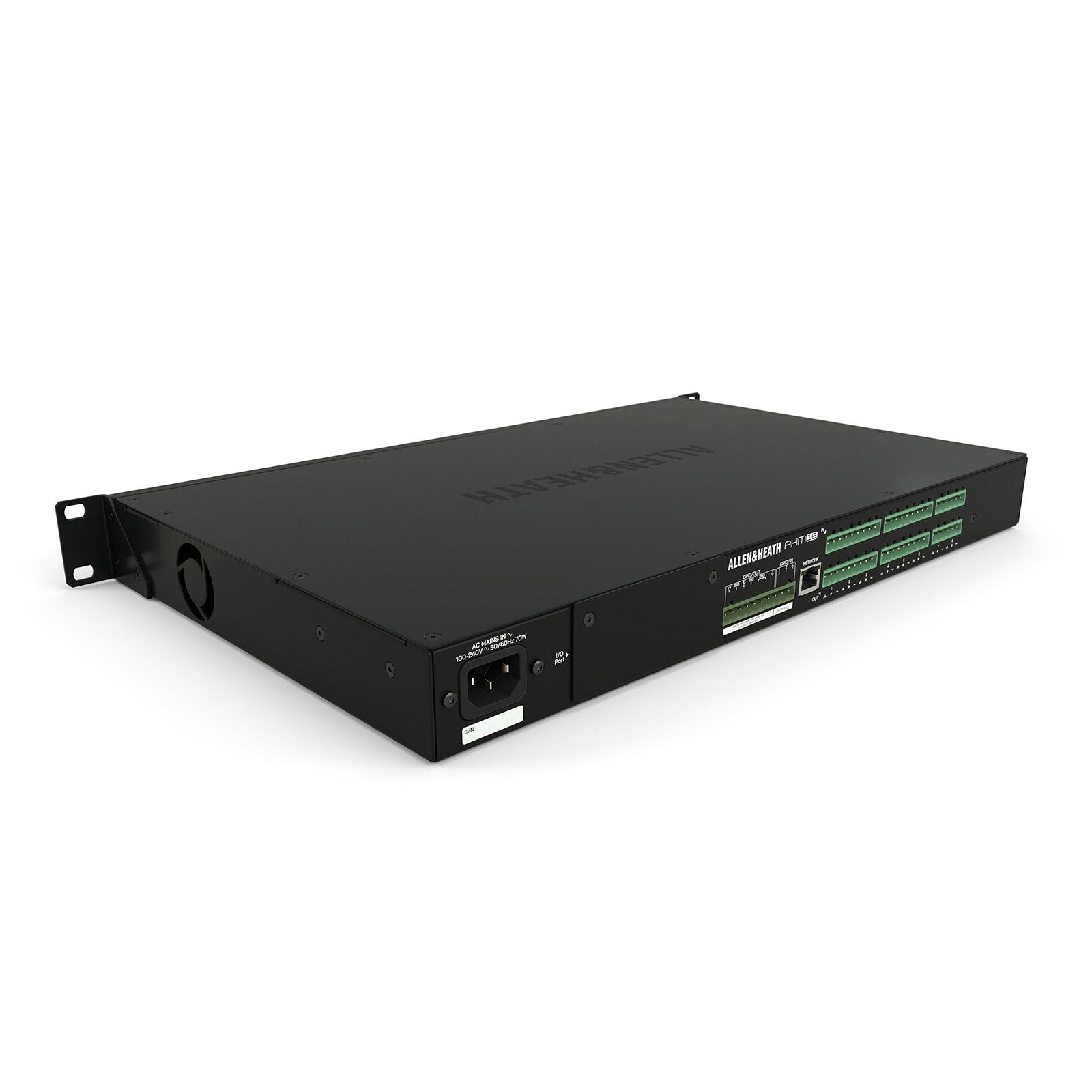

Allen & Heath AHM16 16x16 Digital Matrix System
Brand: Allen & Heath
SKU: AH0024
Regular price
£1,311.99
Pickup available at Venutec
Usually ready in 24 hours
Allen & Heath AHM16 16x16 Digital Matrix System
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Allen & Heath AHM-16 is a compact 1U 16x16 digital matrix processor featuring a 96kHz FPGA core 8x8 local analog I/O and an I/O port supporting up to 128x128 audio networking. Designed for sound management and installation it offers advanced features like automatic mic mixing ambient noise compensation and speaker processing making it ideal for corporate hospitality education and house of worship environments.
16x16 processing matrix with 96kHz FPGA core 8x8 local analog I/O via Euroblock connectors I/O port supporting up to 128x128 audio networking Front panel screen with 4 programmable SoftKeys Automatic mic mixer and ambient noise compensation Priority ducking and 8-band PEQ on all inputs and zones Speaker processing with crossover delay limiter and EQ Compatible with IP1 IP6 and IP8 remote controllers Integration with third-party control systems via GPIO and TCP/IP Custom Control app and editor for tailored user interfaces
Mic/Line Inputs: 8 x 3-pin Euroblock (balanced +48V phantom power) Line Outputs: 8 x 3-pin Euroblock (balanced relay protected) Input Sensitivity: -60 to +15dBu Analog Gain: +5 to +60dB in 1dB steps Maximum Input Level: +30dBu (PAD in) Output Impedance: <75Ω Maximum Output Level: +21dBu Dynamic Range: 108dB Frequency Response: 20Hz - 20kHz (+0/-0.5dB) THD+N: 0.005% @ +16dBu output 1kHz +5dB gain Sampling Rate: 96kHz ±20 PPM Power Supply: 100-240V AC 50-60Hz 65W max Dimensions (H x W x D): 44mm x 482.6mm x 270mm Weight: 3.8kg (8.38 lbs)
16x16 processing matrix with 96kHz FPGA core 8x8 local analog I/O via Euroblock connectors I/O port supporting up to 128x128 audio networking Front panel screen with 4 programmable SoftKeys Automatic mic mixer and ambient noise compensation Priority ducking and 8-band PEQ on all inputs and zones Speaker processing with crossover delay limiter and EQ Compatible with IP1 IP6 and IP8 remote controllers Integration with third-party control systems via GPIO and TCP/IP Custom Control app and editor for tailored user interfaces
Mic/Line Inputs: 8 x 3-pin Euroblock (balanced +48V phantom power) Line Outputs: 8 x 3-pin Euroblock (balanced relay protected) Input Sensitivity: -60 to +15dBu Analog Gain: +5 to +60dB in 1dB steps Maximum Input Level: +30dBu (PAD in) Output Impedance: <75Ω Maximum Output Level: +21dBu Dynamic Range: 108dB Frequency Response: 20Hz - 20kHz (+0/-0.5dB) THD+N: 0.005% @ +16dBu output 1kHz +5dB gain Sampling Rate: 96kHz ±20 PPM Power Supply: 100-240V AC 50-60Hz 65W max Dimensions (H x W x D): 44mm x 482.6mm x 270mm Weight: 3.8kg (8.38 lbs)
