A range of quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.
Stable down to 2 Ohms
2U rack-mountable
Power supply:230Vac, 50Hz (IEC)
Controls:4 x channel gain
Dimensions:483 x 439 x 88mm

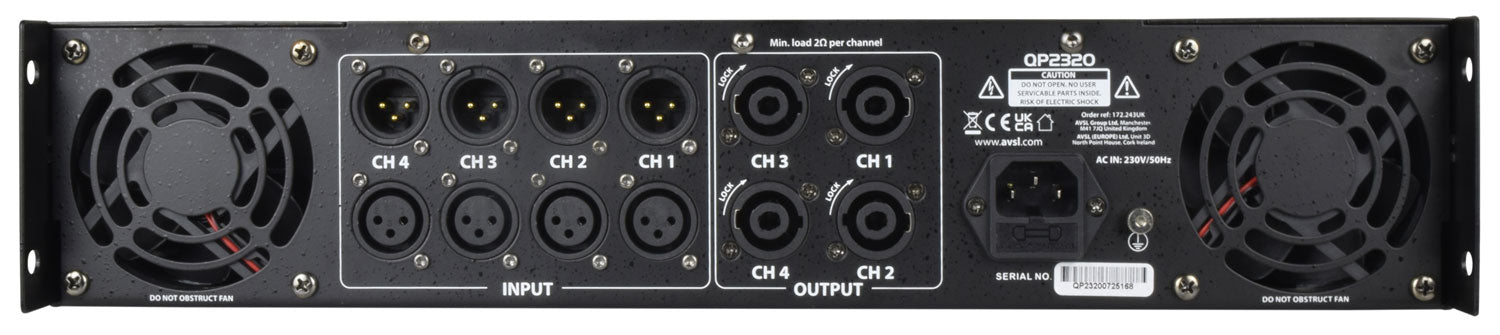

Input : line:4 x XLRF balanced
Output : line:4 x XLRM (parallel from inputs)
Speaker : outputs:4 x SPK connectors
Input impedance:20k Ohms
Frequency response:5Hz - 50kHz
THD:0.05%
Slew rate:40V/usec
S/N ratio:103dB
Circuit protection:Short-circuit, DC, overload, soft-start
Input sensitivity:0dB @ 0.775Vrms
Specifications
Fully balanced signal pathStable down to 2 Ohms
2U rack-mountable
Power supply:230Vac, 50Hz (IEC)
Controls:4 x channel gain
Dimensions:483 x 439 x 88mm
Input : line:4 x XLRF balanced
Output : line:4 x XLRM (parallel from inputs)
Speaker : outputs:4 x SPK connectors
Input impedance:20k Ohms
Frequency response:5Hz - 50kHz
THD:0.05%
Slew rate:40V/usec
S/N ratio:103dB
Circuit protection:Short-circuit, DC, overload, soft-start
Input sensitivity:0dB @ 0.775Vrms

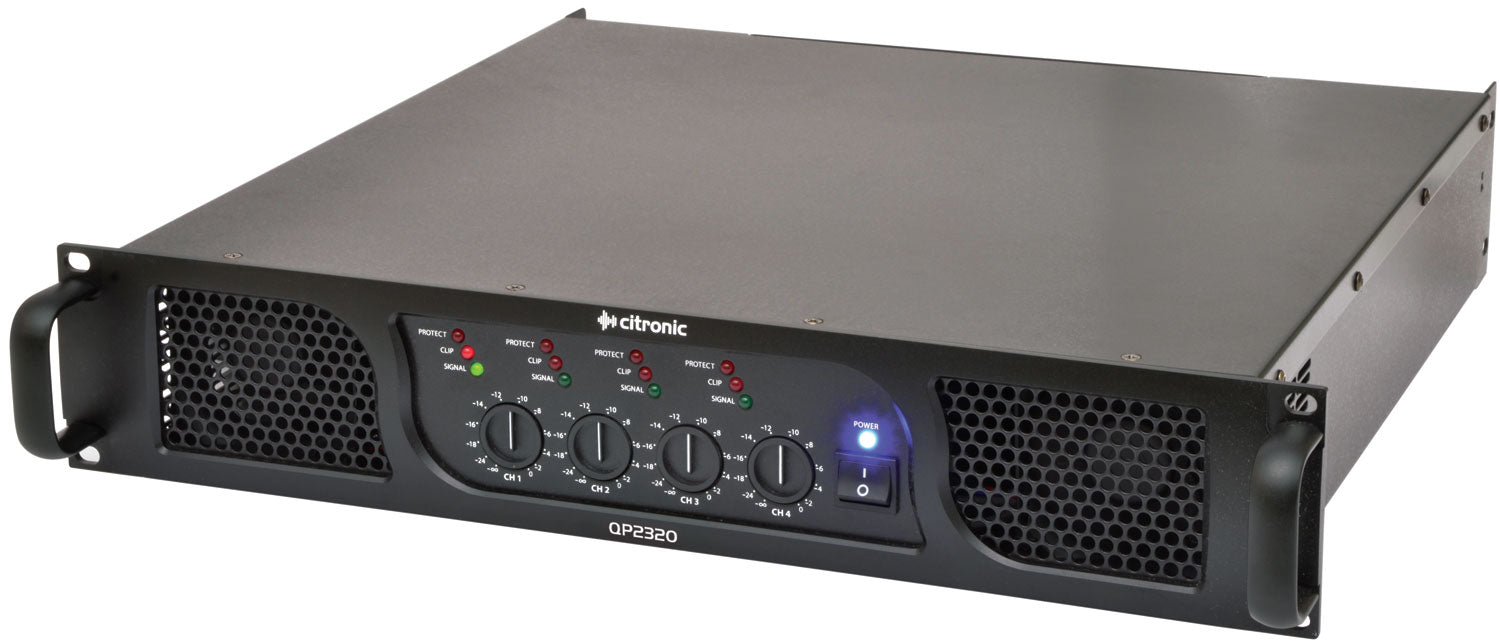

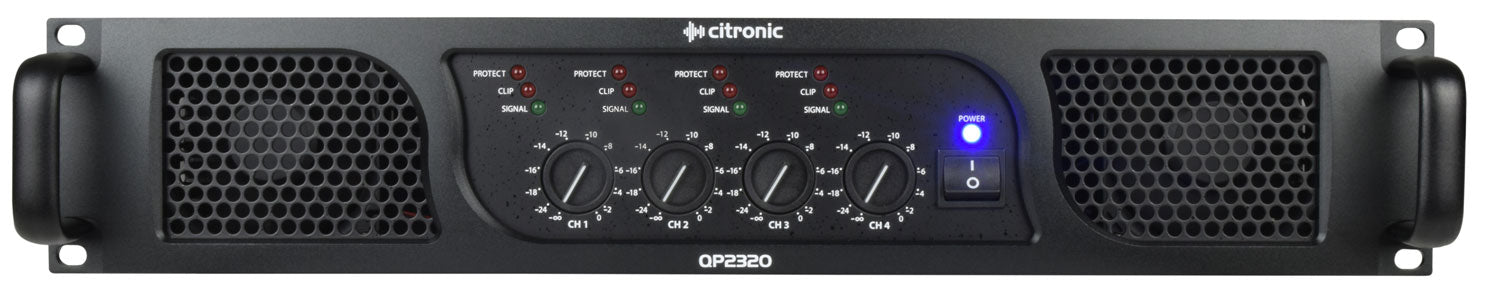

Citronic QP2320 quad power amp 4 x 580W
Brand: Citronic
SKU: 172.243UK
Regular price
£519.00
Need help with choosing the right product?
Click here to reach out to one of our experts.
A range of quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.
Stable down to 2 Ohms
2U rack-mountable
Power supply:230Vac, 50Hz (IEC)
Controls:4 x channel gain
Dimensions:483 x 439 x 88mm
Input : line:4 x XLRF balanced
Output : line:4 x XLRM (parallel from inputs)
Speaker : outputs:4 x SPK connectors
Input impedance:20k Ohms
Frequency response:5Hz - 50kHz
THD:0.05%
Slew rate:40V/usec
S/N ratio:103dB
Circuit protection:Short-circuit, DC, overload, soft-start
Input sensitivity:0dB @ 0.775Vrms
Specifications
Fully balanced signal pathStable down to 2 Ohms
2U rack-mountable
Power supply:230Vac, 50Hz (IEC)
Controls:4 x channel gain
Dimensions:483 x 439 x 88mm
Input : line:4 x XLRF balanced
Output : line:4 x XLRM (parallel from inputs)
Speaker : outputs:4 x SPK connectors
Input impedance:20k Ohms
Frequency response:5Hz - 50kHz
THD:0.05%
Slew rate:40V/usec
S/N ratio:103dB
Circuit protection:Short-circuit, DC, overload, soft-start
Input sensitivity:0dB @ 0.775Vrms
