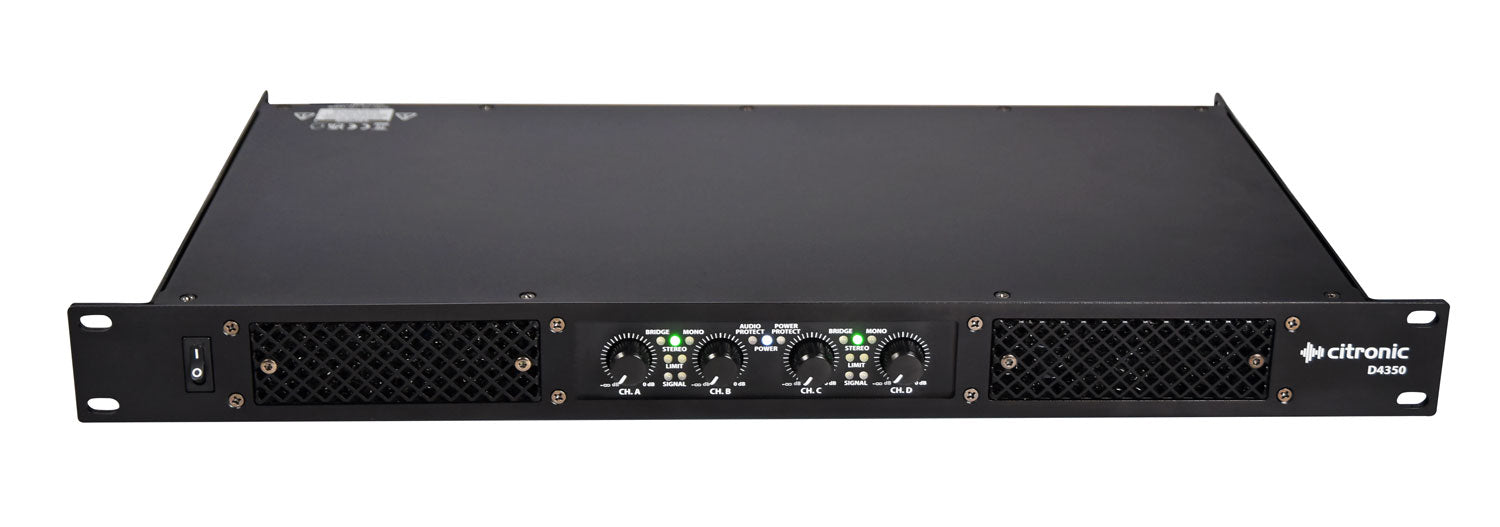

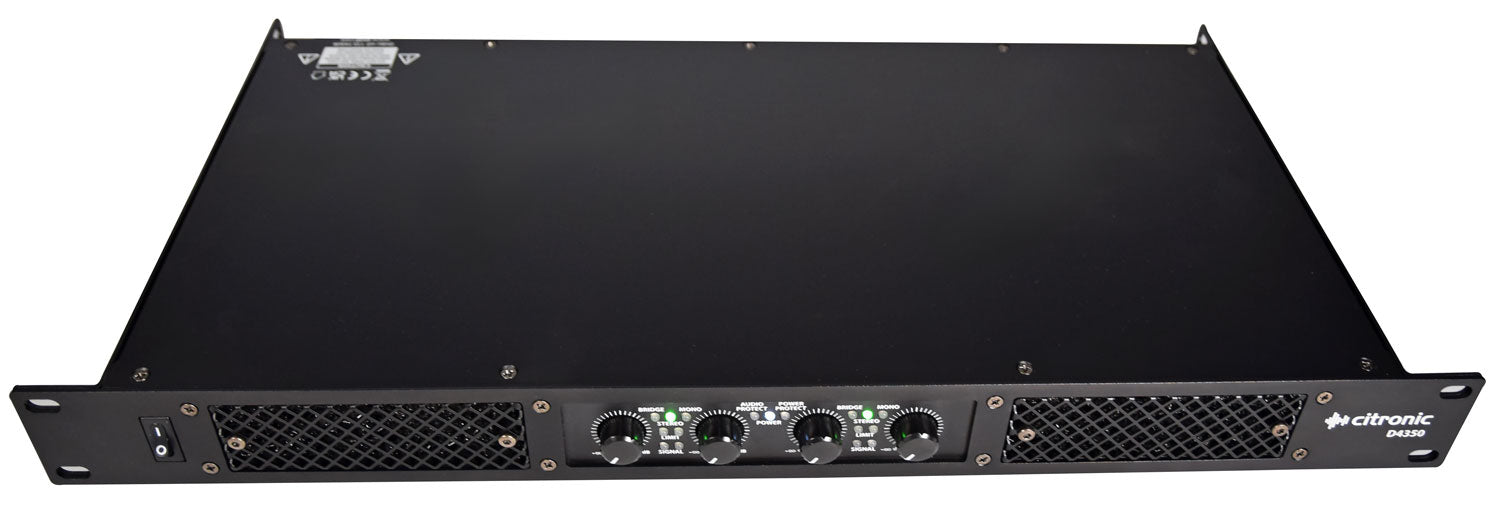

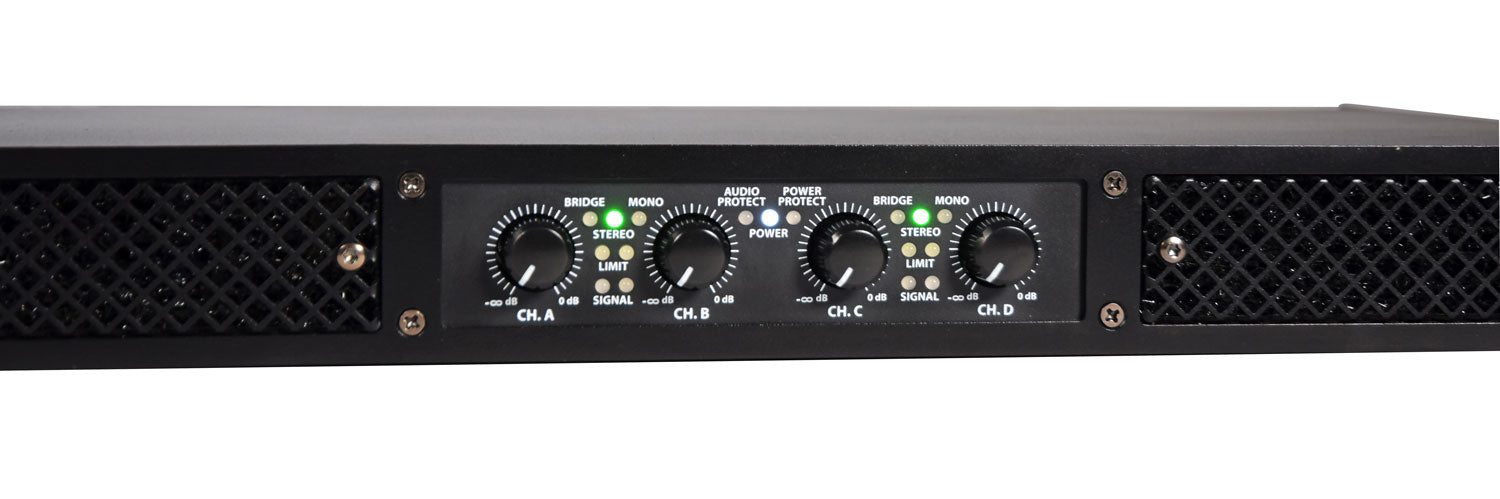

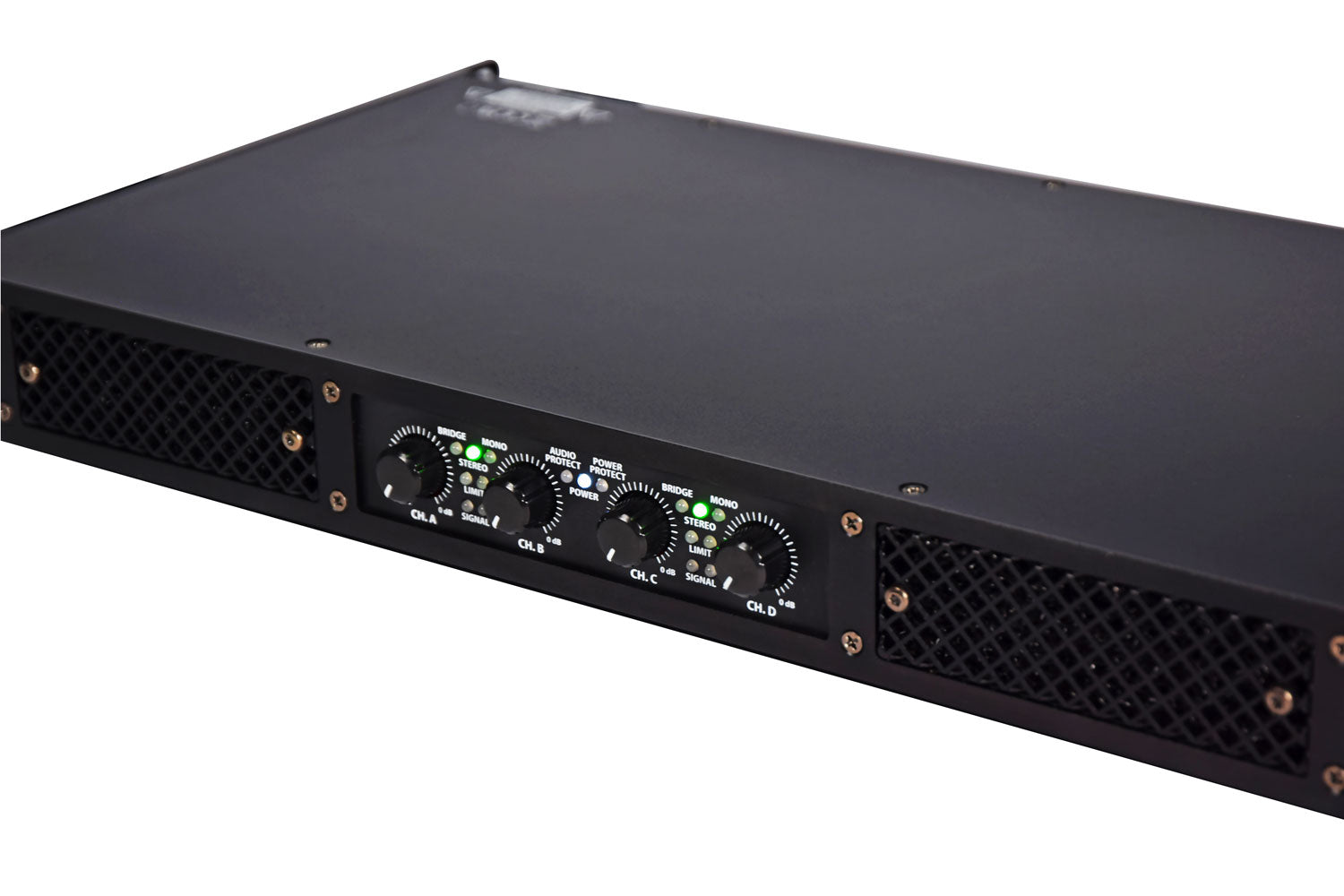

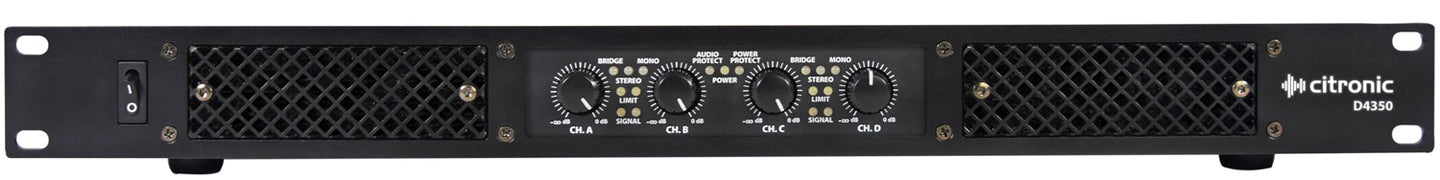

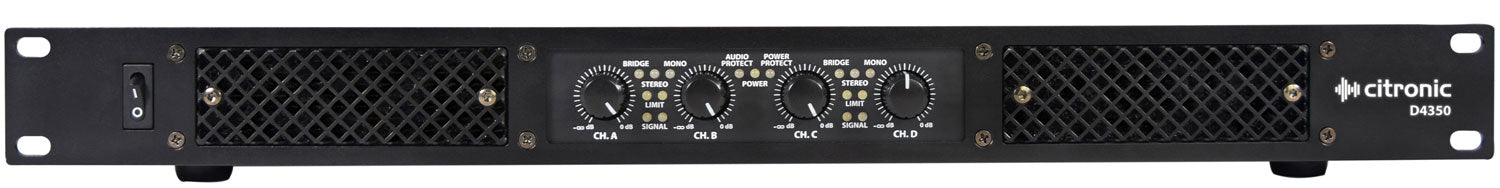

Quad digital power amplifier in a lightweight 1U rack-mountable format. An energy-efficient switch-mode power section and class-D amplifiication circuit delivers accurate power-on-demand to four independent speaker outputs. Proprietary cool guide technology provides stable temperature management for dependable operation. Each pair of output channels can be separately parallel switched or bridged as a full or part stereo amplifier configuration. For channel A, there is a switchable 120Hz low-pass filter for use with subwoofers and a channels C and D have a switchable stereo pair of 120Hz high pass filters to effectively focus power in full-range cabs operating as mid-tops in conjunction with sub-woofers. For permanent or mobile installations, the D-series offers an invaluable and flexible problem solver for audio designers and sound engineers.

Specifications

Switchable bridge or parallel mono modes
Switchable high and low pass filters
Fully balanced audio signal path
Full audio and power protection with peak limiter
Configurable as a quad, stereo or 2.1 system
Power supply:220-240Vac, 50/60Hz (IEC)
Modes:2 x Stereo, Parallel (mono), Bridge (mono)
Input sensitivity:0dB = 0.775Vrms

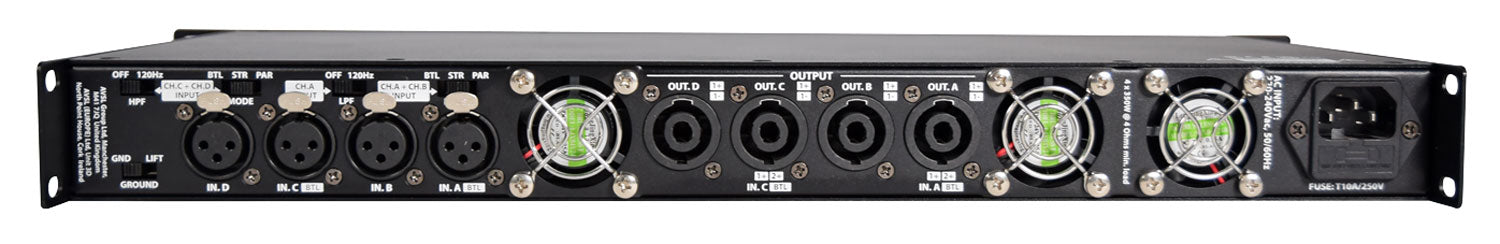

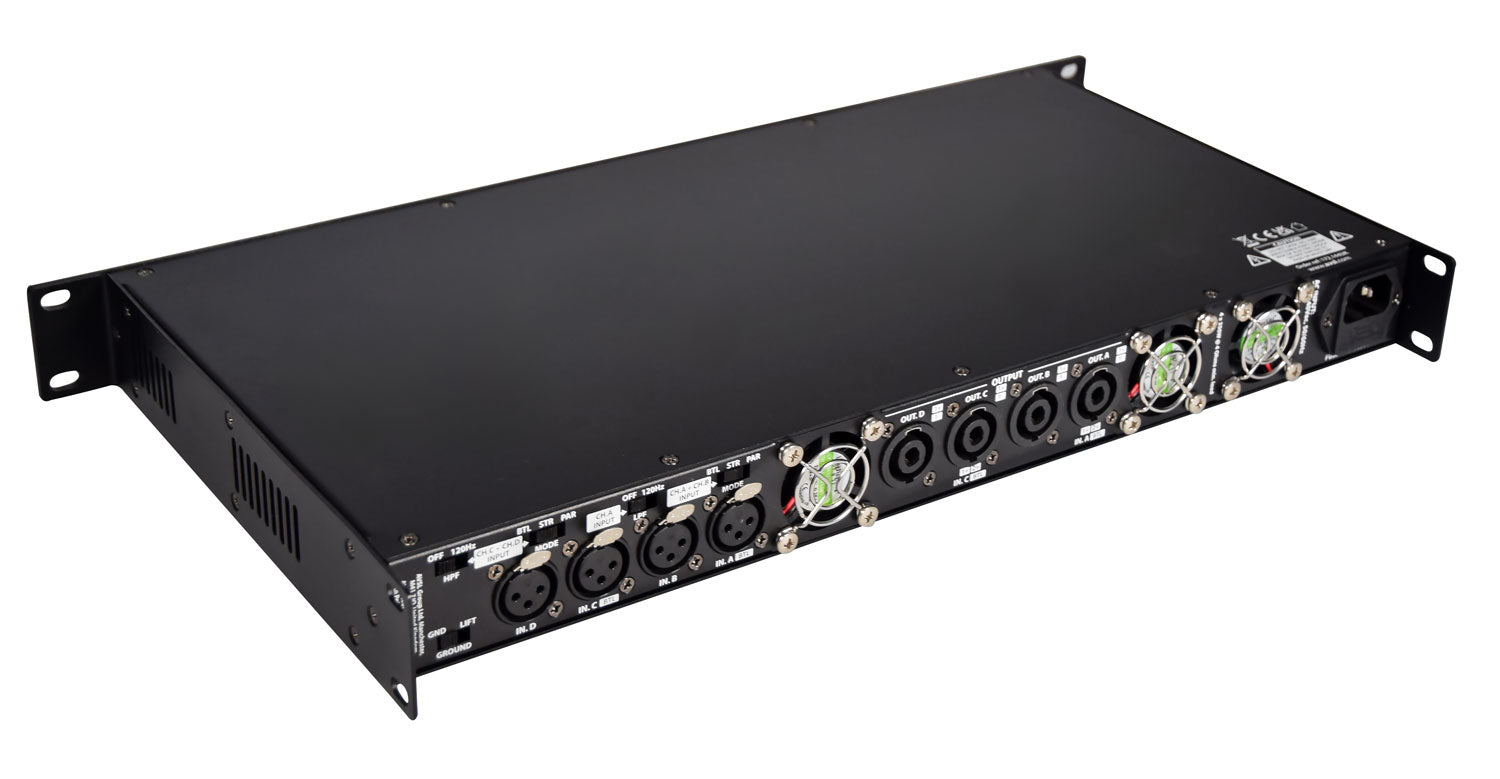

Input connections:4 x XLR female
Sound output:4 x SPK connectors
Crossover:Input A 120Hz LPF and C+D 120Hz HPF (all switchable)
