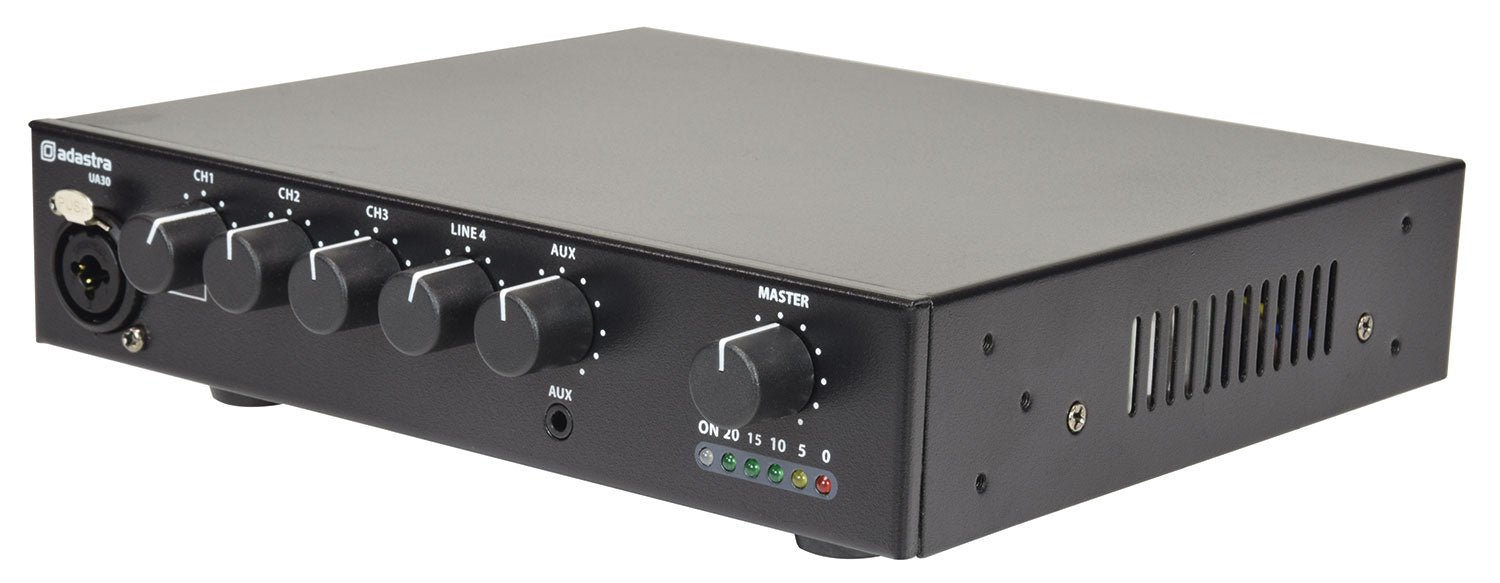

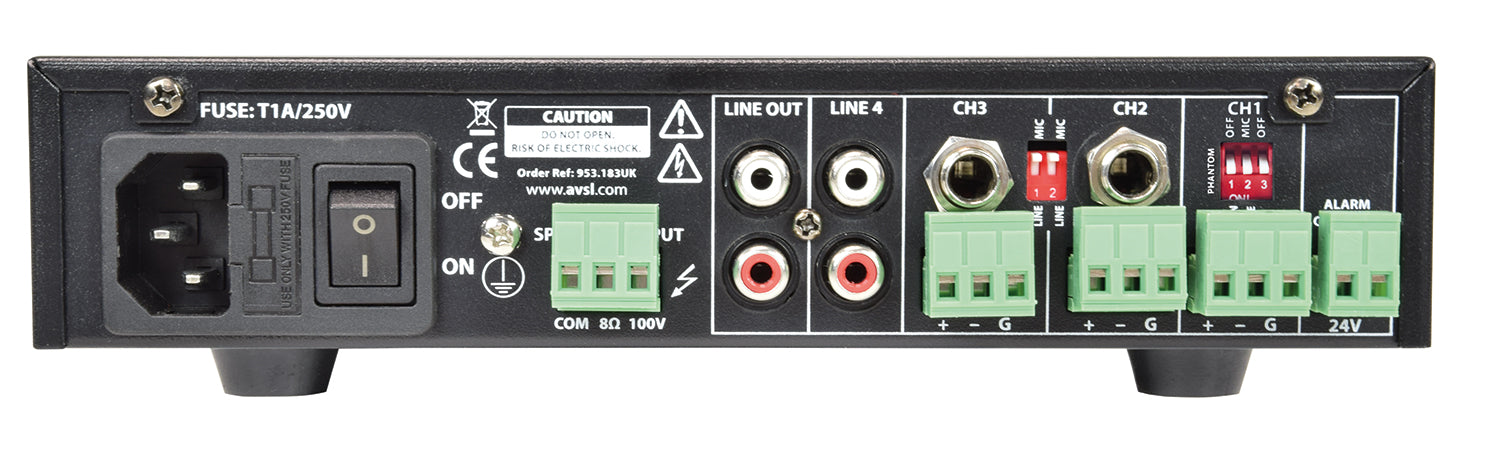

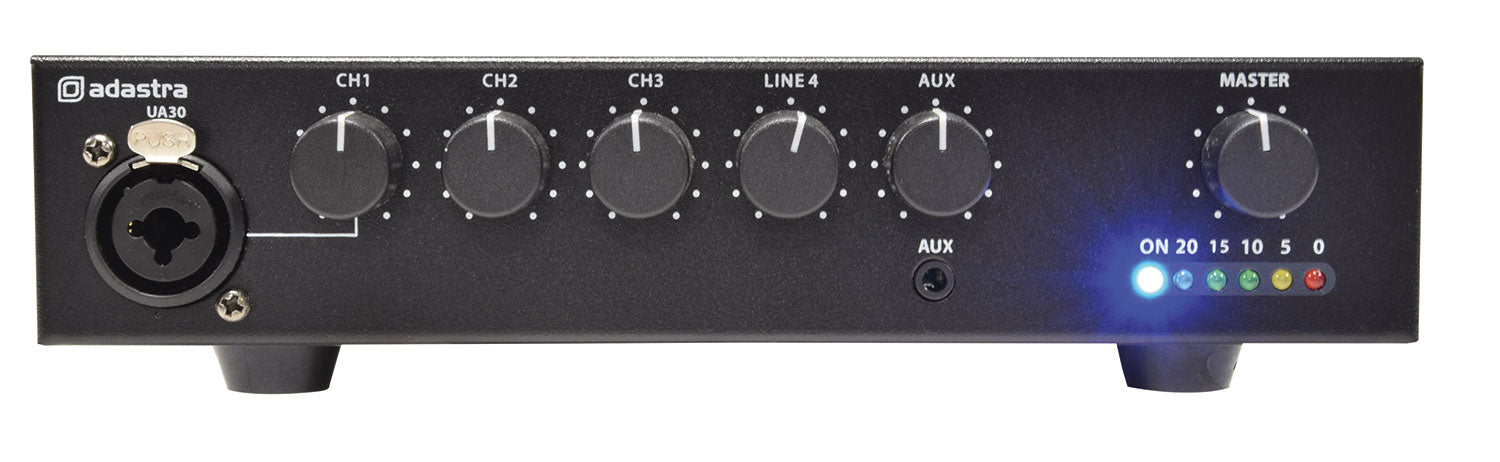

100V mixer-amplifiers with a 5-input mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

Specifications

24V fire alarm mute contacts
Supplied with hardware for rack-mounting 2 units
5 input channels
100V line or low impedance operation
Switchable +20V phantom power CH1
Global 2-band EQ on 120W and 240W models
Amplifier : construction:Class D + transformer output
Inputs:Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
Line output:2 x RCA (mono)
Speaker output:Euroblock terminals: 100V / 8 Ohms or 2 Ohms / Com
Mute:24V relay contacts
THD:<0.4% @ 1kHz
Input impedance:1k Ohms (mic/line)
Input sensitivity:-10dB (line), -45dB (mic)
SNR:80dB (line), 75dB (mic)
Frequency response:100Hz - 18kHz
Phantom power:+20V CH1 (XLR or rear terminals)
