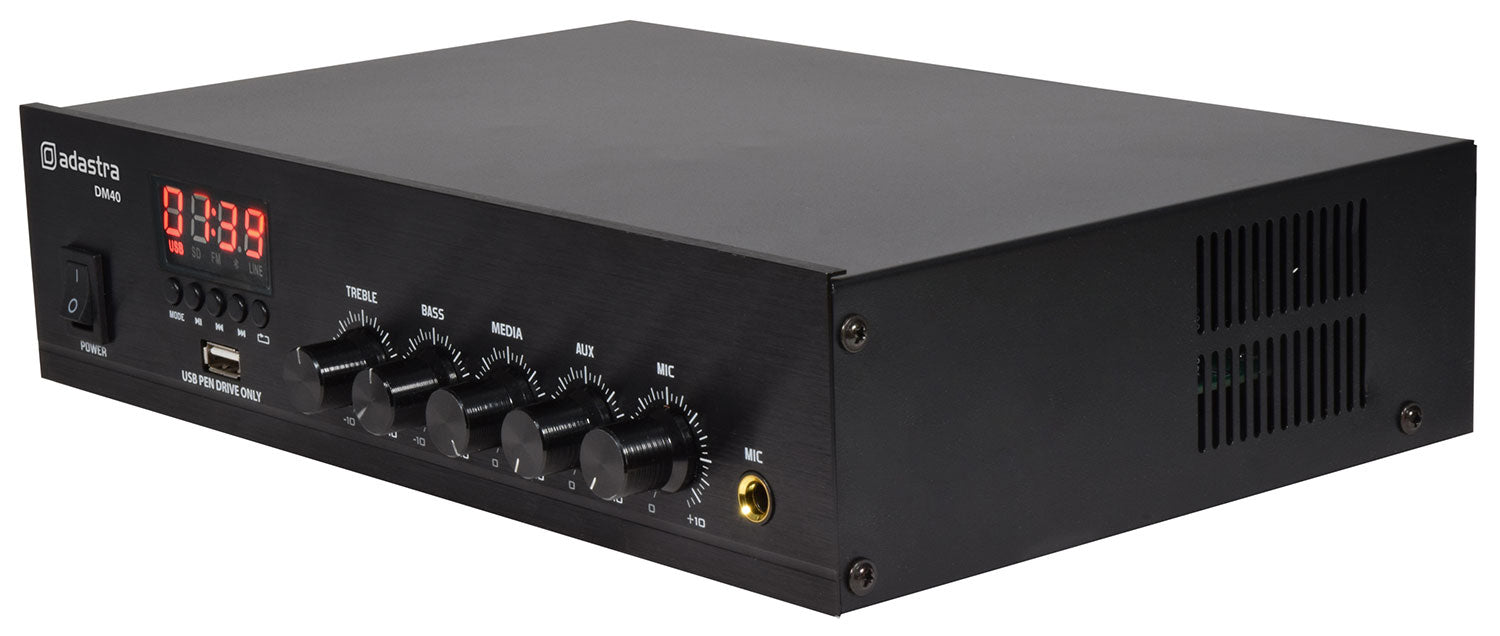

100V line mixer-amp with digital amplifier in a compact housing. An onboard audio player accepts USB media for digital audio or can be tuned to FM radio stations. In Bluetooth mode, a smart phone or tablet may be paired with the DM25 for wireless audio playback. Mono output to either 100V line or 4-16 ohms speaker load is connected via spring terminals on the rear panel. All-in-one solution for small sound installations.
Integral USB player and FM tuner
100V line or 4-16 Ohms operation
Note: USB port is not for charging smart phones
Power supply:230Vac, 50Hz (IEC)

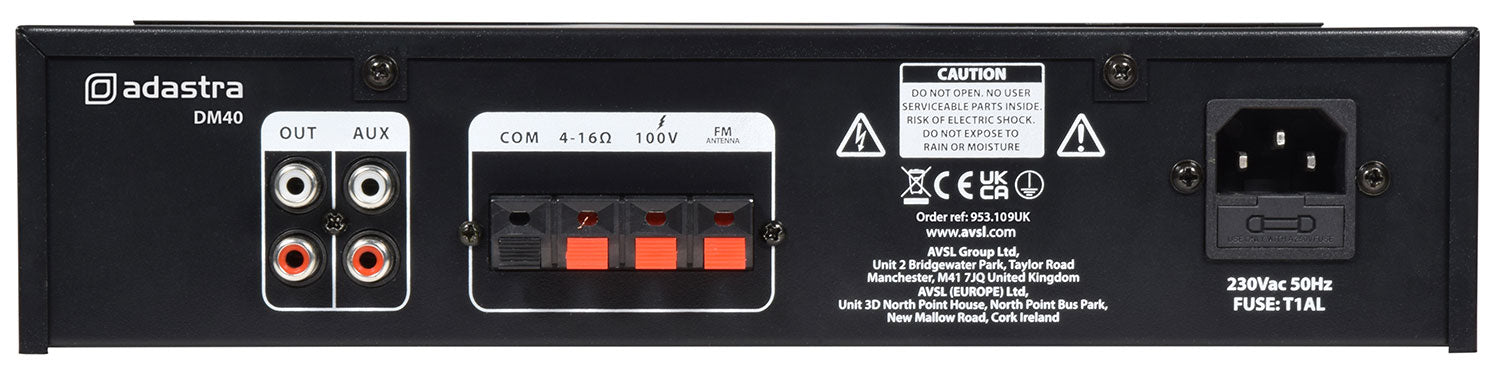

Speaker : outputs:COM, 100V and 4-16 Ohms (spring terminals)
Audio source:USB player, FM tuner and Bluetooth receiver
Bluetooth version:V2.1

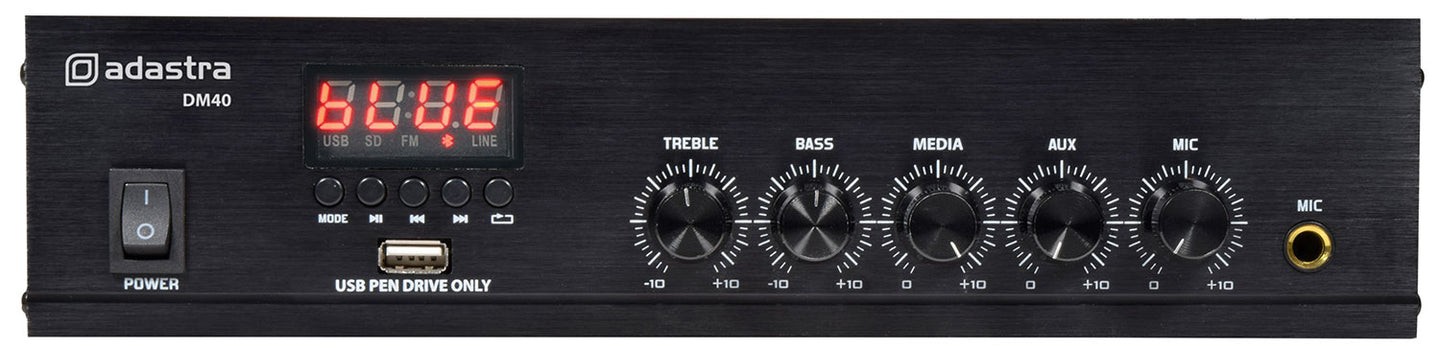

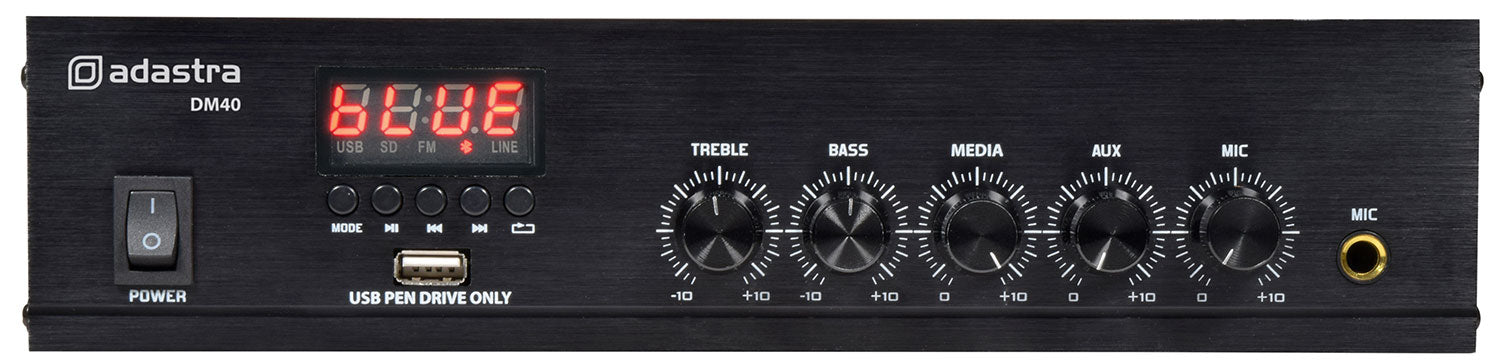

Controls:Treble, Bass, MP3, Aux, Mic
Microphone : inputs:6.3mm jack (unbalanced)
Line input:2 x RCA (summed to mono)
Line output:2 x RCA
Antenna connection:Spring terminal
Dimensions:280 x 205 x 67mm (L x W x H)
Fuse:T1AL 230V
USB version:USB 2.0 (FAT32, 128GB max.)
Specifications
Bluetooth connectivityIntegral USB player and FM tuner
100V line or 4-16 Ohms operation
Note: USB port is not for charging smart phones
Power supply:230Vac, 50Hz (IEC)
Speaker : outputs:COM, 100V and 4-16 Ohms (spring terminals)
Audio source:USB player, FM tuner and Bluetooth receiver
Bluetooth version:V2.1
Controls:Treble, Bass, MP3, Aux, Mic
Microphone : inputs:6.3mm jack (unbalanced)
Line input:2 x RCA (summed to mono)
Line output:2 x RCA
Antenna connection:Spring terminal
Dimensions:280 x 205 x 67mm (L x W x H)
Fuse:T1AL 230V
USB version:USB 2.0 (FAT32, 128GB max.)
Adastra DM40 Digital 100V Mixer-Amp 40W
Brand: Adastra
SKU: 953.109UK
Regular price
£89.00
Pickup available at Venutec
Usually ready in 24 hours
Adastra DM40 Digital 100V Mixer-Amp 40W
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
100V line mixer-amp with digital amplifier in a compact housing. An onboard audio player accepts USB media for digital audio or can be tuned to FM radio stations. In Bluetooth mode, a smart phone or tablet may be paired with the DM25 for wireless audio playback. Mono output to either 100V line or 4-16 ohms speaker load is connected via spring terminals on the rear panel. All-in-one solution for small sound installations.
Integral USB player and FM tuner
100V line or 4-16 Ohms operation
Note: USB port is not for charging smart phones
Power supply:230Vac, 50Hz (IEC)
Speaker : outputs:COM, 100V and 4-16 Ohms (spring terminals)
Audio source:USB player, FM tuner and Bluetooth receiver
Bluetooth version:V2.1
Controls:Treble, Bass, MP3, Aux, Mic
Microphone : inputs:6.3mm jack (unbalanced)
Line input:2 x RCA (summed to mono)
Line output:2 x RCA
Antenna connection:Spring terminal
Dimensions:280 x 205 x 67mm (L x W x H)
Fuse:T1AL 230V
USB version:USB 2.0 (FAT32, 128GB max.)
Specifications
Bluetooth connectivityIntegral USB player and FM tuner
100V line or 4-16 Ohms operation
Note: USB port is not for charging smart phones
Power supply:230Vac, 50Hz (IEC)
Speaker : outputs:COM, 100V and 4-16 Ohms (spring terminals)
Audio source:USB player, FM tuner and Bluetooth receiver
Bluetooth version:V2.1
Controls:Treble, Bass, MP3, Aux, Mic
Microphone : inputs:6.3mm jack (unbalanced)
Line input:2 x RCA (summed to mono)
Line output:2 x RCA
Antenna connection:Spring terminal
Dimensions:280 x 205 x 67mm (L x W x H)
Fuse:T1AL 230V
USB version:USB 2.0 (FAT32, 128GB max.)
