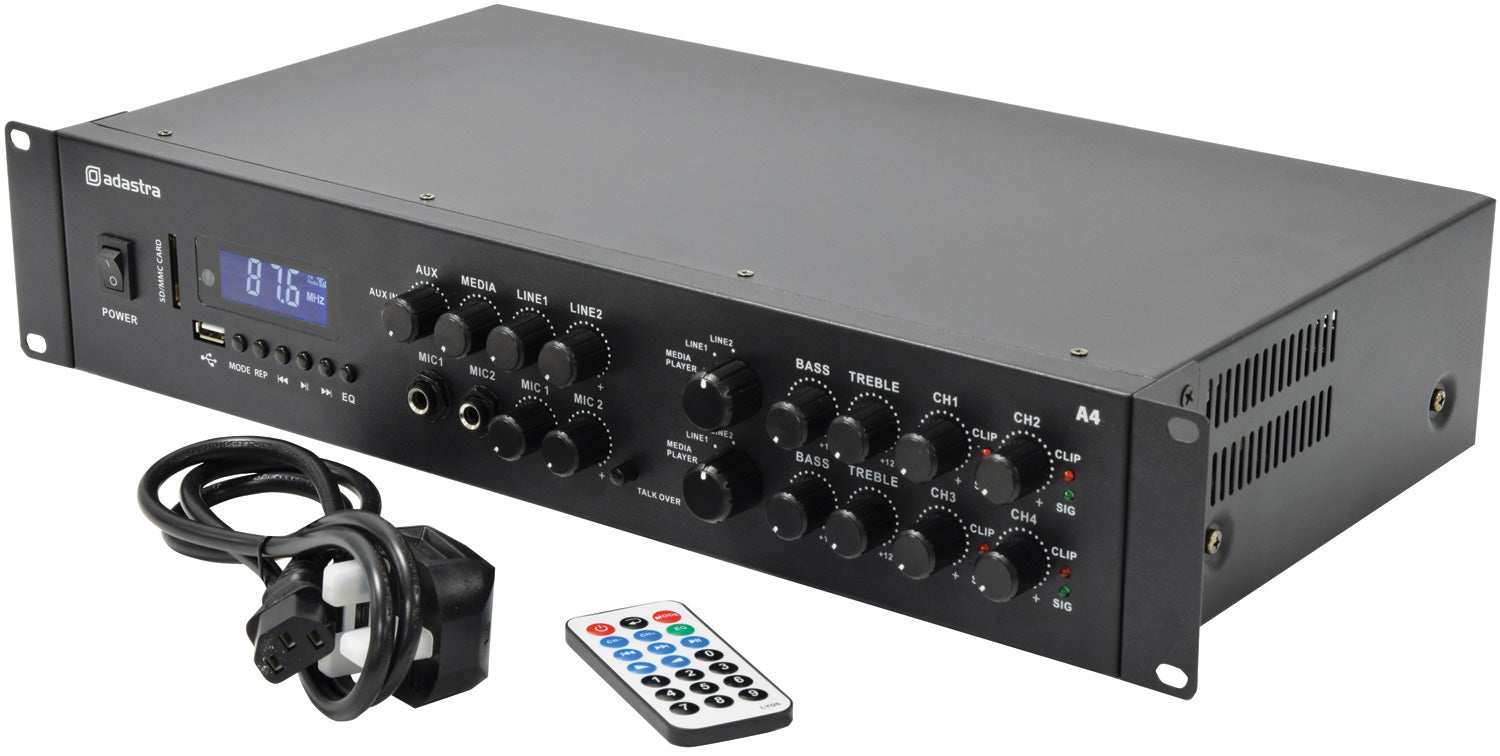

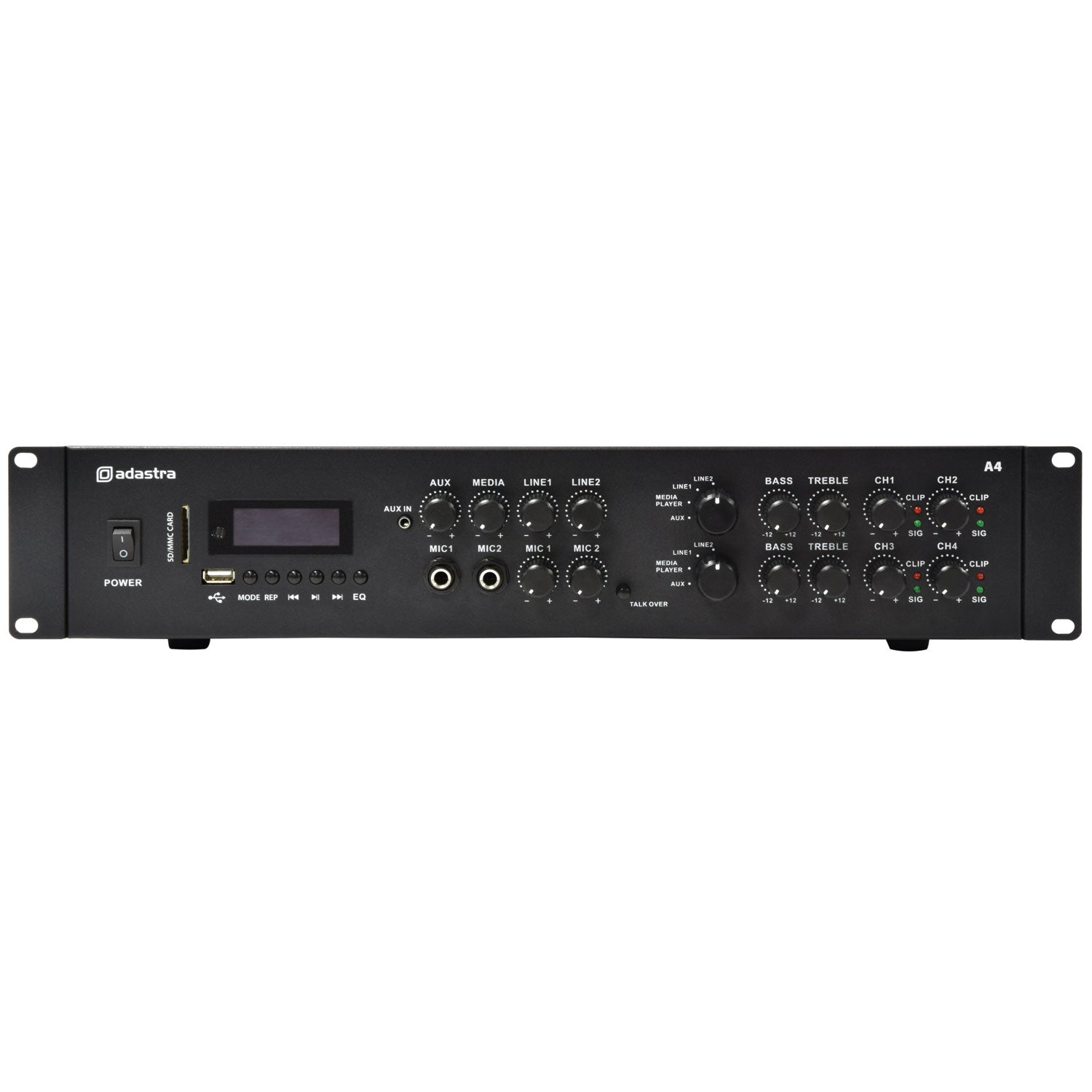

Fully featured PA amplifier with 2 independent stereo zone outputs and mixer section for 2 microphones and a stereo audio source. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card. It also has a Bluetooth receiver. A rotary switch for each output zone selects the stereo playback audio from a choice of 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Mic inputs 1 and 2 are live to both output zones at all times. 2 pairs of speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers on each of the 4 channels. Designed to offer installers a comprehensive dual zone PA for bars, restaurants and function rooms.

Specifications

Independent stereo playback to 2 separate zones

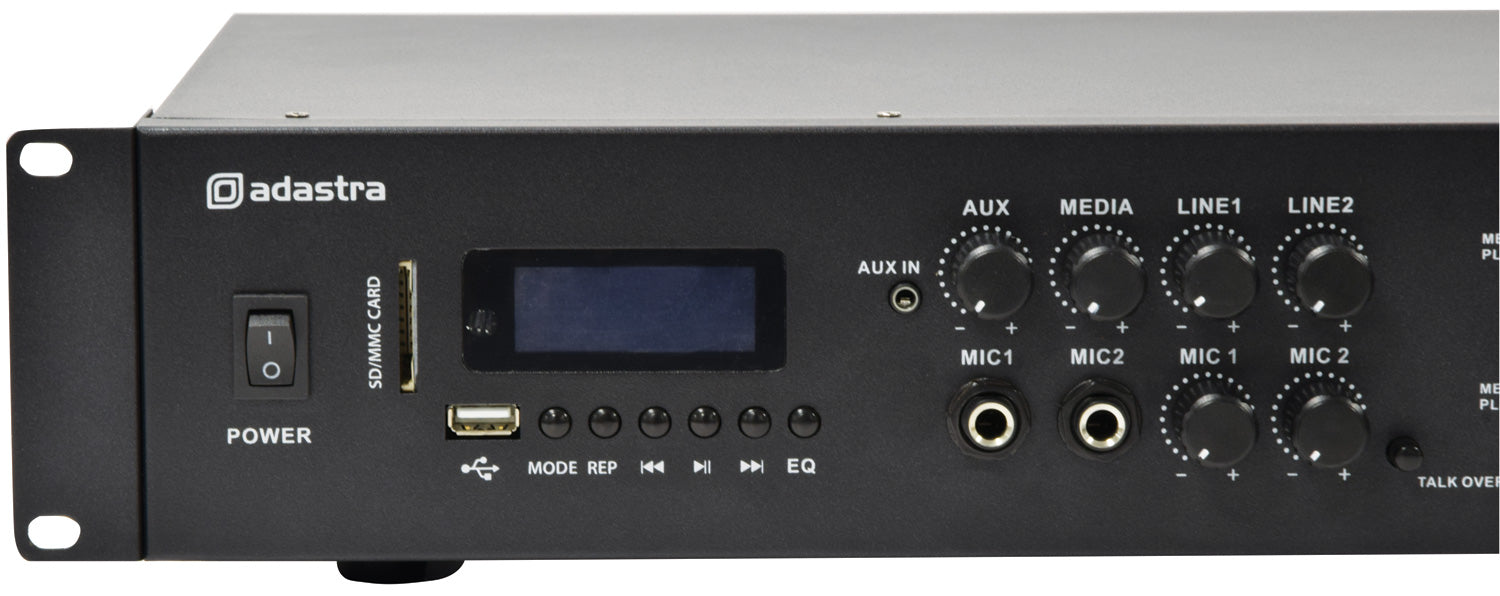

Media player with USB/SD playback
Bluetooth receiver
Power supply:230Vac, 50Hz (IEC)
Amplifier : construction:Class D
Microphone inputs:2 x 6.3mm jack (mono)
Auxiliary input:3.5mm stereo jack
Line inputs:Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
Audio source:USB/SD mp3 playback, BT receiver
Antenna connection:F type (FM tuner)
Input controls:Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
Line output:4 x RCA

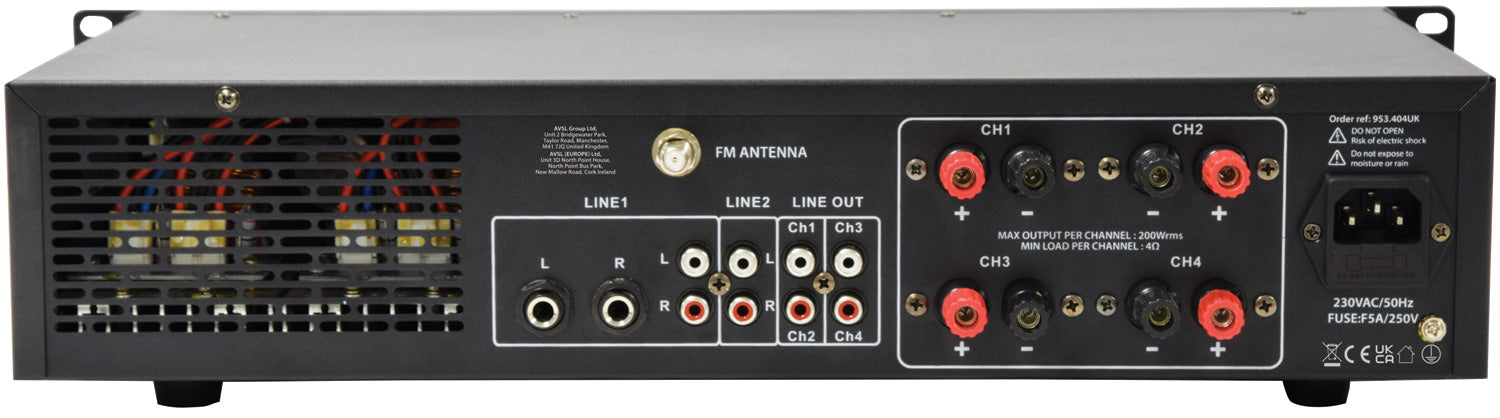

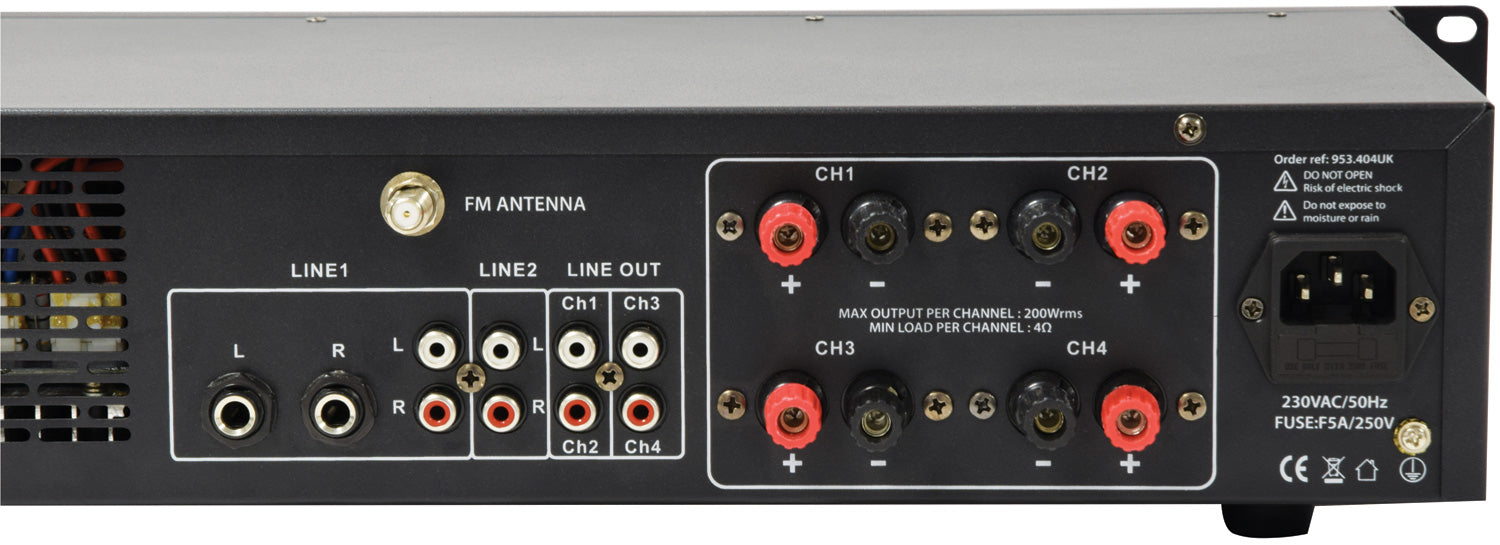

Speaker outputs:4mm binding posts (4 channels)

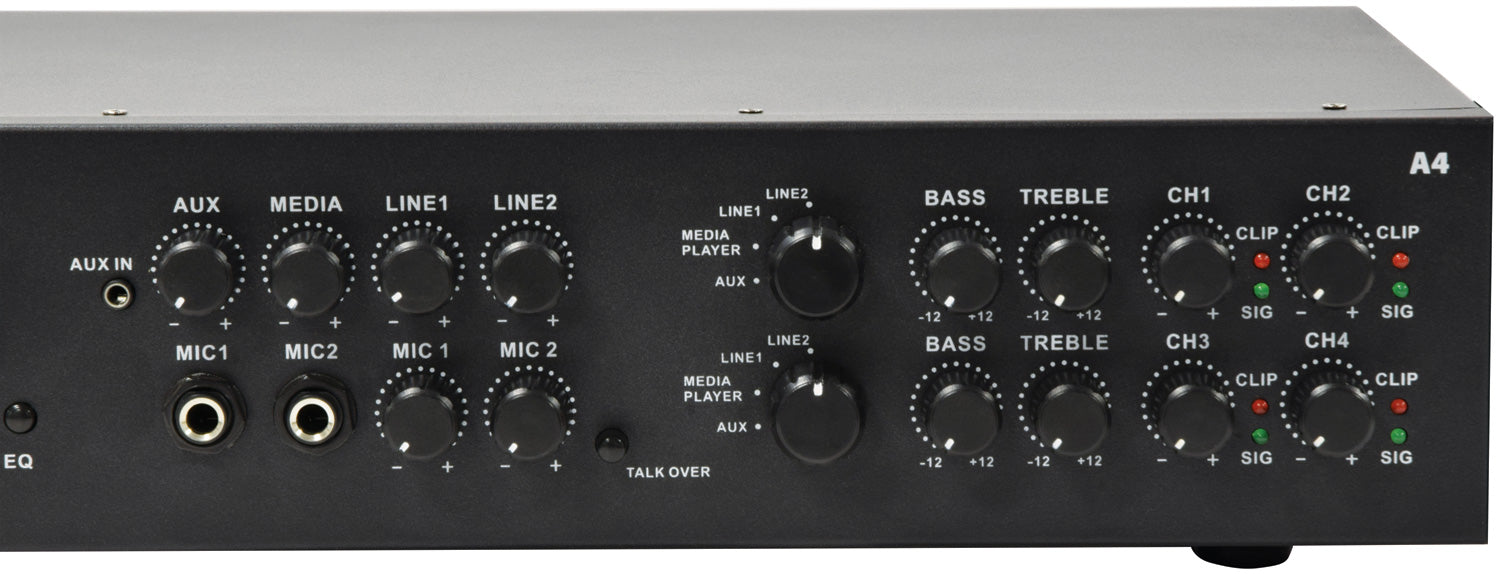

Output controls:2 x source select, 2 xBass, 2 xTreble, Ch1, Ch2, Ch3, Ch4
Protection:Thermal, over-current, over-voltage, short-circuit
Dimensions:482 x 260 x 88mm
Frequency response:20Hz - 20kHz ±0.5dB
Input sensitivity : line:0.775Vrms
Input sensitivity : aux:0.480Vrms
Input impedance:20k Ohms (balanced), 10k Ohms (unbalanced)
Dynamic range:92dB
THD +N:<0.1%
Bluetooth version:2.3
