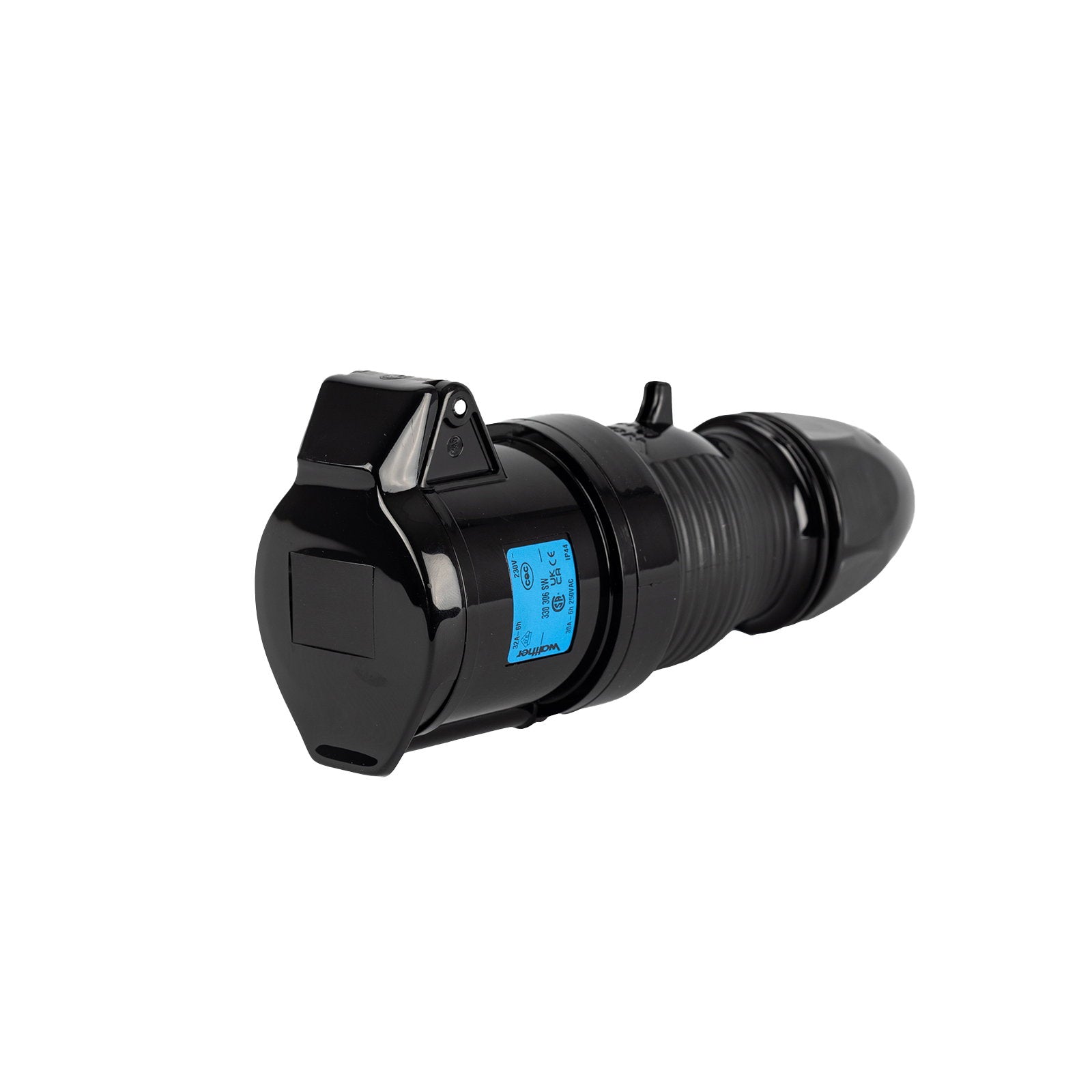

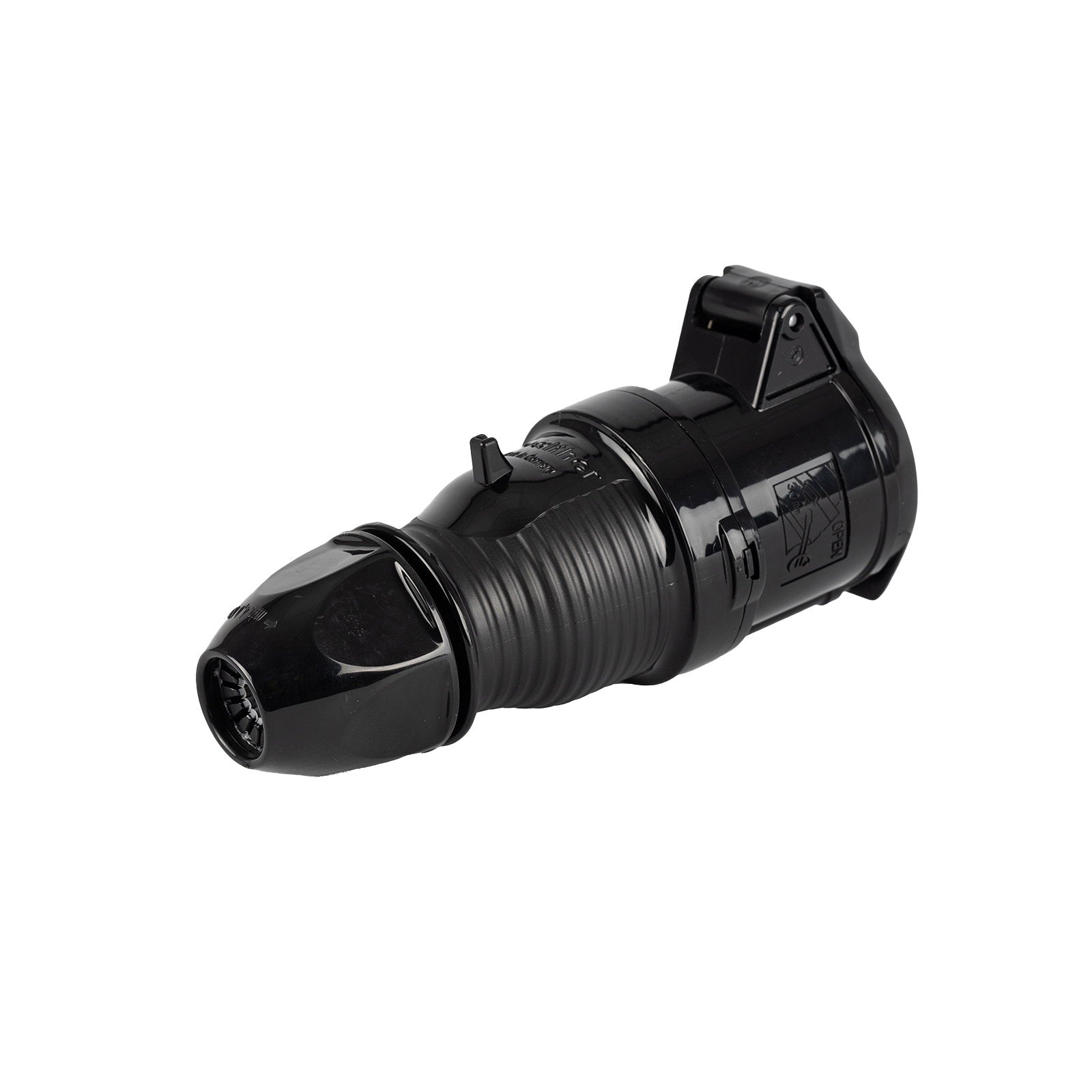

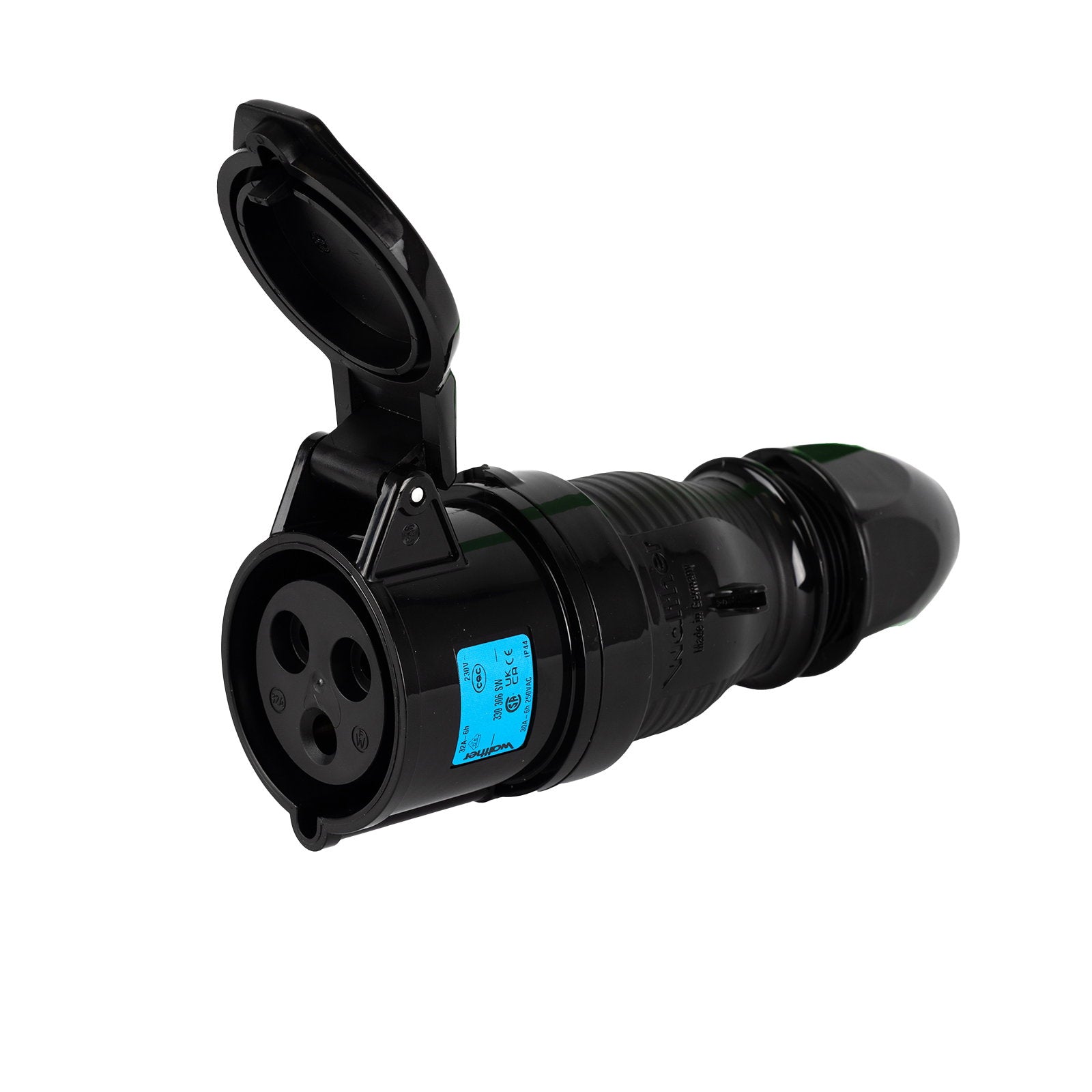

Walther 330306SW: 32A 230V 2P+E black IEC 60309 IP44 cable coupler with shrouded pins double terminal screws and high-impact thermoplastic housing.
32A IEC 60309 cable coupler 2P+E 230V (50/60Hz) 6h Black special housing; high-impact thermoplastic abrasion-resistant IP44 ingress protection; shrouded contacts Ground-first last-break safety sequencing Double terminal screws; screwed-terminal connection Brass contacts; swivel cable entry Conductor size: 2.5–6mm² (14–10 AWG) Cable Ø range: 10–22.5mm
32A IEC 60309 cable coupler 2P+E 230V (50/60Hz) 6h Black special housing; high-impact thermoplastic abrasion-resistant IP44 ingress protection; shrouded contacts Ground-first last-break safety sequencing Double terminal screws; screwed-terminal connection Brass contacts; swivel cable entry Conductor size: 2.5–6mm² (14–10 AWG) Cable Ø range: 10–22.5mm
| Part Number | 330306SW (black special) |
| Base Model | 330306 (IEC coupler) |
| Rated Current | 32A IEC / 30A UL |
| Voltage | 230V 50/60Hz |
| Poles | 2P+E |
| Clock Position | 6h |
| IP Rating | IP44 |
| Cable Size | 2.5–6mm² (14–10 AWG) |
| Cable Ø | 10–22.5mm |
| Cable Strip Length | 45mm ±2.5mm |
| Ferrule Length | 10mm ±1mm |
| Torque – Terminals | 0.8Nm |
| Connection | Screwed terminal; swivel entry |
| Contact Material | Brass |
| Body Material | Thermoplastic (UL94 V2) |
| Net Weight | 0.314kg |
Walther 32A 230V 2P+E Black Plug 330306SW
Brand: Walther
SKU: CONN1703
Regular price
£47.99
Pickup available at Venutec
Usually ready in 24 hours
Walther 32A 230V 2P+E Black Plug 330306SW
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
Walther 330306SW: 32A 230V 2P+E black IEC 60309 IP44 cable coupler with shrouded pins double terminal screws and high-impact thermoplastic housing.
32A IEC 60309 cable coupler 2P+E 230V (50/60Hz) 6h Black special housing; high-impact thermoplastic abrasion-resistant IP44 ingress protection; shrouded contacts Ground-first last-break safety sequencing Double terminal screws; screwed-terminal connection Brass contacts; swivel cable entry Conductor size: 2.5–6mm² (14–10 AWG) Cable Ø range: 10–22.5mm
32A IEC 60309 cable coupler 2P+E 230V (50/60Hz) 6h Black special housing; high-impact thermoplastic abrasion-resistant IP44 ingress protection; shrouded contacts Ground-first last-break safety sequencing Double terminal screws; screwed-terminal connection Brass contacts; swivel cable entry Conductor size: 2.5–6mm² (14–10 AWG) Cable Ø range: 10–22.5mm
| Part Number | 330306SW (black special) |
| Base Model | 330306 (IEC coupler) |
| Rated Current | 32A IEC / 30A UL |
| Voltage | 230V 50/60Hz |
| Poles | 2P+E |
| Clock Position | 6h |
| IP Rating | IP44 |
| Cable Size | 2.5–6mm² (14–10 AWG) |
| Cable Ø | 10–22.5mm |
| Cable Strip Length | 45mm ±2.5mm |
| Ferrule Length | 10mm ±1mm |
| Torque – Terminals | 0.8Nm |
| Connection | Screwed terminal; swivel entry |
| Contact Material | Brass |
| Body Material | Thermoplastic (UL94 V2) |
| Net Weight | 0.314kg |
