Walther 230306SW: 32A 230V 2P+E black special plug to IEC 60309 with IP44 rating shrouded pins double terminal screws and high-impact housing.
32A IEC 60309 industrial plug 2P+E 230V (50/60Hz) Black special version with high-impact thermoplastic housing IP44 ingress protection with shrouded pins Ground first to mate last to break for added safety Double terminal screws on all amperage devices Brass contacts; screwed terminal connection Conductor size: 2.5–6mm² (14–10 AWG) Cable diameter range: 10–22.5mm; swivel cable entry Clock position: 6h; straight plug body Conformities: CE RoHS REACH; VDE certified; UL file E329476
32A IEC 60309 industrial plug 2P+E 230V (50/60Hz) Black special version with high-impact thermoplastic housing IP44 ingress protection with shrouded pins Ground first to mate last to break for added safety Double terminal screws on all amperage devices Brass contacts; screwed terminal connection Conductor size: 2.5–6mm² (14–10 AWG) Cable diameter range: 10–22.5mm; swivel cable entry Clock position: 6h; straight plug body Conformities: CE RoHS REACH; VDE certified; UL file E329476
| Part Number | 230306SW (black special) |
| Standard | IEC 60309 |
| Rated Current | 32A IEC (30A UL) |
| Voltage | 230V 50/60Hz |
| Poles | 2P+E |
| Clock Position | 6h |
| IP Rating | IP44 |
| Cable Size | 2.5–6mm² (14–10 AWG) |
| Cable Ø Range | 10–22.5mm |
| Cable Strip Length | 45mm ±2.5mm |
| Ferrule Length | 10mm ±1mm |
| Torque – Terminals | 0.8Nm |
| Torque – Cable Gland | 4Nm |
| Contact Material | Brass |
| Body Material | Thermoplastic UL94 V2 |
| Entry / Angle | Swivel entry / straight plug |
| Net Weight | 0.25kg |
| Certifications | VDE UL (E329476) CE RoHS REACH |

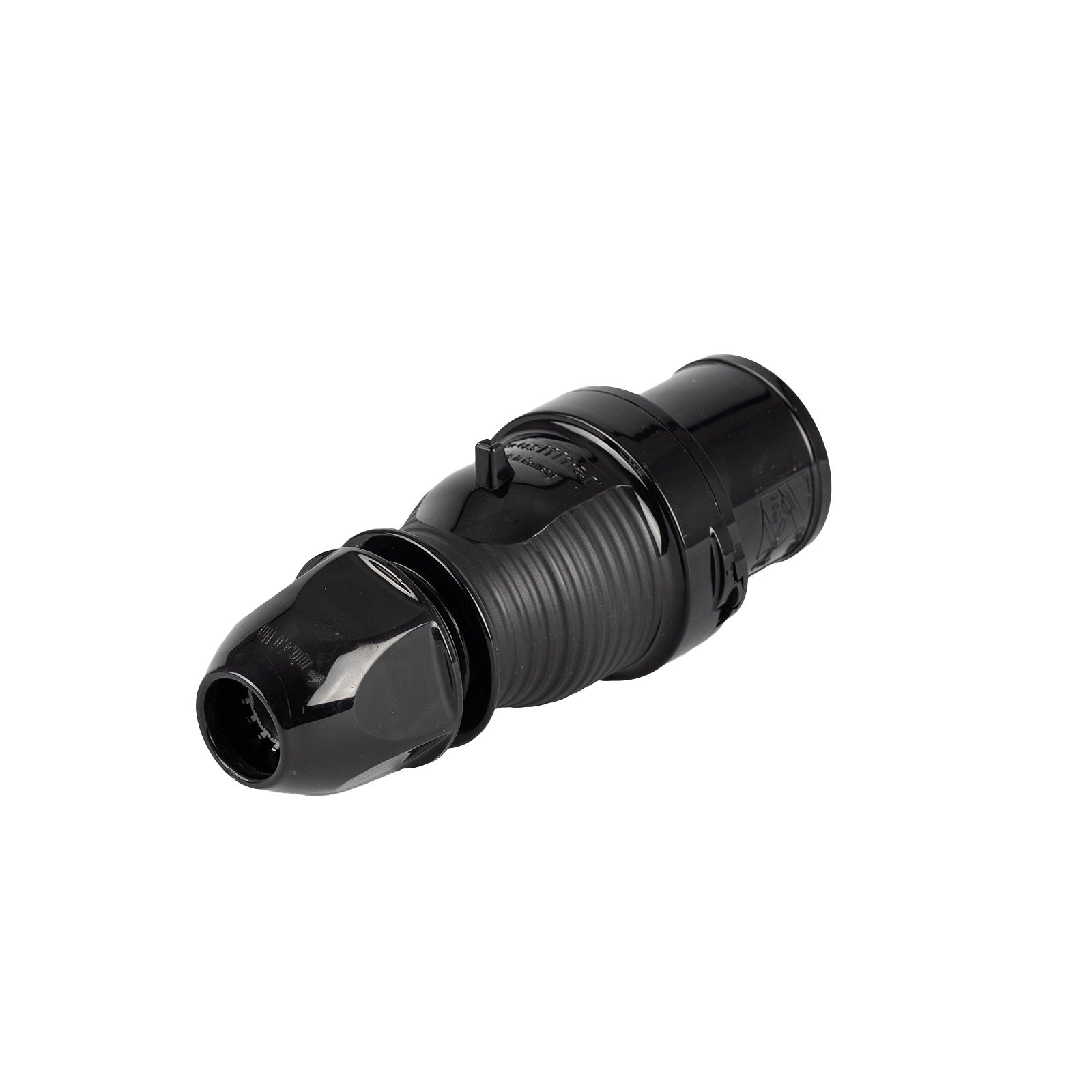

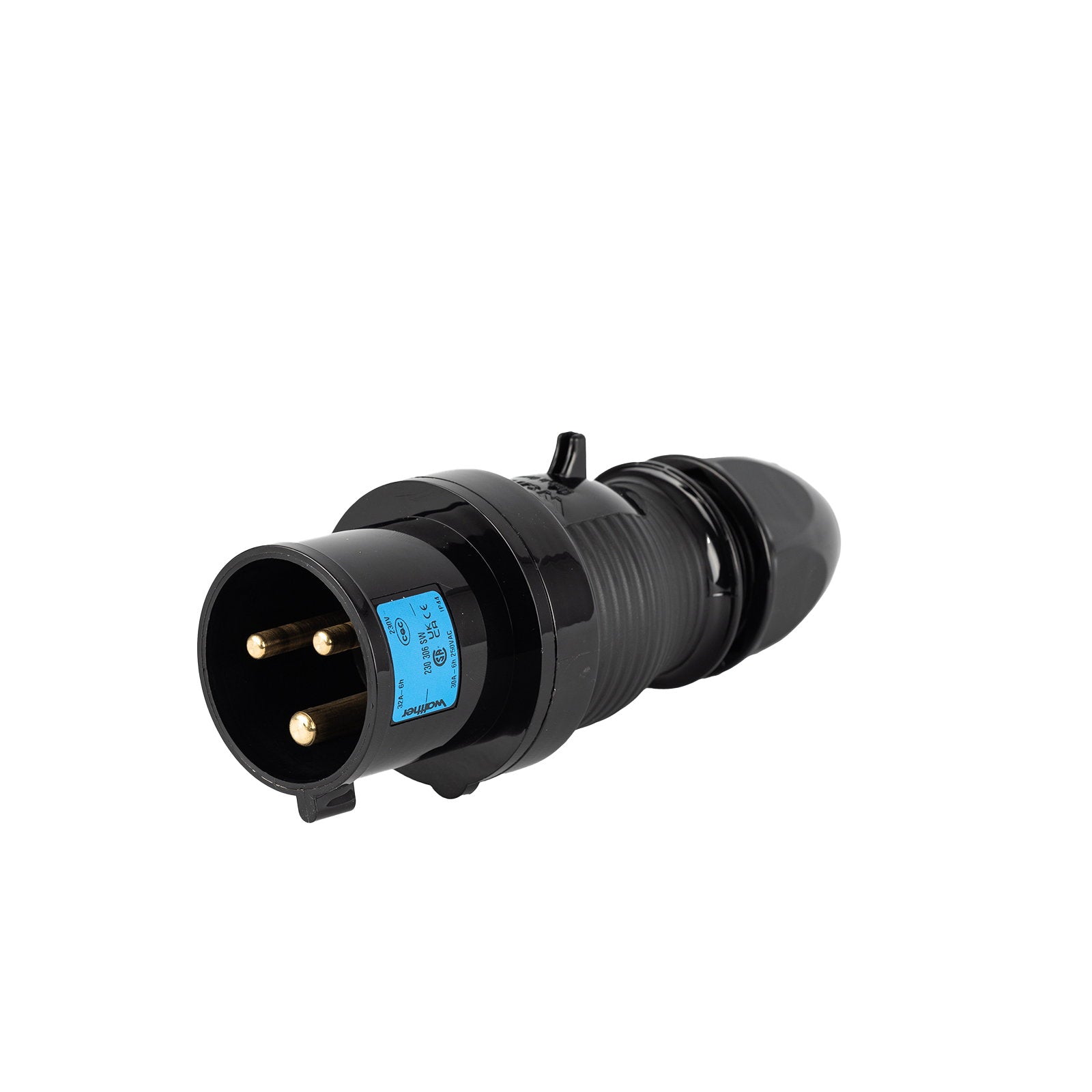

Walther 32A 230V 2P+E Black Plug 230306SW
Brand: Walther
SKU: CONN1702
Regular price
£35.99
Pickup available at Venutec
Usually ready in 24 hours
Walther 32A 230V 2P+E Black Plug 230306SW
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
