The PCE 613-6x is a robust 16A 230V panel inlet with 2P+E configuration housed in a black 70x70mm IP44-rated enclosure. Designed for secure and efficient power connections in industrial and commercial applications it features durable PA6 housing brass contacts and screw terminal connection.
70x70mm flanged CEE panel inlet in black16A rated current 2P+E (3 pole) configuration 200-250V~ / 50+60Hz voltage range IP44 protection against dust and water splashes Durable PA6 plastic housing with brass contacts Screw terminal connection system IEC 60309-2 and ETIM 9.0 EC001319 compliant
70x70mm flanged CEE panel inlet in black
- Rated Current: 16A
- Rated Voltage: 230V (50+60Hz)
- Number of Poles: 3 (2P+PE)
- Clock Position: 6h
- Housing Material: PA6 (Plastic)
- Contact Material: Brass (CuZn)
- Connection Type: Screw Terminals
- Protection Class: IP44
- Dimensions (Flange): 70 x 70 mm
- Fixing Centres: 56 x 56 mm
- Ambient Temperature: -25°C to +40°C
- Wire Capacity (flex): 1–2.5 mm²
- Wire Capacity (solid): 1–4 mm²
- Stripping Length: 10–12 mm
- Contact Torque: 100 Ncm
- IK Code: IK10 (per IEC 62262)

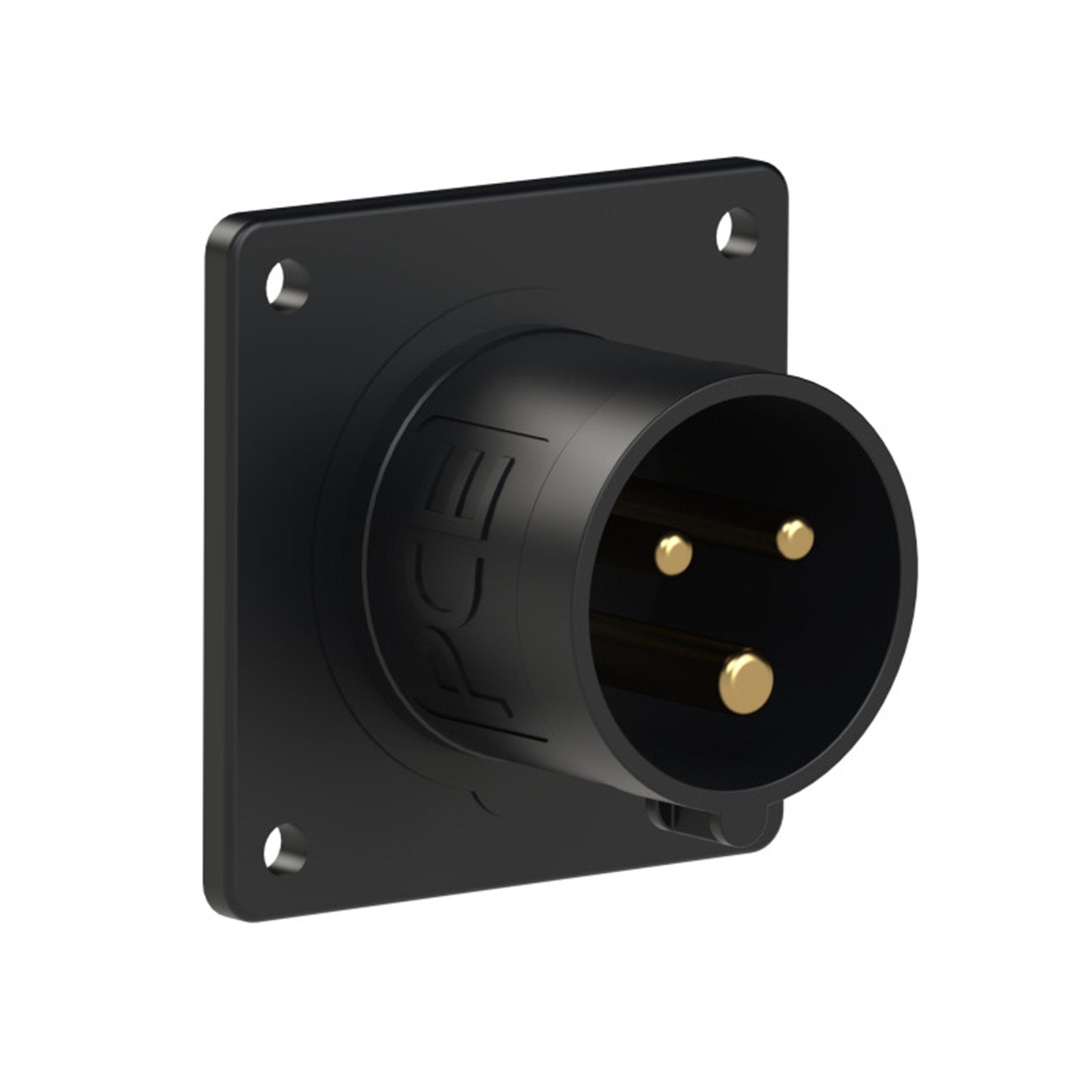

PCE 16A 230V 2P+E Panel Inlet Black (613-6x)
Brand: PCE
SKU: CONN490
Regular price
£8.99
Pickup available at Venutec
Usually ready in 24 hours
PCE 16A 230V 2P+E Panel Inlet Black (613-6x)
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The PCE 613-6x is a robust 16A 230V panel inlet with 2P+E configuration housed in a black 70x70mm IP44-rated enclosure. Designed for secure and efficient power connections in industrial and commercial applications it features durable PA6 housing brass contacts and screw terminal connection.
70x70mm flanged CEE panel inlet in black16A rated current 2P+E (3 pole) configuration 200-250V~ / 50+60Hz voltage range IP44 protection against dust and water splashes Durable PA6 plastic housing with brass contacts Screw terminal connection system IEC 60309-2 and ETIM 9.0 EC001319 compliant
70x70mm flanged CEE panel inlet in black
- Rated Current: 16A
- Rated Voltage: 230V (50+60Hz)
- Number of Poles: 3 (2P+PE)
- Clock Position: 6h
- Housing Material: PA6 (Plastic)
- Contact Material: Brass (CuZn)
- Connection Type: Screw Terminals
- Protection Class: IP44
- Dimensions (Flange): 70 x 70 mm
- Fixing Centres: 56 x 56 mm
- Ambient Temperature: -25°C to +40°C
- Wire Capacity (flex): 1–2.5 mm²
- Wire Capacity (solid): 1–4 mm²
- Stripping Length: 10–12 mm
- Contact Torque: 100 Ncm
- IK Code: IK10 (per IEC 62262)
