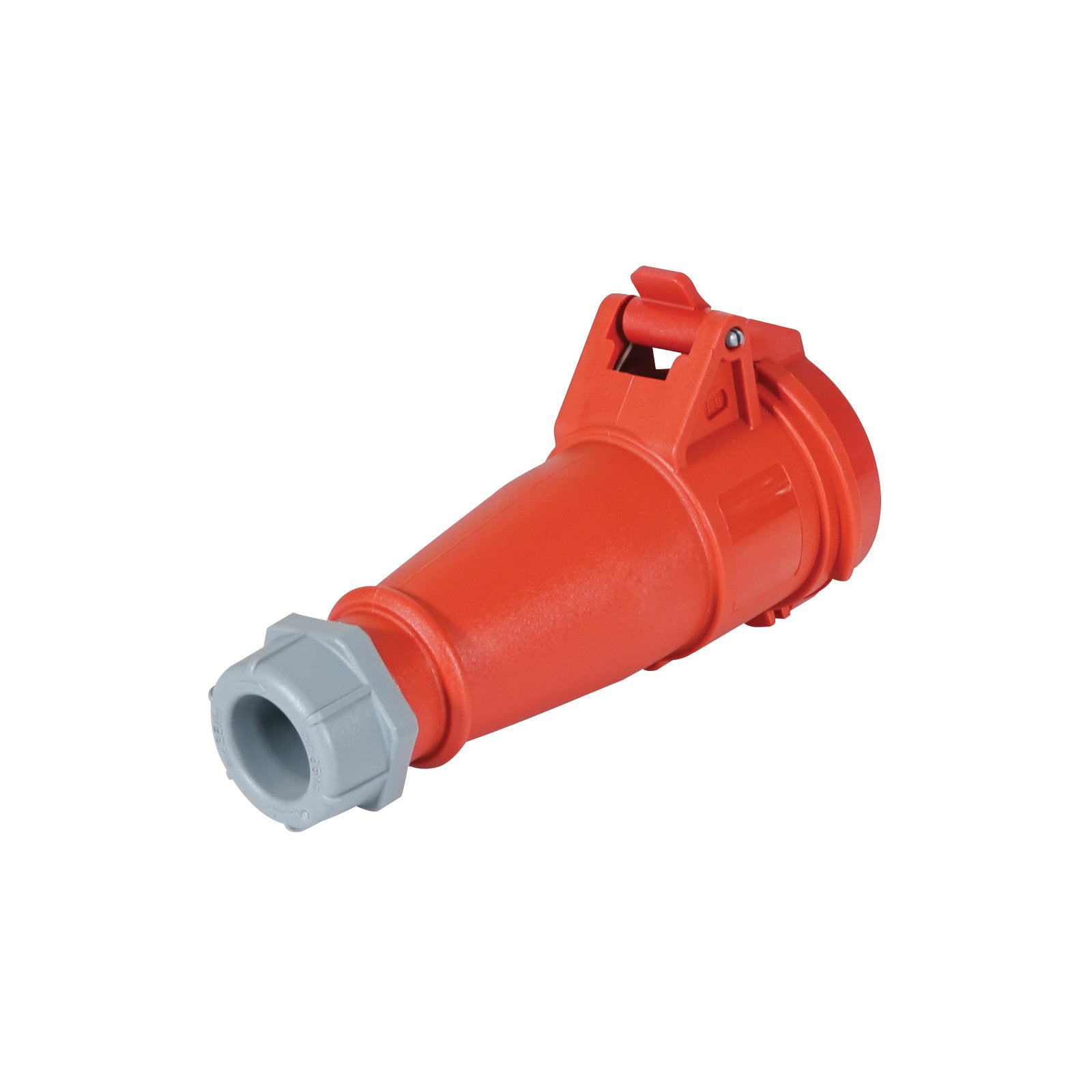

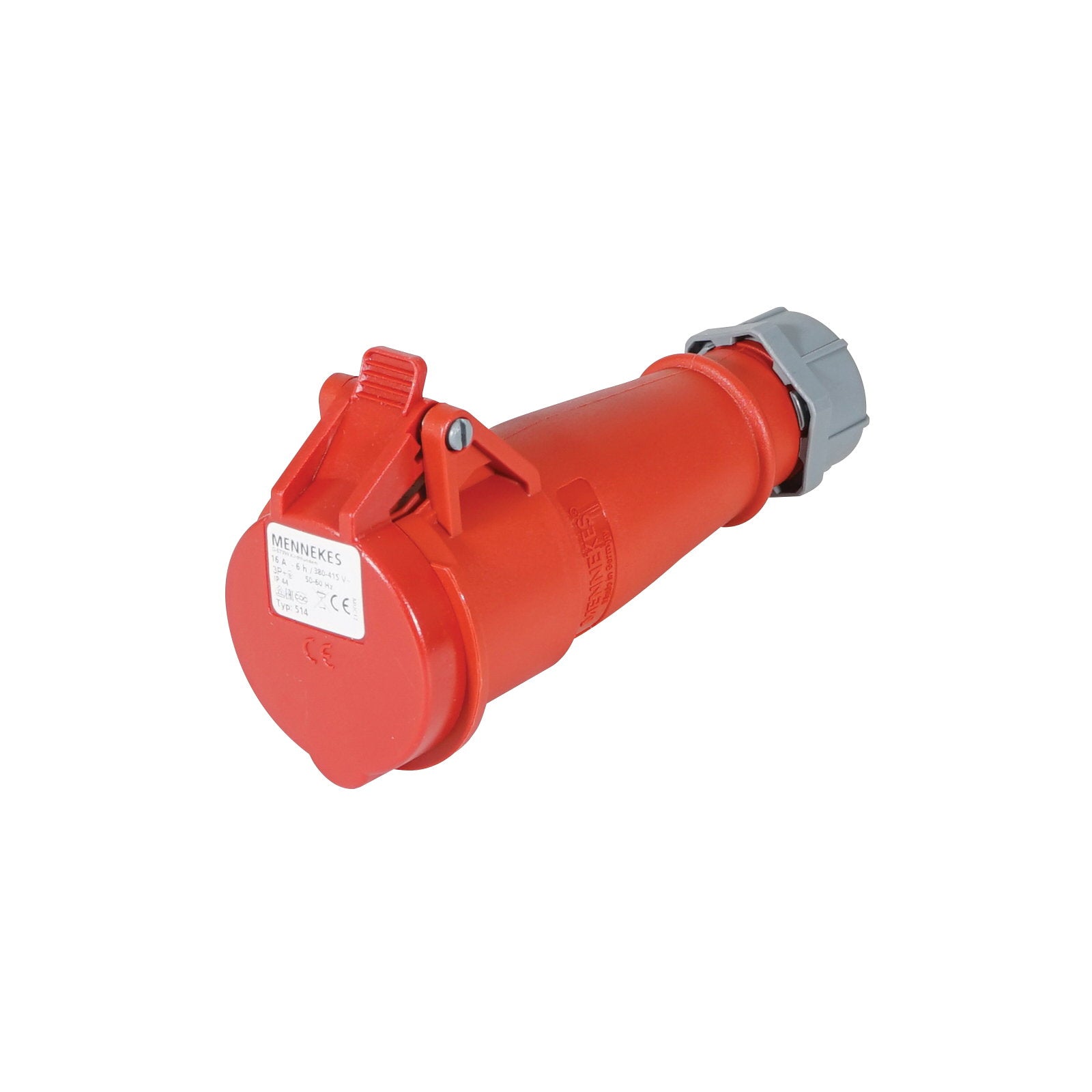

The AM-TOP series of IP44 CEE industrial cable connectors are robust reliable and easy to connect. Featuring open terminal screws all facing in the same direction the AM-TOP series of plugs are terminated quickly in the field. A rugged cable gland at the rear of the plug when tightened grips the cable and seals the gasket at the same time while the integral strain relief prevents cable kinking. Constructed from a heavy-duty Amaplast casing including nickel plated contacts with high heat resistant contact carriers offering excellent corrosion resistance. Ergonomically designed the AM-TOP series of industrial BS4343 plugs perform exceptionally well in the most demanding environments.
16A 415V 3P+E female configuration Screw terminals Single part red body Cable gland and sealing Strain relief and protection against kinking IP44 rated Cable sizes: 1-2.5mm²

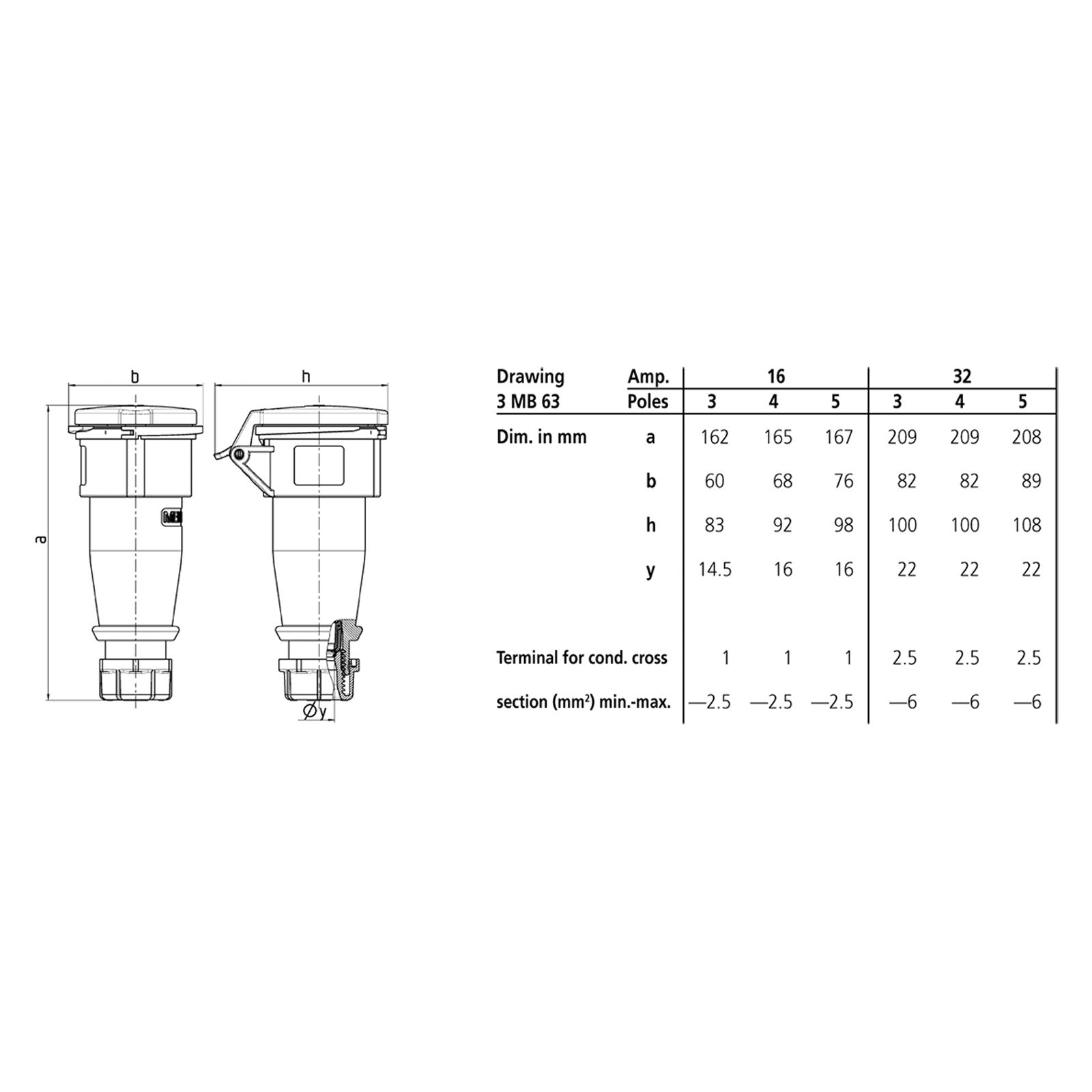

Dimensions: 165 x 92 x 68mm Weight: 0.2kg
16A 415V 3P+E female configuration Screw terminals Single part red body Cable gland and sealing Strain relief and protection against kinking IP44 rated Cable sizes: 1-2.5mm²
Dimensions: 165 x 92 x 68mm Weight: 0.2kg
Mennekes 16A 415V 3P+E IP44 AM-TOP Socket (514)
Brand: Mennekes
SKU: CONN451
Regular price
£11.99
Pickup available at Venutec
Usually ready in 24 hours
Mennekes 16A 415V 3P+E IP44 AM-TOP Socket (514)
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The AM-TOP series of IP44 CEE industrial cable connectors are robust reliable and easy to connect. Featuring open terminal screws all facing in the same direction the AM-TOP series of plugs are terminated quickly in the field. A rugged cable gland at the rear of the plug when tightened grips the cable and seals the gasket at the same time while the integral strain relief prevents cable kinking. Constructed from a heavy-duty Amaplast casing including nickel plated contacts with high heat resistant contact carriers offering excellent corrosion resistance. Ergonomically designed the AM-TOP series of industrial BS4343 plugs perform exceptionally well in the most demanding environments.
16A 415V 3P+E female configuration Screw terminals Single part red body Cable gland and sealing Strain relief and protection against kinking IP44 rated Cable sizes: 1-2.5mm²
Dimensions: 165 x 92 x 68mm Weight: 0.2kg
16A 415V 3P+E female configuration Screw terminals Single part red body Cable gland and sealing Strain relief and protection against kinking IP44 rated Cable sizes: 1-2.5mm²
Dimensions: 165 x 92 x 68mm Weight: 0.2kg
